SUPERATV RZR XP 1000 Primal Soft Cab Enclosure Upper Doors

INSTALLATION INSTRUCTIONS
Notes:
- Hook and Loop Fasteners should be applied at a temperature of 70°F or above.
- Installing and adjusting Soft Cab is easier with two people.
- When cleaning Soft Cab, use soap and water only. Do not use detergent, window cleaner, solvents.
- Do not use a dry cloth or rag on windows.
- Do not fold Soft Cab before storing. Zip windows closed and roll Soft Cab to store.
![]() | [email protected] | ![]() | www.superatv.com |
![]() | 1-855-743-3427 | ![]() | 8:00am – 8:00pm EST M-Th 8:00am – 7:00pm EST Friday 9:00am – 2:00pm EST Saturday |
Read instructions and view illustrations before beginning
Thank You For Choosing![]()

Liability StatementSuperATV’s® products are designed to best fit user’s ATV/UTV under stock conditions. Adding, modifying, or fabricating any factory or aftermarket parts will void any warranty provided by SuperATV® and is not recommended. SuperATV’s® products could interfere with other aftermarket accessories. If user has aftermarket products on machine, contact SuperATV® to verify that they will work together. |

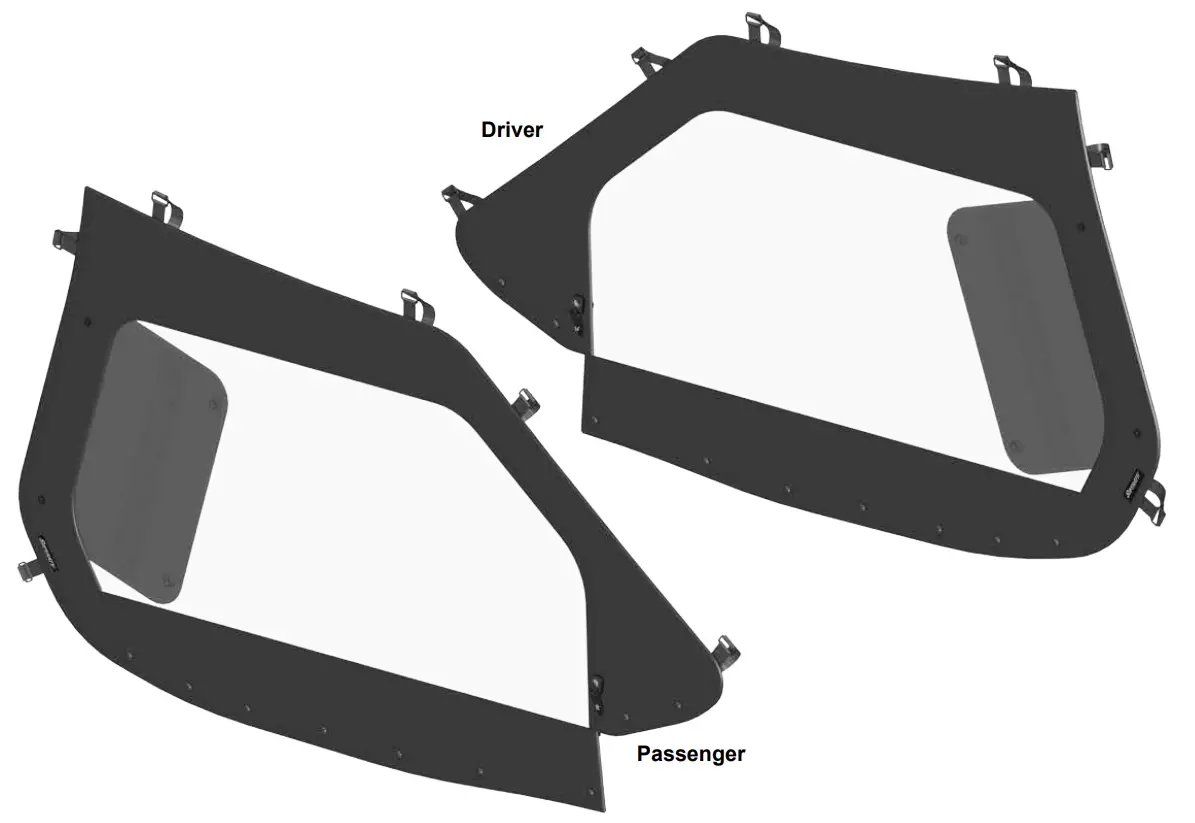

passenger side installation shown
repeat steps for driver side

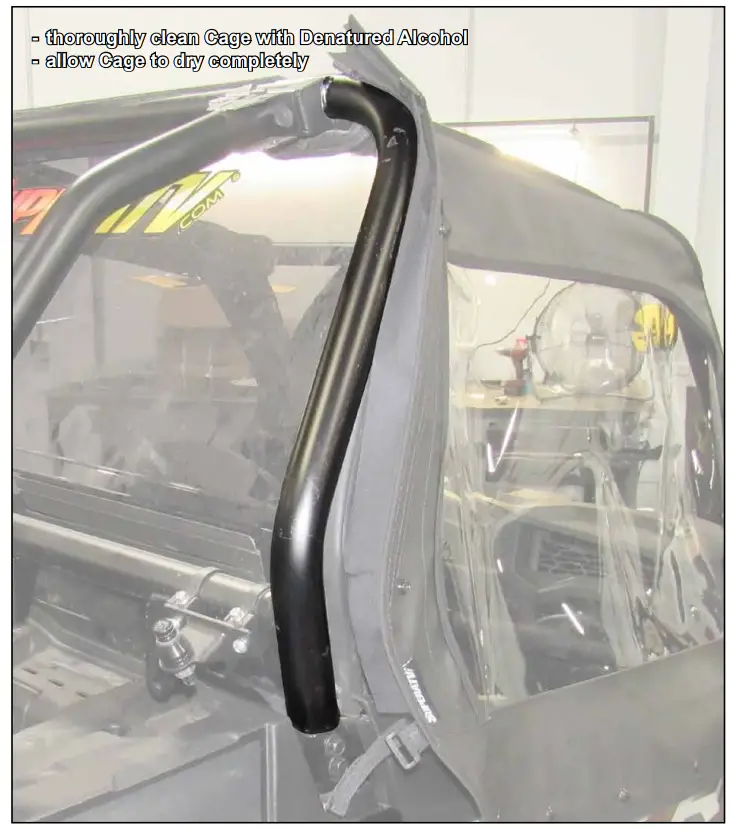

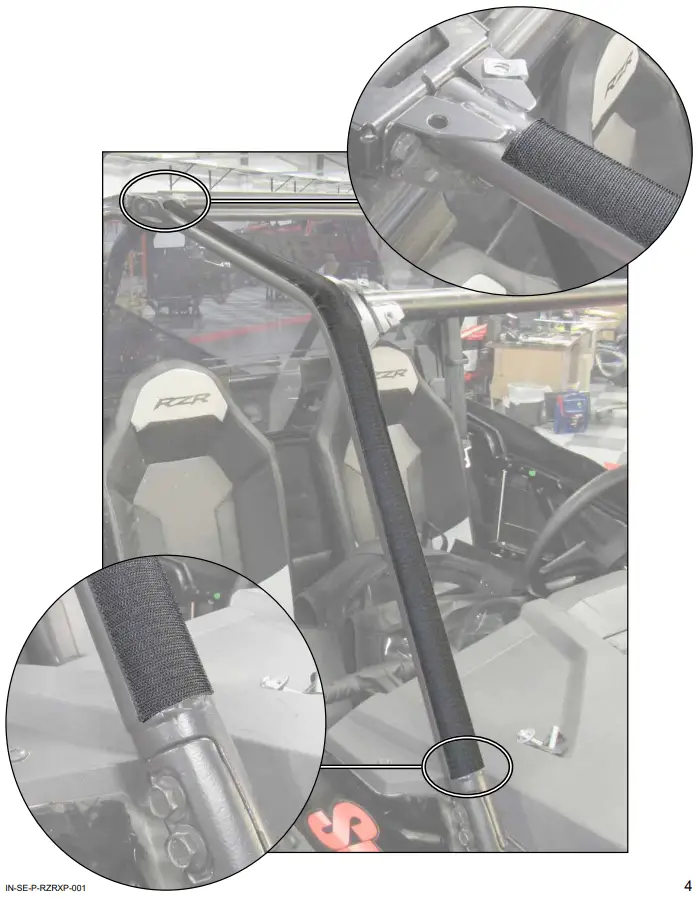

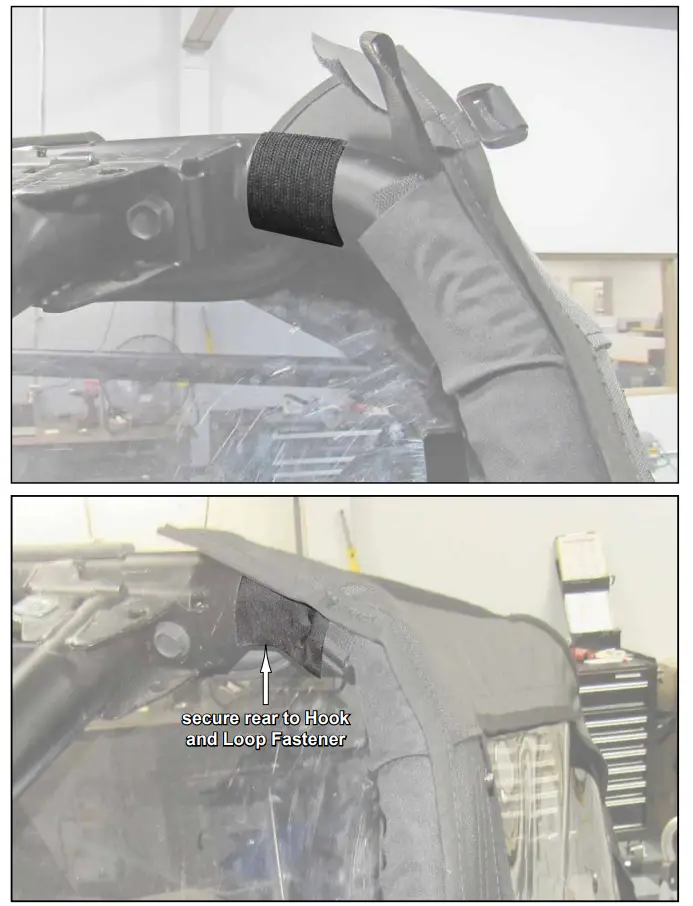

- Place Hook and Loop Fastener at bottom of Cage, in location shown, and route to top of Cage in location shown.
- Mark end point onto Hook and Loop Fastener; approximately 51”.
- Cut Hook and Loop Fastener.
- Peel backing from Hook and Loop Fastener and install to Cage.



leave straps on Soft Cab loose

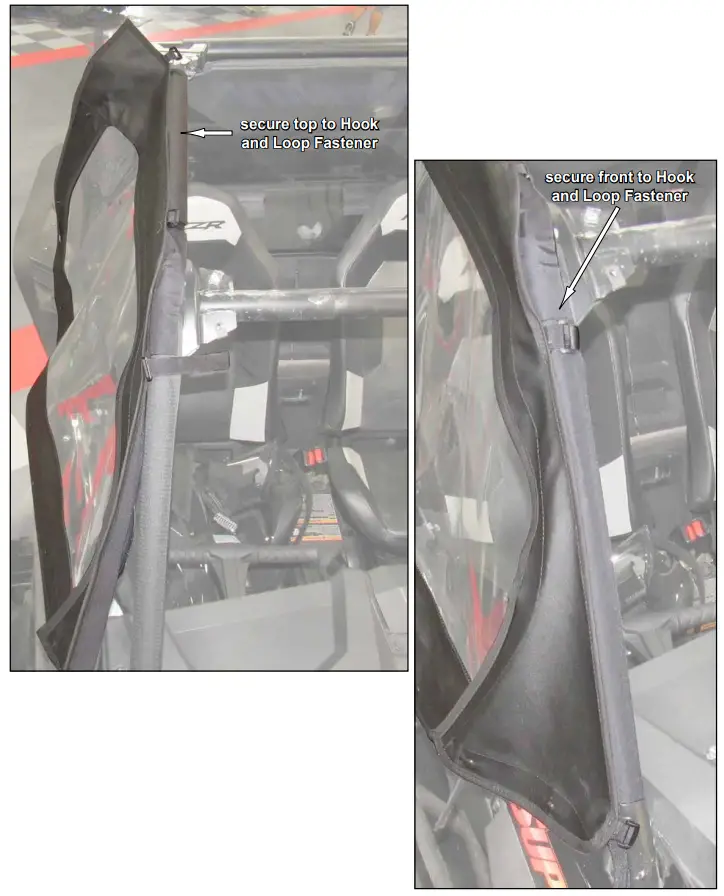

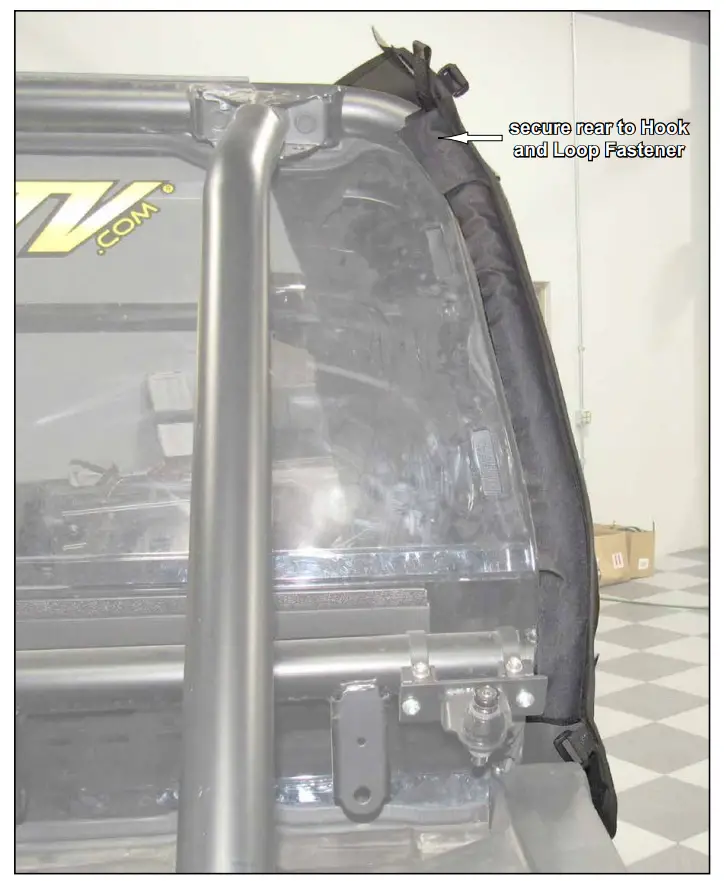

- Place Hook and Loop Fastener at bottom of Cage, in location shown, and route to top of Cage in location shown.
- Mark end point onto Hook and Loop Fastener; approximately 22-1/2”.
- Cut Hook and Loop Fastener.
- Peel backing from Hook and Loop Fastener and install to Cage.


leave strap on Soft Cab loose

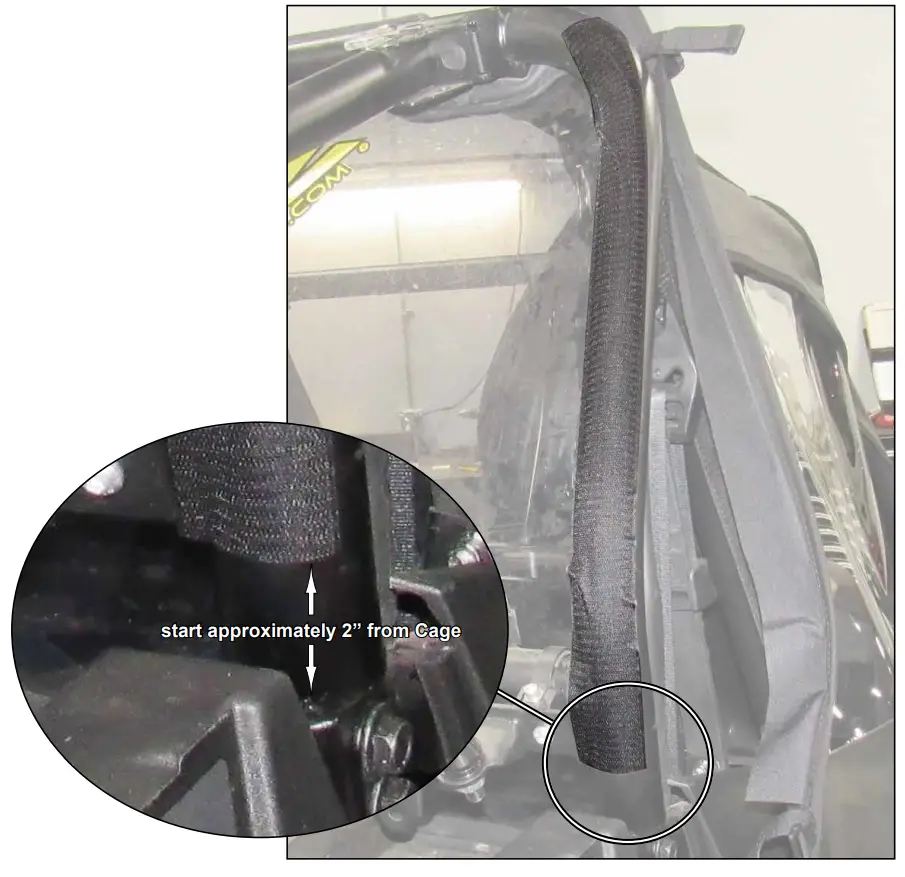

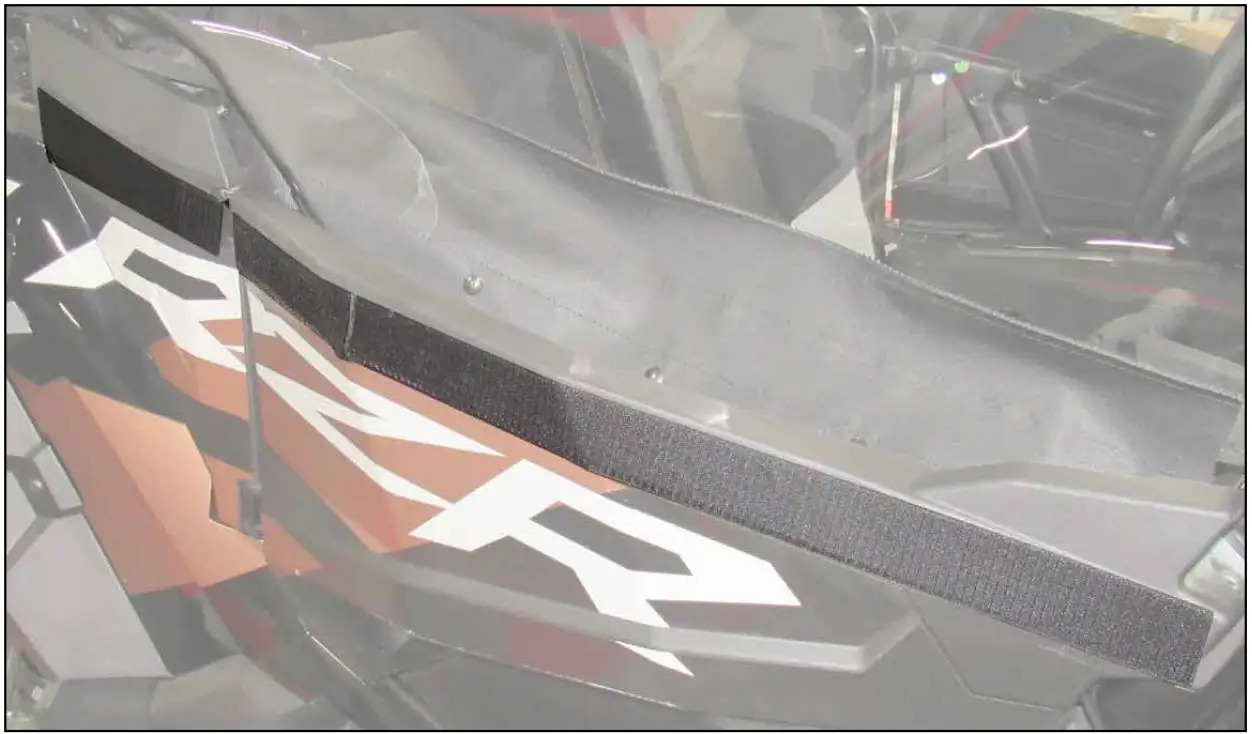

- Cut Hook and Loop Fastener to fit remaining portion of Cage.
- Peel backing from Hook and Loop Fastener and install to Cage.


leave strap on Soft Cab loose

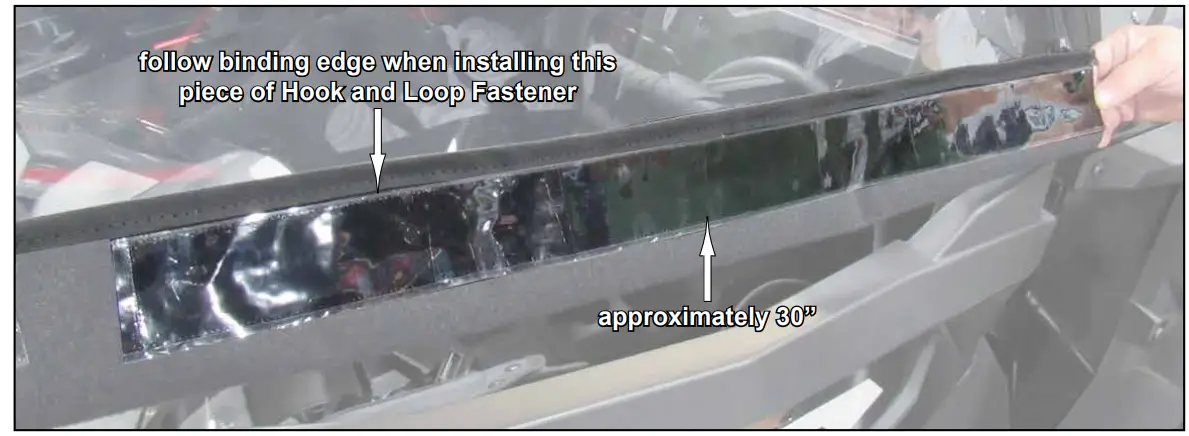

- Peel backing from Hook and Loop Fasteners.

wait 15 – 30 minutes for adhesive to setup

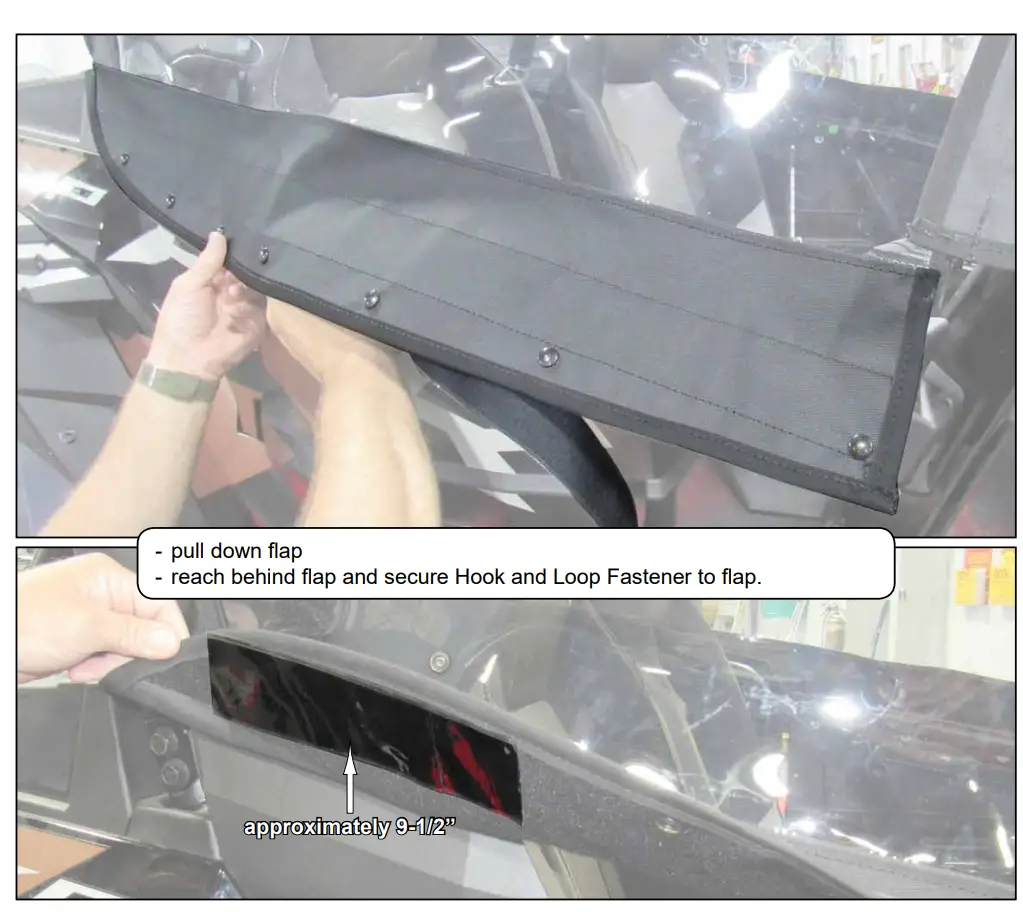

- Carefully open flap; use one hand to gently separate Hook and Loop Fastener from flap and plastic while opening.
- Apply more heat to Hook and Loop Fastener.


wait 15 – 30 minutes for adhesive to setup
- Carefully open flap; use one hand to gently separate Hook and Loop Fastener from flap and plastic while opening.
- Apply more heat to Hook and Loop Fastener.





cinch all straps down on Soft Cab
repeat steps for driver side

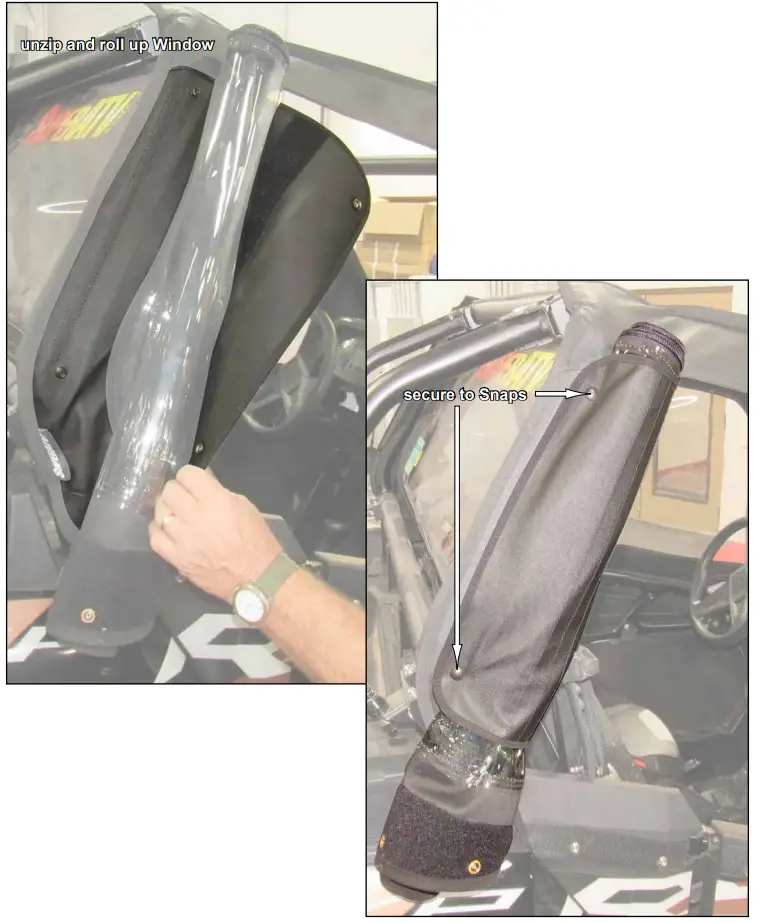

Windows must be rolled up when trailering machine
