Levenhuk M500 Base Microscope Digital Camera User Manual

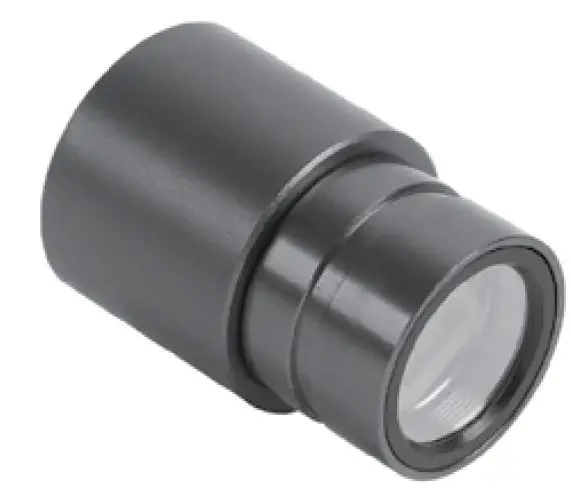

levenhuk M500 BASE Microscope Digital Camera

Never look at the sources of bright light or lasers through the camera or the microscope: it will cause PERMANENT DAMAGE TO YOUR EYES!

Levenhuk eyepiece digital cameras have been designed exclusively for microscopes. They can be installed on any type of optical microscope, be it biological or metallurgical, mono or stereo microscope. The observed view may be transferred directly to your PC, and with the software included in the kit you can view and edit the resulting image.

Features

• Levenhuk M BASE Series includes cameras with resolutions ranging from 0.3 to 5 megapixels;
• The camera allows you to watch images on the screen in a real-time mode, and to capture photos and videos;
•  The camera renders realistic colors with high level of detail;
• Levenhuk M BASE Series cameras are compatible with microscopes of 23.2mm eyepiece tube diameter (the camera is installed in place of the eyepiece);
• The standard kit includes Levenhuk software necessary to view and edit your images (brightness, image size, etc.);
• The camera can be charged and connected to your PC with USB-cable.

Package

Levenhuk digital camera, USB cable, installation CD (setup wizard, drivers, software), user manual and warranty.

System requirements
Mac OS 10.12, Linux Ubuntu 14.04, Windows Vista/7/8/10/11 (32-bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.

Care and maintenance

• Never look at the sources of bright light or lasers through the camera or the microscope: it will cause PERMANENT DAMAGE TO YOUR EYES!
• Do not disassemble the camera on your own.
• Keep the camera away from moisture; do not use it in rainy weather.
• Keep the camera away from shock or excessive pressure.
• Do not overtighten the locking screws.
• Keep the camera away from hazardous environments, home and car heaters, incandescent lamps or open fire.
• When cleaning the lenses, first blow any dust or debris off the surface or wipe them off with a soft brush. Then wipe the lens with a soft cleaning cloth slightly damp with spirits or ether.
• Seek medical advice immediately if a small part or a battery is swallowed.
  Warranty: lifetime. For further details, please visit our website: www.levenhuk.com/warranty

SPECIFICATION

• Max. resolution (for still images), 2592×1944
• Megapixels 5
• Sensor 1/2.5“ CMOS
• Pixel size, μm 2.2×2.2
• Exposure time, ms
• Video recording
• Frame rate, fps 2@2592×1944

The manufacturer reserves the right to make changes to the product range and specifications without prior notice.

www.levenhuk.com
Levenhuk Inc. (USA): 928 E 124th Ave. Ste D, Tampa, FL 33612, USA, +1 813 468-3001, [email protected]
Levenhuk Optics s.r.o. (Europe): V Chotejně 700/7, 102 00 Prague 102, Czech Republic, +420 737-004-919, [email protected] Levenhuk® is registered trademark of Levenhuk, Inc.
© 2006—2022 Levenhuk, Inc. All rights reserved. 20220324
