In-ceiling Housing
SHD-1350FPW

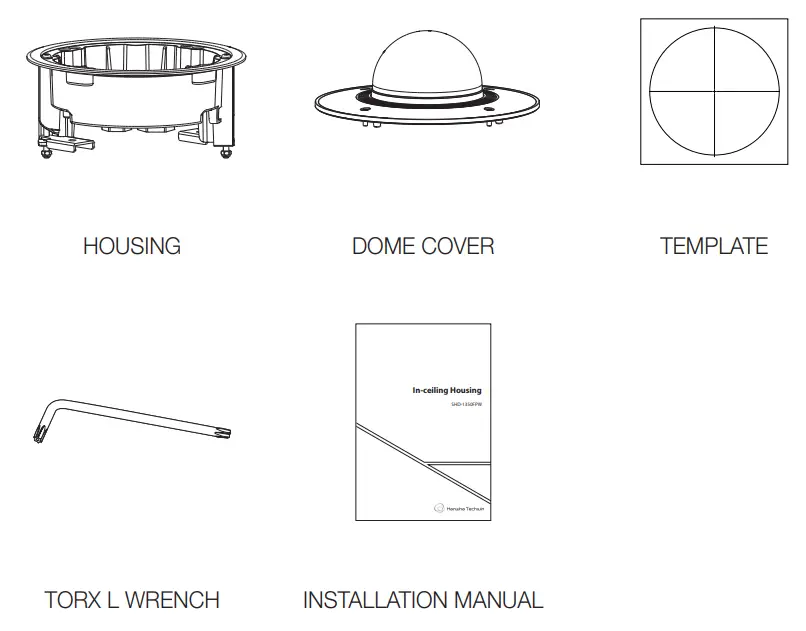

Package

Product Features

This In-Ceiling Housing is a mounting adaptor that is designed to mount the smart dome camera in built-in style on a double-layer ceiling. (For compatible models, please visit our website.)

Installation Precautions

• Select an installation position or place that can endure more than 4 times of the total weight of the installation structure.

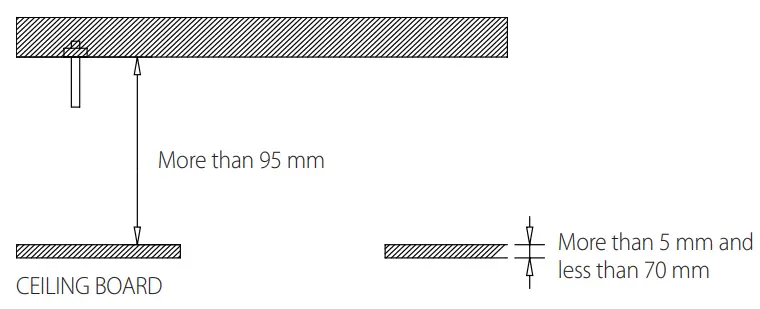

• At least 95mm or more of spare height is required above the CEILING BOARD.
• Be sure to secure the SAFETY WIRE to avoid a product fall.
• Use the provided screws to install the mount bracket and camera.
• CEILING BOARD must be able to sustain the weight of at least 6.5 kg.

Installation

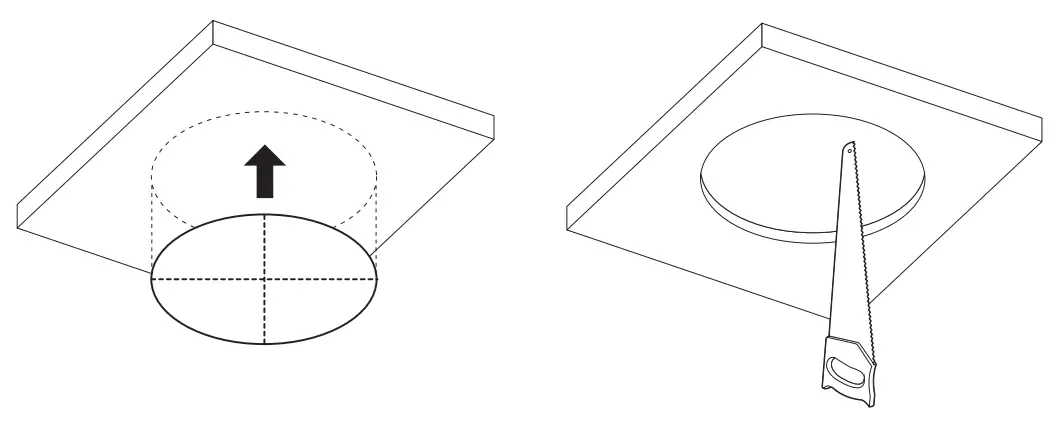

1. Attach the TEMPLATE on the CEILING BOARD and drill a guided hole.

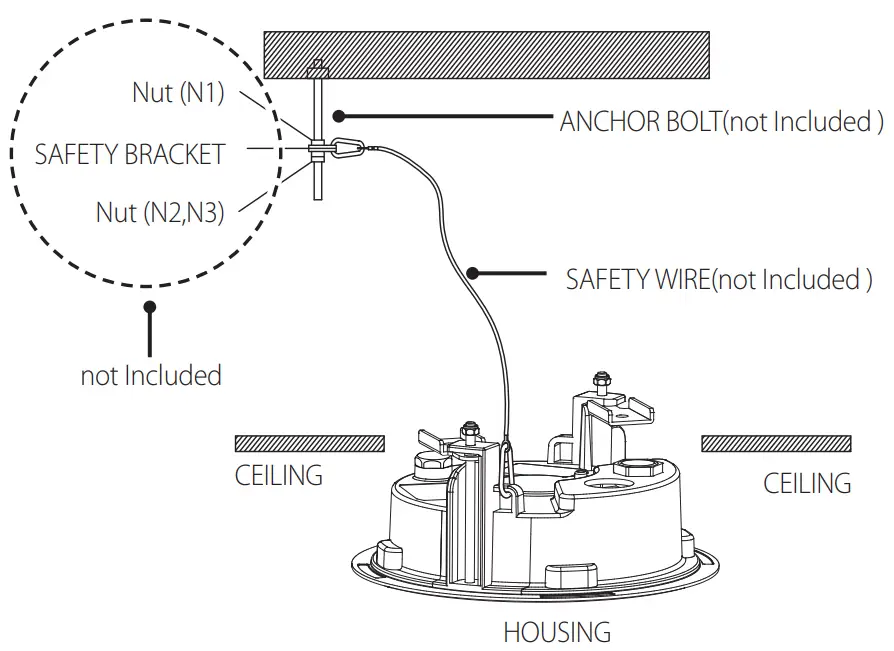

Fix the ANCHOR BOLT onto the concrete CEILING, and secure the SAFETY WIRE to the ANCHOR BOLT as below:

1. Tighten the NUT (“N1”) on the ANCHOR BOLT.
2. Insert the SAFETY BRACKET into the ANCHOR BOLT.
3. Tighten two NUTs (“N2”,”N3”) onto the ANCHOR BOLT.
4. Hook and fix one end of the SAFETY WIRE onto the SAFETY BRACKET.
5. Hook and fix the other end of SAFETY WIRE onto the HOUSING as shown below:

ANCHOR BOLTS must be able to sustain the weight of at least 30 kg.
If you proceed without following the instructions in the manual, that is if you work with the camera body already attached from the beginning, the safety wire could exceed its  limit and be broken when the housing is accidentally dropped, which could result in an accident.

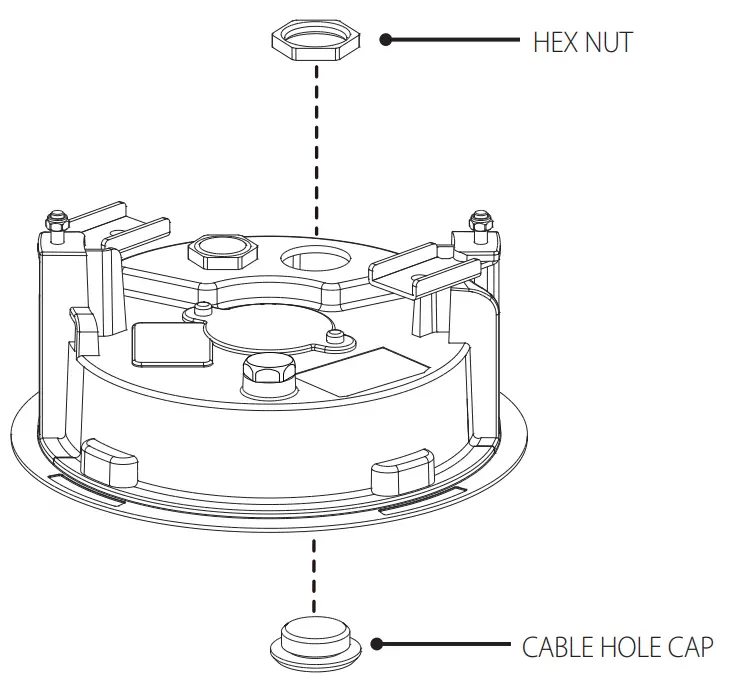

After checking the hole size to use, remove the cap and the hex nut.

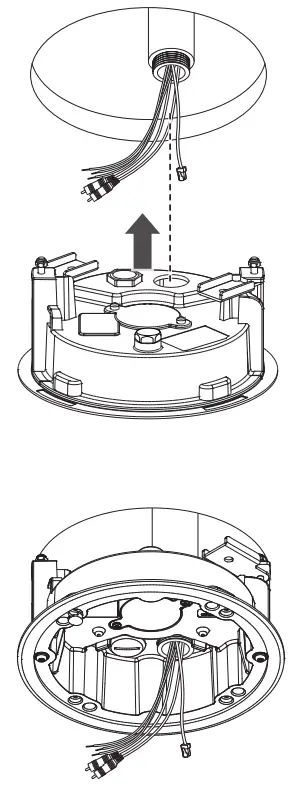

To connect to the camera, insert external connection cables through the CABLE HOLE on the housing to the inside of the HOUSING as shown in the figure.

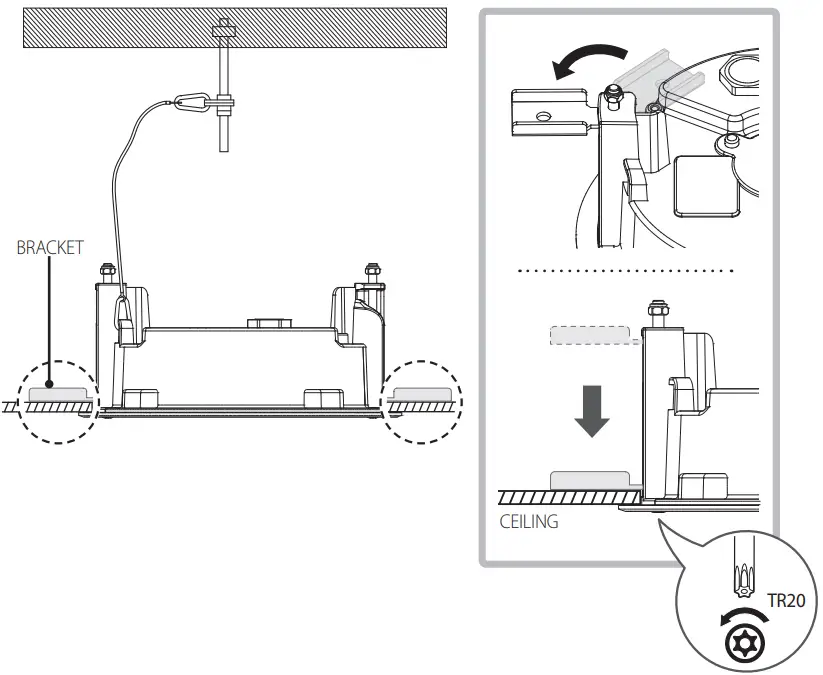

Push the HOUSING inside the CEILING through the CEILING hole, and tighten the SCREWs (x2) clockwise to fix the HOUSING on the CEILING.
(Adjust the height of the bracket to secure the housing to the ceiling.)
Using a power tool for installation could cause product damage.
If you are going to use a power tool, the torque must be 30 Nm or less.
Ensure that the HOUSING is firmly secured to the CEILING BOARD.

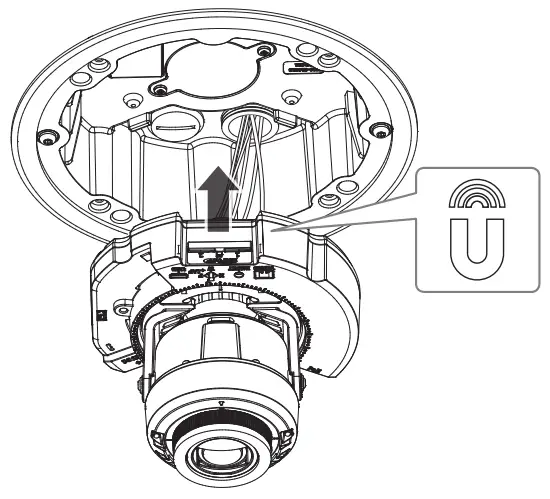

Attach the camera module to the HOUSING.
• Applicable model
– XND-6083RV / XND-8083RV / XND-8093RV / XND-9083RV

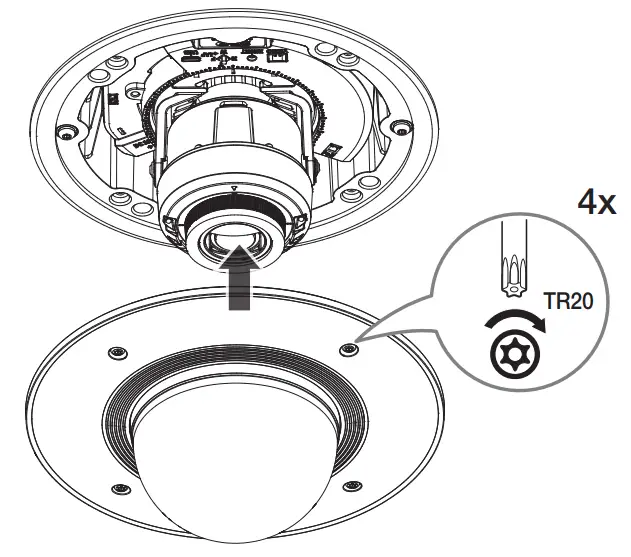

Assemble the dome cover.
