YA80 Industrial Audible Signal
Product Information

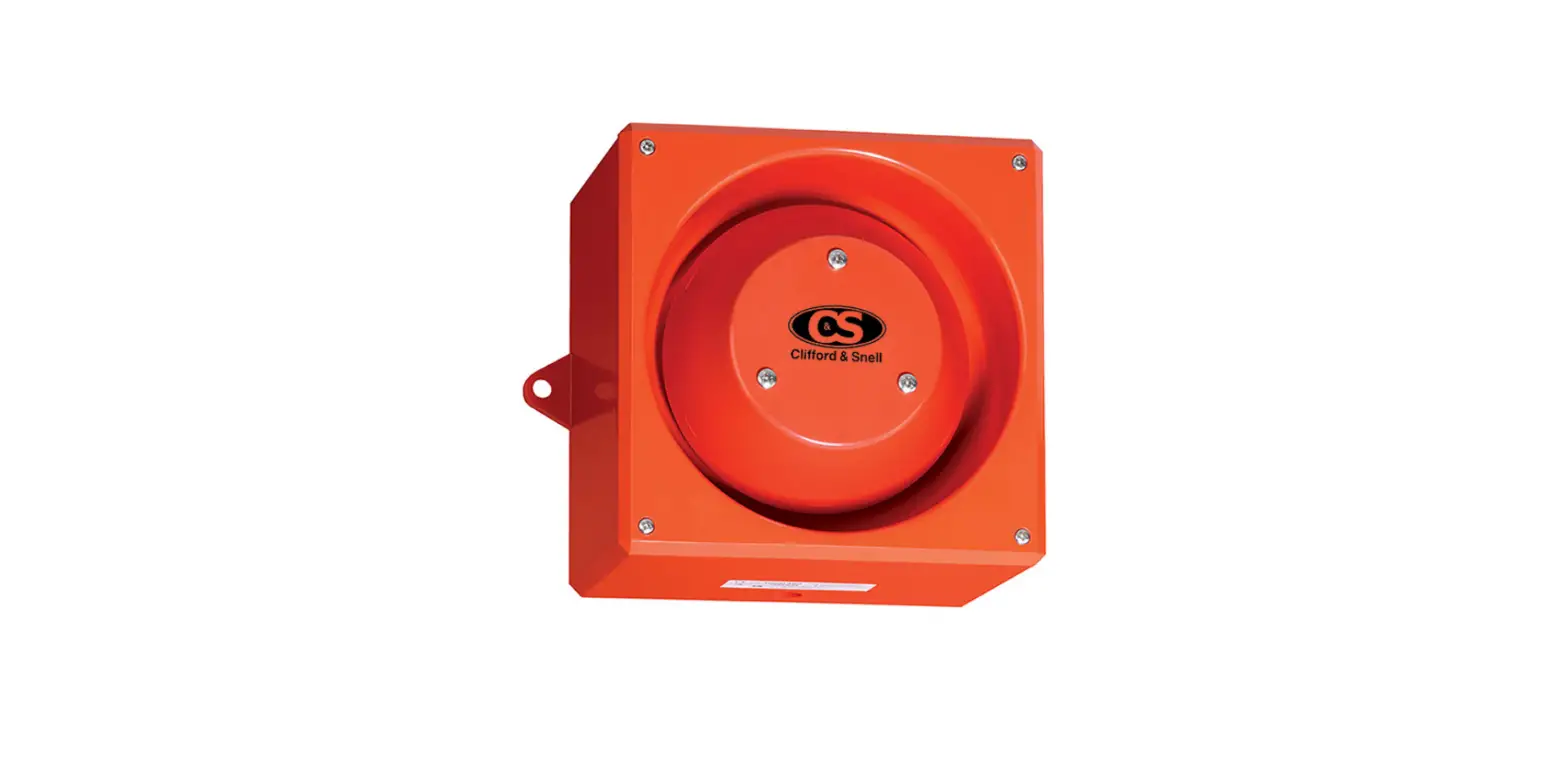

The YO8 Yodalarm & Yodalight Series is a range of audible
and/or visual signaling devices manufactured by Clifford &
Snell. These devices are designed to provide effective alarm
notification in various applications.
The YO8 series incorporates the YA80 and YL80 models, which are
approved and conform to the EN54-3 standard. They are suitable for
use in commercial and industrial settings.
For more information, please visit the official website:
www.moflash.com
Contact technical support at: [email protected]
Product Usage Instructions
- Prior to installation, it is essential to read and understand
the installation and technical information provided in the user
manual. - Ensure that the ferrite beads are correctly installed. Use one
wire per hole. Failure to install the ferrite beads properly may
result in the unit not complying with the EN54-3 approval. (YL80
Ferrite Beads are factory installed). - If using the audible signaling device (YA80), connect the wires
according to the wiring diagram provided. - If using the visual signaling device (YL80), ensure that SW1
& SW2 are configured to the same tone for the sounder to
operate in conjunction with the visual indication. - Refer to the user manual for additional configuration options
and troubleshooting guidelines.
C& S
Clifford & Snell
INSTALLATION & TECHNICAL INFORMATION
PLEASE READ PRIOR TO INSTALLATION
YO8 Yodalarm & Yodalight Series
(Incorporating YA80 and YL80)
AUDIBLE AND/OR VISUAL SIGNALLING DEVICES S00625 Issue 4
APPROVALS AND CONFORMITIES
www.moflash.com
Installation · Installation must be carried out in accordance with the latest codes of practice by a
qualified electrician. · Check that the power supply is correct for the voltage rating of the alarm to be
installed. · Ensure that the power supply is disconnected prior to installation or maintenance to
avoid electrical shock. · The unit should be mounted to a wall or bulkhead formed of suitable material using
the two mounting lugs projecting from the side of the enclosure. · The lugs have an 10mm diameter mounting hole & sit on 250mm centres. The
minimum recommended length of fixing screw is 30mm (not supplied). · Avoid mounting the alarm where it could subjected to excessive vibration levels. · All YA80 units require 2 additional ferrite beads (included in box) to be fitted on all input
wires, 1 wire per hole. Failure to correctly install the ferrite beads will result in the unit not complying with the EN54-3 approval. (YL80 Ferrite Beads are factory installed).
Ingress Protection To maintain the IP rating of the product, the below points must be observed. · An IP66 cable gland is supplied with the product. This gland (or other suitably rated)
must be used. · When replacing the front cover, each of the four retaining screws must be torqued
to 0.6Nm ±0.1Nm
Sound selection · Ensure the supply is OFF before proceeding. · All DC and AC units have 2 selectable alarm stages (see table on back of installation
sheet for details) and are set via switches SW1 & SW2. · Figure 1 (DC) & Figure 3 (AC) show wiring to activate alarm stages 1 & 2. · Figure 2 shows a second option for DC wiring. This allows for activating a stage 1 or
a stage 2 alarm tone depending on the polarity of the connection. · All stage 1 alarm tones have a predetermined stage 2 alarm (see back of installation
sheet), this will only sound if SW1 & SW2 are configured to the same tone.
Line integrity for DC systems only · For 3 wire 2 stage alarm system, monitor via reverse polarity across TB1 & TB2. · For 2 wire 2 stage alarm system, monitor via threshold, (applied voltage<1v) an end-
of-line (E.O.L) resistor is required for line monitoring and should have a minimum resistance of 3k3 ohms and 0.5watts, wire-wound or metal film type.
AC Systems · A second stage alarm tone can be activated by applying an additional “L” connection
to the TB3 terminal on the PCB, as shown in Figure 3.
Additional Voltage Options · The Clifford and Snell YO8 series is also available in a 48vDC (F) option. · The wiring for this voltage is the same as the 24vDC units as shown in Figure 1. · Always confirm correct voltage is applied to relevant terminals.
2 S00625 Issue 4
YA80 Wiring options
Figure 1: DC Connection (Option 1)
Figure 2: DC Connection (Option 2)
Figure 3: AC Connection
Figure 2 functionality
Polarity dependant for stage output. See table for connections
TB3 TB4 Output 0v +v Stage 1 +v 0v Stage 2
Figure 1 & 3 functionality
Close SW-A to activate stage 1 tone. Close SW-A & SW-B to activate stage 2 tone. SW-A & SW-B used as an example of customer external switching equipment.
YO8 Yodalarm/Yodalight Series Consists of either the YA80 (Audible Unit only) or the YL80 (Combined Audible & Visual unit)
Connections for the YL80 units are made via a 6 way Terminal Block mounted in the base of the unit as shown in Figure 4 diagram below. Using connections shown, it is possible
to independently control both Sounder and Beacon sections.
YL80 Wiring options
AC Connections Terminal
DC Connections (Option 1)
DC Connections (Option 2)
Stage 1 Stage 2 Stage 1 Stage 2 Stage 1 Stage 2
6
N
N
0v
0v
5
L
L
+ve
+ve
4
L
+ve
+ve
0v
3
0v
+ve
Figure 4: Terminal block for YL unit connections
Features Include: · Termination: · Operating Temperature:
· Enclosure Material: · Lens Material: · Ingress Protection: · Sound Pressure Level: · Volume Control Adjustment: · AC Supply:
Beacon Connections
Terminal AC DC
1
L +ve
2
N 0v
Up to 2.5mm2 cable Standard Variants -25oC to +70oC
EN54-3 Approved -25oC to +55oC Fire Resistant & UV Stable UL94-5VB rated ABS Fire Resistant & UV Stable Polycarbonate Weatherproof to IP66
117dB(A) Max. -18dB 50/60 Hz
3 S00625 Issue 4
Tone Table
Tone Description
1*
Alternating
2
Alternating
3
Alternating (fast)
4
Alternating (fast)
5*
Alternating
6
Alternating
7
Alternating (v.fast)
8
Alternating (v.fast)
9
Alternating
10
Continuous note
11*
Continuous note
12
Continuous note
13
Continuous note
14
Continuous note
15*
Interrupted tone
16*
Interrupted tone
17
Interrupted tone
18
Interrupted tone
19
Interrupted tone
20
Interrupted tone
21
Interrupted tone
22
Interrupted tone
23
Interrupted tone
24
Interrupted tone
25
Int,fast,rising volume
26
Fast siren
27
Rising constant, fall
28*
ISO 8201 Evacuation
29
Fast whoop
30*
Slow whoop
31*
Reverse sweep
32
Siren
Frequency Rept.
(Hz)
rate
800-1000 2500-3100 800-1000 2500-3100 440-554
0.5 0.5 0.25 0.25 0.4/0.1
430-470
1
800-1000
0.13
2500-3200
0.07
440-554
2
700
–
1000
–
1000
–
2300
–
440
–
1000
2
420
1.25
1000
0.5
2500
0.25
2500
0.5
700
6/12
1000
1
700
4
700
0.25
720
0.7/0.3
1400
0.25
250-1200
0.085
1000
10/40/10
800-1000
as std
500-1000
0.15
500-1200
4.5
1200-500
1
500-1200
3
Second Stage
1
3
I
4
O
7
I
8
O
14
I
14
O
12
I
13
O
10
I
1
O
31
I
7
O
2
I
9
O
31
I
30
O
1
I
4
O
2
I
10
O
32
I
10
O
10
I
10
O
26
I
11
O
17
I
11
O
32
I
12
O
11
I
26
O
Switches
234
I
I
I
I
I
I
OI
I
OI
I
IOI
IOI
OO I
OO I
I
IO
I
IO
OIO
OIO
I OO
I OO
OOO
OOO
I
I
I
I
I
I
OI
I
OI
I
IOI
IOI
OO I
OO I
I
IO
I
IO
OIO
OIO
I OO
I OO
OOO
OOO
Special Application
5 I Fire Alarms I Security Alarms I Increased urgency I Security deterrent I AFNOR, France (NFS 32001) I I I I Turn-out, Sweden I All-clear, Sweden I I I I I I AS2220, Australia O O O O Pre-vital mess, Sweden O O Air-raid, Sweden O Local warning, Sweden O Industrial alarm, Germany O O O Industrial alarm, Germany O Int’l evacuation alarm O O Evacuation, The Netherlands O Evacuation, Germany O
dB(A) @ 1m (± 3dB)
116 108 117 108 108 107 116 107 110 110 116 116 113 105 115 105 115 111 111 111 116 110 110 110 112 113 117 116 113 116 115 116
Note: EN54-3 Compatible Tones are marked above with *.
Moflash Signalling Limited accepts no liability for any consequences following use of this document. Any technical specifications and products referred to within this document are subject to change without notice due to continual improvement and product development policies. All dB(A) figures are subject to environmental conditions. The units are sold under Moflash standard conditions of sale, available on request.
Additional resources, including installation sheet translations, certificates and DoCs are available from the www.moflash.co.uk website.
Moflash Signalling Limited, 11 Upper Conybere Street, Highgate, Birmingham, B12 0EB, UK
4 S00625 Issue 4
