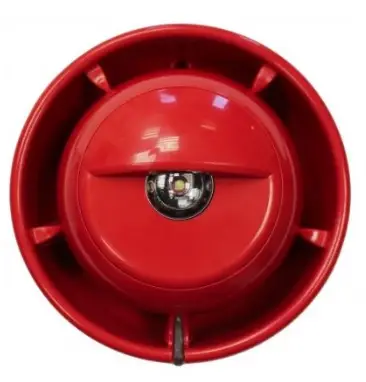

SmartCell Sounder and Wall Beacon

SmartCell-Sounder-and-Wall-Beacon-PRODUCT

Part number

SC-32-0110-0001-99 SC-32-0120-0001-99 SC-32-0210-0001-99 SC-32-0220-0001-99

Product description

  • SmartCell RED Sounder and Wall Beacon (VAD RED Flash)
  • SmartCell RED Sounder and Wall Beacon (VAD WHITE Flash)
  • SmartCell WHITE Sounder and Wall Beacon (VAD RED Flash)
  • SmartCell WHITE Sounder and Wall Beacon (VAD WHITE Flash)

Pre installation

  • SmartCell-Sounder-and-Wall-Beacon-FIG-1Installation must conform to applicable local installation codes and should only be installed by a fully trained competent person.
  • The use of a non-metallic spacer should be considered if mounting the device on to a metal surface.
  • This device contains electronics that may be susceptible to damage from Electrostatic Discharge (ESD). Take appropriate precautions when handling electronic boards.
  • This device is suitable for wall mounting only. Ceiling mounted variants are also available.
  • To ensure correct operation, products must be used within the specified environmental operating conditions.

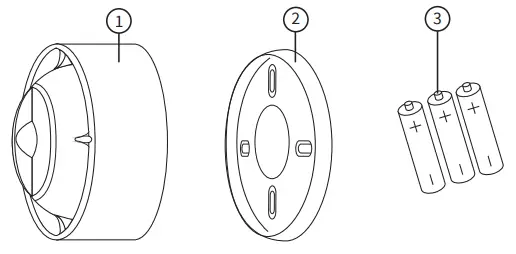

Components

SmartCell-Sounder-and-Wall-Beacon-FIG-2

  1. Sounder and wall beacon
  2. Mounting plate
  3. Batteries (not included in some regions*)

When batteries are not supplied, only fit specified batteries.

Remove mounting plate

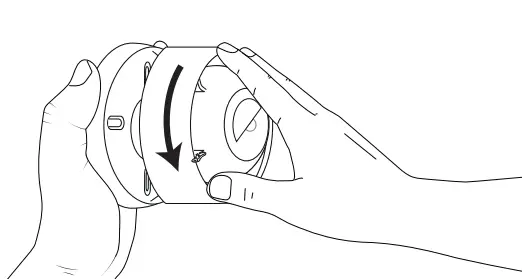

  • Remove the mounting plate by turning the device ANTICLOCKWISE, to release it from the mounting plate. SmartCell-Sounder-and-Wall-Beacon-FIG-3

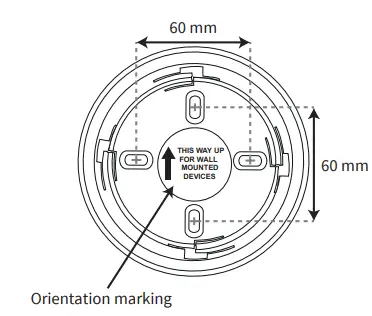

Fix mounting plate

  • When fixing to the wall, all four fixing positions should be used to ensure a firm fixing.
  • Where existing electrical mounting boxes are present, two fixing positions may be used.
  • Use suitable fasteners and fixings.
  • Observe the orientation marking!SmartCell-Sounder-and-Wall-Beacon-FIG-4

Fit batteries

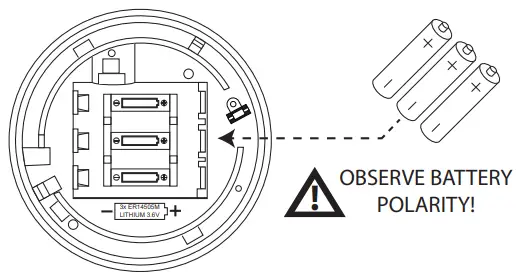

  • When fitting / replacing batteries, observe correct polarity, using only specified batteries.SmartCell-Sounder-and-Wall-Beacon-FIG-5

Configuration

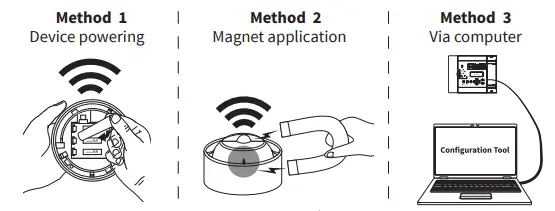

The device must now be added (programmed) to the control panel.SmartCell-Sounder-and-Wall-Beacon-FIG-6

  • Refer to the programming manual for full programming details.
  • SmartCell panel = TSD155
  • SmartCell WZM = MK067

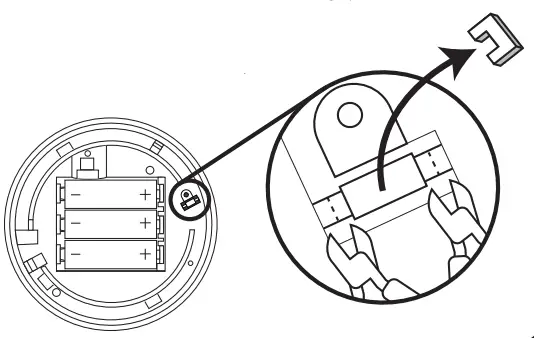

Optional device locking

  • The device includes an optional locking mechanism.
  • Remove the thin section of plastic shown below.
  • Once locked, the Allen key will be required to unlock the device.SmartCell-Sounder-and-Wall-Beacon-FIG-7

Completing the installation

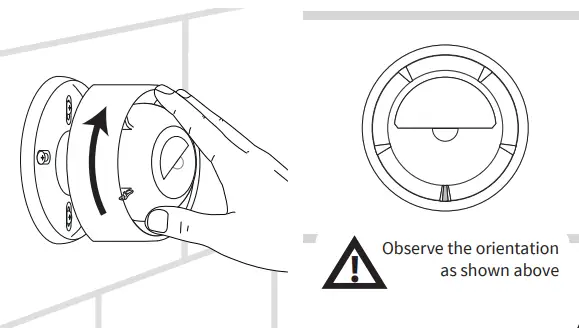

  • Reassemble the device as shown below.SmartCell-Sounder-and-Wall-Beacon-FIG-8

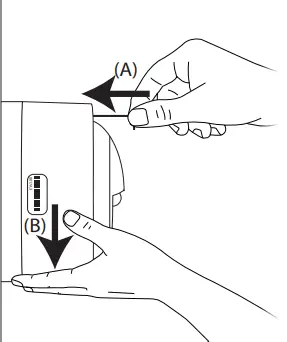

Device unlocking

  • If the device has been locked, an Allen key will be required for unlocking.
  • Depress the locking mechanism, by inserting the Allen key, or similar, into the device’s cavity and pushing (A).
  • Simultaneously twist the device anti-clockwise to release (B).SmartCell-Sounder-and-Wall-Beacon-FIG-9

IMPORTANT

  • The device should be tested upon installation, in accordance with local requirements.
  • Testing should only be carried out by a fully trained competent person.

Specification

  • Operating temperature -10 to +55 °C
  • Storage temperature
    • With batteries -10 to +30 °C
    • Without batteries -10 to +55 °C
  • Humidity 0 to 95% noncondensing
  • Location Type B: for indoor/outdoor use
  • IP rating IP33
  • Supply 3 x ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or Titus)

CAUTION!

  • This is a life safety product. Only use manufacturer-approved battery types. Failure to do so may result in damage to the product.
  • DO NOT mix batteries of different type or age.
  • When replacing batteries; remove all old batteries before fitting replacements.
  • Operating voltage 2.7 to 3.65 VDC
  • Current consumption 0.32 A max.
  • Power consumption 0.8 W max.
  • Operating frequency 868 MHz
  • Output transmitter power 14 dBm / 25 mW
  • Signalling protocol X5
  • Beacon flash rate 0.5 Hz (1 flash, every 2 seconds)
  • Beacon coverage W-2.4-6 (WHITE flash) / W-3-5.11 (RED flash)
  • Sounder output 95 dB(A) at 1m max.
    For full sounder output information, refer to the Sounder Data doc (MK103).
  • Dimensions (Ø x D) 110 x 77 mm

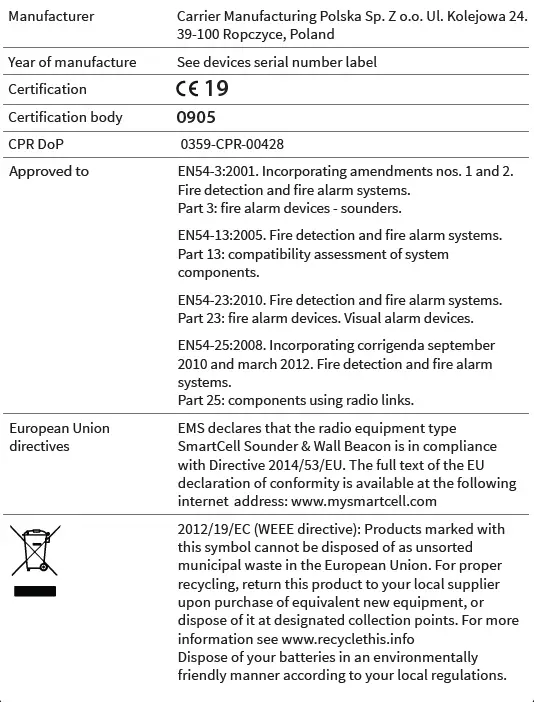

Regulatory information

SmartCell-Sounder-and-Wall-Beacon-FIG-10
