Product Guide

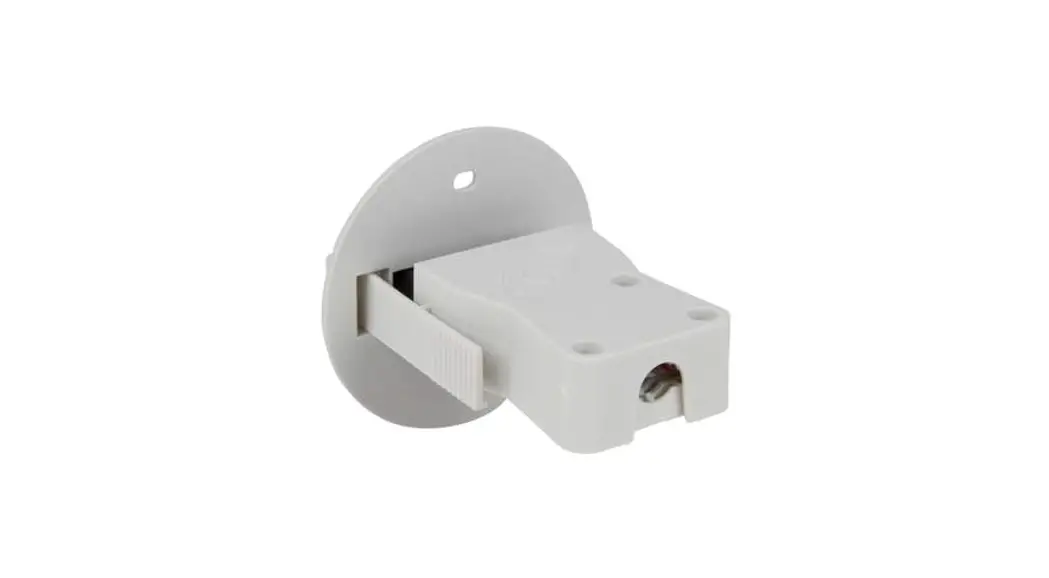

VITM-ROSE
Vitesse Modular Ceiling Rose

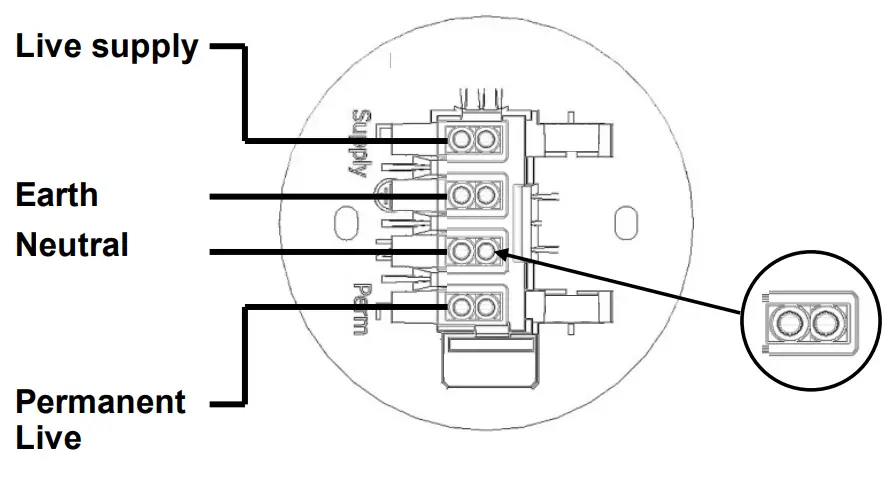

VITM-ROSE mains wiring
Each pole has two screw terminals. Each terminal accepts 1 x 2.5mm²

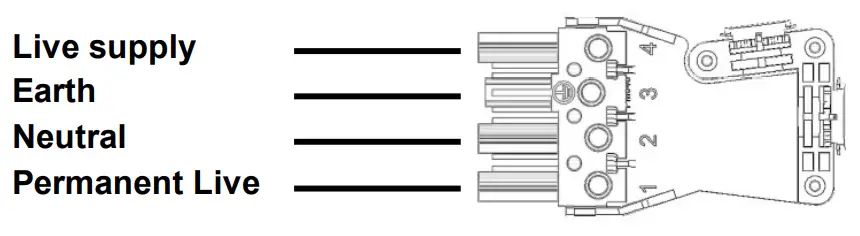

VITM-ROSE connector wiring

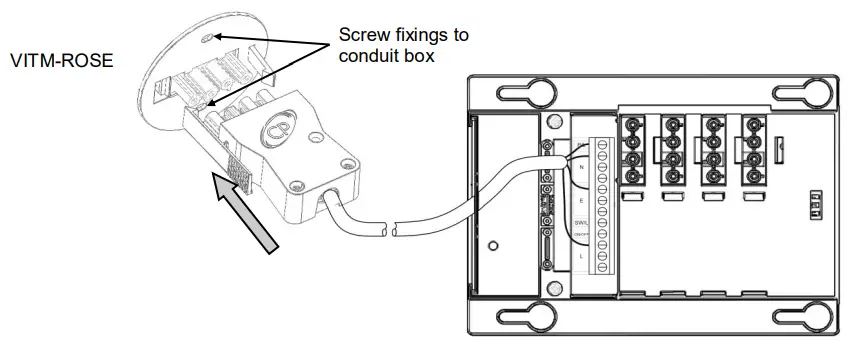

Conduit box to VITM4-S or VITM6-S connection
Use a VITM-ROSE when there is a need to take power from a conduit box. Plug the connector into the VITM-ROSE and wire the other end of the lead into the terminals of the VITM4-S (illustrated below) or VITM6-S. Pre-wired versions are available, VITM4-SL1 VITM6-SL1. See Product Guides for the VITM4-S and VITM6-S wiring details.
Technical data
| Voltage | 230VAC +/- 10% |
| Frequency | 50Hz |
| Terminal capacity | 2.5mm² |
| Temperature | 0ºC to 35ºC |
| Power | 16A |
| Compliance | LVD-2014/35/EU |
For further compliance information visit
www.cpelectronics.co.uk/compliance
For lighting purposes only with suitable circuit protection. For fixed wiring only.
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE wiring regulations.
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
C.P. Electronics Ltd
Brent Crescent
London
NW10 7XR
United Kingdom
Tel: + 44 (0) 333 900 0671
Fax: + 44 (0) 333 900 0674
www.cpelectronics.co.uk
[email protected]
Ref: #WD467 Issue 7
