USER MANUAL
WM-55RT-05
PREMIUM TV WALL MOUNT (ROTATE & TILT), 32″-55″, 30 KG
Features
- Heavy duty steel single-arm rotating/tilting TV wall mount
- Supports most 32″ – 55″ LCD/LED TV’s

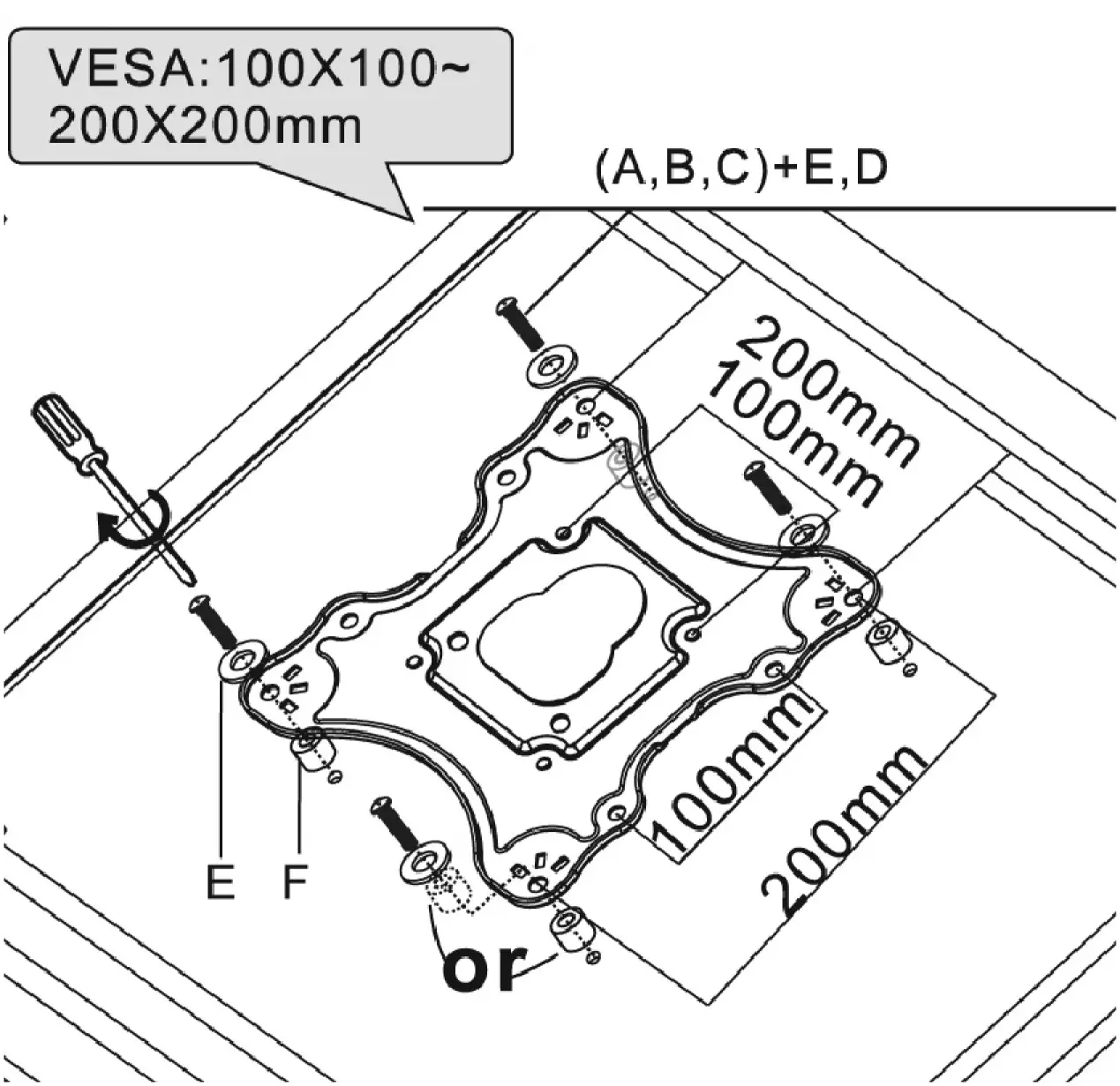

- VESA compatible, max. 400 mm x 400 mm
- Wall distance 55 – 499 mm

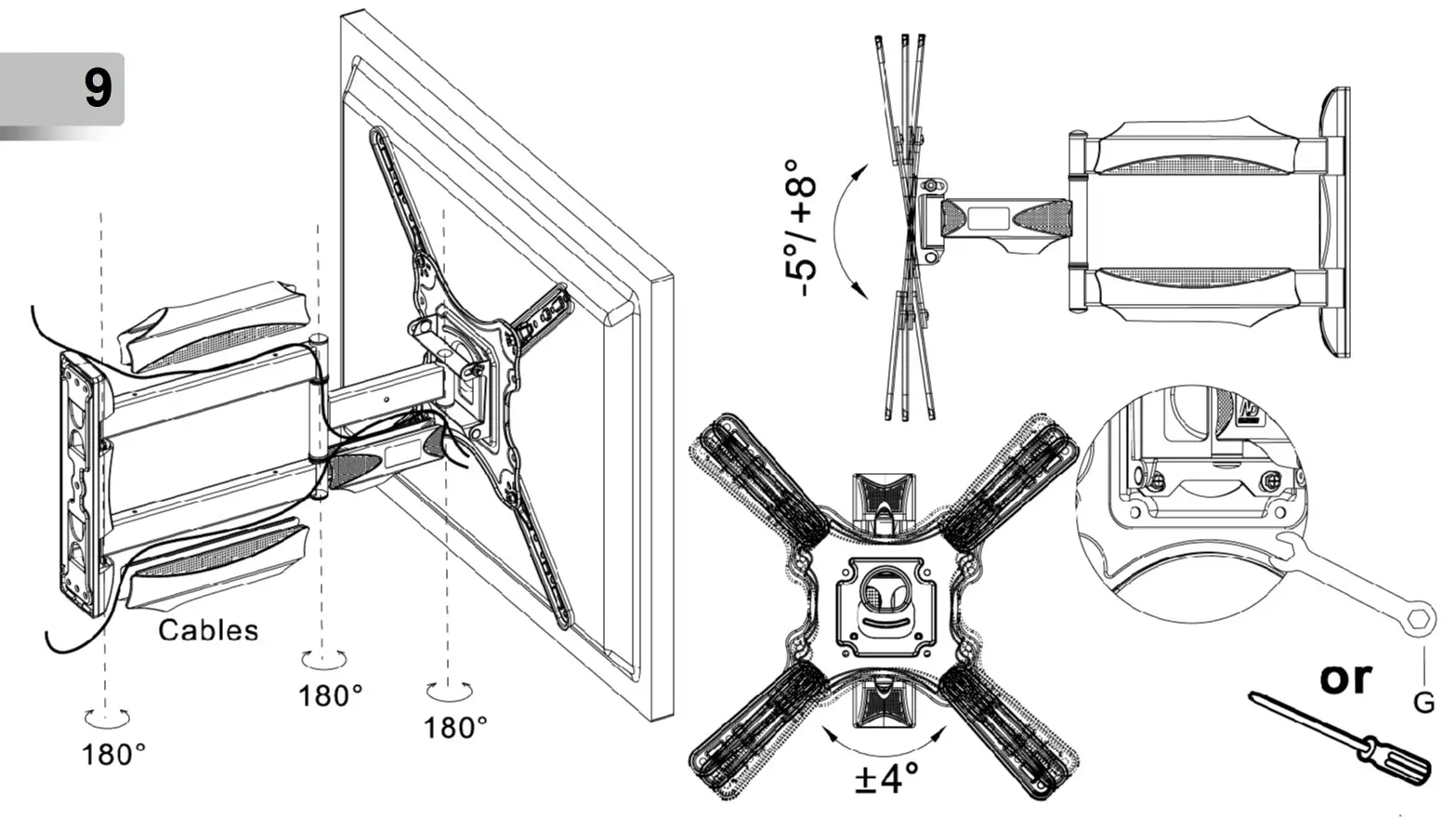

- Allows up to 180 degrees rotation and 12 degrees tilting

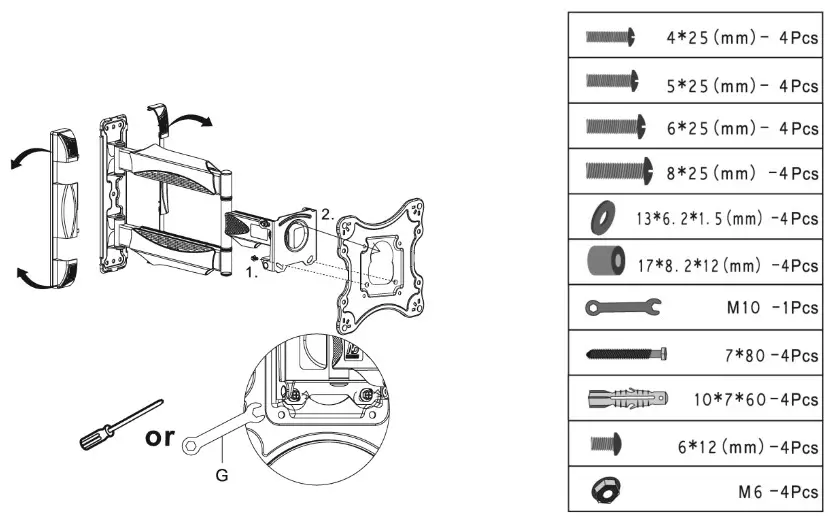

- Includes all necessary installation materials

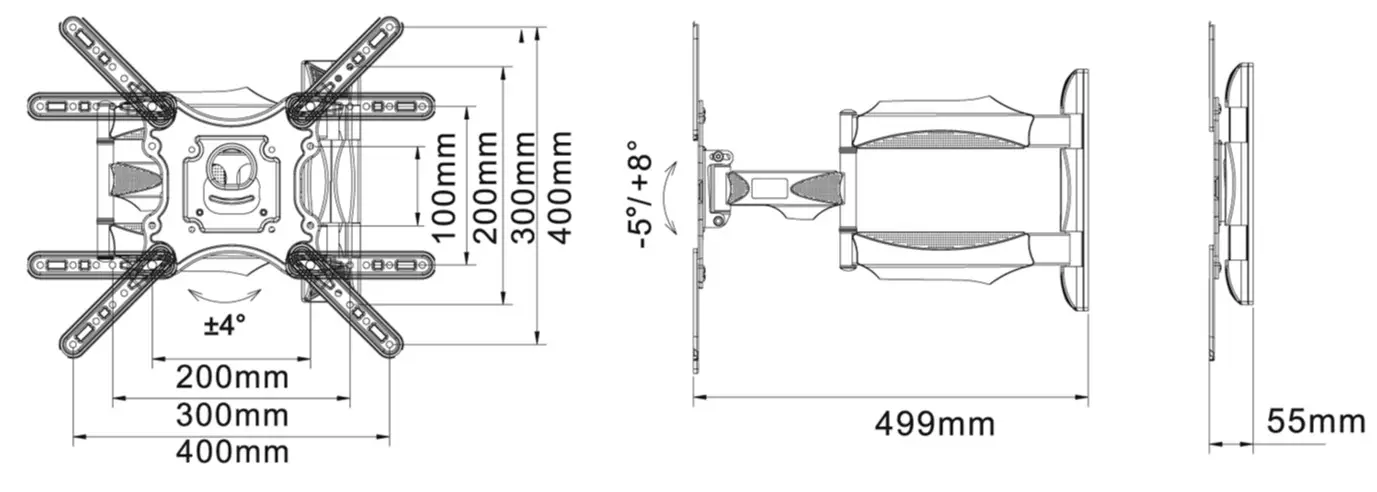

Specifications
- Material: steel
- Max. load: 30 kg (32″-55″)
- VESA: max 400 x 400 mm
- Tilt -5°/+8°
- Wall distance: 55 – 495 mm
- Net weight: 2.5 kg
WARRANTY CONDITIONS
The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired, or replaced at the manufacturer’s expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse, or external impact (falling down, impact, ingress of water, dust, contamination, or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose
between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products. Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands
