USPC06C Caravan Air Conditioner
User Guide

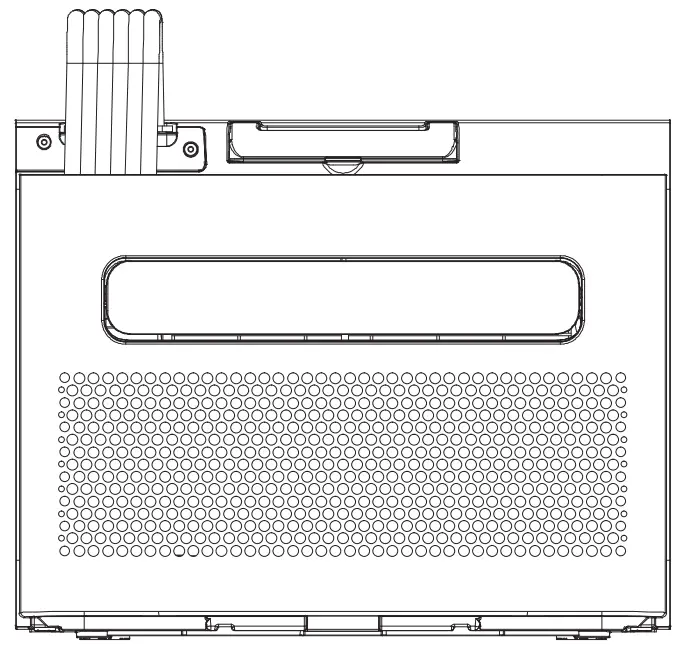

Caravan Air Conditioner
User Guide
SKUS:
Product use
Installation
Component list of window sealing plate (three pieces)
| Serial number | Accessories pictures | Name | Quantity |

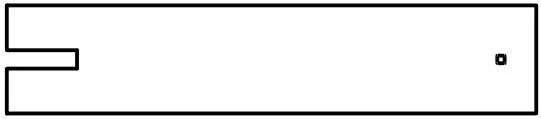

| 1 |  | Window sealing plate 1 | 1 |

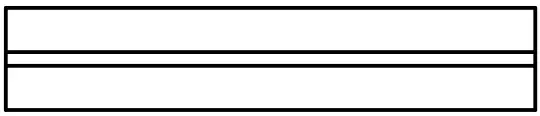

| 2 |  | Window sealing plate 2 | 1 |

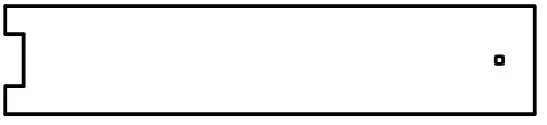

| 3 |  | Window sealing plate 3 | 1 |
| 4 |  | Connecting pin | 2 |
| 5 |  | Button | 2 |
| 6 |  | Gasket | 2 |
| 7 |  | Connecting seat | 2 |

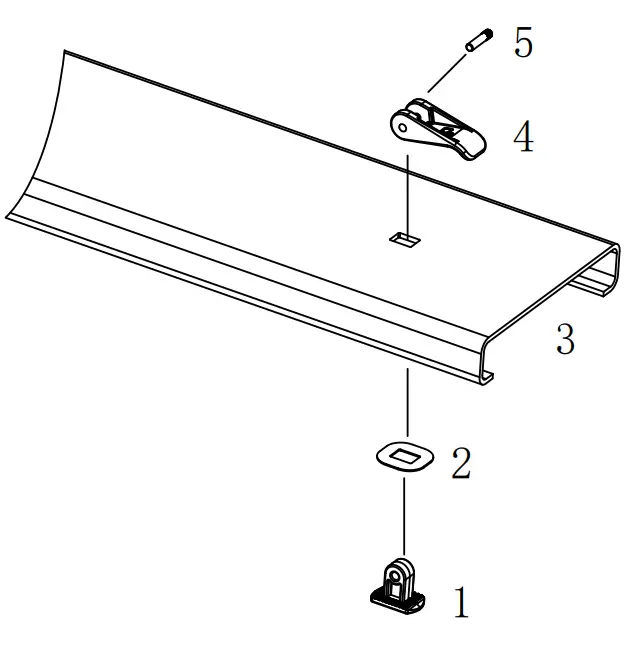

- Firstly, insert the gasket 2 into the connecting seat 1.
- Secondly, insert the threaded gasket 2 and connecting seat 1 into the window sealing plate 3.
- Then, align the hole position of the connecting seat 1 and clip the button 4 into the hole position of the connecting seat 1.
Note: The installation method of the window sealing plate can also refer to another installed window sealing plate.

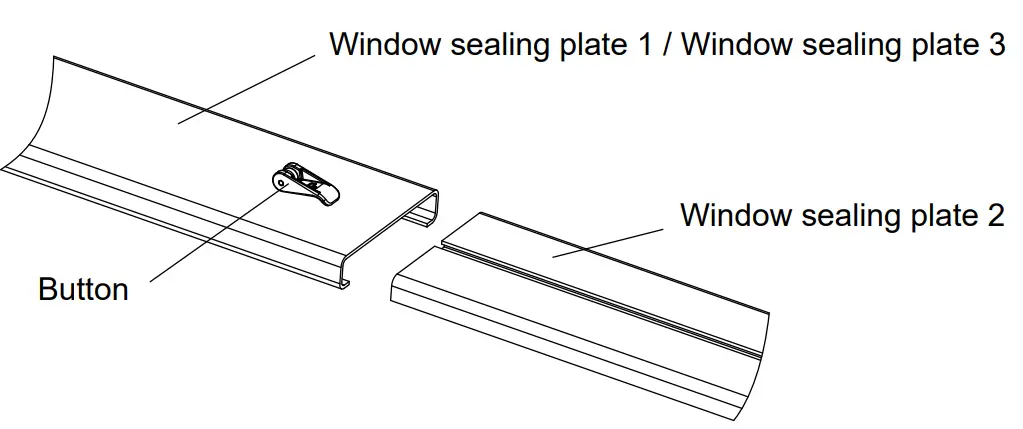

Installation method of window sealing plate assembly

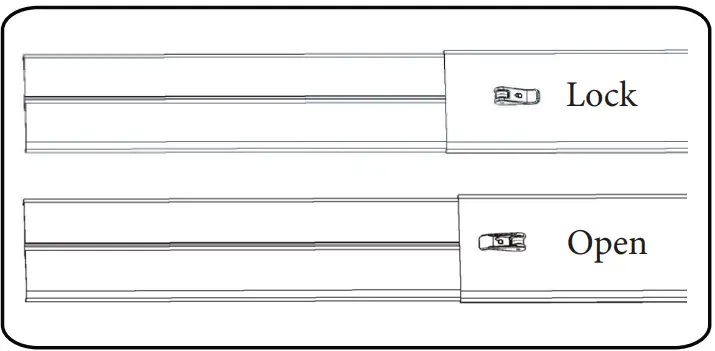

1. Install window sealing plate 2 and window sealing plate 1 or window sealing plate 3. During installation, make sure that the button on the window sealing plate is unlocked, as shown in the picture above.
Adjustment and installation of window sealing plate
Step 1:
- Measure window size
- Adjust the length of the wind sealing-plate to fit the width or height of your window.
- When the length of the window seali plate is determined, lock the button.
Step 2:

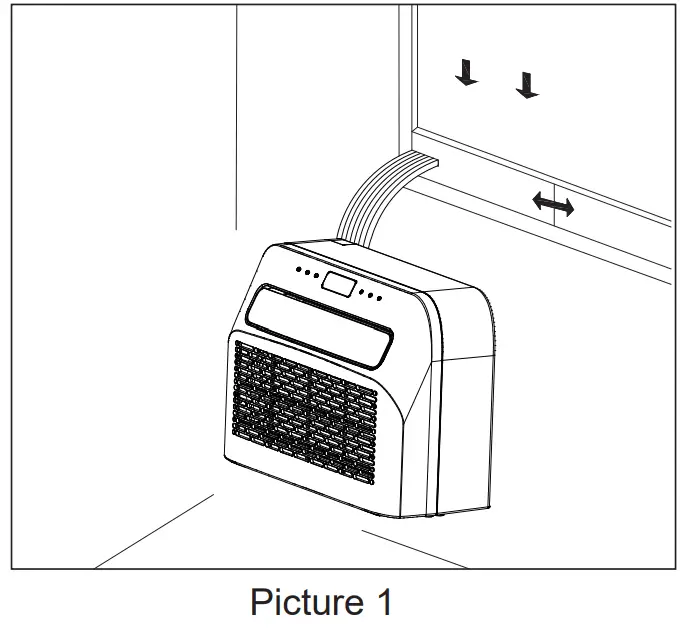

After the machine is fixed, the hose should correspond to the slot of the window sealing plate and then install the window sealing plate on the window. (1) The window sealing plate 1 is assembled with the window sealing plate 2, which can be applied to the upper and lower closed windows, as shown in the picture 1.

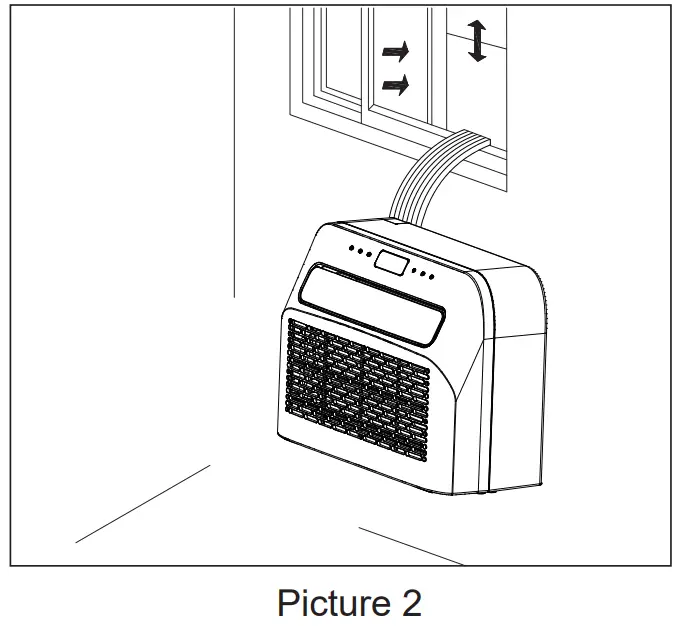

(2)The window sealing plate 2 is assembled with the window sealing plate 3, which can be applied to the left and right closed windows, as shown in the picture 2.
