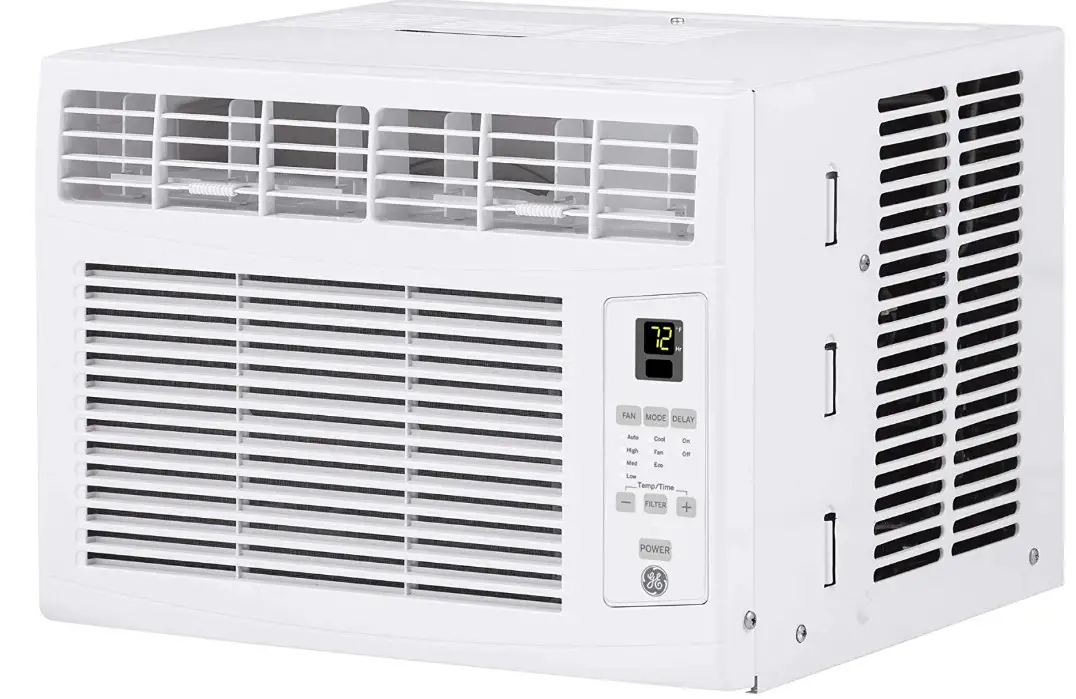

GE AHEE06AC Electronic Window Air Conditioner

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or personal injury.

• this air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
• Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straightout from the receptacle.
• Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
• Turn the unit OFF and unplug your air conditioner before cleaning.
• For your safety…do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
• If the receptacle does not match the plug, the receptacle must be changed out by a qualified electrician.

Risk of Fire or Explosion. This unit contains flammable refrigerant.
Additional safety precautions must be followed.

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example open flames, an operating gas appliance or an operating electric heater.
• Do not pierce or burn refrigerant tubing.
• Be aware that refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.
• When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.
• Do not drill holes in the unit. Maintenance, cleaning, and service should only be performed by technicians properly trained and qualified in the use of flammable refrigerants.
• GE Appliances does not support any servicing of the air conditioner.
• Dispose of air conditioner in accordance with Federal and Local Regulations.
• Flammable refrigerants require special disposal procedures.
• Contact your local authorities for the environmentally safe disposal of your air conditioner.
• WARNING USE OF EXTENSION CoRDs RISK OF FIRE. Could cause serious injury or death.
• DO NOT use an extension cord with this Window Air Conditioner.
• DO NOT use surge protectors or multi-outlet adaptors with this Window Air Conditioner.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety. this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. The power cord includes a current interrupter device. A test and reset button are provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded? Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. See the Installation Instructions and Electrical Requirements section for specific electrical connection requirements.

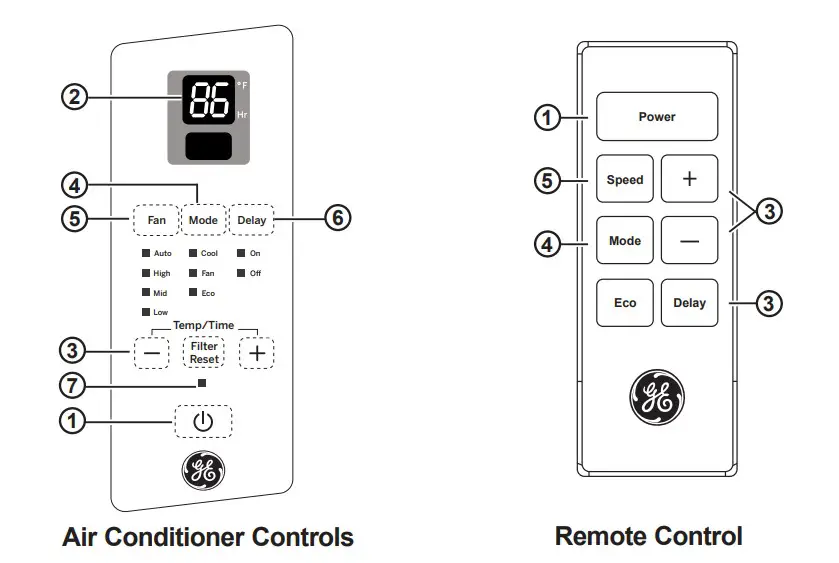

Controls

1. Power Pad
   Turns air conditioner on and off. When turned on, the display will show the Set temperature.
2. Display
   Shows the Set temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or ECO modes.
3. Temp and Delay Increase +/Decrease Pads Use to set temperature or delay time. Temperature can be set in Cool and ECO mode.
4. Mode Pad Use to set the air conditioner to Fan Only, Cool, or ECO mode.
5. Fan Speed Pad
   In Cool, ECO mode: Use to set the fan speed to Auto, High, Med or Low on the unit.
   In Fan Only mode: Use to set the fan speed to High, Med, or Low on the unit.

Using the Air Conditioner

Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used when the outdoor temperature is below freezing (32°F).

Remote Control

• To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
• The remote control signal has a range of up to 20 feet.
• make sure nothing is between the air conditioner and the remote control that could block the signal.
• Make sure batteries are fresh and installed correctly as indicated on the remote control

Cool Mode
Use the cool mode at Low, Med, High, or Speed for cooling temperature Increase + / Decrease – pads to set the desired temperature between 64°F and 86°F in 1°F increments.
An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature. For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature. For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set temperature.

ECO Mode
Controls the fan.

• ON—The fan will cycle on and off with the compressor.
  This may result in wider variations of room temperature and humidity.
  NOTE: the fan may continue to run for a short time or may pulse intermittently after the compressor cycles off to sample the room air.
• OFF—The fan runs all the time, while the compressor cycles on and off.

Fan-Only Mode
use the fan-only mode at low, medium, and high fan speeds to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display.

Using the Air Conditioner

Auto Fan Mode
Set to Auto for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature.
If the room needs more cooling, the fan speed will automatically increase. If the room needs less cooling, the fan speed will automatically decrease.
Air Direction
Use the lever to adjust the air direction from left to right.

Care and Cleaning

Grille and Case
Turn the air conditioner off and remove the plug from the wall outlet before cleaning.
To clean, use water and mild detergent. Do not use bleach or abrasives.

Air Filter
The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.
To remove:

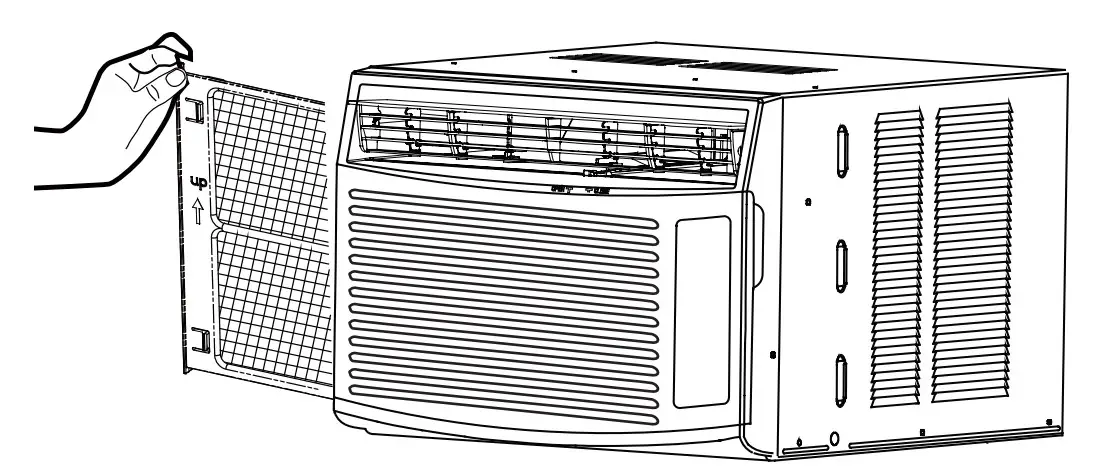

Slide the filter from the left side of the unit. Remove the filter.
Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

CAUTION
DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

Outdoor Coils
The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

How to Insert the Batteries in the Remote Control

1. remove the battery cover by sliding it according to the arrow direction.
2. Insert new batteries, making sure that the (+) and (–) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTES:

1. Use 2 “AAA” (1.5 volt) batteries.
2. Do not use rechargeable batteries.
3. Remove the batteries from the remote control if the system is not going to be used fora long time.
4. Do not mix old and new batteries.
5. Do not mix standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

Installation Instructions

BEFORE YOU BEGIN
Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector’s use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

ELECTRICAL REQUIREMENTS
These models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility of electric shock hazards. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.
CAUTION
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of this air conditioner.
Aluminum house wiring may present special problems—consult a qualified electrician.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue the use of the air conditioner and contact a qualified service technician.

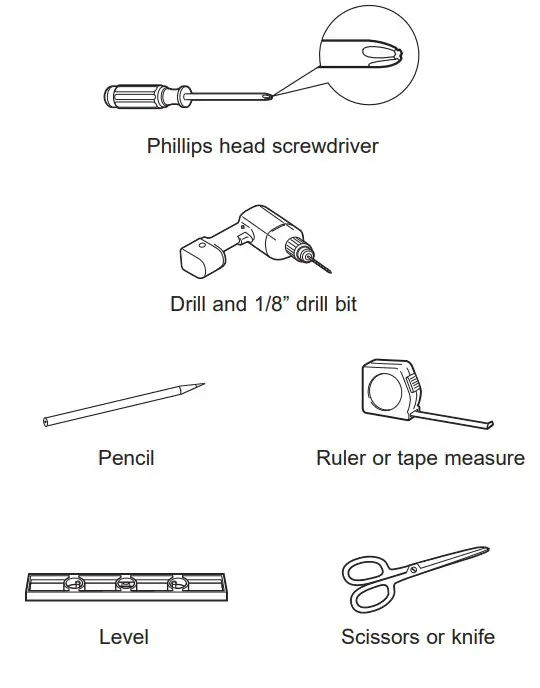

TOOLS YOU WILL NEED

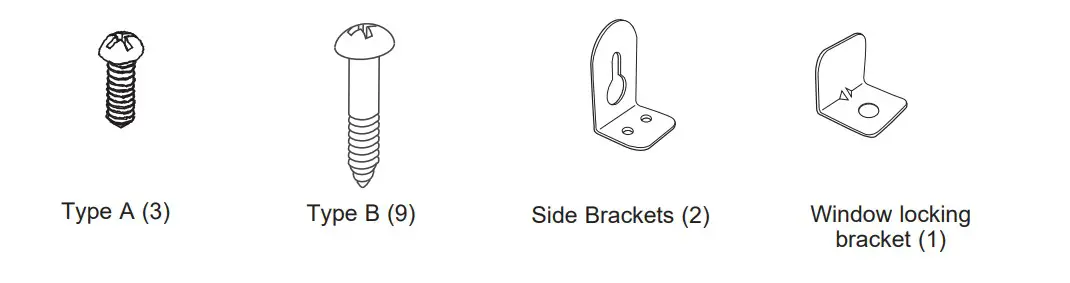

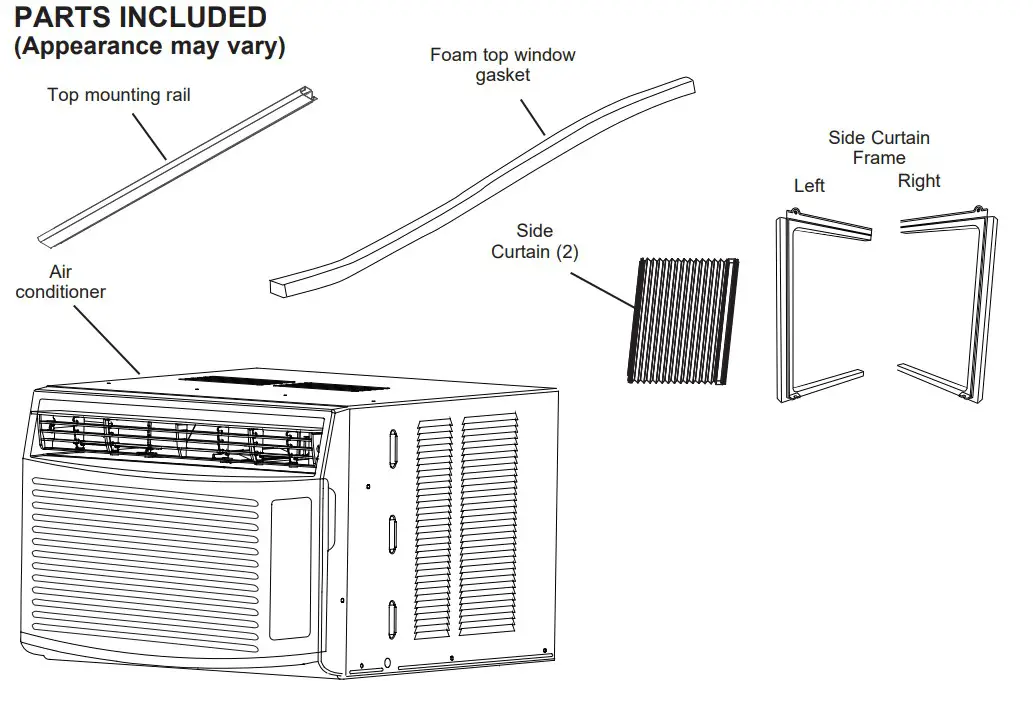

PARTS INCLUDED

1. WINDOW REQUIREMENTS
   • These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
   • The air conditioner can be installed without the side curtain panels if needed to fit in a narrow window. See the window opening dimensions.
   • All supporting parts must be secured to firm wood, masonry or metal.
   • The electrical outlet must be within reach of the power cord.

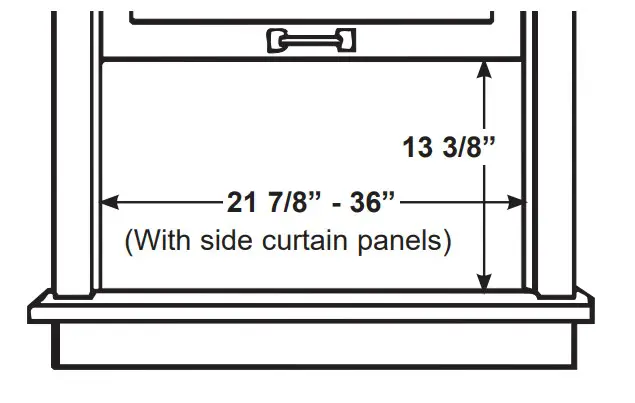

   • Follow the dimensions in the table and illustration for your model.
2. STORM WINDOW REQUIREMENTS

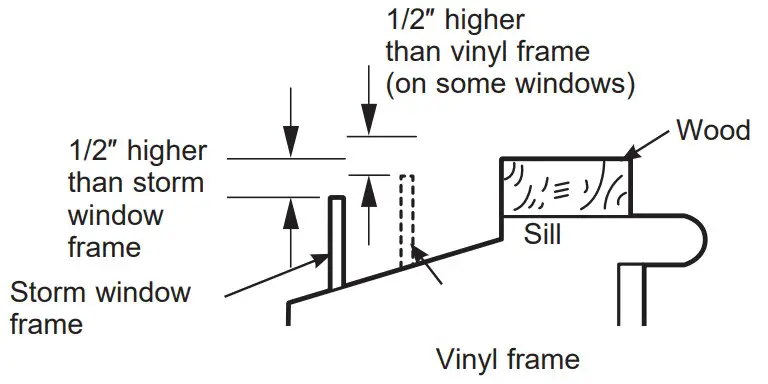

   A storm window frame will not allow the air conditioner to tilt toward the outside and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.
   WoOD PIECES
   WIDTH: 2
   LENGTH: Long enough to fit inside the window frame.
   THICKNESS: To determine the thickness, place a piece of wood on the sill to make it 1/2″ higher than the top of the storm window frame or the vinyl frame.
   Attach securely with nails or screws provided by the installer.
3. PREPARE THE AIR CONDITIONER

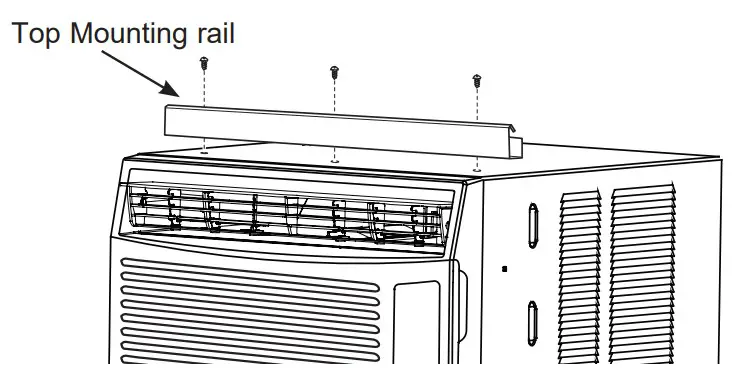

   • Install the top mounting rail with 3 Type-A screws

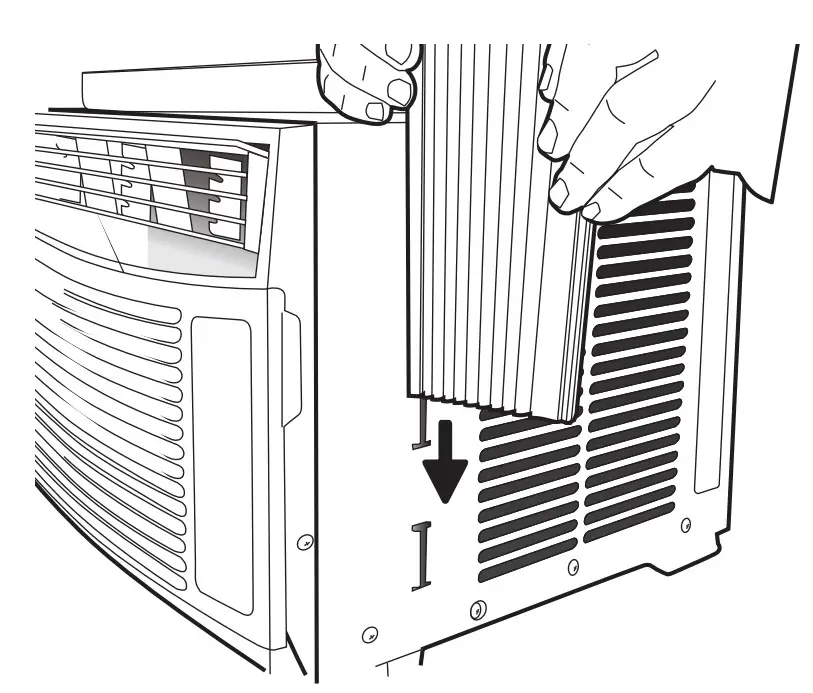

   • Slide the side curtain panels into the side panel rails.

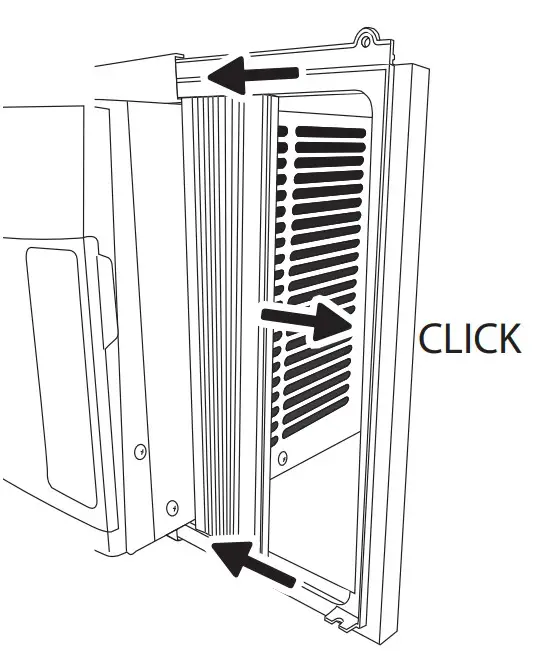

   • Slide left and right side curtain frames into top and bottom rails. Make sure that side curtains snap into side of the frames.

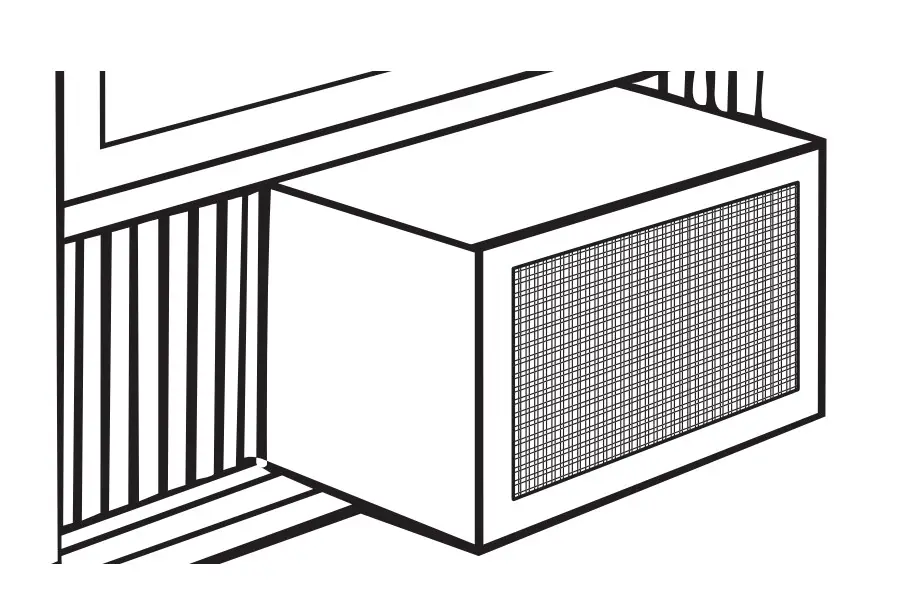

4. INSTALL THE AIR CONDITIONER IN THE WINDOW
   • Mark the center of the window. Set the air conditioner in the window so that is it centered. Place the air conditioner so that front edge of the bottom mounting rail is against the back edge of the sill.

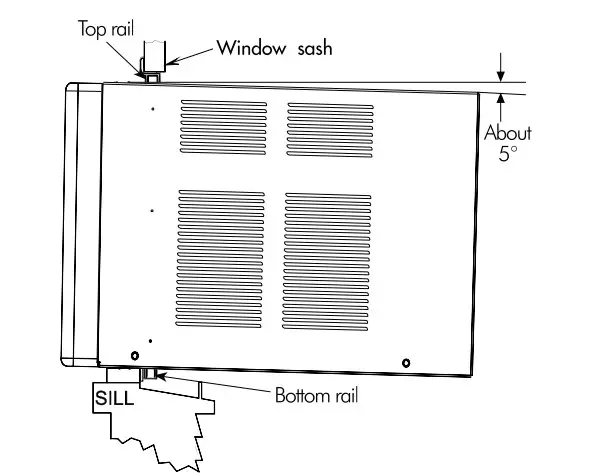

   • Bring the window down so that the front edge of the top mounting is in front of the window. Make sure that the air conditioner is level or tilting slightly to the outside.

   • Extend the curtain panels until they fill the window. Mark the location of the holes in each corner. Use the drill and 1/8″ dill bit to drill pilot holes. Use 4 type B screws to secure the side panels in place.
5. SECURE AIR CONDITIONER

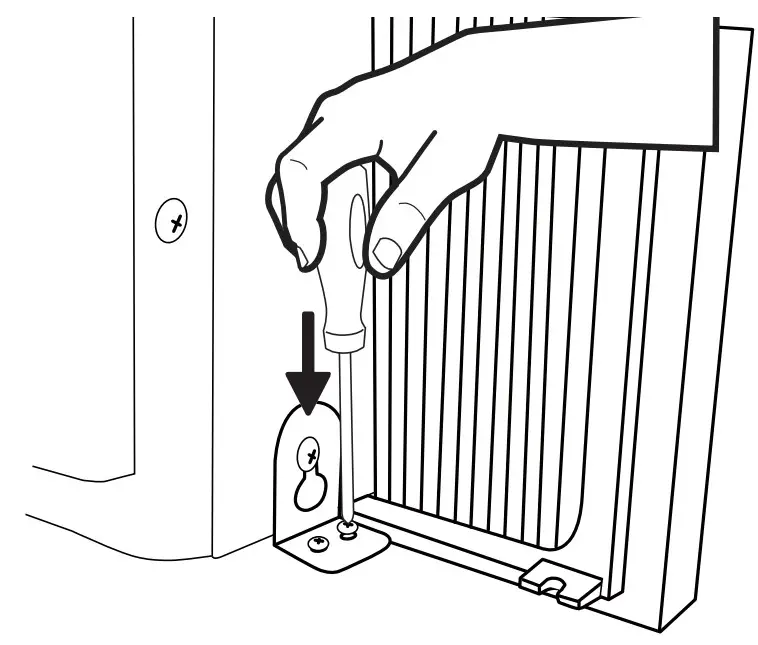

   • Loosen the screw on the right-hand side of the air conditioner near the bottom.

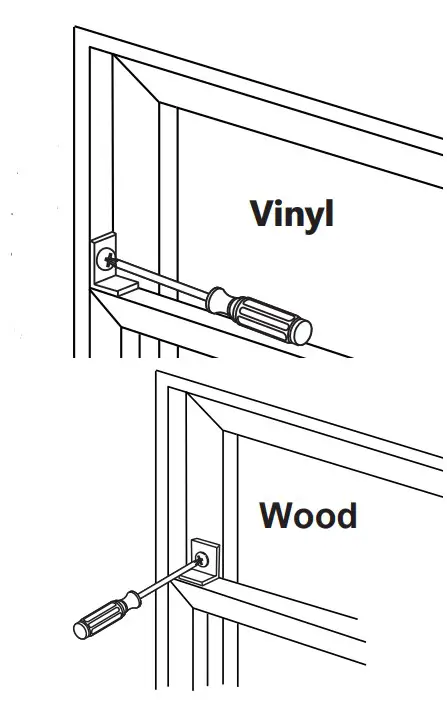

   • Slide a side bracket over the screw so that the bracket is resting on the window sill. Tighten the screw.
   • Use a 1/8″ drill bit to drill a starter hole into the window sill through the holes in the side bracket. Use 4 type B screws to attach the side bracket to the window sill.
   • Repeat the side bracket installation on the left side.
6. INSTALL WINDOW LOCK BRACKET AND FOAM TOOP WINDOW GASKET

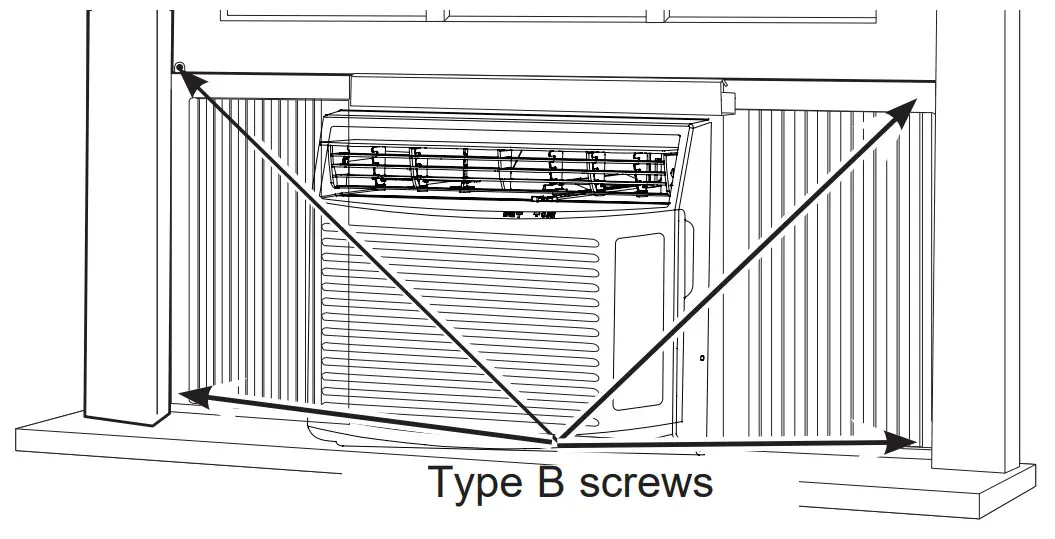

   Use Type B Screw to install the window lock bracket on top of the bottom window.
   • To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb with one Type B screw.
   • Cut the foam top window gasket to the window width.

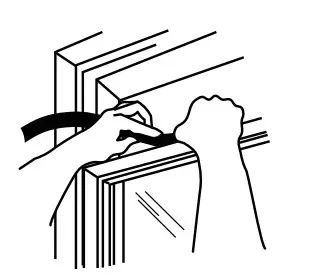

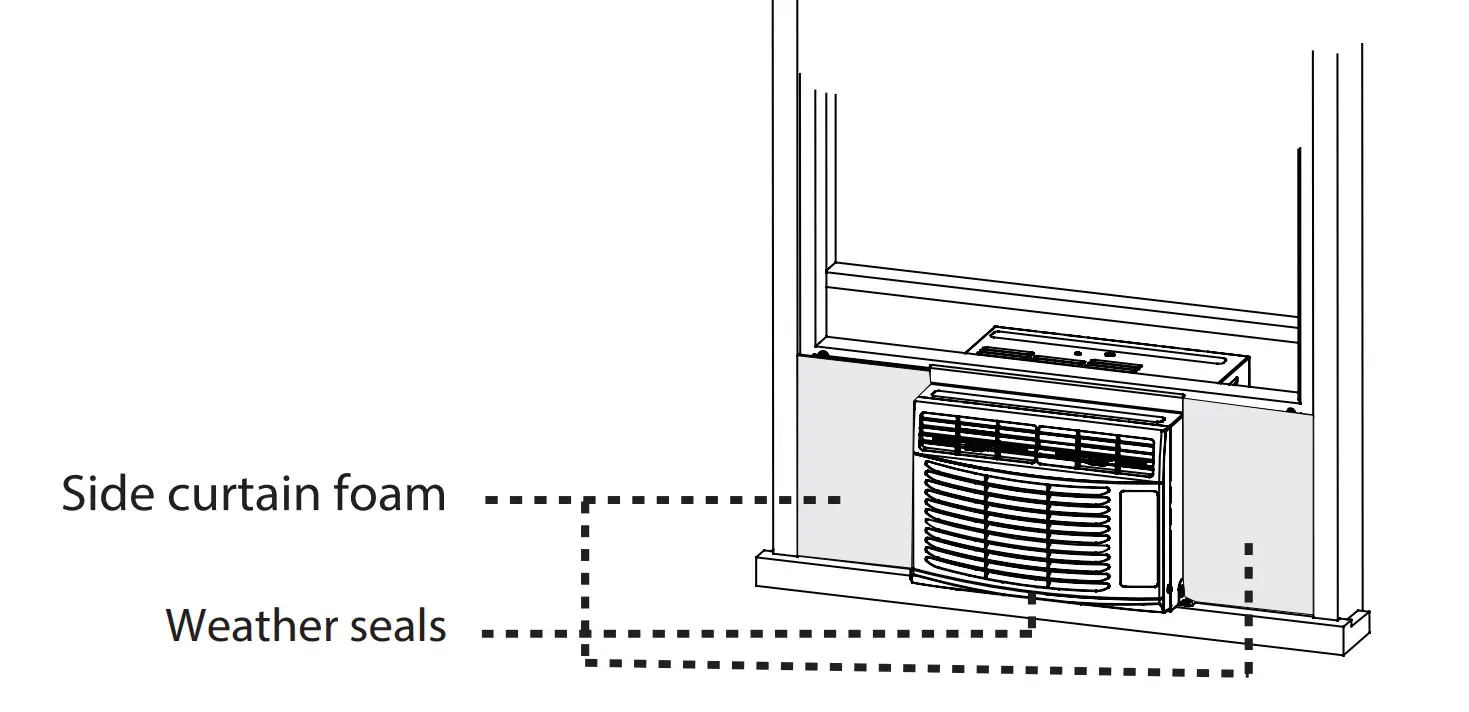

   • Stuff the foam between the glass and the window to prevent air and insects from getting into the room.
     NOTE: If the gasket supplied does not fit your window, obtain the appropriate material locally to provide a proper installation seal.

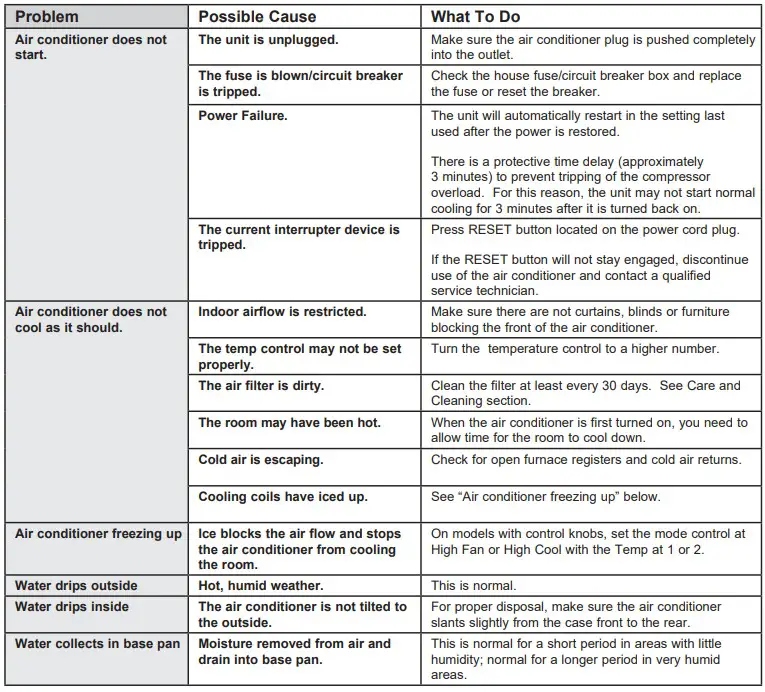

Troubleshooting Tips… Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Normal Operating Sounds

• YOu may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high.
• This design feature helps remove moisture and improve efficiency.
• You may hear the thermostat click when the compressor cycles on and of.
• Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the Outdoor side of the unit.
• The fan may run even when the compressor does not.
• Water droplets being thrown against the outside coils can make a pinging noise. This helps cool the condenser. You can reduce this noise by removing the subbase water plug.

To ensure maximum efficiency it is recommended to check to ensure the rubber drain plug is properly inserted. This plug may be removed during operation to minimize water in the back of the unit; however, removing it will lower the efficiency of your unit.

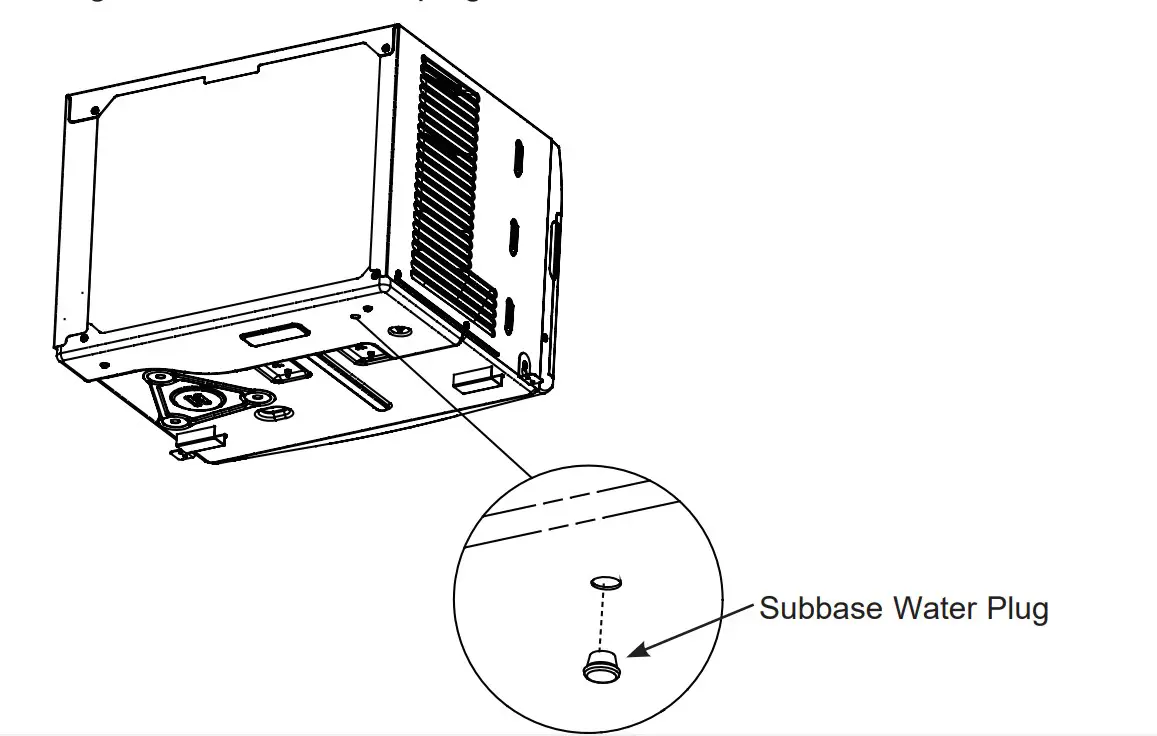

NOTE: Do not drill hole in the base pan.

GE Appliances Air Conditioner Limited Warranty

Proof of the original purchase date is needed to make a warranty claim.
For The Period Of:

One Year
From the date of the original purchase

Will Replace:

Replacement, repair, or refund of the original retail price for any product which fails due to a defect in materials or workmanship. If the unit is exchanged, the replacement unit is warranted for the remainder of your product’s original one-year warranty period. GE will, at its sole discretion, replace the product with a product of the same or comparable functionality and quality or refund the original retail price.

In Order to Make a Warranty Claim During Your Retailer’s Allowable Return Period:

• Properly pack your unit. We recommend using the original carton and packing materials.
• Return the product to the retail location where it was purchased.
• Include in the package a copy of the sales receipt or other evidence of date of original purchase. Also print your name and address and a description of the defect.

In Order to Make a Warranty Claim During the Remainder of the One-Year Warranty:

• Locate your original sales receipt and make a note of your model and serial number.
• Visit GEAppliances.com/service to initiate the product replacement process.
• You will be asked to provide your name, address, date of purchase, model and serial number.
• GE Appliances will arrange for a carton to be sent to your home to recover the product.
• Please return all requested materials (postage pre-paid) in the carton provided. Please include a description of the defect.
• You should receive your replacement product or refund within 7 to 10 business days after your package is received.

What Will Not Cover:

• Customer instruction. This owner’s manual provides information regarding operating instructions and user controls.
• Improper installation. If you have an installation problem, or if the air conditioner is of improper capacity, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
• Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.
• Replacement of house fuses or resetting of circuit breakers.
• Failure due to corrosion on models not corrosion protected.
• Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this air conditioner.
• Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES – Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor US:
GE Appliances, a Haier company Louisville, KY 40225

Consumer Support

GE Appliances

Website Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our online support services designed for your convenience.

In the US: GEAppliances.com Register Your Appliance Register your new appliance online at your convenience! Timely product registration will allow for enhanced pre-orinted reaistration cord your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
In the US: GEAppliances.com/register Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order online today 24 hours every day.
In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours. Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Contact Us If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:
In the US: General Manager, Customer Relations GE Appliances, Appliance Park | Louisville, KY 40225 GEAppliances.com/gelservice-and-supportcontact.htm
