WINDOW KIT INSTALLATION

This window slider kit has been designed to fit most standard “Vertical” and “Horizontal” window applications; however, it may be necessary for you to improvise / modify some aspect of the installation procedures for certain types of window.

Minimum and maximum window openings:

MAXIMUM: 57″ (145 cm)
MINIMUM: 9″ (23cm)

NOTE:

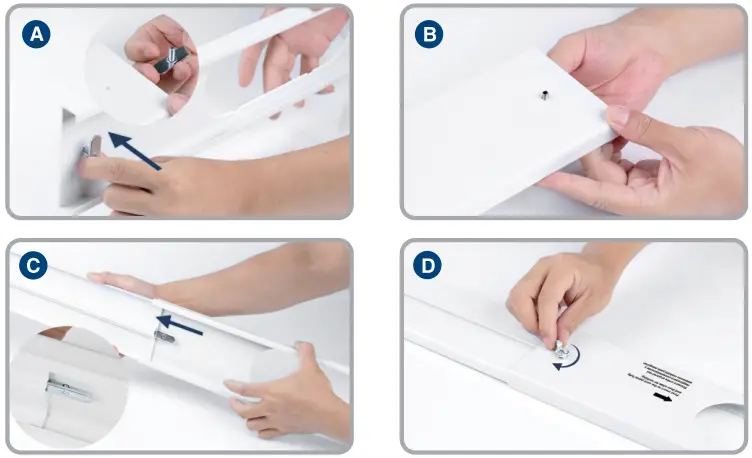

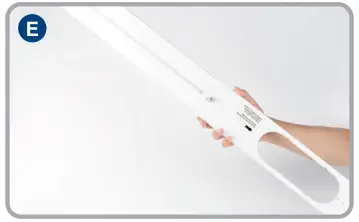

• Adjust to desired length and use provided metal wing nuts and bolts to secure.
• If the window opening is less than 18″ the minimum length of the Panel A, cut A with a hole in it short to fit for the window opening.
• Never cut out the hole in Panel A

For a 9″-18″ window opening, use panel A (Cut short if necessary)

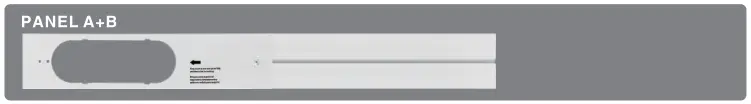

For a 19″-38″ window opening, use panel A+B (Cut short A if necessary)

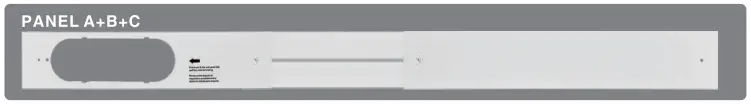

For a 39″-57″ window opening, use panel A+B+C

CONNECT HOSE TO WINDOWS KIT

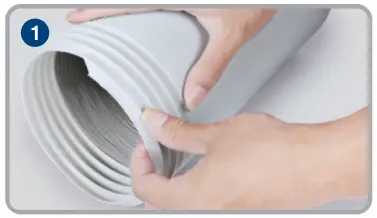

Stretch the vent hose inch (15CM) to facilitate the installation of the exhaust nozzle.

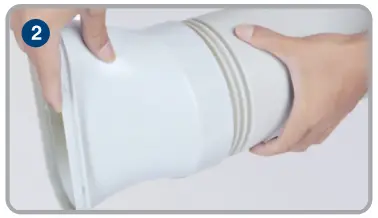

Rotate the vent hose into the exhaust nozzle A counterclockwise, and check to see that it are fastened securely to the hose.

Slide it for locking.

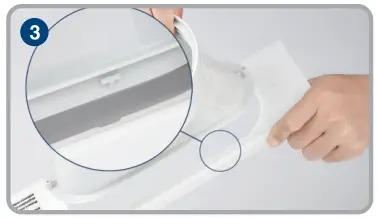

Insert hose outlet into the window panel A fully.

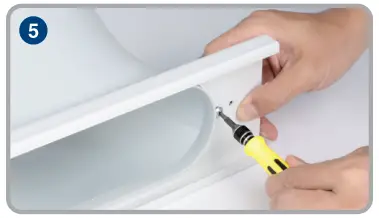

If you want fix the connection more firmly, use the type A serew.
