Tosot ‎8000 Btu Portable Air Conditioner User Guide

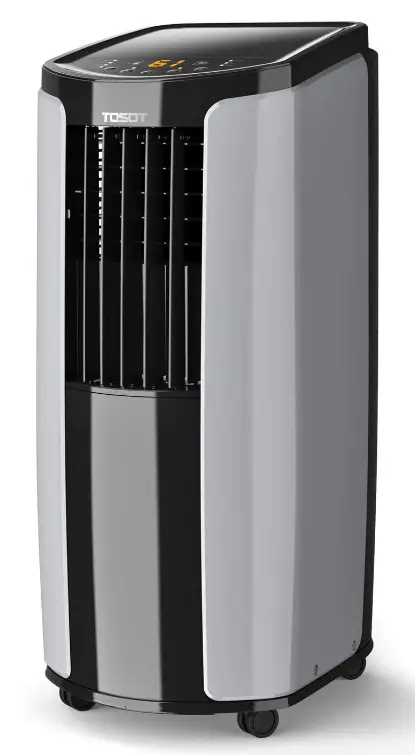

TOSOT ‎8000 BTU Portable Air Conditioner

SPECIFICATION

• BRAND: TOSOT
• SPECIAL FEATURE: Portable, Dehumidifier
• COLOR: Grey
• CONTROLS TYPE: Remote
• FLOOR AREA: 300 Square Feet
• ITEM WEIGHT: 55 Pounds
• MODEL NAME: 8,000 BTU Portable Air Conditioner
• INCLUDED COMPONENTS: 1x TOSOT Portable Air Conditioner
• WATTAGE: 1050 watts
• SOUND LEVEL: 49 dB
• PRODUCT DIMENSIONS: ‎11.8″D x 15.4″W x 30.4″H
• VOLTAGE: ‎115 Volts
• MANUFACTURER: ‎TOSOT
• PART NUMBER: ‎8,000 BTU Portable Air Conditioner
• ITEM WEIGHT: ‎55 pounds

INTRODUCTION

Cool areas up to 300 square feet with 8,000 BTUs of cool air (compared to the 2017 DOE Standard of 5,000 BTUs), making it ideal for your living room, bedroom, or home office. This is not only a portable air conditioner, but it also functions as a fan and a dehumidifier with an hourly water removal rate of 2.3 quarts (1.1L). Compared to humid air, drier air feels significantly cooler and makes your air conditioner operate more effectively. Lower your noise level and get a good night’s sleep. While you are busy counting sheep, you can also utilize the sleep function to set your ideal sleeping temperature, or you may switch on the night mode to turn off all of the lights on the control panel.

This machine can be installed on both horizontal and vertical sliding windows, and the thorough instructions in our user manual will have you up and running in little more than 15 minutes. The exhaust hose’s length could be adjusted to be between 11.8 and 58.8 inches minimum and maximum. In order to dry any remaining water in the machine and the air exhaust hose, the X-Fan must be turned on in order for the fan to continue spinning at a slow, silent speed. With UL certification, TOSOT can always guarantee the highest safety standards for usage in your home thanks to tighter and more thorough certification procedures and testing.

INSTALLATION

WINDOW INSTALLATION

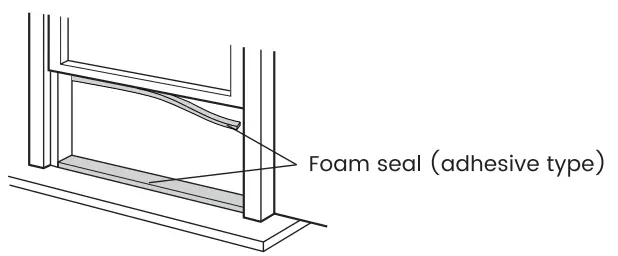

1. Cut the Foam seal to the proper length and attach it to your horizontal (or vertical) sliding window.
2. Slide the panels into the window panel and adjust to fit your window.

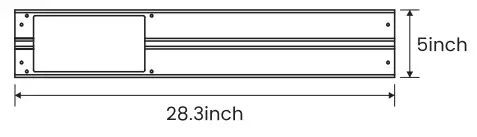

   • WINDOW PANEL (CUT IF NECESSARY)

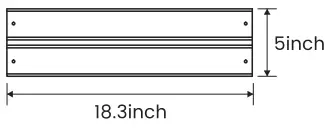

   • ADJUSTMENT PANEL

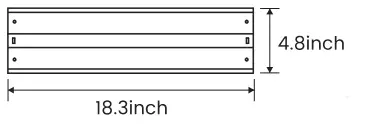

   • EXTENSION PANEL
   • EXHAUST COVER

You can slide the exhaust cover to cover the hole of the window panel when the exhaust hose is removed.

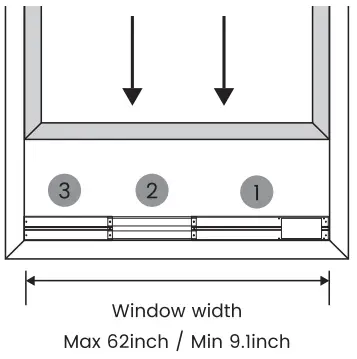

The window panel adapts to different window sizes that open horizontally or vertically. Three panels are included in the package. For window openings over 28 inches, please use the adjustment panel to make sure you can span the entire length of your window. You can add an extension panel if the window opening is more than 46 inches. After the length is set, secure the panels with a fixed clip and mounting plate. For certain windows, such as a casement window, you will need to improvise several steps of the installation.

NOTE: Insert the fixed clip into the groove of the adjustment panel and screw down the mounting plates.

1. Connect the exhaust hose

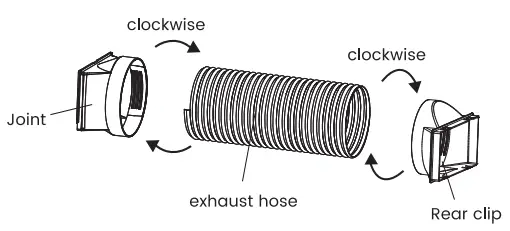

2. Twist the Joint and Rear clip clockwise onto the exhaust hose.
3. Insert the Joint into the groove at the back of the unit and extend the exhaust hose.

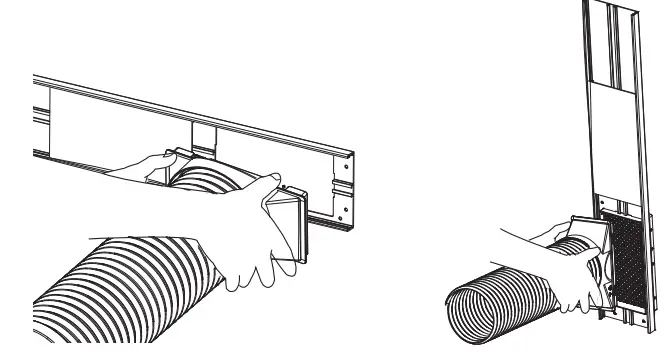

4. Attach the Rear clip to the window panel.
5. Important tips before first use
6. Allow the unit to sit upright for at least 3-4 hours before powering on to allow the refrigerant to stabilize
7. You can manually adjust the air vent on the front of the unit to adjust the direction of airflow.
8. Check the power plug and cord before operation to make sure it is not damaged.

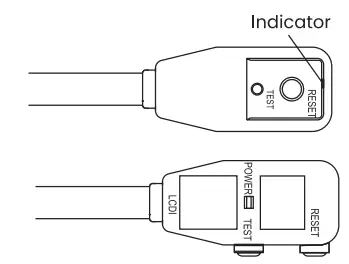

9. Always perform a test of the LCDI plug before use.

NOTE: Plug may be different with the actual product. Please refer to actual product.

FREQUENTLY ASKED QUESTIONS

Do l have to vent the hot air out?

Yes, the hot air has to be vented outside through the exhaust hose. If you don’t connect the exhaust hose, your unit will exhaust hot air into the room that you are trying to cool.

Do I have to drain the collected water?

TOSOT portable air conditioner comes with the auto-evaporation system. The unit can automatically evaporate the condensate. There is no need to empty the water except in humid conditions. When you run the dry mode, then it is required to install the hose as the unit might pull more water from the air.

Do I need to purchase the hose? I saw an ad on amazon saying they were frequently bought together

I read a comment they say the air conditioning part doesn’t have a filter can I purchases a filter for the air conditioning part to protect it from dud.

What is the lowest temperature allowed?

the temperature can be adjusted from 61-86 ℉.

Has anyone ever had leakage problems? I woke up to a puddle of water on the ground after using it for the first time.

yes, it happened to me as well, there is a hose to connect on the bottom, once you do that it will not leak.

Can this be used with smoke outside?

Yes, it can be run with smoke outside. That is part of why I had to buy an air conditioner, due to poor air quality which keeps me from opening my windows at night.

What is the diameter of the exhaust hose?

The hose is. 6”. The exhaust port itself is 4” x 6”. The exhaust hose hooks on to the 4” x 6” port.

Where is the filter located and how you take it off, nothing on the manuals and no picture?

it is on the upper back of the unit. You can find a clipper there. Please email us via [email protected]. We will email some pictures or videos to you.

Can this be used with sliding glass doors?

I don’t know about glass “doors”, but definitely glass windows. The instructions are in the manual it comes with. However, I didn’t have to actually install it into the window.

I can get child lock to work on the remote but not the control panel. Is there a trick to it? – and + for 3 seconds doesn’t work.

Sorry, the child lock function does not work on the control panel. If you have any other questions, feel free to contact us via [email protected]

What kind of filter comes with this ac unit?

they are plastic nylon filters.

What is the care rating for this ac unit?

the CEER Rating is 5.90 BTU/W h.

Where does the evaporated water go to? Can you turn off the dehumidifier?

There are two ways for drainage: auto evaporation and connect the drain hose(included). If the area you living is with high humidity and the evaporated water hard to be auto evaporated, you might need to connect the drain hose to drain out the evaporated water.

Can you vent the hose through the heating vents?

That hose behind the air conditioner is dirty air and needs to be blowing out and away from your house. It needs to be far away from your nose, mouth, and lungs. Place the hose through the window or whatever means to blow the hot carbon dioxide out of your house. This hot air from the hose is like waste from the toilet.

Why is there a cancer warning label?

There has to be a cancer warning label on everything and anything that is powered in California it’s the law but I wouldn’t worry about that it’s not going to give u cancer. It’s in the manual as well.

What is the hertz on this item?

the Hz of the portable air conditioner is 60 Hz.
