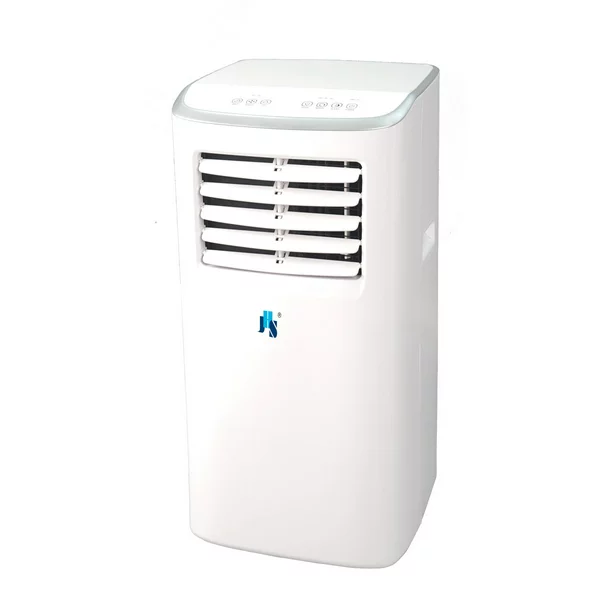

JHS A016B1 3-in-1 Portable Air Conditioner
This window slider kit has been designed to fit most standard “Vertical” and “Horizontal” window applications; however, it may be necessary tor you to improvise /modity some aspect of the installation procedures for certain types of window.
Minimum and maximum window openings:
- MAXIMUM: 57″ (145 cm)
- MINIMUM: 9″(23cm)
NOTE:

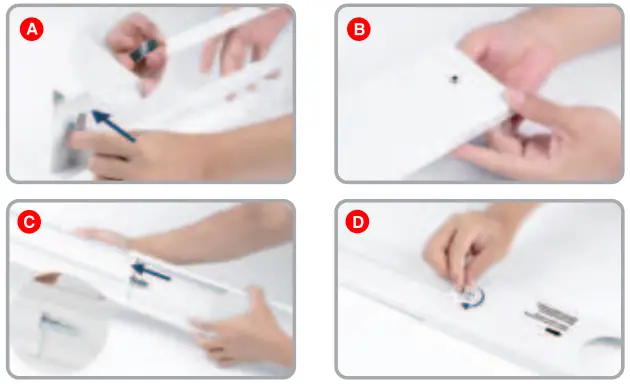

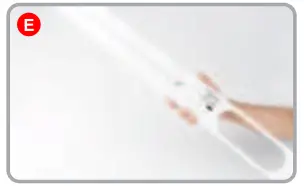

- Adjust to desired length and use provided metal wing nuts and bolts to secure.
- If the window opening is less than 18″ the minimum length of the Panel A, cut A with a hole in it short to fit for the window opening.
- Never cut out the hole in Panel A
For a 9″- 18″ window opening, use panel A (Cut short if necessary)
For a 19″- 38″ window opening, use panel A+B (Cut short A if necessary)
For a 39″-57″ window opening, use panel A+B+C
Installation Instructions
CONNECT HOSE TO WINDOW KIT

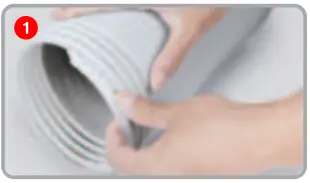

- Stretch the vent hose 6inch(15CM) to facilitate the installation of the exhaust nozzle.

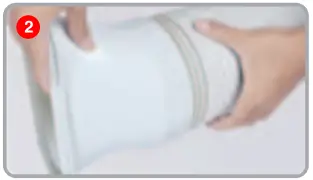

- Rotate the vent hose into the exhaust nozzle A
counterclockwise, and check to see that it are fastened securely to the hose.

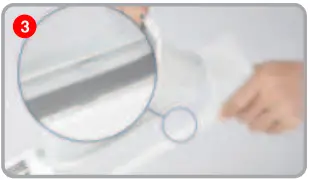

- Slide it for locking.

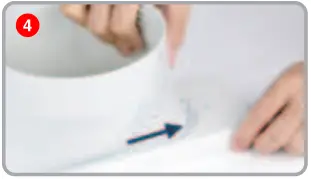

- Insert hose outlet into the window panel A fully.

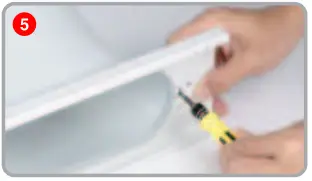

- If you want fix the connection more firmly, use the type A serew.
