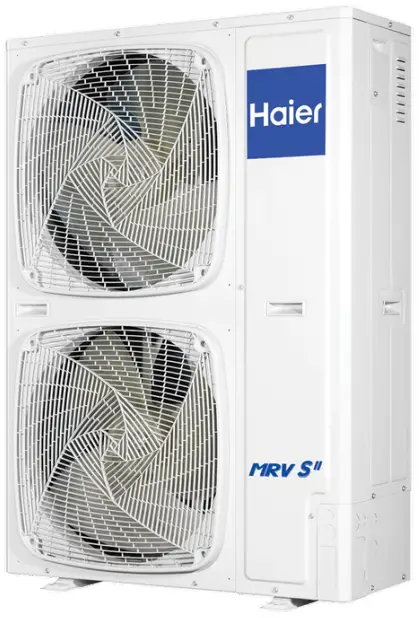

Haier AU042FPERA MRV S Air Conditioner User Guide
DIMENSIONS
| Height | 1350 mm |
| Width | 950 mm |
| Depth | 370 mm |
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 12.6kW |
| Heating capacity (kW) | 14.2kW |
| Consumption | |
| COP | 4.47 |
| EER | 4.06 |
| Features | |
| Compressor type | Rotary |
| Inverter controlled compressor | |
| Installation | |
| Connectible indoor unit ratio | 50-130% |
| Liquid line | 9.52mm |
| Maximum number indoor units | 8 |
| Suction line | 15.88mm |
| Performance | |
| R410a refrigerant | • |
| Sound power | 68dBA |
| Sound pressure | 50dBA |
| Working temperature cooling | -15°C ~ +48°C |
| Working temperature heating | -20°C ~ +27°C |
| Power Requirements | |
| Power supply | 220-240vac |
| Product dimensions | |
| Depth | 370 mm |
| Height | 1350 mm |
| Net weigh | 115kg mm |
| Width | 950 mm |
| SKU | 51379 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time.
You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
