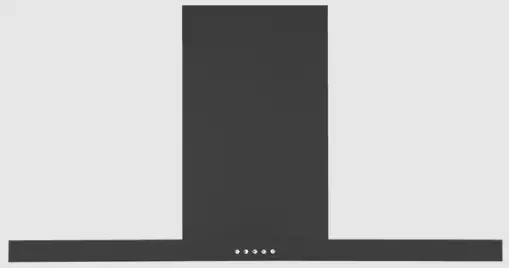

Haier HC90BLB1 90cm Wall Rangehood

Black
With a black finish to suit your kitchen aesthetic, this stylish box chimney rangehood quickly removes steam, grease and odours in your kitchen.

Effective 700m3/hr airflow
Dishwasher-safe aluminium filters for easy cleaning
Energy-efficient LED lighting illuminates your cooktop
Ducted or recirculation options for flexible installation

DIMENSIONS

Height 540 – 1020mm
Width 898mm
Depth 500mm

FEATURES & BENEFITS

Sleek finish
For a cohesive kitchen design, this rangehood has a bold black finish that is perfect for matching with Haier’s range of black glass cooking appliances.

Effective extraction
Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.

Easy cleaning
The aluminium filters are easy to remove and dishwasher-safe, for quick and simple cleaning.

A joy to use
Thoughtful design features enhance your cooking experience, with responsive push-button controls and energy-efficient LED lighting to illuminate your cooktop.

Installed to suit
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.

SPECIFICATIONS

Accessories

Aluminium filter	H0530060509
Chimney extension	H0530062212
Light bulb	H0530061789
Recirculation carbon filter	H0530061789 (sold separately)
Recirculation kit	H0530062211 (sold separately)

Fan ratings
Maximum air movement 700m³/hr

Installation and cleaning

Air outlet size	150mm
Dishwasher safe filters	•
Ducted	Top extraction
Recirculation	Optional – top extraction
Two piece height adjustable flue	•

Performance

Extraction type	Surface
Fan speeds	3
Filter type	Mesh
Number of filters	3

Power requirements

Supply frequency	50Hz
Supply voltage	220 – 240V

Product dimensions

Depth	500mm
Height	540 – 1020mm
Width	898mm

Product information

Control type

Push button

Ventilation features
Light type LED 2 x 2W

Warranty
Parts and labour 2 years

SKU 61793

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
