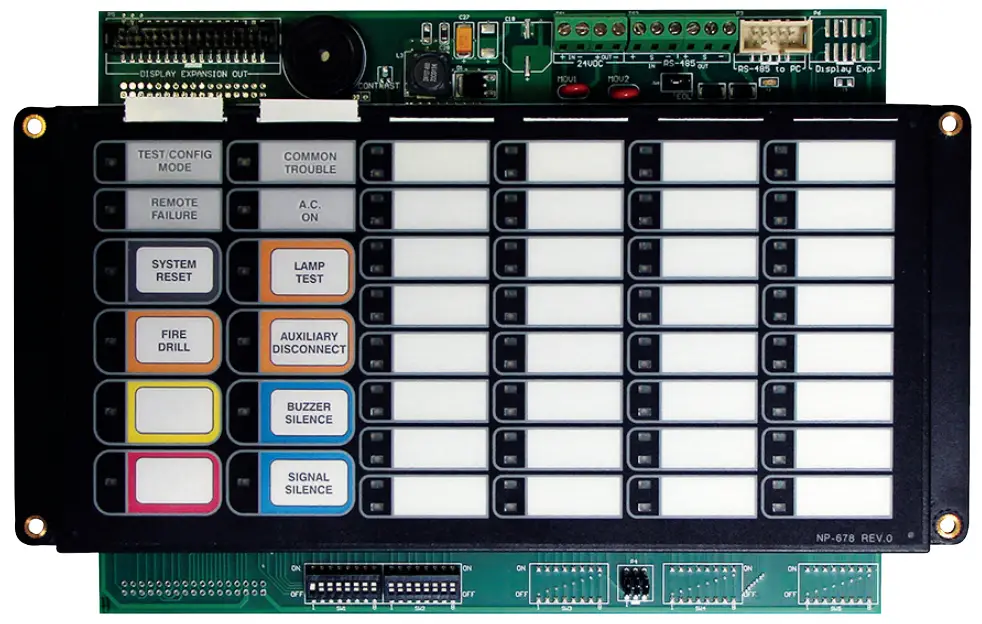

MGC RAM-1032TZDS-CC 32 Zone Conformal Coated Remote LED Annunciator
Description
The RAM-1032TZDS-CC Main Remote LED Annunciator provides common annunciator functions and 32 points of LED annunciation. The RAM-1032TZDS-CC has indicators for A.C. On, Common Trouble and Signal Silence and controls for System Reset, Lamp Test, Fire Drill, Buzzer Silence and Signal Silence. Each display point can be identified by the slide-in label that slides in besides the LED.
The RAM-1032TZDS-CC allows for the control switches to be disabled on a per function basis for areas that do not require certain common control functions to be remotely located from the fire alarm control unit.
The RAM-1032TZDS-CC can be expanded with the addition of RAX-1048TZDS-CC. RAX-1032TZDS-CC is a conformal coated annunciator and is UL and ULC approved for outdoor use when used with BB-1001WPRA and BB-1002WPRA.
Programmable LED Annunciator Modules. No heat or thermostat is needed.
Features
- UL/ULC approved for outdoor use with BB-1001WPRA and BB-1002WPRA
- Conformal Coated Annunciator
- 32 Bi-colored LEDs
- 32 Zoned Trouble LEDs
- AC On, Common Trouble, Auxiliary Disconnect
- 2 Stage Acknowledge and General Alarm Activate (if configurated)
- Reset, Lamp Test, Fire Drill
- Local Buzzer & Signal Silence
Power Consumption
| Normal Operating Voltage | 20 to 39 VDC |
| Stand by | 50 mA |
| Alarm | 300mA |
Ordering Information
| Model | Description |
| RAM-1032TZDS-CC | 32-Zone Conformal Coated Remote LED Annunciator |
| Expandable RAX Conformal Coated option | |
| RAX-1048TZDS-CC | 48-Zone Conformal Coated Remote LED Annunciator |
Canada
25 Interchange Way Vaughan, ON L4K 5W3
Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113 www.mircom.com
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND
NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Morcom. The information is subject to change by Morcom without notice. Morcom does not represent or warrant correctness or completeness.
