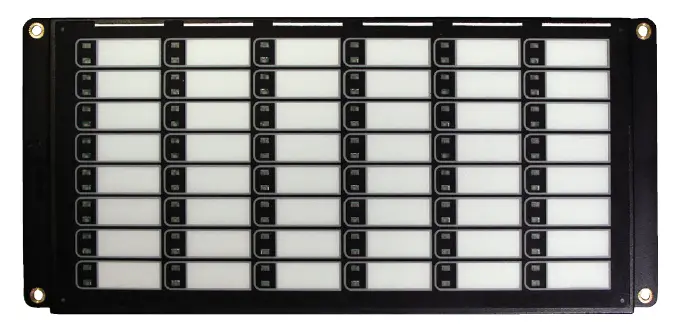

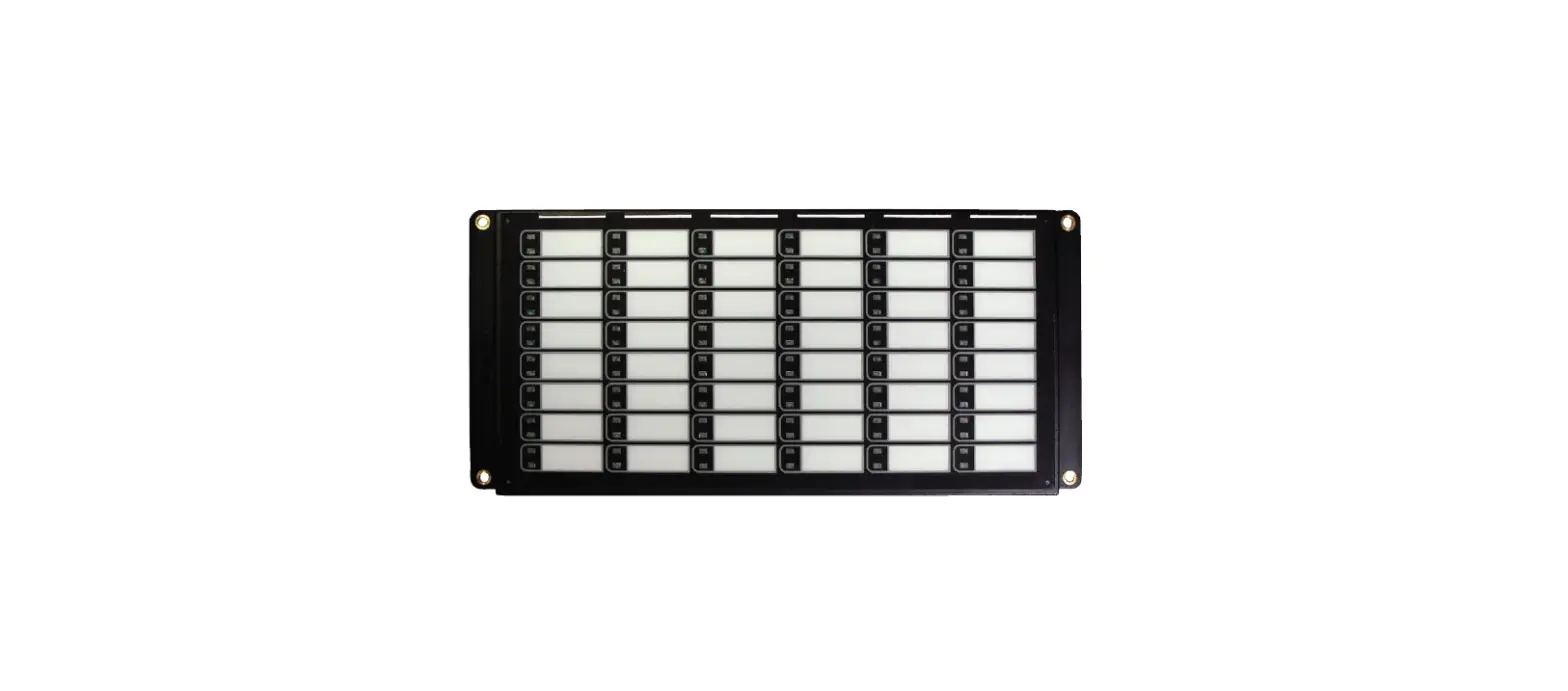

MGC RAX-1048TZDS 48 Zone Remote LED Adder Annunciator
Description
The RAX-1048TZDS Programmable LED Annunciator Module provides 48 programmable bi-colored LEDs. The RAX-1048TZDS connects to the main control unit or main annunciator module when mounted remotely. Each display point can be identified by the slide-in label that slides in besides the LED. The RAX-1048TZDS occupies one display position in the BB-1000D or BB-5000D Series enclosures. The RAX-1048TZDS interconnect via one ribbon cable to the RAM-1032TZDS or to previous RAX-1048TZDS, adding up to 48 additional points of control with trouble annunciation.
Features
- 48 Bi-colored LEDs
- 48 Zoned Trouble LEDs
- Interconnects via ribbon cable to RAM-1032TZDS
- Interconnects via ribbon cable to previous
- RAX-1048TZDS
- Mounts in BB-1000 Series enclosure or BB-5008 or BB-5014
Power Consumption
| Normal Operating Voltage | 20 to 39 VDC |
| Stand by | 22 mA |
| Alarm | 262 mA |
Ordering Information
| Model | Description |
| RAX-1048TZDS | Expandable Remote LED Annunciator c/w 48 Bi-Colored LEDs |

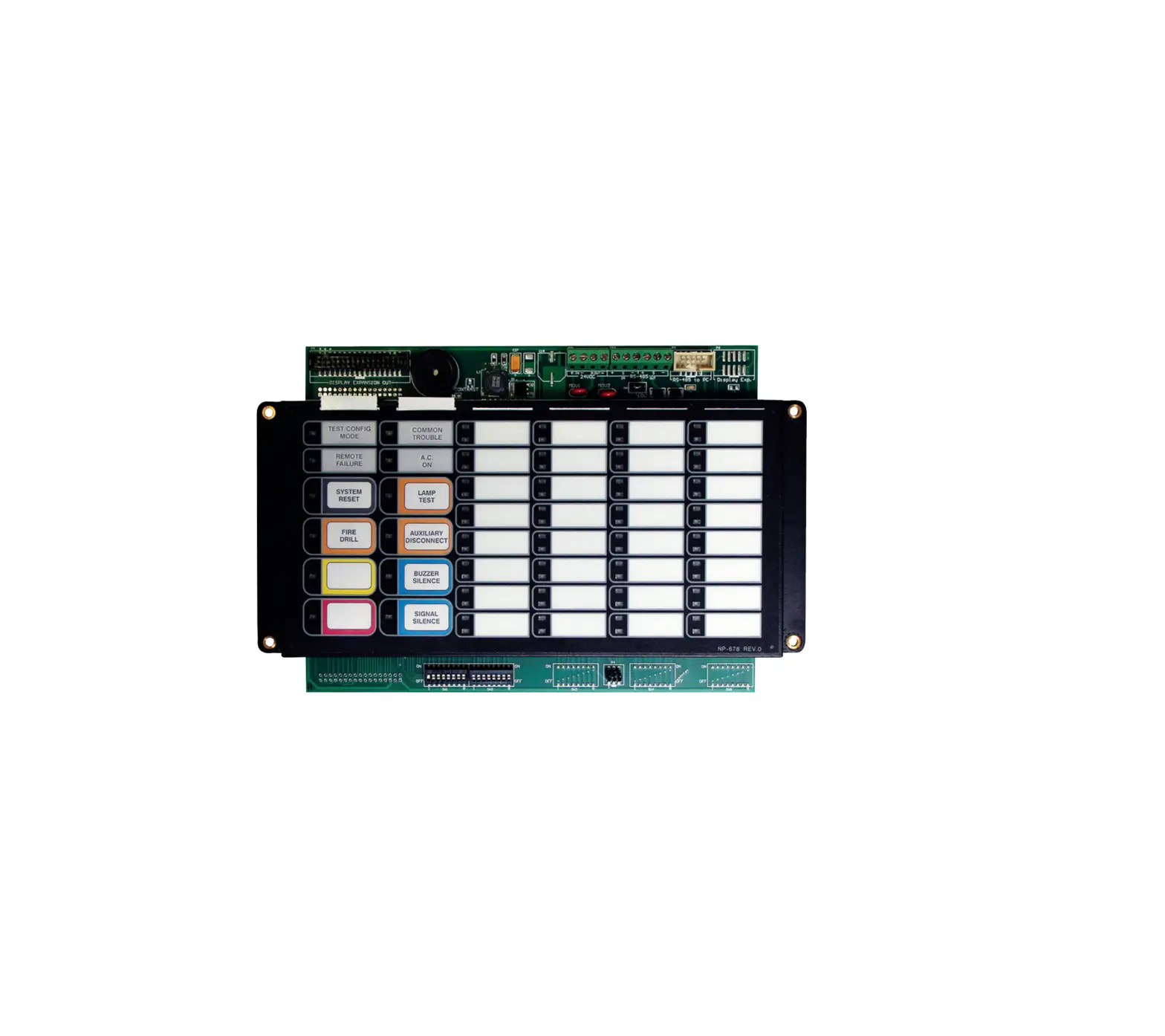

| RAM-1032TZDS | Main Remote LED Annunciator c/w 32 Bi-Colored LEDs |
Canada
25 Interchange Way Vaughan, ON L4K 5W3 Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305 Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113 www.mircom.com
