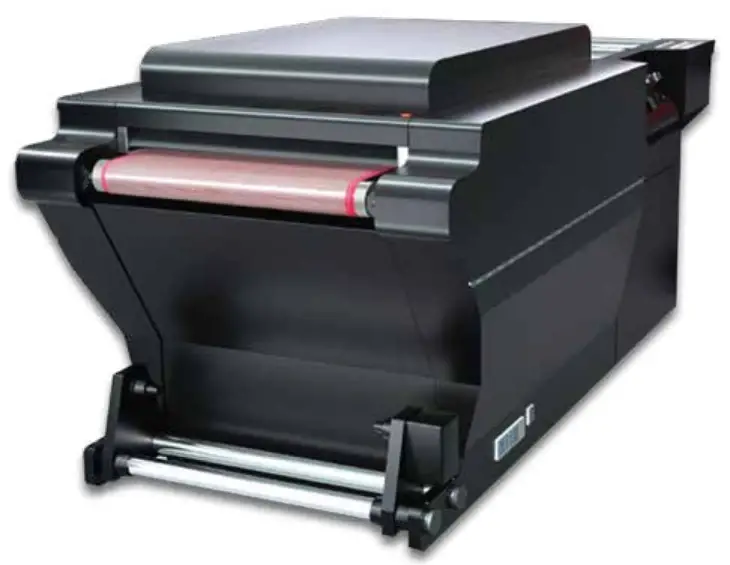

AA 24 Inch DTF Powder Recirculating
Applicator and Dryer Combo v3
Manual

Thank you very much for purchasing this product! Please read this manual carefully before use. Please keep this book in a safe place for future reference.

Contents

Dear user,
Thank you for using our products!
In order for you to use this product correctly, please read this manual carefully before installing and using the product. Please make sure to keep this manual for future reference.
While using our powder applicator and dryer products, it is important that you carry out regular cleaning and maintenance. If the product is not properly maintained, the chances of failure will increase and its service life will be greatly reduced.
Please contact your local service center or us directly for yearly paid inspections and maintenance services with one of our specialists.

Safety Warning

Caution
This section describes the contents and importance of safety matters to prevent personal injury or property damage to users or others. Please read the text with a full understanding of the following contents (symbols and icons). a Prohibited Use, Materials, and Operation be sure to observe the described safety matters.
Prohibited Use, Materials, and Operation

• Do not pull the power cord. always hold the plug tightly and pull it out directly from the socket. To ensure safe use. please do not damage the power cord at any time, when the power cord is broken or the plug is worn. do not use. If the power cord is worn or damaged. it must be replaced at the maintenance point designated by the manufacturer.
• Private disassembly. transformation and prohibition of damage to the equipment are strictly prohibited. and repair of equipment must be carried out by professional personnel. If the power cord is damaged. it must be replaced by the manufacturer, its maintenance department, and related professionals in order to avoid danger.

Mandatory Warnings & Requirements

• Be sure to ensure that the grounding pole of the outlet has a reliable ground wire.
• The AC220V AC power supply used by this shaking machine will cause the service life of the shaking machine to be reduced if the voltage exceeds the rated voltage range by 10%.
• Please do not put flammable. explosive. volatile and highly corrosive items near the shaking machine to avoid damage to the product or fire and other accidents. Please do not place or use combustible items near the shaking powder machine to avoid fire. Use Caution in Case of Injury

Use Caution in Case of Injury

• For safety, it is recommended not to place debris on top of the powder shaker.
• Avoid hand contact with the surface of the equipment for a long time to prevent hand burns.
• Unplug the power when the power is off or when cleaning.

Product Description

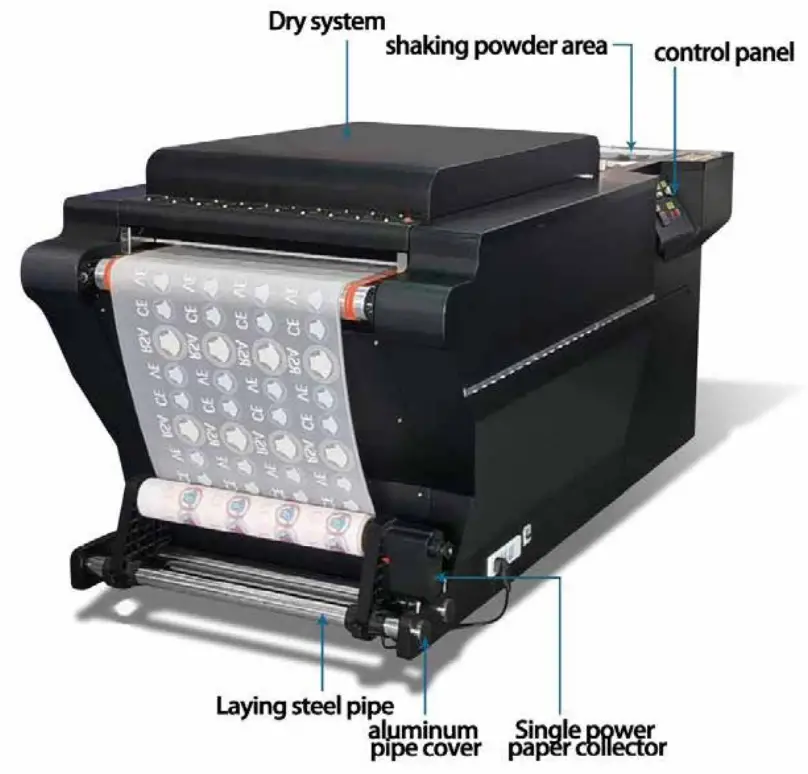

Part name
Tips
All illustrations in this manual are for explanatory purposes only. In case of inconsistency between its appearance, function, and the actual product, please refer to the actual product.

Accessory list

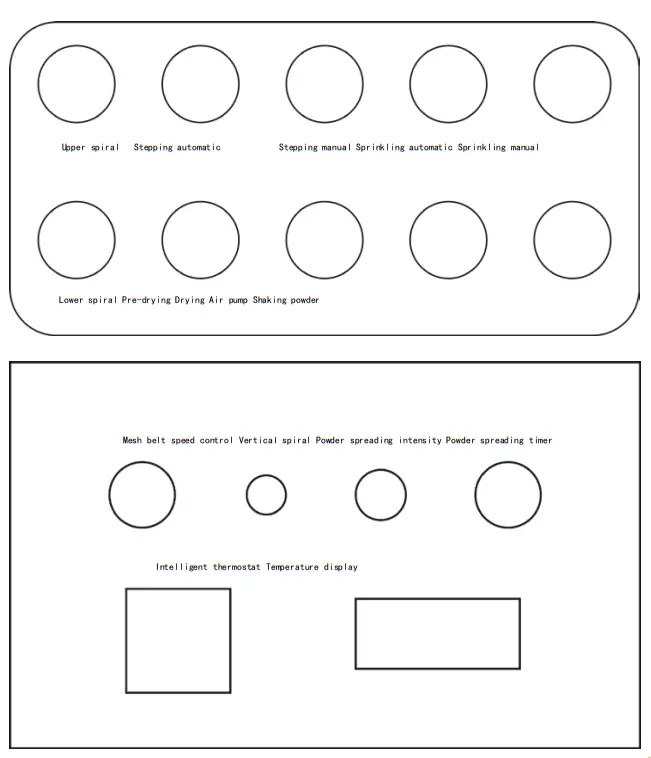

Operation panel

Instructions for use

Instructions 1Fc)r ust)(St eps 1-6 are instructions for installing and using the printer, and the instruction procss for shaking the powder machine starts at 7)

1. Open the box tool. use the tool to open the box. and check the random accessories after opening the box.
2. Installation of the foot. the accessories required for the foot (bottom beam. paper take-up and payoff. waste ink bucket. take-up and payoff cloth holder X 2. foot X 2 and base plate X 2). the installation of the machine (pay attention to the direction of installation of the bracket left and right), respectively. the bottom of the foot and the bottom of the foot base plate screw holes with screws to lock. install the foot bottom beam. install the take-up and payoff cloth holder. install the take-up and payoff cloth steel pipe. the installation of the waste ink bucket (pay attention to the location of the installation). the installation of the foot is complete (pay attention to the installation direction of the bracket). fix the machine body on the foot. loosen the four screws fixed on the packaging of the machine body. lock the screw holes above the foot and the bottom of the machine body with screws.
3. Installation of the ink drum
4. Check the trolley movement, drying fan, heating, stepping, and ink stack working action. When the power is not on. manually lower the ink stack to the lowest level and manually move the carriage to check where there is interference. Power on the self-test, check the carriage movement and ink stack working action. check the drying fan, front, middle and back heating and stepping. RIP a picture to test the movement and whether it can print the effective width properly.
5. Installation of printhead and ink injection, check the ink stack and printhead installation hole position is appropriate. printhead installation as well as printhead line inserted in the printhead plate. ink injection, first through the syringe ink into the ink capsule, inserted in the printhead by color sequence.
6. Software cleaning and printing test, through the software cleaning printheads, print test strips. print calibration test.
7. Machine installation, printing. shaking powder and drying. check the receiving spare parts, and fix the receiving device with screws. add hot melt powder within 2 kg (standard) on the shaking powder machine. the receiving device is assembled. the receiving device is assembled. Print film loading. adjust the print film. lock the pressure wheel. fix both sides Instructions for use Instructions 1Fc)r ust)(Steps 1-6 are instructions for installing and using the printer, and the instruction process for shaking the powder machine starts at 7)of the positioning piece. adjust the articulation table of the shaking powder machine. Start printing. then manually transition the print film. Power on the shaker. turn on the heating. drying and manual stepping. turn on the upper spiral. lower spiral and vertical spiral buttons, and make sure the powder return is normal. adjust the drying temperature about MOT: and adjust the articulating table temperature to about 60t. Turn on the power of the smoke evacuator.
8. In printing. shake the powder machine on the powder. fix the printing film with a magnet. turn on
   the powder spreading manual and adjust the size of the powder spreading vibration. spreading powder. turn off the powder spreadingmanual. turn on the powder spreadingautomatic. turn off the stopping manual. turn on the stepping automatic. Use a section of unused print film, from the exit end of the shaking powder machine (to prevent shaking powder. just on the print film backward slippage problem). open the wind pump switch. manually move the print film to the suction port suction, open the shaking powder button, and check the beginning of the print film is not evenly sprinkled, not manually sprinkled with some powder.
9. On the paper cylinder. adjust the winder. after printing, manually move a small section of the print film, and carefully cut off the print film, with the help of a small magnet. the end of the print film fixed on the machine. you can move the small magnet. so that the back of the print film along the edge slowly into. close the step automatically, open the step manual, and after the manual step. the guide belt will automatically move the print film from the suction magnet. Close the powder spreading automatic, close the shaking powder, drying process, printing and drying is completed, finishing the printed film.

CleaningCleaning and maintenance

Caution.
This section describes the contents and importance of safety matters to prevent personal injury or property damage to the user or others. Please read the text with a full understanding of the following contents (symbols and icons), and be sure to observe the described safety matters.
Caution
When cleaning the powder shaker, turn off the power first.
Cleaning
-The dust on the body and ground of the powder shaker should be cleaned on time to improve the heat dissipation effect. with to help save energy. -shaking powder machine should be cleaned frequently. when cleaning. please use a soft towel or sponge. dipped in water or Non-corrosive neutral detergent cleaning, and finally wipe clean with water. dry rag dry.
Warning
Do not use hard brushes. wire balls, wire brushes, abrasives (such as toothpaste), or organic solvents (such as alcohol, acetone. banana water. etc.). boiling water, acid, and alkaline items to clean the Shake the powder machine.
Caution
Do not rinse with water when cleaning to avoid affecting the electrical insulation performance. When cleaning electrical parts, please Use a dry wipe.
—Unplug the power supply when not in use for a long time to avoid electric shock or fire due to the aging of the power cord.

Service Guide

Non-Troubleshooting
Caution
Note: If there is still a problem with the shaking powder machine after the non—fault check, please cut off the power and contact the after-sales service center. Before asking someone to check or repair, please check the following points.

Product parameters
Note The parameters in this table are for reference only. please refer to the nameplate when the contents in this table and the machine nameplate conflict.
