KP 61 Thermostat
Installation Guide
KP 61 Thermostat

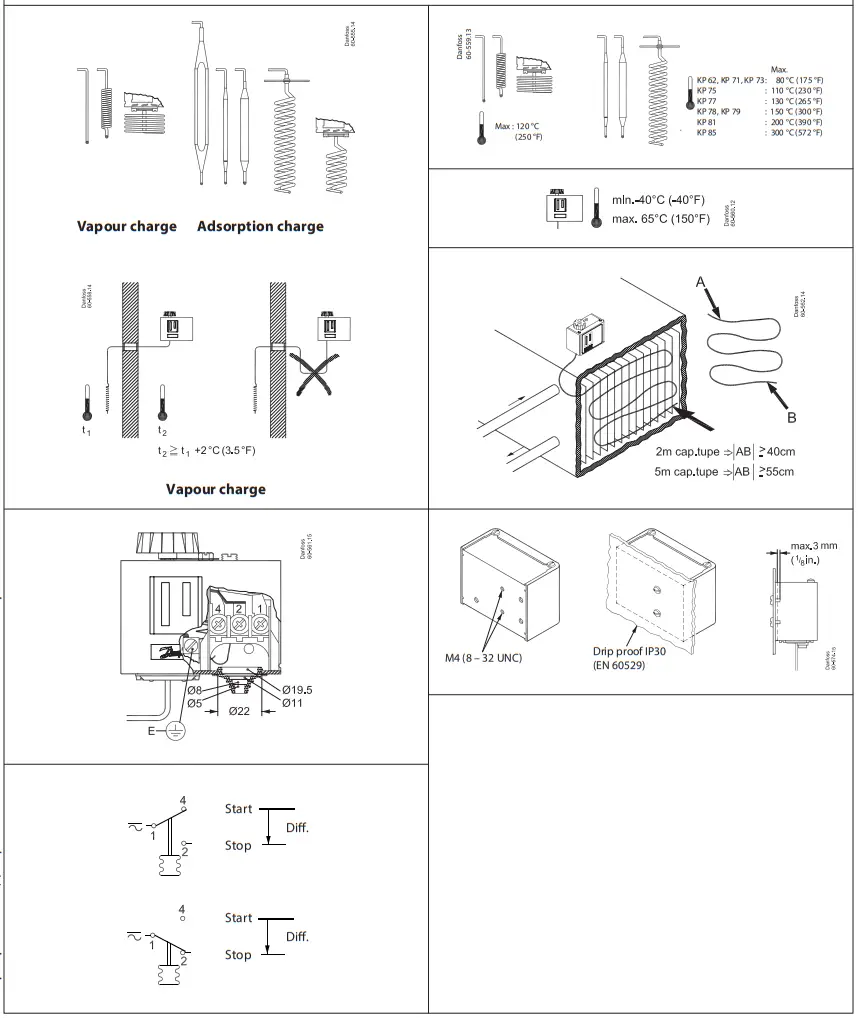

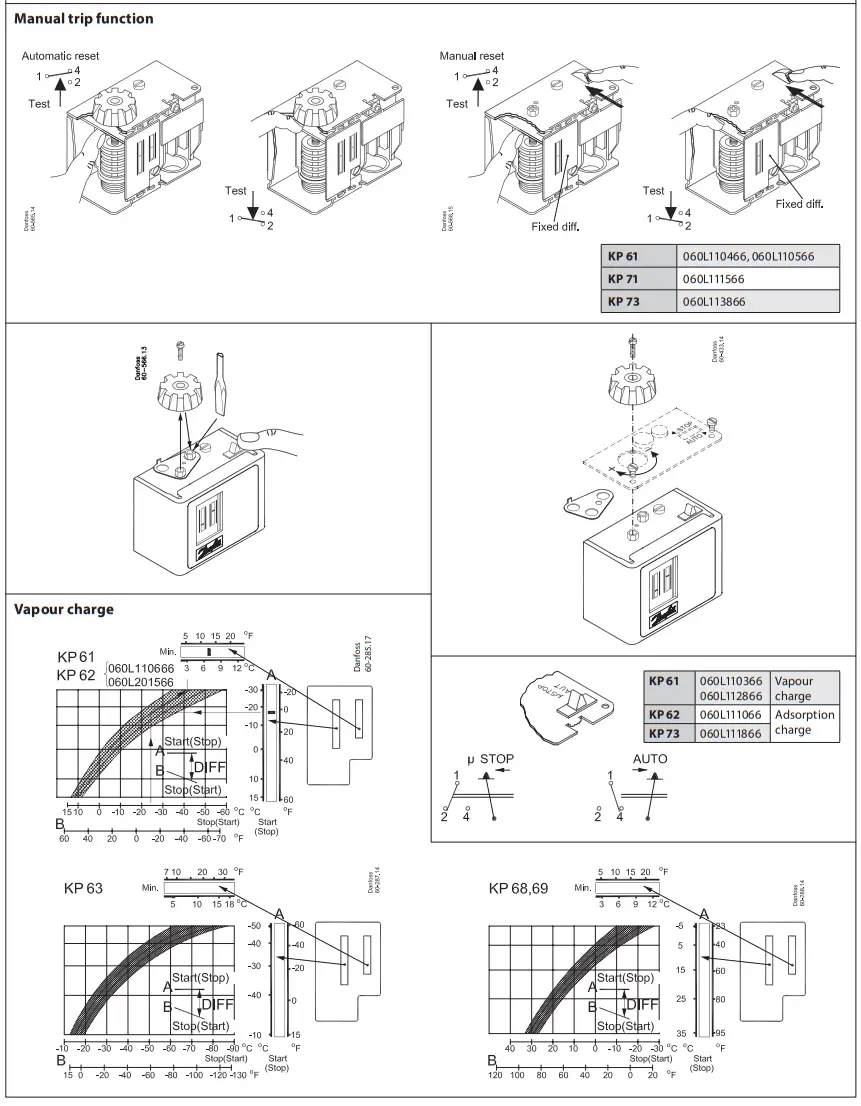

KP 61, KP 62, KP 63, KP 68, KP 69 vapour charge
KP 62, KP 71, KP 73, KP 75, KP 77, KP 78, KP 79, KP 81, KP 85 adsorption charge (cross ambient)
Electrical rating – General
| LR 112A | AC 1: 16A | 400 V | D C 11 12 W 220 V |
| AC 3: 16A | |||
| AC 15: 10 A |
Listed refrigeration controller 61B5
| Voltage | FL A | LR A | Resist. Load | Pilot duty | |
| AC | DC | ||||
| 240 120 | 8 | 48 | 8 A | 3 A | |
| 16 | 96 | 16 A | |||
| 240 | 12 W | ||||
Use copper wire only
Tightening torque 20 lb. in.
* not applying for KP 85
CAUTION:
Disconnect the power supply before wiring connections are made or serviced to avoid possible electrical shock or damage to equipment.
Do never touch live parts with your fingers or with any tool.
