EVOHEAT SP-EJBOX EVO J-BOX EVO Heat
The Evo J-Box allows your heat pump to turn the main water pump on the outside of your filtration times, saving you time, energy & money!
- Simple to install
- Easy to use
- Save on running costs
- Set and forget
- No water balance issues Only require one water pump

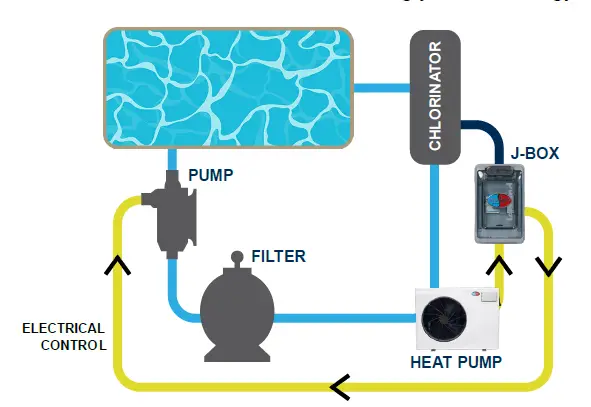

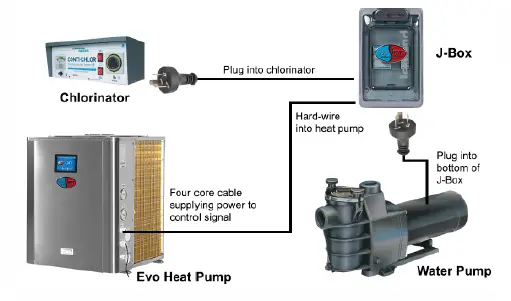

EASY INSTALLATION – ELECTRICAL CONNECTION
- The heat pump, J-Box & water pump are all on the same circuit
- The electrical connection of the J-Box is separate from the electric connection of the heat pump
- The J-Box is supplied power via the chlorinator, whereas the heat pump requires an independent power supply
- Refer to the heat pump owner’s manual for power supply requirements and details on the electrical connection.

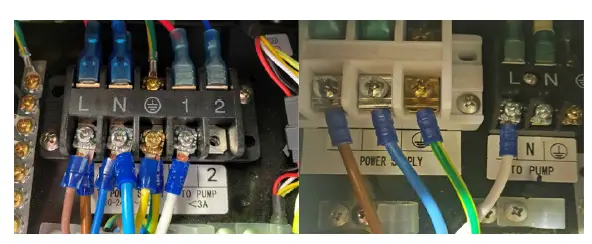

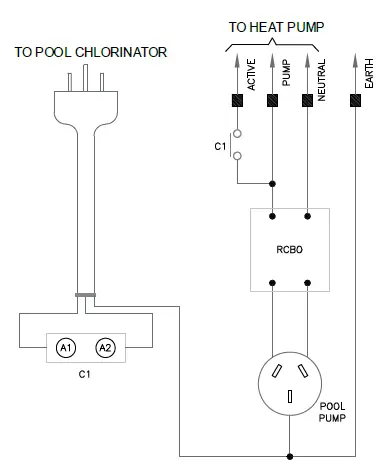

CONNECTING TO THE HEAT PUMP TERMINAL BLOCK
- Connect J-Box Active to Heat Pump Active (Brown Cable)
- Connect J-Box Neutral to Heat Pump Neutral (Blue Cable)
- Connect J-Box Earth to Heat Pump Earth (Green/Yellow Cable)
- Connect J-Box Active to Heat Pump Terminal 1 or Water Pump L depending on the model (White Cable)
