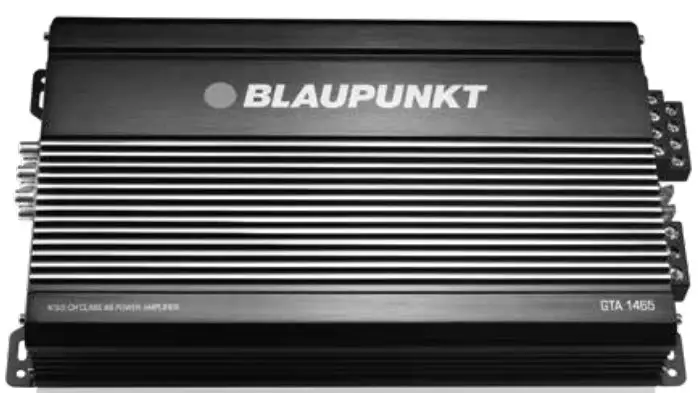

BLAUPUNKT GTA 1465 Power Amplifier Instruction Manual

Contents hide

7 Documents / Resources

8 Related Posts

CAUTIONS

Proper system planning is vital in order to maximize the device’s performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blau punkt dealer for installation or repara-tion. Read the manual carefully before operating the device for the first time.

Safety Notes

Ensure to follow below safety notes during installa-tion and wiring connection: –

Disconnect the negative terminal of the battery. Refer to the safety notes of the vehicle manufactur-er.
Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
Ensure cross section of the cable is no less than 2.5mm7 if the positive and negative cables are too long.
Incorrect installation may result in malfunction of the device or the car sound system.

Installation and Connection Instructions

Select a dry and well-ventilated location to install the device.
The device must not be installed in overly exposed location such on therear shelf, rear seat etc.
The installation location must be suitable for screw holes and have stable ground support.

Integrated Fuse
The integrated fuse in the device protects the output voltage and the entire electrical system in case of malfunction. Do not replace damaged fuse with higher current.

Disclaimer
In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

General Safety Notes
Observe the following to protect yourself against injuries :

The supply voltage requirement is 12V DC with grounded negative connection. Unauthorised dismantling or modifying may void the warranty of the device. Blaupunkt is not liable for any loss or damaged caused or resulting from unauthorized reparation or modification to the device. Refer to a Blaupunkt specialist in case of any installation or reparation required.
The device’s core components may be damaged when the car is driven on bumpy roads for a prolonged period of time or if it is used to play non-standard volume level.
Please do not operate the car radio under extreme temperature conditions (extremely high tempera-ture or extremely low temperature); ensure the temperature within the car ranges from -10°C to 85°C (Storage temperature : 5°C to 35°C) before connecting to the power supply.
For abnormalities, please refer to TROUBLESHOOT-ING. Consult a specialist if the problem persist.
Solvents, cleaning and scouring agents as well as dashboard spray and plastics care products may contain materials which can damage the surface and screen of the device. Use only dry or slightly moistened cloth to clean the device.

Recycling and Disposal

Do not dispose of your old unit in the household trash!
Use the return and collection systems available to dispose of the old device.

This manual may be updated from time to time without any notice. Visit www.blaupunkt.com for more info.

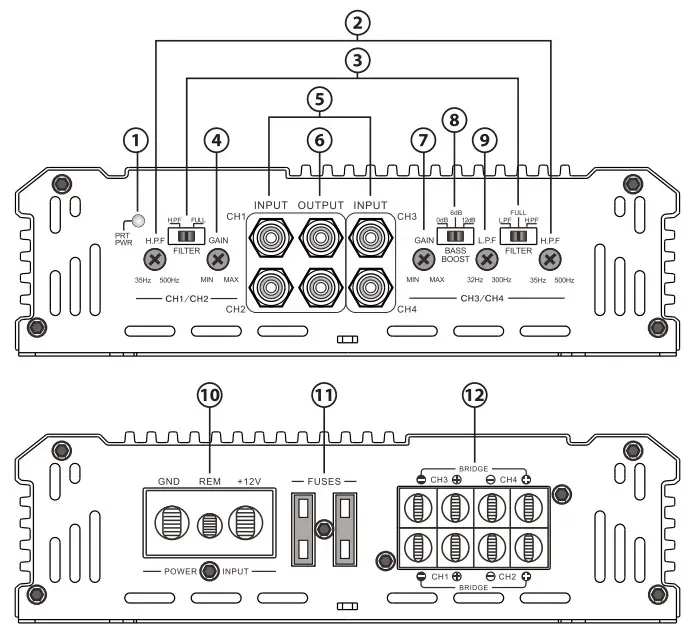

INPUT FUNCTION

PRO/PWR Indicator
HPF Control
Crossover (HPF/FULL/LPF)
CH1/ CH2 Gain Control
Input
Output
CH3/ CH4 Gain Control
Bass Boost
LPF Control
Power
Fuses
4 Channel Speaker Output

SPECIFICATION

Power

Voltage Supply : 11-16V DC
Idling Current : 0.6A
Fuse : 30A x 2
Consumption @ 20, 14.4 VDC : 40A (Max Musical Power)

Amplifier

Amplifier Class : CLASS AB
Channel: 4/3/2
PCB Layer : 1
Max Output Power @ 4 ohms : 130W x 4
RMS Power 4 ohms : 65W x 4
RMS Power 2 ohms : 85W x 4
RMS Power 4 ohms Bridge : 160W x 2
Signal-To-Noise Ratio : >96dB
Frequency Response : 10Hz – 45kHz
Gain Adjust : 180mV – 8V
Bass Boost Frequency : 39-59Hz
Bass Boost Level : 0-12dB
Total Harmonic Distortion : <0.1%
Crossover Frequency : 32Hz – 300Hz (L); 35Hz – 500Hz (H)
RCA Input : 4 Channel
RCA Output : 2 Channel

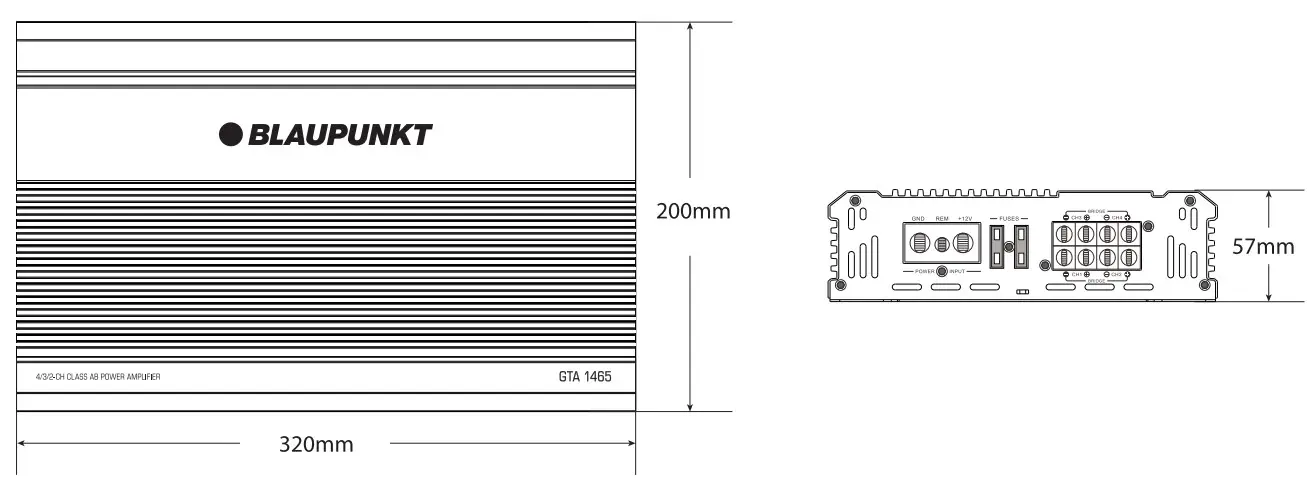

Dimension (W x H x D): 320 x 200 x 57mm
Net Weight : 2.71 kg

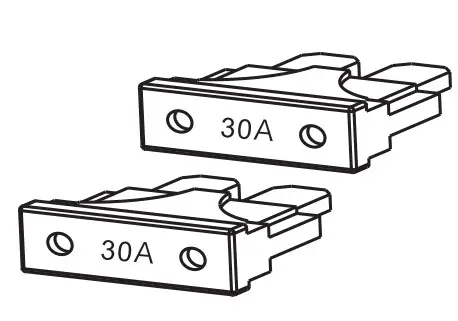

Accessories

2x Fuses

2x Toolkits

4x Srews Lthel Amml

4x Gaskets

4x Spring Gaskets

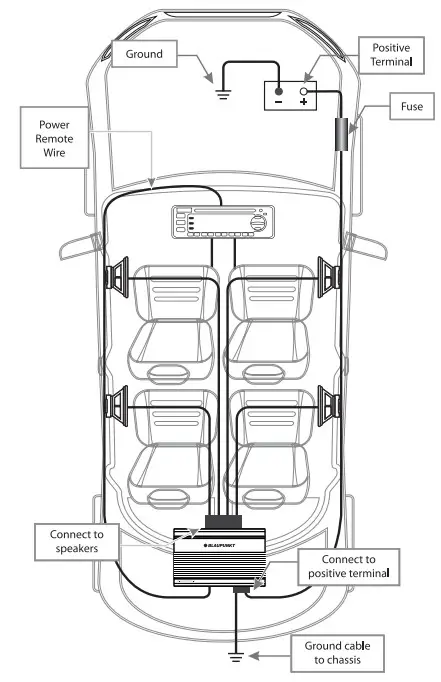

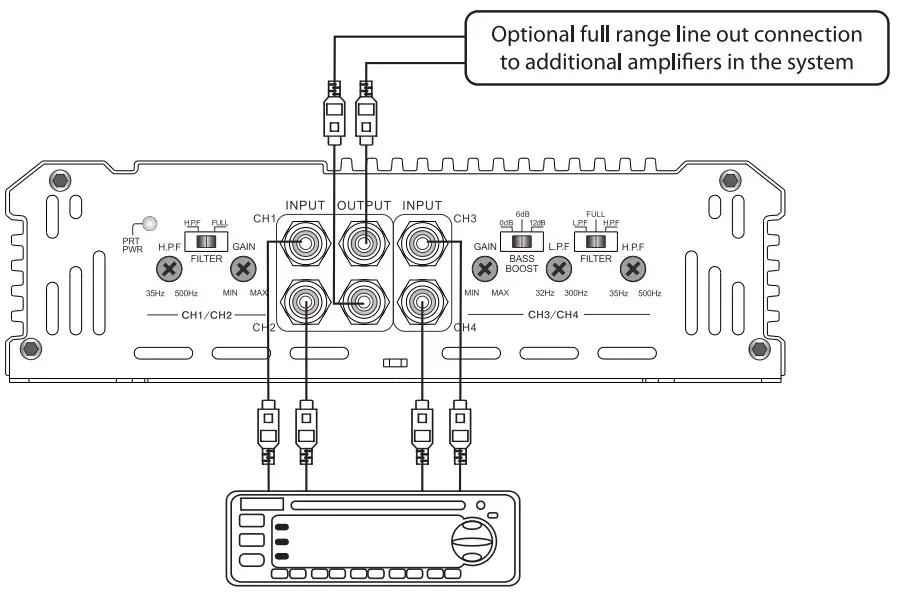

WIRING DIAGRAM

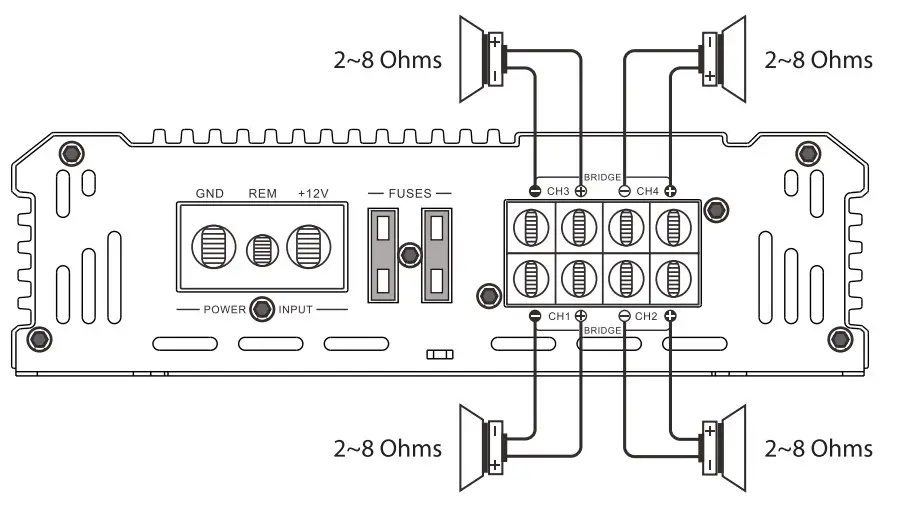

Stereo Mode

Speaker Connections

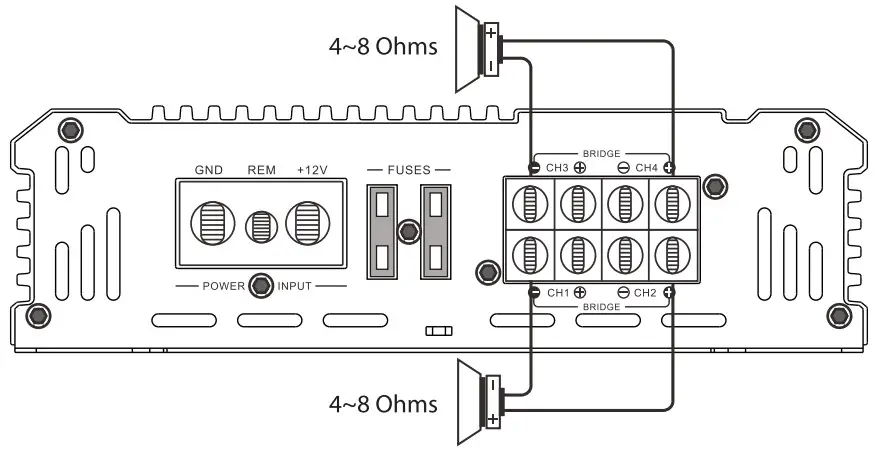

Bridged Mode

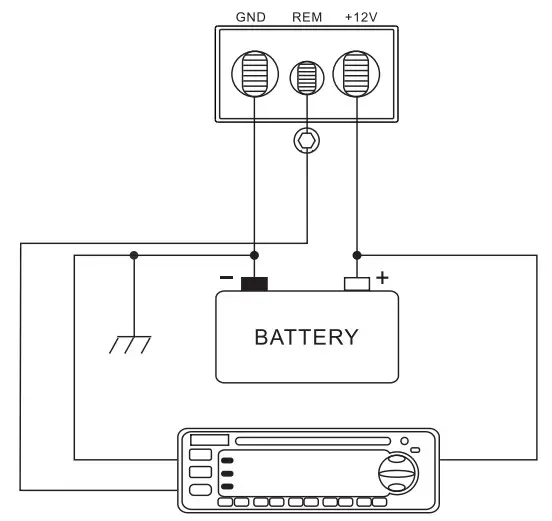

Power Connection Leads

WARNING Do not connect negative charge of the battery to the positive charge before installation.

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problem	Possible Causes	Solution
No audio output	Remote wire failed to work	Examine voltage output/connection and repair accordingly.
	Fuse failed to work	Examine power integrity and reversed polarity, repair or replace fuse accordingly.
	Disconnected power wires	Examine power wire and ground connections.
	Disconnected power wires	Replace and repair accordingly.
	Missing output from source or audio input not connected	Examine input connection and signal integrity.
	Missing output from source or audio input not connected	Replace or repair accordingly.
Unstable audio cycle	Disconnected speaker wires	Examine speaker wires.
	Disconnected speaker wires	Replace or repair accordingly.
	Broken speaker	Examine radio system.
	Broken speaker	Replace or repair accordingly.
	Thermal protection will be activated when amplifier temperature exceeds 90°C	Improve amplifiers ventilation accordingly.
	Poor audio Input	Examine input connection.
	Poor audio Input	Replace or repair accordingly.
Audio distortion	High amplifier sensitivity setting, exceed maximum output capability of amplifier	Refer to manual to reset gain setting.
	Low impedance	Examine speaker impedance. Rewire speaker accordingly, if below 20 stereo or 40 mono.
	Improper connection of speaker and amplifier	Examine speaker wire, replace or repair accord-ingly.
	Broken speaker	Refer to manual for installation instruction.
	Broken speaker	Examine radio system.
Poor bass response	Wrong speaker wire polarity connection causing phase cancella- tion	Replace or repair accordingly.
Poor bass response		Examine speaker polarity and repair accordingly.
Broken battery fuse	Low impedance	Examine speaker impedance. Rewire speaker accordingly, if below 20 stereo or 40 mono.
	Incorrect power connection	Examine power wire and ground connections.
	Incorrect power connection	Repair accordingly.
	Fuse used is smaller than reconi- mended	Replace with recommended fuse type.
	Over drawn current	Examine speaker impedance. Rewire speaker and replace fuse accordingly, if below 20 stereo or 40 mono.
	Incorrect power wire	Examine power wire and ground connections.
	Incorrect power wire	Repair accordingly.
Broken amplifier fuse	Over drawn current	Examine speaker impedance. Rewire speaker and replace fuse accordingly, if below 20 stereo or 40 mono.
Broken amplifier fuse	Fuse used is smaller than recon^–i- mended	Examine power wire and ground connections and repair accordingly with correct fuse.
