Rotronic Hygroclip2 Advanced Leading-edge Probe Instruction Manual

rotronic HygroClip2 Advanced Leading-Edge Probe

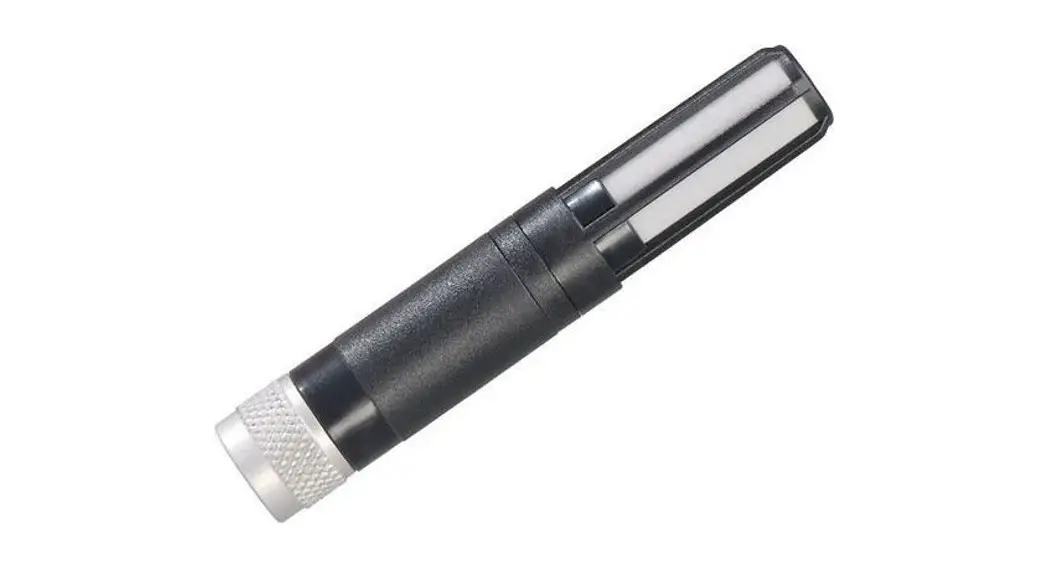

 GENERAL DESCRIPTION

Your Rotronic HygroClip2 Advanced is a lead-ing-edge product that meets all established standards. It will work perfectly for years if you follow the assembly and operating guidelines below.

CONNECTION

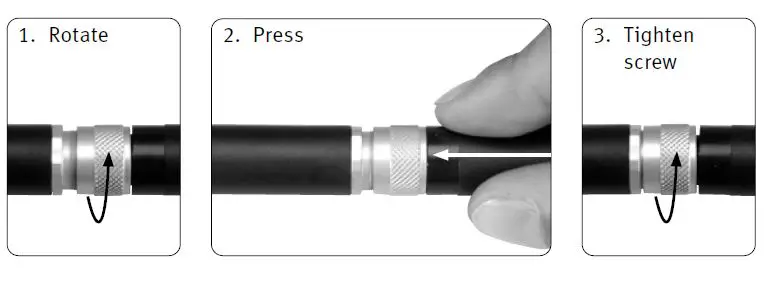

Plug the HygroClip on the mating connector of the transmitter or connection cable. Make sure that the catches are aligned correctly. Tighten the knurled nut by hand.Only a properly assembled and fixed connection assures the IP protection rating. The HygroClip2 Advanced is compatible with the following rotronic products:

•  Handhelds of the HP3x family
•  Transmitter of the HF5 and HF8 families

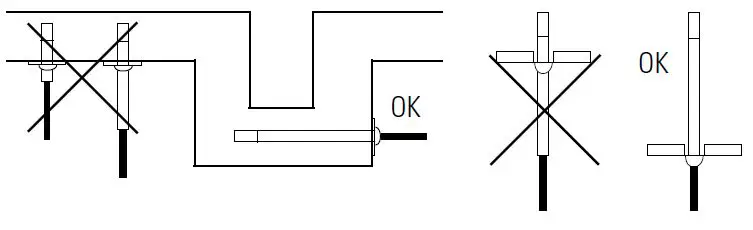

MOUNTING

The probe should be immersed in the climate that is to be measured.

ADJUSTEMENT / CALIBRATION

The probes are adjusted in the factory before delivery. We recommend, depend-ing on the application, a calibration after 1 year of use. We provide calibration and adjustment services or you can do this yourselves on-site with the Rotronic SCS humidity standards or our humidity generators HG2-S. Further information regarding calibration and adjustment can be obtained at www.rotronic.com, www.processsensing.com or by contacting us or one of representants.

TECHNICAL DATA
