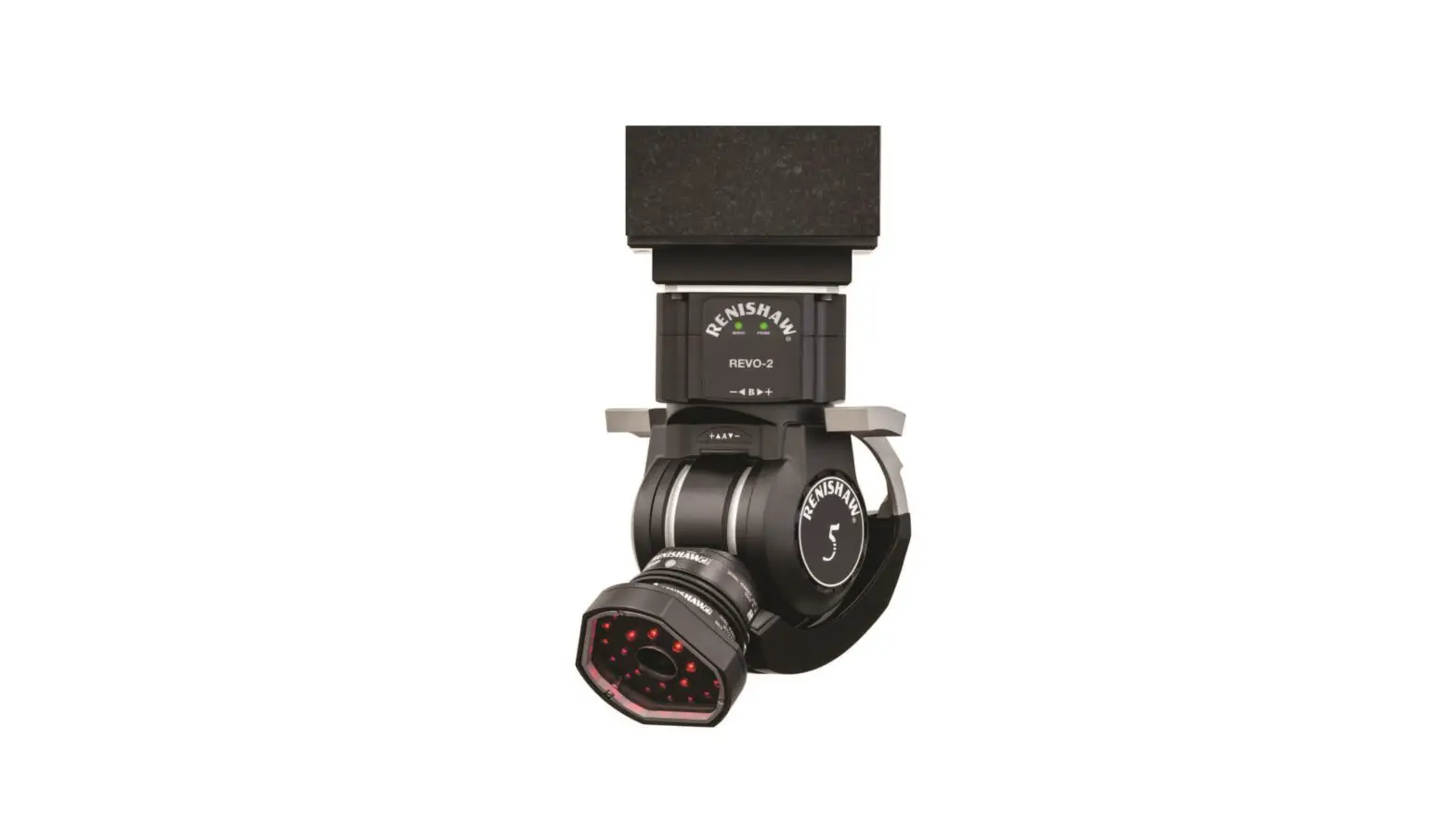

RENISHAW REVO-2 Vision Probe User Manual
REVO-2 is the only scanning system for CMMs that simultaneously controls the motion of three machine and two head axes whilst collecting work piece data using its range of 2D and 3D tactile probes, surface roughness measurement probe and now non-contact vision probe too.
The head’s design incorporates sophisticated laser measurement and electrical signal transmission technology for precise work piece measurement at extremely high rates of data capture. The 5-axis control system removes unwanted dynamic errors associated with machine movement because the measuring head performs most of the work. As the head is much lighter and more dynamic than the CMM, it is able to quickly follow changes in the part geometry without introducing large dynamic errors.

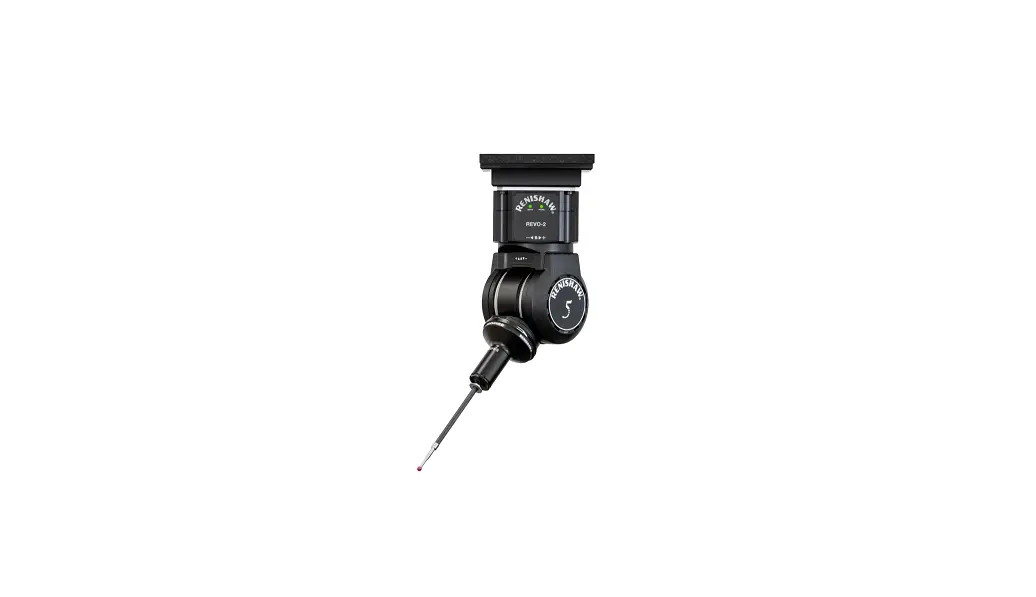

RSP2 probe for REVO
RSP2 is a probe capable of 2D-scanning (x, y) and 3D touchtrigger measurement (x, y, z). A number of different length RSH stylus holders with a minimum reach of 175 mm* and a maximum reach of 500 mm*, can be fitted to the probe’s universal body.
The RSP2 utilises Renishaw’s tip-sensing technology, specifically designed for high speed scanning with low scanning forces and minimal stylus wear. To ensure optimal metrology performance, the type of stylus used with RSP2 is managed by the UCCserver software.
- The number behind RSH represents length from head centre of rotation to stylus ball centre when carrying a 10 mm stylus.
RSP2 and RSH# changing system

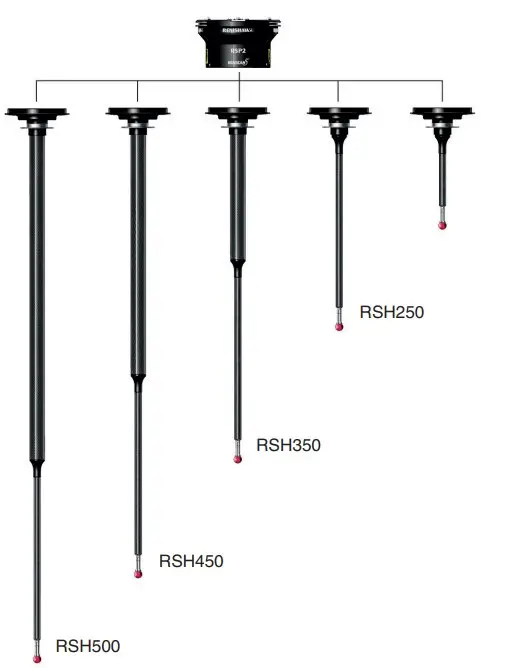

The RCP TC-2 (thermally controlled REVO change port) is used for changing RSP2, whereas the RCP2 (REVO change port) is configured to change RSP2 stylus holders (RSH175, RSH250, RSH350, RSH450 andRSH500).
Specification
| Scan speed | Up to 500 mm / sec (19.68 in / sec) |
| Data collection rate | Up to 4000 points / sec (RSP2 and RSP3) |
| Operating temperature | +10 °C to +40 °C (+50 °F to +104 °F) |
| Storage temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Weight (excluding probe and cables) | 2.1 kg (4 lb 10 oz) |
| Height (overall) | 176.5 mm (6.95 in) (Quill to probe mount, including 4 mm mounting plate) |
| B-axis dimensions | 92 mm × 93 mm (3.62 in × 3.66 in) |
| A-axis swept diameter | 116 mm (4.65 in) |
| Movement speed | 3 revs/sec |
| A-axis rotation | -5° to +120° (for measurement with RSP2 and RVP) -100° to +120° (used for calibration and measurement with RSP3 and SFP1) |
| B-axis rotation | Continuous |
| Angular resolution | 0.02 arc sec (0.01 μm / 100 mm) |
| Bearings | Air – consumption rate up to 50 l / min (5 bar to 8.5 bar) (Refer to user’s guide for detail) |
| Change rack system | RCP TC-2 for probe changing / RCP2 for stylus changing VPCP and VMCP for vision system |
| Mounting | Quill mounting in the vertical orientation only (adaptor may be required) |
REVO-2 probe comparison chart
| RSP2 | RSP3-1 to -4 | RSP3-6 | SFP1 | RVP | |
| Tip sensing | Yes | No | No | Yes | n/a |
| Non-contact | No | No | No | No | Yes |
| Head scanning | Yes | No | No | No | No |
| Cranked styli | No | Yes | Max. 50 mm | n/a | n/a |
| Sensing axes | XY scan XYZ touch | XYZ scan XYZ touch | XY scan XYZ touch | n/a | 2D sensor array |
| Automatic probe changing | Yes | Yes | Yes | Yes | Yes |
| Automatic stylus / module changing | Yes | Yes | Yes | Yes | Yes |
