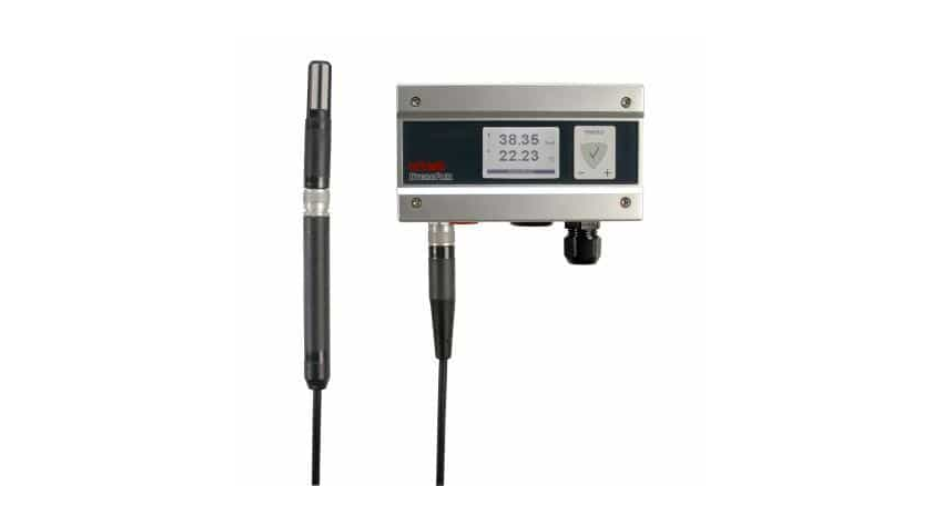

Rotronic Pc-series Humidity Probes Instruction Manual (+ PDF)

Contents hide

1 rotronic PC-Series Humidity Probes

2 GENERAL DESCRIPTION

3 MOUNTING

3.1 WALL MOUNTING

4 WIRING

5 Documents / Resources

5.1 References

6 Related Posts

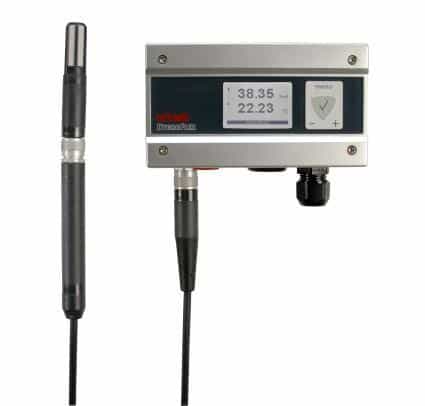

rotronic PC-Series Humidity Probes

GENERAL DESCRIPTION

The PC-Series humidity probes can be installed in a wide variety of appli-cations. For more information please visit www.processsensing.com, www.rotronic.com or scan the QR-Code (also on the probe), which gives you the direct access to the Rotronic online manual.

MOUNTING

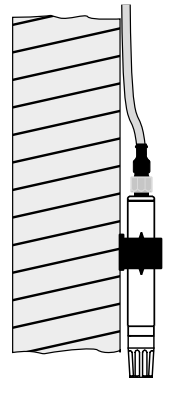

WALL MOUNTING

The PC-Series can be used for wall mounting and must always be installed with the sensing element facing downwards so as to minimize the propagation of heat be-tween the transmitter and the sensitive element. They should be attached to the wall with a mounting clip which can be ordered separately.

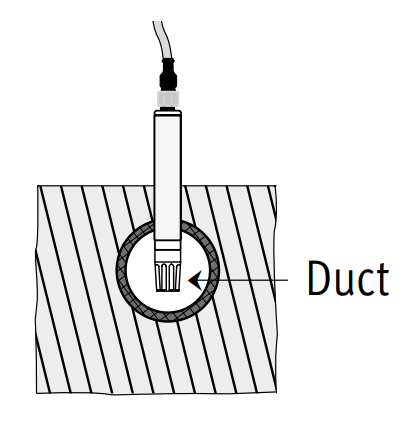

DUCT MOUNTING

The PC-Series can be used for duct mounting and must be installed so that the end of the sensor body (the filter) comes into contact, per pen- dicularly, with the flow of air from which the relative humidity is to be measured. An extra opening should be made in the air duct close to the opening for the installation of the sensor in order that checks and further calibration may be performed, when required.

WIRING

WIRING
	PC33 & 52	PC62 & 62V	PCMini52
Voltage (pin)	(1) White: Power Supply V+ (2) Yellow: Output temp. + (3) Brown: Ground (4) Green: Output RH +		(1) Brown: Power Supply V+ (2) White: Output RH + (3) Black: Output temp. + (4) Blue: Ground
4-20 mA 2-wire output (pin)	1) White: Output RH+ (2) Yellow: Output temp.– (3) Brown: Output RH – (4) Green: Output temp.+
Digital RS485 / Modbus (pin)		(1) White: V+ (2) Yellow: RX/TX- (3) Brown: Ground (4) Green: TX/RX+	(1) Brown: V+ (2) White: Modbus (3) Black: Modbus (4) Blue: V-

TECHNICAL DATA

TECHNICAL DATA
	PC33 & 52	PC62 & 62V	PCMini52
Probe type	Analog relative humidi- ty and temperature	Digital relative humidi- ty and temperature	Digital relative humidi- ty and temperature
Measuring range	-20…80 °C / 0…100 %rh
Accuracy at 23 °C	PC33: ±3 %rh (30…80 %rh) / ±0.3 K PC52: ±2 %rh (10…90 %rh) / ±0.2 K	±2 %rh (10…90 %rh) / ±0.2 K	±2 %rh (10…90 %rh) / ±0.2 K
Long-term stability	<1 %rh / year
Probe housing	Molded polymer or stainless steel		Molded polymer / stainless steel
IP Protection rating	IP65
Type of output signals	4–20 mA, 0-1 V, 0-5 V, 0-10 V	RS485, RS232 and 0…1 V, 0…5 V and 0…10 V	0…1 V, 0…5 V and 0…10 V Modbus RTU
Power supply	14…30 VDC (0…5 V/0…10 V output) 5…30 VDC (0…1 V & mA output)	14…30 VDC (0…5 V/ 0…10 V output) 5…30 VDC (0…1 V)	14…35 VDC (0…5 V/0…10 V output) 6…35 VDC (0…1 V output)
Power consumption	<2 mA (Volt output)	4 mA	4 mA
