LED MIRROR
Instructions Frost Lux 05.04.2022

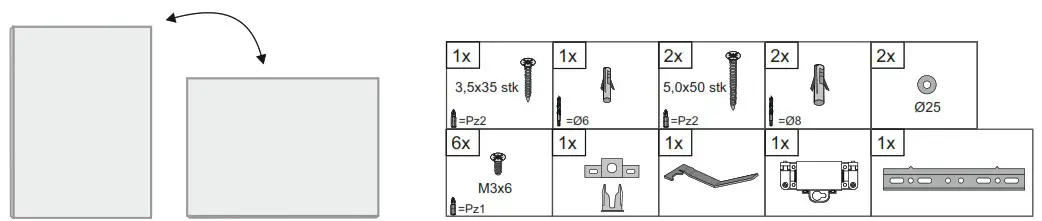

Product contains :

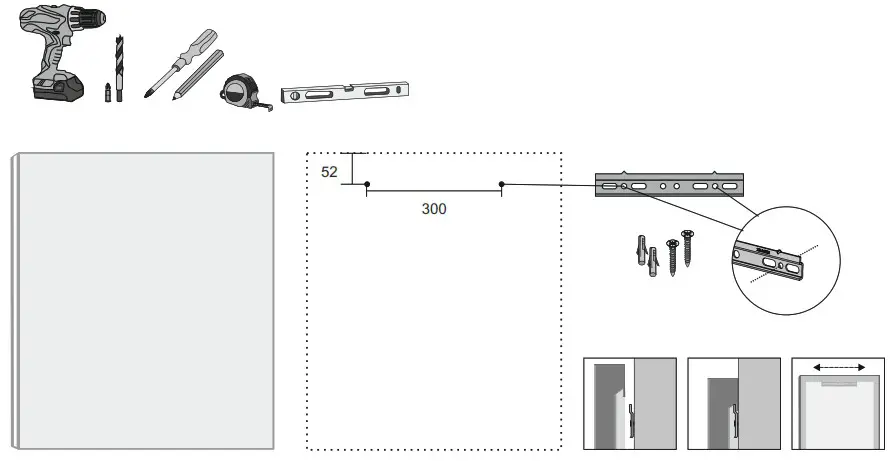

Mirror installation :
See page 2 for fixed installation with locking mechanism.
Technical data :
Supply voltage (Pri. U): 220-240V~50/60Hz, ta=55°C max., IP44, 4000K, Max
10A
| LedMirror Frost Lux 600×700 black Model: 123933 Led voltage (Sec. U): 24Vdc P: 23,4W I:0,98A | LedMirror Frost Lux 700×900 black Model: 123932 Led voltage (Sec. U): 24Vdc P: 28,8W I:1,20A |
https://eprel.ec.europa.eu/qr/919315
This product contains an energy-efficient light source E
The light source is removable but not replaceable.

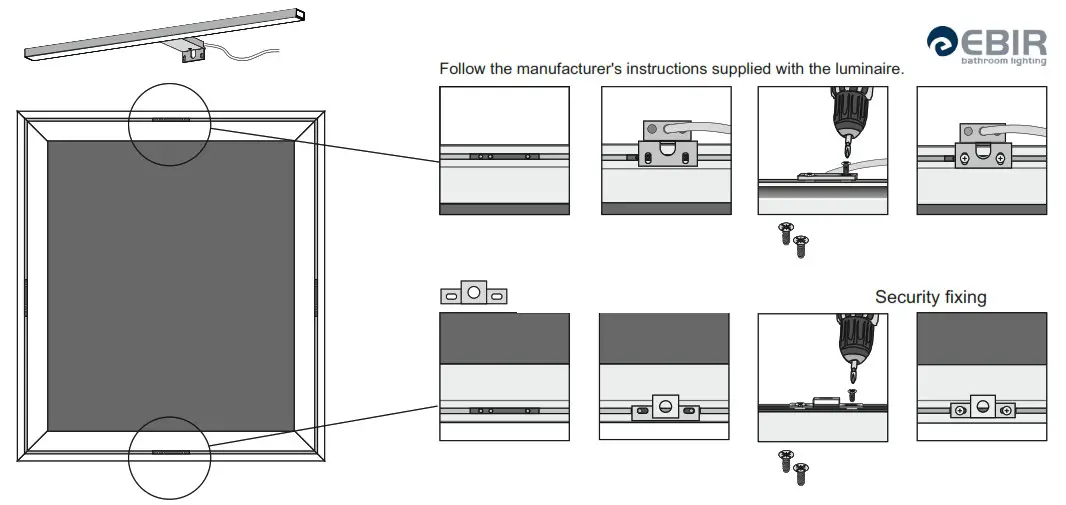

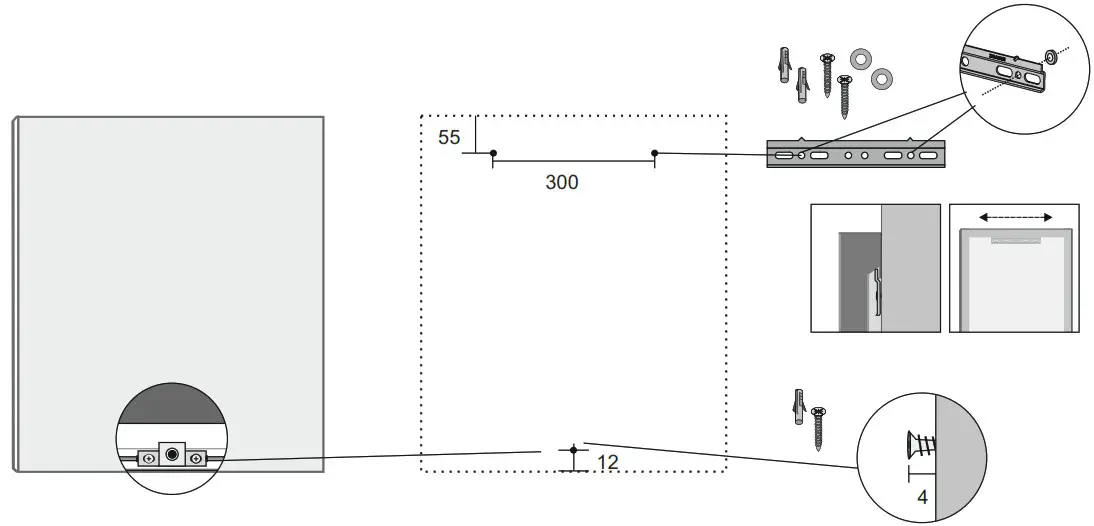

Fixed installation and installation with luminaire :

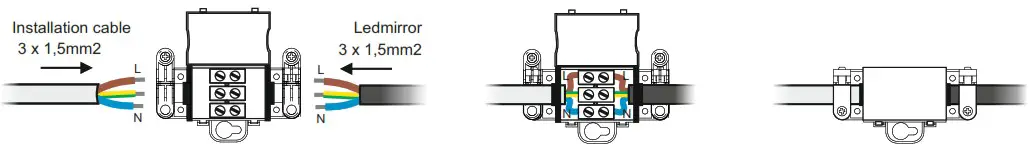

Electrical connections :
- When installing without Europlug to mains (230V 50Hz) the electrical connections must only be carried out by authorized electrician and according to the manufacturer’s instructions.

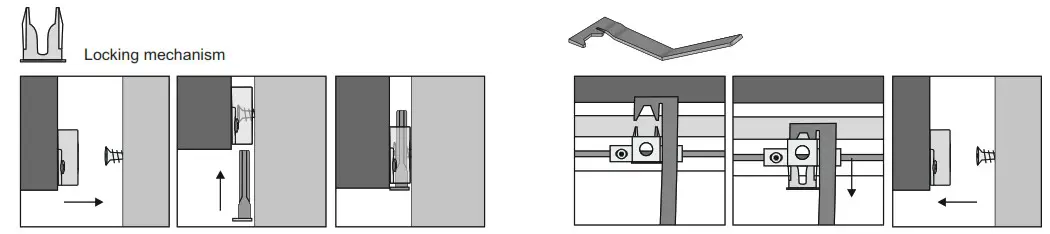

- Led mirror should be fixed to wall so that it can’t be accidently removed (see locking mechanism page 2).

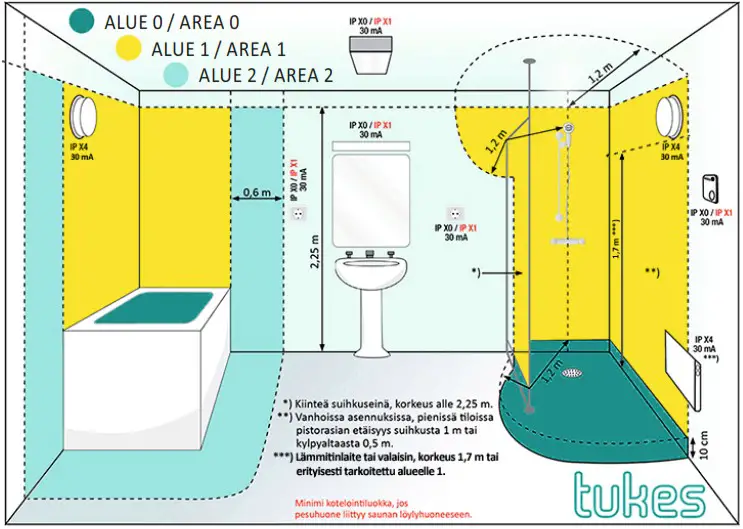

Mounting areas :
- When installed, Frost Lux ledmirror is IP44 rated and it is recommended to install in areas 2 and 3 (see attached picture)
Warranty & instructions :
- Mirror has 3 years warranty. The warranty applies only to manufacturing defects. This warranty does not cover damage caused by incorrect handling and installation, incorrect use or incorrect cleaning, or mechanical impact.
- For spare parts contact your retailer.
- Only clean the mirror with a cloth dampened with water and dry with a lint-free cloth. Use of chemicals and abrasion can damage the mirror surface or silvering.
Mounting areas
[email protected], www.muatoa.com
Made in Finland
© copyright Muatoa 2022
