NETRAUTA FI 123995 LED Mirror Frost Lux 600×700 Chrome with Socket

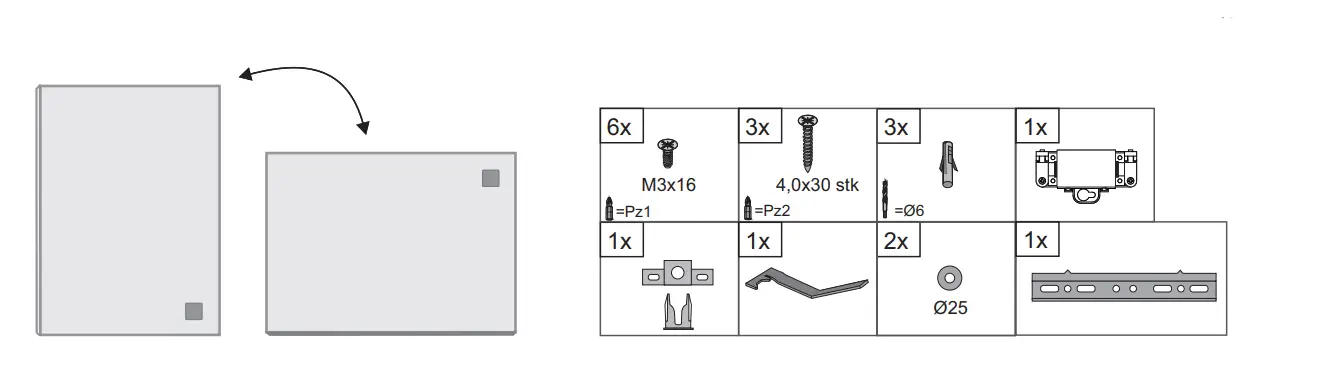

Product contains

Mirror installation

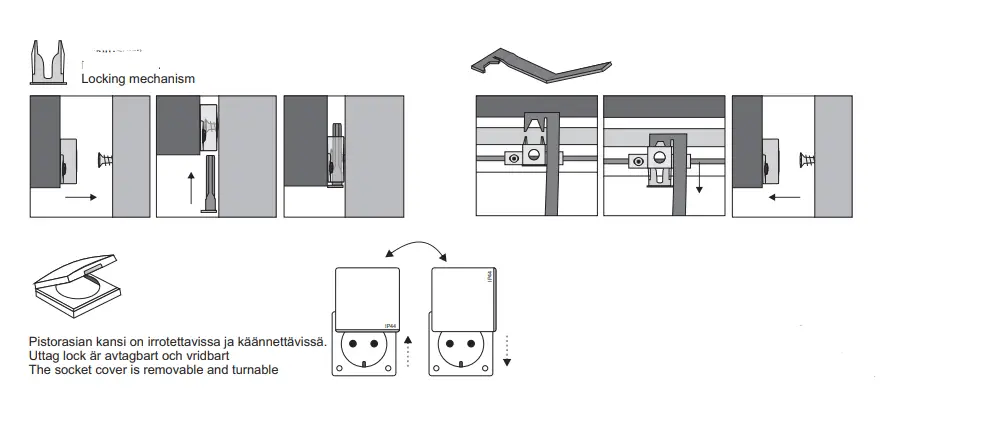

See page 2 for fixed installation with locking mechanism.

Technical data

Socket (Schuko IP44 cover) 230V

• LedMirror Frost Lux 600×700 chrome w/socket
• Model: 123995
• Led voltage (Sec. U): 24Vdc
• P: 23,4W I:0,98A
• LedMirror Frost Lux 600×700 black w/socket
• Model: 123997
• Led voltage (Sec. U): 24Vdc
• P: 23,4W
• I:0,98A
• LedMirror Frost Lux 700×900 chrome w/socket
• Model: 123996
• Led voltage (Sec. U): 24Vdc
• P: 28,8W I:1,20A
• LedMirror Frost Lux 700×900 black w/socket
• Model: 123998
• Led voltage (Sec. U): 24Vdc
• P: 28,8W I:1,20A

This product contains an energy-efficient light source E The light source is removable but not replaceable.

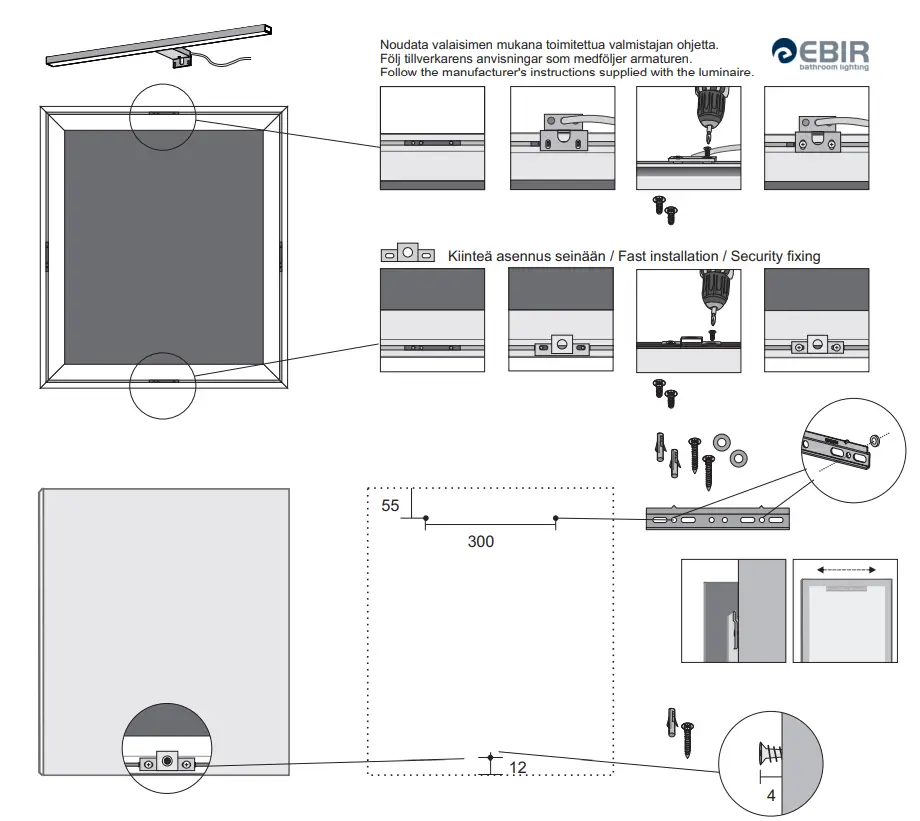

Fixed installation and installation with luminaire

WITH SOCKET

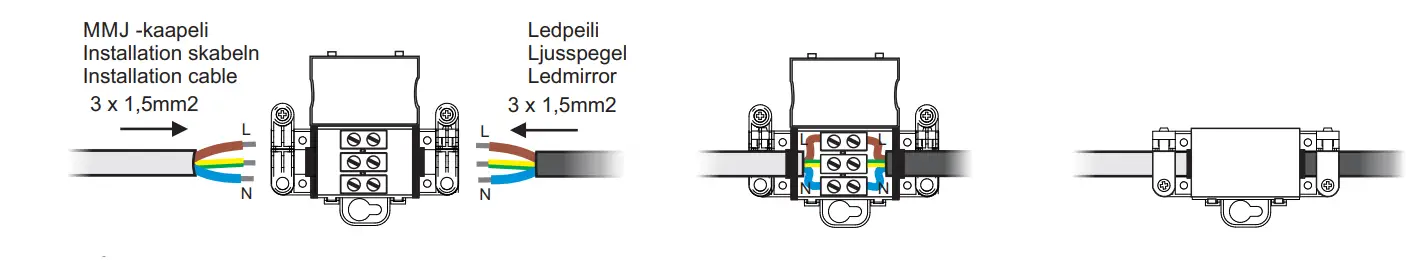

Electrical connections

• When installing without europlug to mains (230V 50Hz) the electrical connections must only be carried out by authorized electrician and according to the manufacturer’s instructions.
• Ledmirror should be fixed to wall so that it can’t be accidently removed (see locking mechanism page 2).

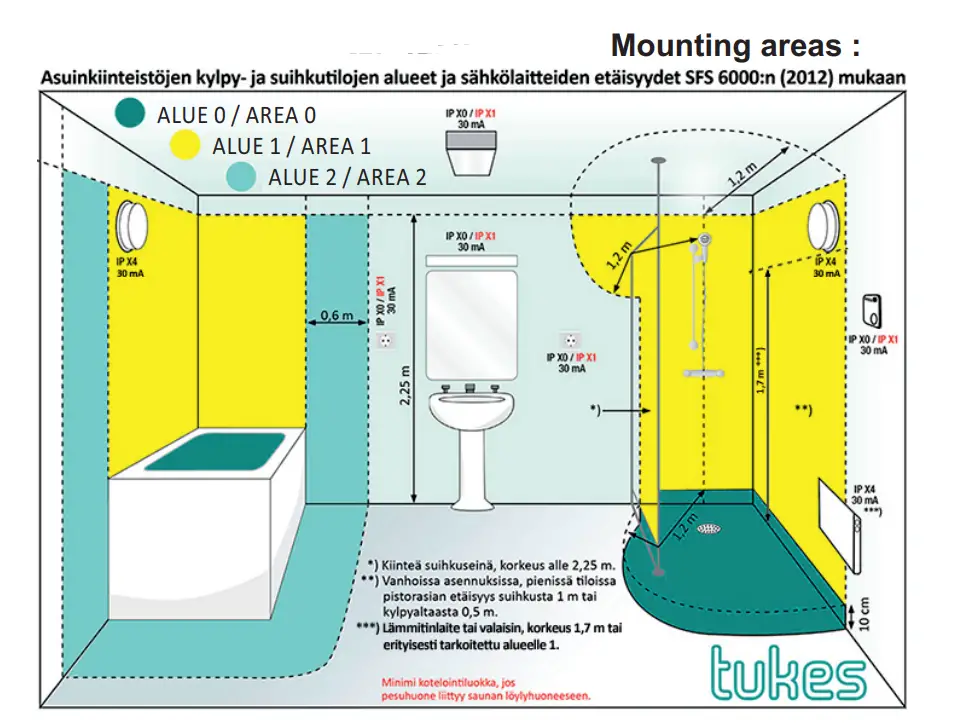

Mounting areas

• When installed, Frost Lux ledmirror is IP44 rated and it is recommended to install in areas 2 and 3 (see attached picture)

Warranty & instructions

• Mirror has 3 years warranty. The warranty applies only to manufacturing defects. This warranty does not cover damage caused by incorrect handling and installation, incorrect use or incorrect cleaning or mechanical impact.
• For spare parts contact your retailer.
• Only clean the mirror with a cloth dampened with water and dry with a lint-free cloth. Use of chemicals and abrasion can damage the mirror surface or silvering.
