EBM364818 LED Lighted Mirror Fixture

LED Mirror Instructions

WARNING AND SAFETY INSTRUCTIONS

Before assembling your LED Lighted Mirror fixture, please make
sure that you carefully read through this instruction sheet, refer
back to them during installation to ensure your product is fitted
safely and correctly. Keep these instructions for future use.

WARNING Risk of Fire and Electric Shock

All fittings must be installed in accordance with current IEE
wiring regulations. If in doubt, consult a qualified electrician.
Switch off the electrical supply at the main circuit board BEFORE
installation and maintenance. Suitable for indoor use only. This
product should be positioned well away from curtains and fabrics.
Never cover the mirror. Regularly check the cord, the transformer
and all other parts for damage, if any part is damaged the product
should not be used.

INSTALLATION SAFETY

Inspect the product immediately upon receipt for the transit
damage or missing parts. Handle the product with care and protect
against knocks to all sides and edges of the glass. Ensure there
are no hidden pipes or cables in the wall before drilling. Wear
suitable eye protection when drilling. Take care if drilling on
tiled surfaces in case the drill slips.

CAUTION

1.PRODUCT DESCRIPTION & INFORMATION

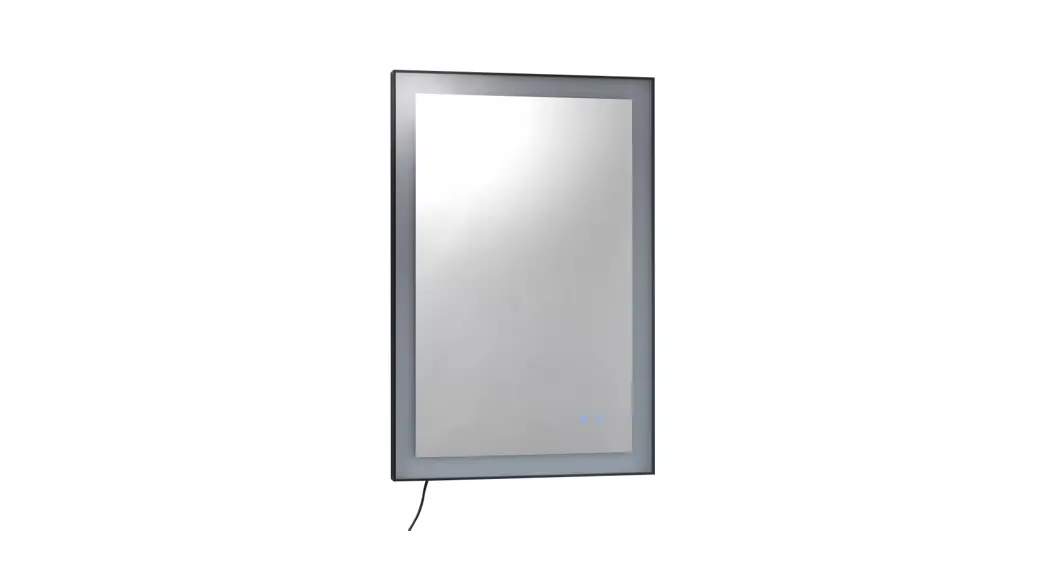

The LED mirror comes with a flexible ruler leveling instrument
and two hanging bars for horizontal and vertical hanging options.
The mirror has a built-in touch switch that controls the LED light
and anti-fog pad. The LED light is dimmable.

2.TOOLS YOU MAY NEED

Electric drill
Screws and expansion plug
Eye protection

3.INSTALLATION PROCESS

Step 1: Measure the distance between the holes
on the hanging bar and use an electric drill to punch holes on the
wall.

Step 2: Fix the hanging bar to the wall with
screws. Drive the expansion plug into the hole on the wall, then
put the screw into the expansion plug.

4.OPERATION PROCESS

Step 3: If wiring installation is required,
ensure that the mirror is turned off when the power supply in the
house is cut off. Then connect the power cord of the mirror and the
on the wall with the terminal block. White wire = Neutral wire,
black wire = Live wire, Light green wire = Earth wire.

Step 4: Hang the mirror with desired placement
by using the two hanging bars provided.

5.LED Mirror Power Source FAQ

Scenario 1 (Direct Wired): This is the most
common way to connect the mirror. The LED light and anti-fog pad
are both controlled by the built-in touch switch on the mirror. The
LED light is dimmable.

View Fullscreen

LED Mirror Instructions

WARNING AND SAFETY INSTRUCTIONS
Before assembling your LED Lighted Mirror fixture, please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructions for future use.
WARNING Risk of Fire and Electric Shock
All fittings must be installed in accordance with current IEE wiring regulations. If indoubt, consult a qualified electrician. Switch off the electrical supply at the main circuit board BEFORE installation and maintenance. Suitable for indoor use only. This product should be positioned well away from curtains and fabrics. Never cover the mirror. Regularly check the cord, the transformer and all other parts for damage, if any part is damaged the product should not be used.
INSTALLATION SAFETY
Inspect the product immediately upon receipt for the transit damage or missing parts. Handle the product with care and protect against knocks to all sides and edges of the glass. Ensure there are no hidden pipes or cables in the wall before drilling. Wear suitable eye protection when drilling. Take care if drilling on tiled surfaces in case the drill slips.
CAUTION
The light source of this product is non-changeable light diodes (LED). Do not disassemble the product, as the light diodes can cause damage to the eyes. NOTE: The important safeguards and instructions that appear in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors that can’t be built into any product. These factors must be supplied by the person(s) caring for and operating the fixture. Do not install this fixture in hazardous locations.
1

PRODUCT DESCRIPTION & INFORMATION

5CPFDGCVKPICTGC
/GVCNHKVVKPIU
#NWOKPWOHTCOG OOGPXKTQPOGPVCN RTQVGEVKQP*&OKTTQT

#NWOKPWOHTCOG

OOGPXKTQPOGPVCN RTQVGEVKQP*&OKTTQT

/GVCNHKVVKPIU

/GVCNHKVVKPIU &TKXGRQYGTUWRRN[

6QWEJUYKVEJ

.’&UVTKR

#PVKHQIOGODTCPG

.KPGNGPIVJO

front side

side

Flexible ruler Leveling instrument
TOOLS YOU MAY NEED

‘NGEVTKEFTKNN

UETGYFTKXGT

+PUVCNNCVKQPCEEGUUQTKGU

*COOGT

2 hanging bars (choose according to the horizontal and vertical hanging of the mirror)

screws and expansion plug
2

INSTALLATION PROCESS

Step 1
Measure the distance between the holes on the hanging bar, use an electric drill and punch holes on the wall
Wall

Step 2
Fix the hanging bar to the wall with screws Drive the expansion plug into the hole on wall. then put screw into the expansion plug
Wall

OPERATION PROCESS

Step 3
If wiring installation is required, ensure that the mirror is turned off when the power supply in the house is cut off. Then connect the power cord of the mirror and the on the wall with the terminal block . White wire = Neutral wire, black wire = Live wire, Light green wire = Earth wire.
Neutral wire Earth wire Live wire
9CTPKPI#NYC[UUYKVEJQHHVJG GNGEVTKECNUWRRN[CVVJGOCKPUFWTKPI KPUVCNNCVKQPCPFOCKPVGPCPEG &QPQVUYKVEJQPVJGGNGEVTKECN UWRRN[CVVJGOCKPUWPVKNVJGGPFQH VJGKPUVCNNCVKQP
Step 4
Hang the mirror with desired placement by mirror
3

.KIJVQPQHH
2TGUUVQVWTPQPVJGNKIJVNQPIRTGUUVQUVGRNGUUN[CFLWUVVJGEQNQTVGORGTCVWTG UJQTVRTGUUVQVWTPQHHVJGNKIJV 2TGUUVQVWTPQPVJGNKIJVNQPIRTGUUVQUVGRNGUUN[CFLWUVVJGDTKIJVPGUU UJQTVRTGUUVQVWTPQHHVJGNKIJV
#PVKHQIHWPEVKQP
5JQTVRTGUUVQVWTPQPQHHFGHQIIKPI
2QYGTQHHOGOQT[ 9JGPVJGNKIJVKUVWTPGFQPVJGRQYGTKUVWTPGFQHHFKTGEVN[CPFVJGNKIJVYKNNCWVQOCVKECNN[ NKIJVWRYJGPVJGRQYGTKUVWTPGFQPPGZVVKOG+HVJGRQYGTKUVWTPGFQHHYJGPVJGNKIJVKU QHH[QWPGGFVQVQWEJVJGUYKVEJDWVVQPVQVWTPQPVJGNKIJVYJGP[QWVWTPQPVJGRQYGT PGZVVKOG
4

LED Mirror Power Source FAQ

Scenario 1 (Direct Wired)
This is the most common way to connect the mirror. The LED light & anti fog pad are both controlled by the built-in touch switch on the mirror. *The LED light is dimmable.
Scenario 2 (Wall Switch) By doing so, the mirror is now bridged to the wall switch. In order to turn on the mirror,the wall switch needs to be on. The touch switch can be used to turn on the LED mirror and anti-fog pad. The mirror shuts down once the wall switch is filpped to OFF.
Scenario 3 (Wall Dimmer Switch Not Accepted) This is a scenario that is not acceptable. There is no work around for our mirror. Do not try this way as it will damage the LED driver.

*OUFSOBM1PXFS’MPX%JBHSBN
