legrand 0 670 99 Switch Sensor 3-Wire 2000 W

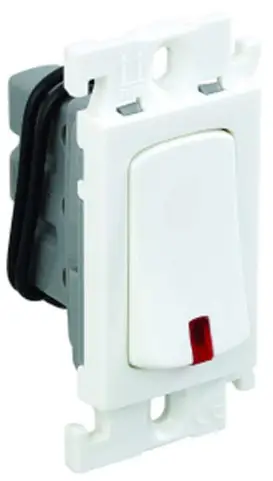

Switch sensor 3-wire – 2000 W

USE

Switch sensor with neutral, infrared detection (PIR). Allows a light source to be controlled automatically through the detec-tion of any presence in the surveillance zone.Presence sensor with 120° detection angle. For flush-mounting, back box to be min. 40 mm deep. To be equipped with plate.

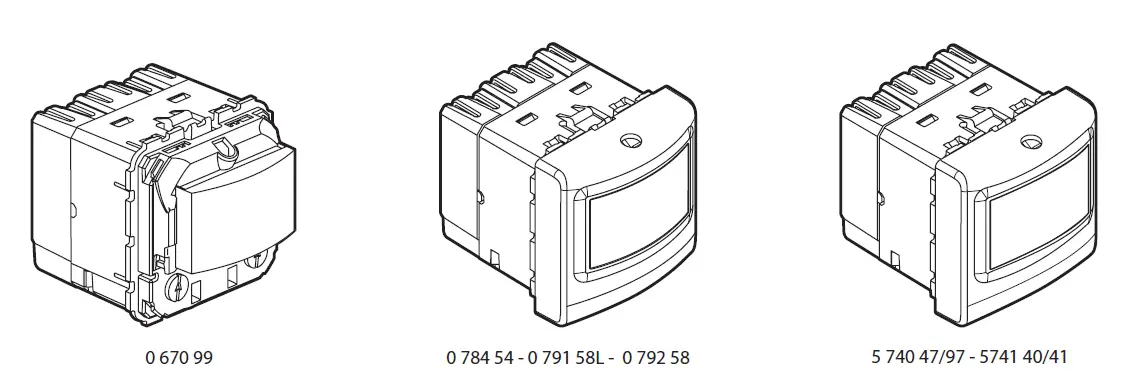

RANGE

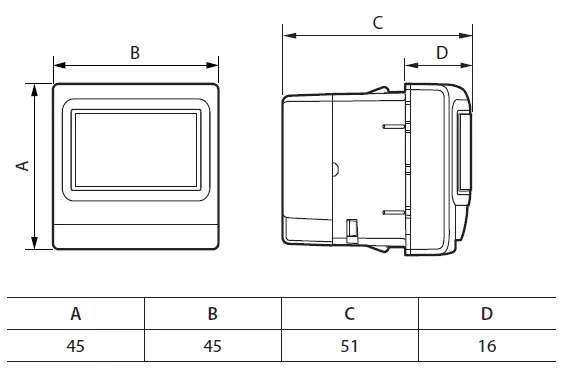

DIMENSIONS (mm)

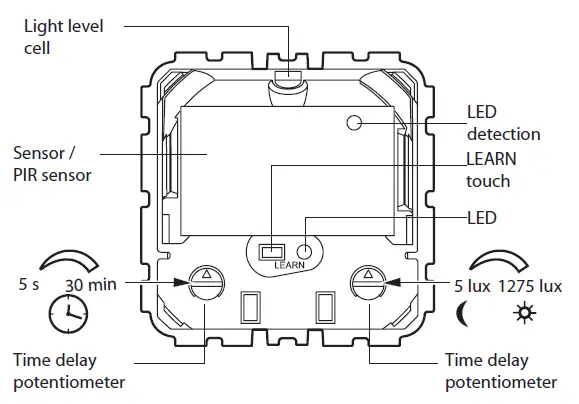

PRESENTATION

CONNECTION

• Number of terminals: 3
• Type of terminals: automatic
• Terminal capacity: 2 x 2.5 mm2 Stripping length: 8 mm
• Compatible with flexible or rigid cables

TECHNICAL CHARACTERISTICS

Mechanical characteristics Protection against impact:
IK 04 Protection against solid bodies and liquids:

• IP 20 mechanism alone
• IP 40 mounted product with rocker and plate

Material characteristics

Colour: – White RAL 9003

• Aluminium
• Magnesium
• Soft alu
• Champagne
• Matt Black satin RAL 9017
  • • Material: – Plate: ABS
• Halogen-free
• UV-resistant

Self-extinguishing: 850°C/30 s for insulating components holding live parts in place. 650°C/30 s for other insulating components.
Electrical characteristics

• Voltage: 100-240 V~
• Frequency: 50/60 Hz
• Standby consumption: 0.2 W

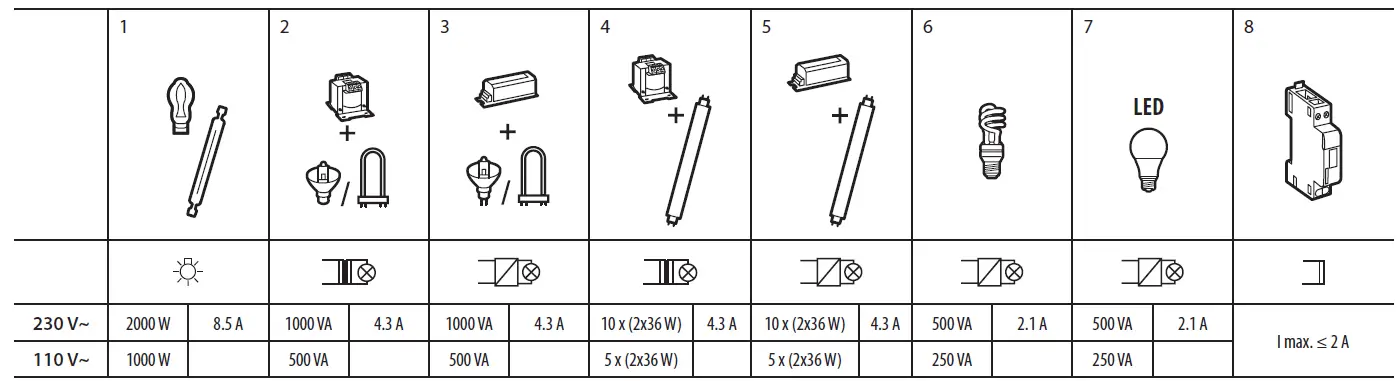

• Output via normally open contact connected to the phase Power:

1. Halogen bulb
2. ELV halogen bulb with separate ferromagnetic ballast
3. ELV halogen bulb with separate electronic ballast
4. Fluorescent tube with separate ferromagnetic ballast
5. ELV fluorescent tube with separate electronic ballast
6. Compact fluorescent bulb with built-in electronic ballast
7. LED bulb with built-in electronic ballast
8. Contactor

Important: Take account of transformer losses when calculating power. Transformers must be loaded at more than 60 % of their power.
Note: Possibility to mix any type of load on the same circuit.

Climate characteristics

• Usage temperature: -5°C to +35°C
• Storage temperature: -10°C to +70°C

OPERATION

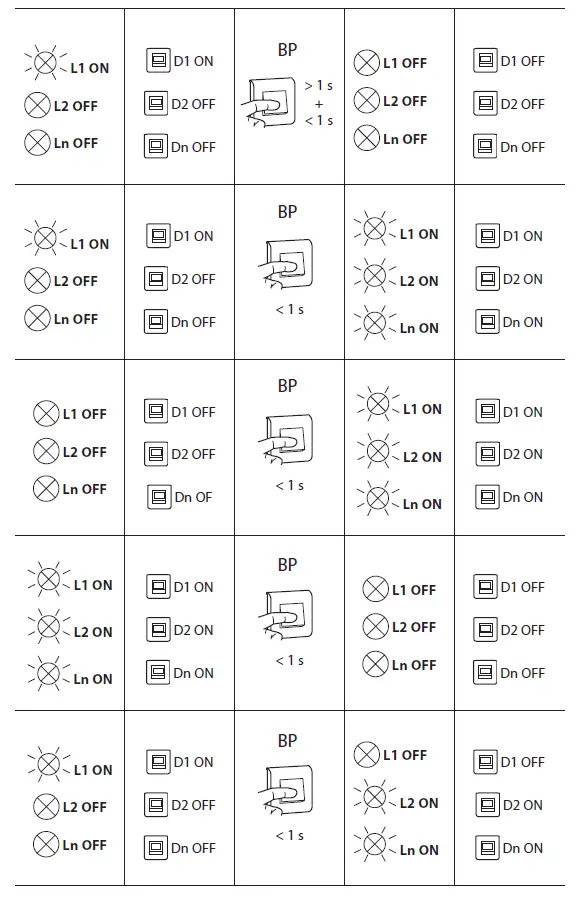

More than one sensor and more than one load Auto ON/OFF mode:
The load will be switched on and off automatically.

Option:
It is possible to control the sensor by infrared remote control using: Cat. Nos. 0 882 00/01/20/31/32/33.  Synchronising the products is done in two stage:

• one long press (>1s) all the sensors (S) switch to the ON state
• one short press all the sensors (S) switch to the OFF state

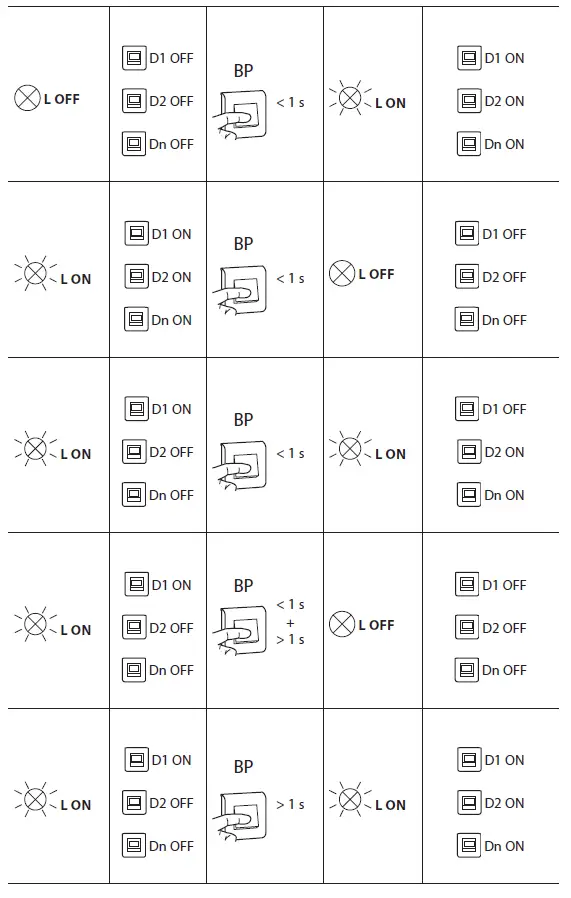

Several sensors connected to a single load

Detection parameters

Light parameters

• Time delay: Length of time the load is on after detection.
• Sensitivity: Detection range setting.

• At the detection of a presence if there is an insufficient natural level  of light.

• If no presence is detected and at the end of the time delay set.
• Or if the natural light level is sufficient (regulation activated) Another detection causes automatic switch-on if there is insufficient light.

Walk-through mode:

• If no presence is detected in the 20 seconds following an initial detec-tion, the product will cut off the load after 3 minutes.
• If another presence is detected in the 3 minutes following initial detec-tion, the device will cut off the load at the end of the set time delay.

Manual on/Auto off mode:

Where no presence is detected and at the end of the time delay set. After switch-off, any new detection within a 30 second period triggers an automatic switch-on. The Restart function must be activated. After 30 seconds the device is switched on via a manual switch.
Detection system:

• Initial detection: The load is switched on as soon as the first detection occurs if the natural light level is below the light level threshold.
• Maintain: The load remains active if another presence is detected.
• Restard: In manual mode. After switch-off, any new detection within a 30 second period triggers an automatic switch-on. After 30 seconds the device must be switched on manually.
• Alarm: an audible signal is emitted before switch-off. (1 minute before, then 30 seconds, then 10 seconds).

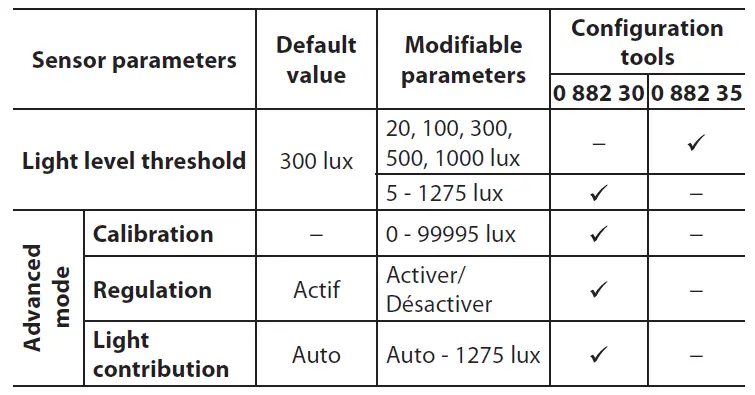

• Light level threshold: Value at which the load comes on if the natural light level is less than the setting.
• Caution: At 1275 lux, the device becomes a motion sensor.

Advanced mode:

• Calibration: The ambient light level measured with a luxme-ter must then be transmitted to the sensor (see data sheet Cat. No. 0 882 30).
• Regulation : Automatic switch-off of the load 10 minutes after the light level threshold is exceeded with an additional safety threshold (to avoid lights switching off at the wrong moment).
• Light contribution: Quantity of additional lux provided by the load being switched on.
  When the light contribution parameter is set to “Auto” (value 0) on the configuration tool Cat. No. 0 882 30 the sensor automatically calculates the light contribution.

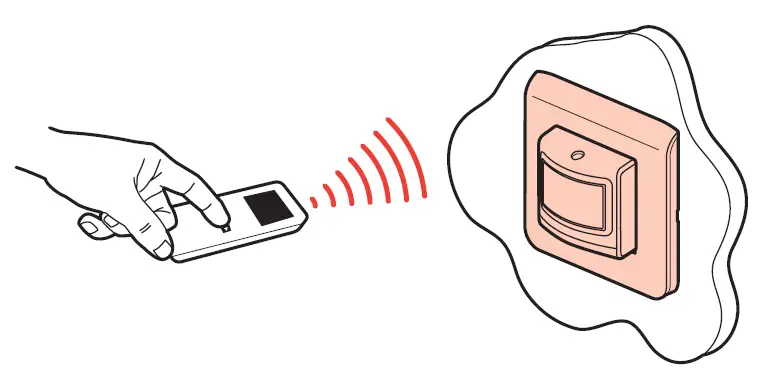

Modifying the parameters using the configuration tools

• 0 882 35: Simplified configuration tool 0 882 30: Advanced configuration tool When the sensor receives an IR command using the configuration tool, it emits a beep acknowledging the modification. For more information about setting parameters, refer to the data sheet for the configuration tool Cat. No. 0 882 30. Range: 1 m. The potentiometers are active by default. Using a configuration tool deactivates all the potentiometers. Reset the product to reactivate them.

 Restore to factory settings:

• 1st press: Short press on LEARN: the LED flashes slowly.
• 2nd press: Press and hold down LEARN for 10 seconds until the LED flashes quickly.

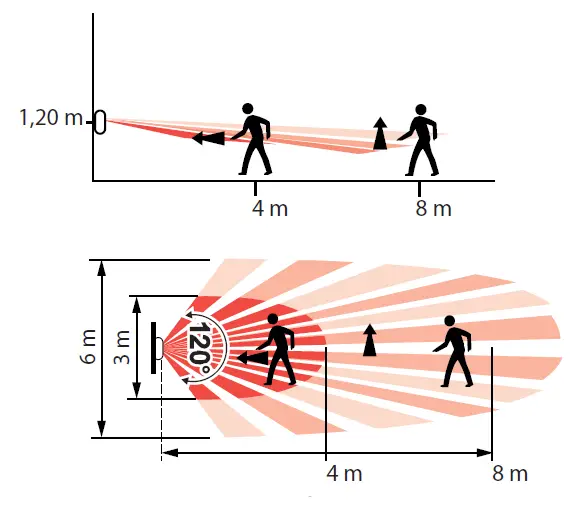

PERFORMANCE

1 PIR detection (walk-through)

PIR detection (presence)

CLEANING

Clean the surface with a cloth. Do not use acetone, tar-removing cleaning agents or trichloroethylene. Resistance to the following cleaning substances: Hexane (EN 60669-1), Methylated spirit, Soapy water, Diluted ammonia, Pure bleach diluted to 10%, Window-cleaning products, and Pre-impregnated wipes.

Caution: Always test before using other special cleaning products.

STANDARDS AND APPROVALS

Compliant with installation and manufacturing standards. See e.catalogue.

TROUBLESHOOTING
