STREAM Highlights Spottune

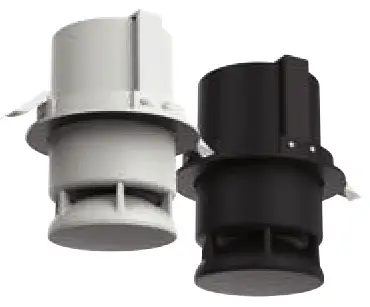

Spottune OMNI REC recessed speaker: wireless 360° ceiling mount speaker for installation into suspended ceilings . The minimum mounting depth is 45 mm, power is supplied via standard ceiling outlet using the supplied junction box .
Spottune OMNI REC recessed speakers
- All-in-one smart speaker (built-in amplifier, audio filter and receiver)
- Easy plug-and-play installation via standard ceiling outlet
- Automatic linking and settings in pairing mode with LED status indication at initial operation via Spottune network audio streamer STREAM
- Consistent 360° sound radiation for a constantly pleasant sound experience, independent of the position in the room
- Well-balanced and clear sound at low volume
- Reliable and stable audio transmission in the frequency range of 1.9 GHz
- Closed full range speaker system
| Model | OMNI-REC/SW, OMNI-REC/WS |
| Power rating (RMS) | 50 W, class D amplifier |
| Frequency range | 50-15,000 Hz |
| Beam angle | 360° radiation |
| Power supply | ~ 100-240 V/50-60 Hz/2 VA max. via standard ceiling outlet |
| Dimensions | Ø 115 x 200 mm ceiling cutout: 155-160 mm mounting depth: 45-100 mm |
| Weight | 1.5 kg |

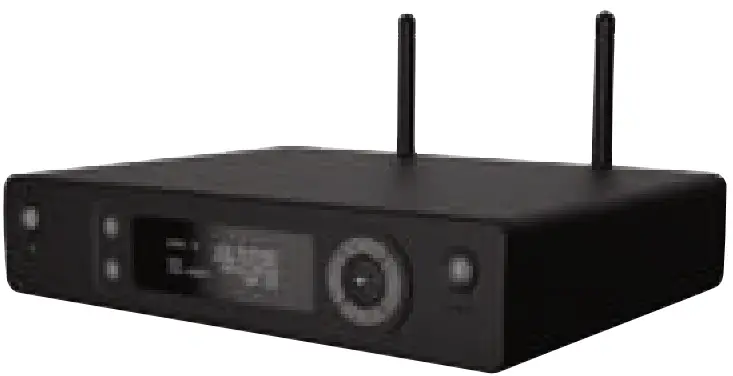

Central audio/music streamer for Spottune speaker systems
Spottune STREAM audio streamer
- Central transmitter and receiver unit (high operating reliability due to DECT technology)
- 2 music zones can be controlled individually
- Microphone input for announcements
- Web-based DSP and control surface
- Spotify Connect
- USB port for music reproduction
- Different music contents can be played in separate zones
- Status monitoring of integrated speakers
- Announcements via all speakers using microphone
| Model | STREAM |
| Description | wireless audio streamer |
| Nominal value | audio transmission: UHF band 1.8-1.9 GHz, operating range: approx. 50-100 m, depending on surrounding and place of application |
| Suitable for | Spottune speaker systems |
| Power supply | ~100-240 V/50-60 Hz via encl. power supply |
| Dimensions | 230 x 45 x 200 mm |
| Weight | 600 g |
| Connections | output for 1 or 2 music zones inputs: RJ45 (LAN), 3.5 mm jack (AUX IN), 3.5 mm jack (MIC IN) |

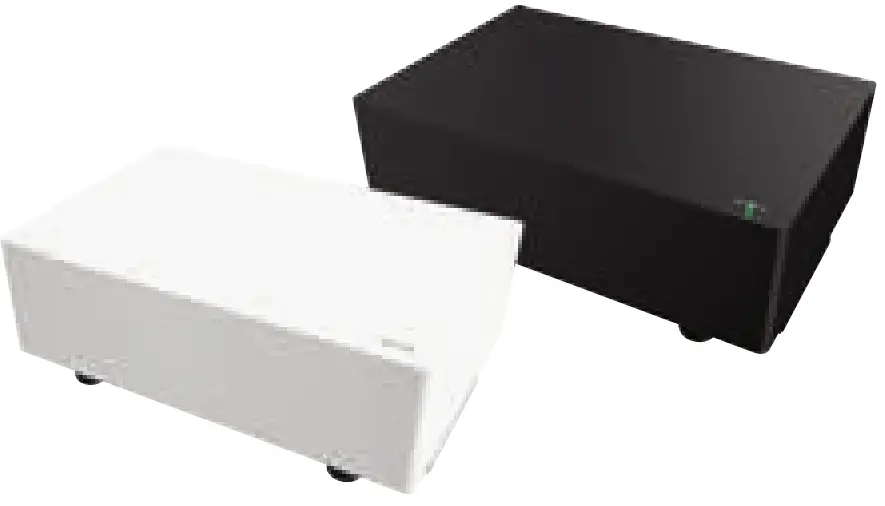

Subwoofer extension for Spottune speaker systems
Spottune wireless smart subwoofers, as an addition to existing Spottune speaker systems for extending the bass reproduction.
- All-in-one smart subwoofer (built-in 200 W amplifier and receiver)
- 25 cm (10“) bass speaker/driver of long excursion
- Closed cabinet design for optimum output power and extended bass reproduction
- Easy plug-and-play installation/connection to Spottune audio streamer STREAM
- Reliable and stable audio transmission in the frequency range of 1.9 GHz
| Model | SUB/SW, SUB/WS |
| Power rating (RMS) | 200 W, class D amplifier |
| Frequency range | 20-200 Hz |
| Power supply | ~ 100-240 V/50-60 Hz |
| Dimensions | 540 x 200 x 360 mm |
| Weight | 12.65 kg |
