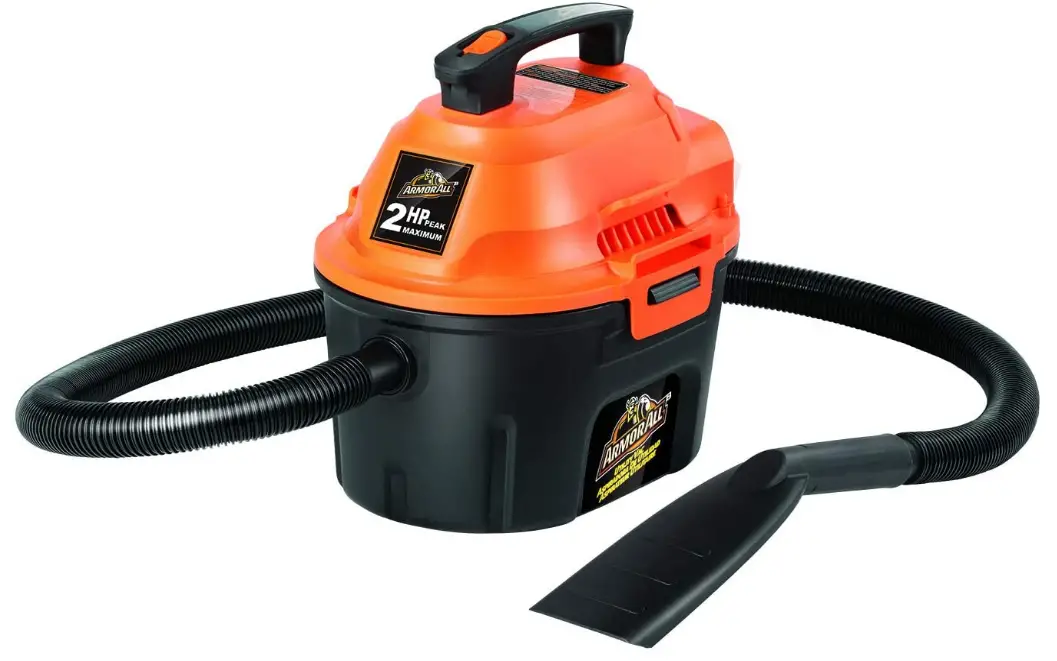

Armor All ‎AA255 2 Peak HP Wet-Dry Utility Shop Vacuum

Thank you for purchasing this Armor All® wet/dry vacuum cleaner. Feel confident that with our Armor All® wet/dry vac you are obtaining a high quality product engineered for optimal performance. This vacuum is capable of picking up liquids and dry materials.
FOR YOUR SAFETY CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS

WARRANTY

We take pride in producing a high quality, durable product. This Armor All® utility vac carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial, or rental use, a 90 day limited warranty will apply. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs, alterations, or lack of maintenance. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. For product service call Cleva Customer Service at 1-866-384-8432.
Not Covered by Warranty

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs or alterations;
• Consumables such as cartridge filters, cloth filters, dust collection bags, foam filter sleeves;
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
• Normal deterioration of the exterior finish due to use or exposure;
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.

SAFETY INSTRUCTIONS & WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all instructions before using this vacuum
Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert, and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
When using an electrical appliance, basic precautions should always be followed including the following:
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Do not run vac unattended.
• Do not vacuum, or use this Wet/Dry Vac near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite flammable vapors or dust.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug or other parts.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners.
• Do not run Wet/Dry Vac over cord.
• Do not handle plug or the Wet/Dry Vac with wet hands.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Wet/Dry Vac with a torn filter or without the filter installed except when vacuuming liquids as described in the operation section of this manual.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off Wet/Dry Vac before unplugging.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair, or anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.

When using as blower

• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT EXPOSE TO RAIN. STORE INDOORS.
WARNING FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR’S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES OR COALS, OR TOXIC, FLAMMABLE, OR OTHERWISE HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION

• Do not vacuum drywall dust or fireplace soot or ash with standard Wet/Dry filter. This type of dust is very fine which may not be captured by the filter and cause damage to motor. When vacuuming fine dust, use a fine dust filter.

WARNING SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

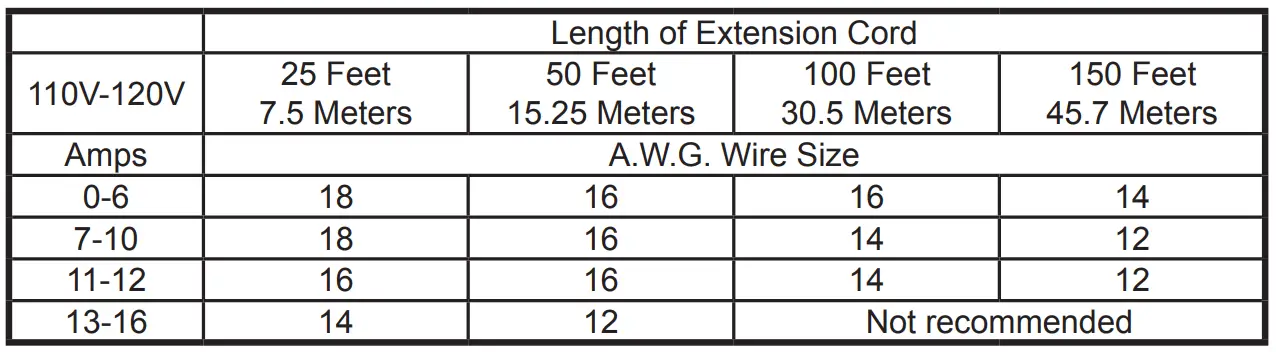

EXTENSION CORD

When using an extension cord with your Wet/Dry Vac refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.

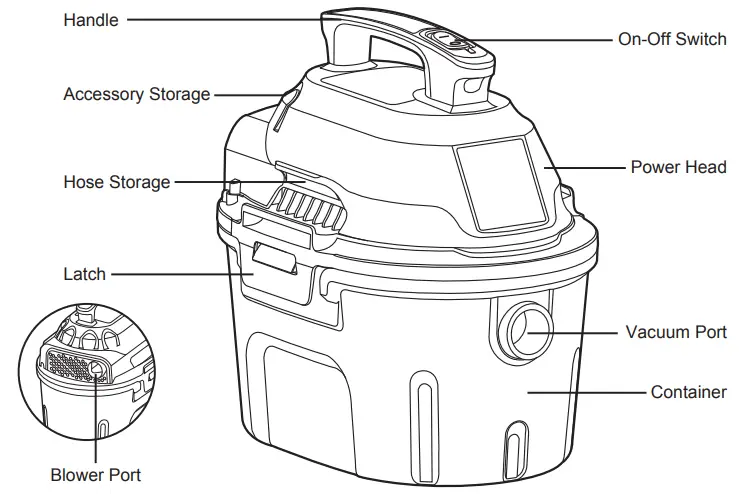

UNPACKING & CHECKING CARTON CONTENTS

Remove all contents from the box. Remove the power head and take out any contents inside the container. Check each item against the carton contents list.

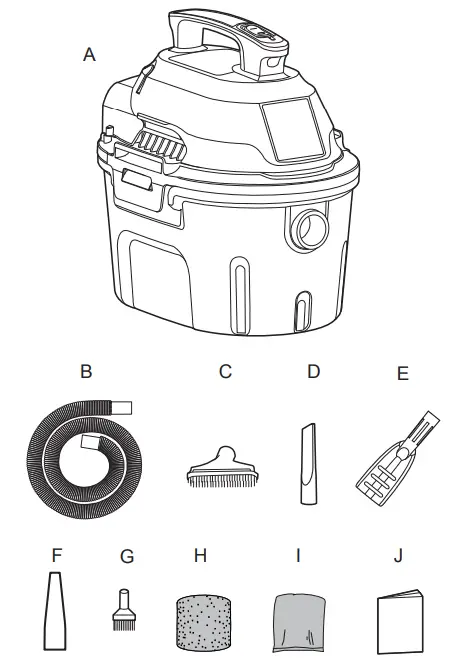

Carton Contents List

Key Description ……………………………………………………………………………………..Qty

A Vac Assembly…………..……………..……………..………………..1

B Hose………………..……………..……………..…………….………..1

C 2-in-1 Utility Nozzle with Brush…………..……………..…..………….1

D Crevice Tool ……………..……………..……………..………………..1

E Deluxe Car Nozzle………………………..……………..…………………..1

F Blower / Adaptor Nozzle…………………..……………..…………….1

G Detail Brush Nozzle…..……………………..……………..……………1

H Foam Sleeve Filter………………………..……………..…………….1

I  Reusable Cloth Filter……………..……………..……………..……….1

J Operator’s Manual…………..……………..……………..…………….1

NOTE The hose and accessories for this vacuum are 1.25 inch (3.18 cm) diameter.

GENERAL ASSEMBLY INSTRUCTIONS

WARNING DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet. (fig. 1)
2. Undo the latches. (fig. 2)
3. Lift the power head off the container. (fig. 3)
4. Remove the contents from inside the container. Make sure you have all contents as listed on page 5. (fig. 4)
5. For dry vacuum cleaning, install the supplied reusable cloth filter. (fig. 5) See page 10 for filter installation.
6. For wet vacuum cleaning, install the supplied foam filter. (fig. 6) See page 10 for filter installation.
7. Place the power head back on the container, aligning the top section with the latches, and snap into place. (fig. 7 & 8)
8. Insert the larger end of the hose into the desired port. (fig. 9)
9. Choose the desired accessories and insert onto the end of the hose. (fig. 10)


POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (with one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded power cord and grounded power supply system.

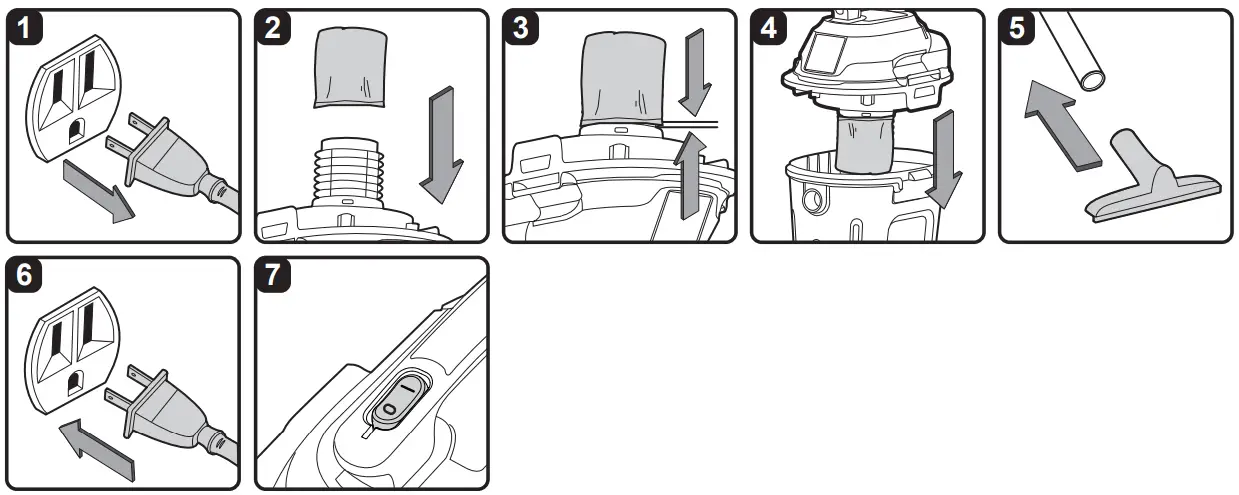

DRY VACUUM OPERATION

DRY VACUUMING

WARNING BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

1. Verify that the power cord is disconnected from the outlet. (fig. 1)
2. In order to prepare your vacuum for dry vacuuming, make sure the filter is completely covering the filter cage against the power head. (fig. 2 & 3) (Your Wet/Dry Vac comes with the reusable cloth filter pre-installed. See page 10 for installation instructions.)
3. Place the power head section back on the container, and secure it in place using the latches. (fig. 4)
   OPERATING INSTRUCTIONS: DRY VACUUMING
4. Insert the larger end of the hose into the vacuum port on the tank. Push the required attachment onto the free end of the hose or extension. (fig. 5)
5. Plug the power cord into the outlet. (fig. 6)
6. Turn the motor on by flipping the switch to the ‘I’ ON position and begin vacuuming. (fig. 7)
7. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord from the outlet.
   O = OFF I = ON
   DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.

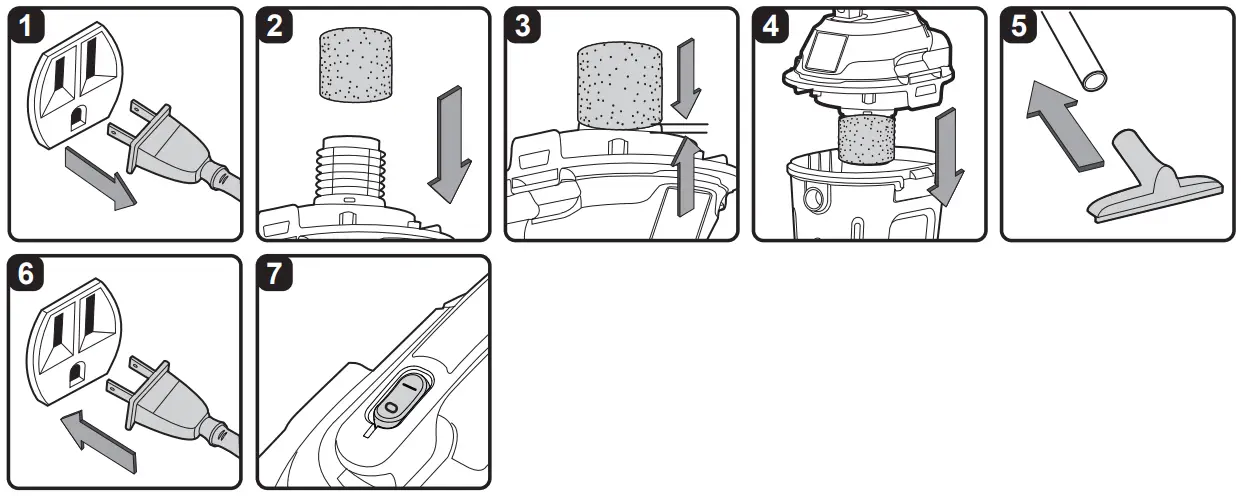

LIQUID VACUUM OPERATION

LIQUID VACUUMING

WARNING BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING MAKE SURE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS

1. Verify that the power cord is disconnected from the outlet. (fig.1)
2. Remove reusable cloth filter, then carefully install the foam sleeve filter over the filter cage and place the power head back on the container. (fig. 2, 3 & 4) See filter installation instructions on page 10.
   DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.
   OPERATING INSTRUCTIONS – WET VACUUMING
3. Fit the desired nozzle to the vacuum hose. (fig. 5)
4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. (fig. 6)
5. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig. 7)
6. After use, empty the container. Clean and dry the inside and outside before storage.


IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the container reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the power head to the container. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the container. Clean and dry the inside and outside before storage.
REMEMBER! The foam filter must be removed after wet vacuuming, and a reusable cloth filter must be installed before dry vacuuming again.

BLOWER OPERATION

This Wet/Dry Vac has blowing capabilities only when the hose is inserted into the blower port. To use the blower feature follow the instructions listed.

WARNING ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.
WARNING KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
WARNING WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

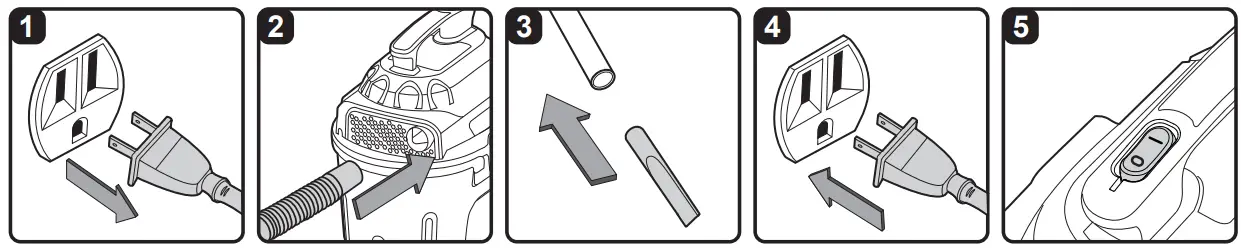

1. Verify that the power cord is disconnected from the outlet. (fig. 1)
2. Make sure the container is empty before using as a blower.
3. Remove hose from the vacuum port.
4. Insert the larger end of the hose into the blower port on the back side of the power head. (fig. 2)
5. Fit the desired attachment to the hose. (fig. 3)
6. Ensure the power switch is turned off and plug into the power supply. (fig. 4)
7. Before turning on the vac, firmly hold loose end of the hose. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig. 5)

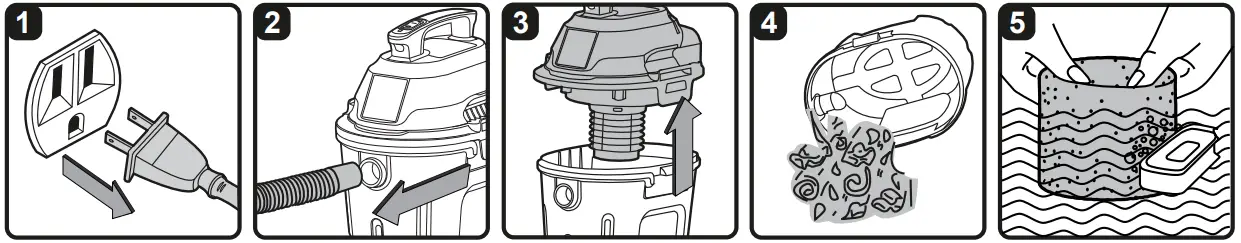

MAINTENANCE

1. Verify that the power cord is disconnected from the outlet. (fig. 1)
2. Disconnect the hose from the vacuum. (fig. 2)
3. Undo the latches and remove the power head from the container. (fig. 3)
4. Clear all dirt or debris from the container and hose. (fig. 4)
5. Clean or replace the filters. (fig. 5)
6. Check the hose, attachments, and power cord to verify that they have not been damaged.


IMPORTANT! Clean or change the dust filter regularly for best performance. ALWAYS USE DUST FILTER FOR DRY VACUUMING. If the machine is used without the dust filter, the motor will burn out and the warranty will be voided. Always keep spare filters on hand.
NOTICE! The filter included is made of high quality material designed to stop small dust particles. The filter should be used for dry pick-up only. A dry filter is necessary to pick up dust. If the dust filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through the filter. Do not use a filter with holes or tears; replace it immediately.
WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM CONTAINER.

INSTALLING & CLEANING REUSABLE CLOTH FILTER

Installing Reusable Cloth Filter

1. Verify that the power cord is disconnected from the outlet. (fig. 1)
2. Remove the power head and place it in an upside-down position.
3. Slide reusable cloth filter down over the filter cage making sure the whole cage is covered. (fig. 2 & 3)
4. Replace the power head on to the container.

Removing and Cleaning Reusable Cloth Filter

1. Remove the power head and place it in an upside-down position.
2. Carefully remove the reusable cloth filter from the filter cage. (fig. 4) Clean the filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas.
3. Use a mild soap and water solution to wash reusable cloth filter and rinse with clean water. (fig. 5)
4. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

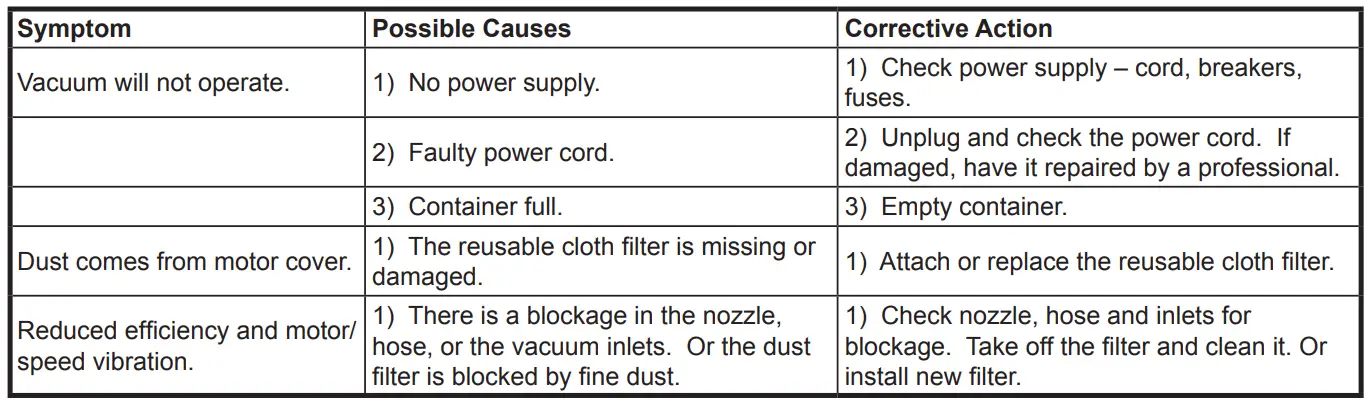

TROUBLESHOOTING

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING

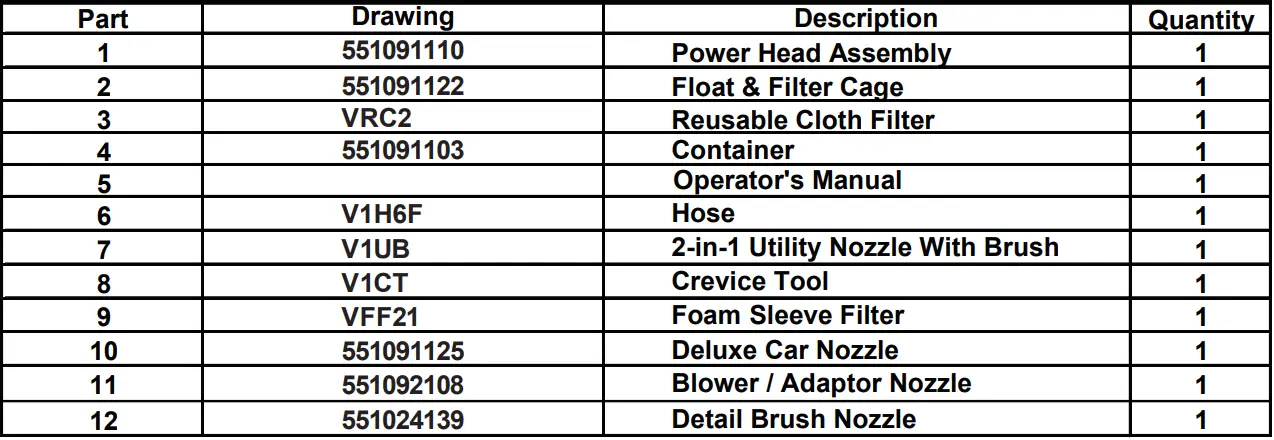

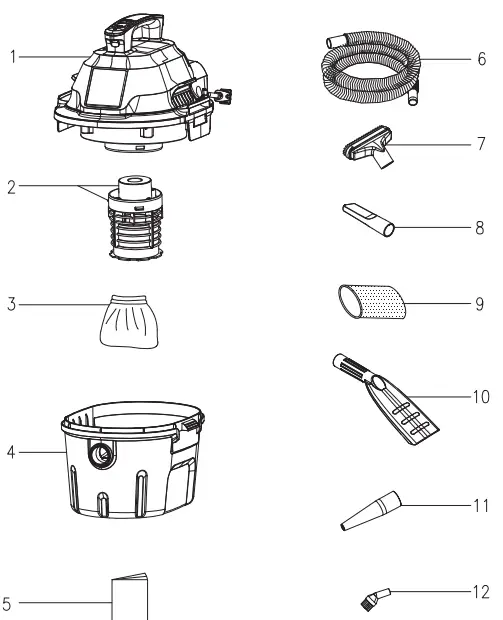

EXPLODED VIEW & PARTS LIST

FAQs
