Jensen Cr271ml 7” Capacitive Touch Screen Multimedia Mechless Receiver Owner's Manual

CR271ML
7” CAPACITIVE TOUCH SCREEN
MULTIMEDIA MECHLESS RECEIVER

AM-FM, Bluetooth
SiriusXM™ Ready
Front & Rear Camera Input

INSTALLATION & OWNER’S MANUAL

JENSEN

CR271ML INFORMATION

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the  FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,  which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Copyright and Trademark
Sirius, XM, and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

microSD Logo is a registered trademark of SD-3C, LLC.
Siri and Apple have registered trademarks owned by Apple, Inc.
Google Assistant and Android are trademarks owned by Google LLC.
Other trademarks and trade names are those of their respective owners.

Safety Notice

Video/movie playback will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash video/movie functions will only operate when vehicle is in Park and the parking brake is engaged. It is illegal in most jurisdictions for the driver to view video while the vehicle is in motion.

SAFETY NOTICE
Watching video while driving is against
Federal, State and Local laws
Drive safely, know and obey traffic rules. Watching this screen and making selections while driving can lead to a serious accident.
Check surroundings for safety while camera images are displayed.

AGREE
Do not use features of this product while driving if it cannot be operated safely and legally in your location. Before operation of smartphone apps accessible from this device, read safety instructions in your Owner’s Manual. When using navigation apps stay alert to observe real-world conditions. By pressing “AGREE” button, you have confirmed that you have fully read, understand, and accepted these usage terms and conditions.

The SAFETY NOTICE is reminder to drive responsibly and safely while using your mobile phone device, or any APP’s that are compatible with this unit.

It is highly recommended that your JENSEN CR271ML is installed by a professional installer or an authorized dealer.

This product is only for use in vehicles with 12VDC negative ground only.

To prevent damage or injury:

• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the correct rating. Using a fuse with the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• If you experience problems during installation, consult your nearest JENSEN dealer.
• If the unit malfunctions, reset the unit as described. If the problem still persists, consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.
• To clean the monitor, wipe only with a dry silicon cloth or soft cloth. Do not use a stiff cloth, or solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual. Normal brightness will return after the unit is in use for a while.
• When extending the ignition, battery or ground wiring, make sure to use automotive-grade wiring with a minimum AWG 16 or more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.

CR271ML INSTALLATION

Preparation

Please read and understand entire manual before installation.
Consult a qualified technician for detailed instructions or installation assistance.

Before You Start

• Disconnect negative battery terminal.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Unpack unit from its protective packaging.
• Connect vehicle wiring harness and antenna to this receivers harness. See wiring instructions. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation dash kit and/or wiring harness adapter (sold separately).
• Reconnect battery negative terminal.
• Test for correct operation and secure back into dashboard.
• Snap trim ring into place if needed.

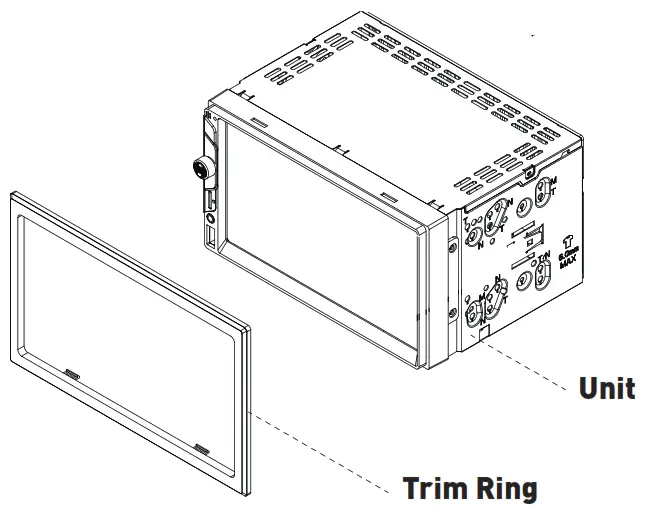

Typical ISO-DIN Installation

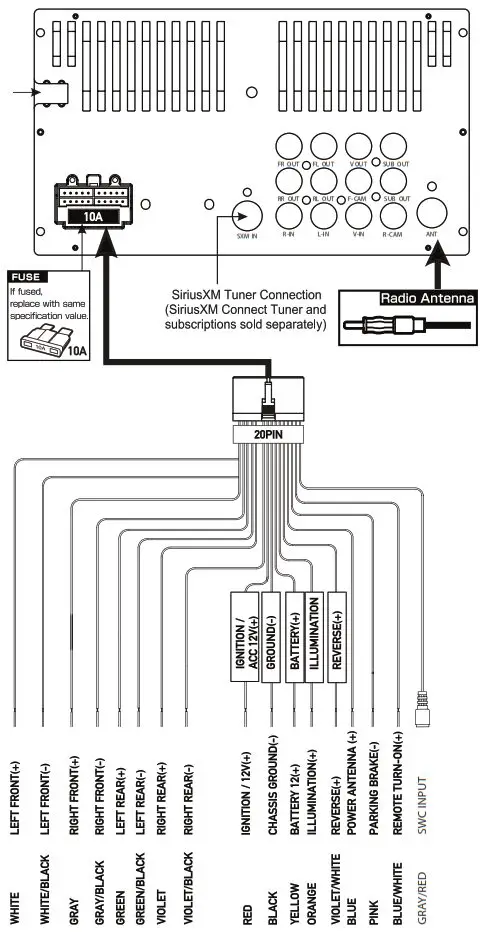

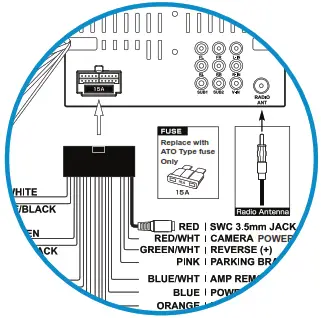

Input / Output Wiring Diagram

Tips
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC blade-type fuse located on the back of the unit.

Front / Rear camera inputs
Up to two cameras (not included) can be used. We recommend JENSEN Part # BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for rear camera.
For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner (SiriusXM connect tuner and subscription sold separately).

CR271ML OPERATION

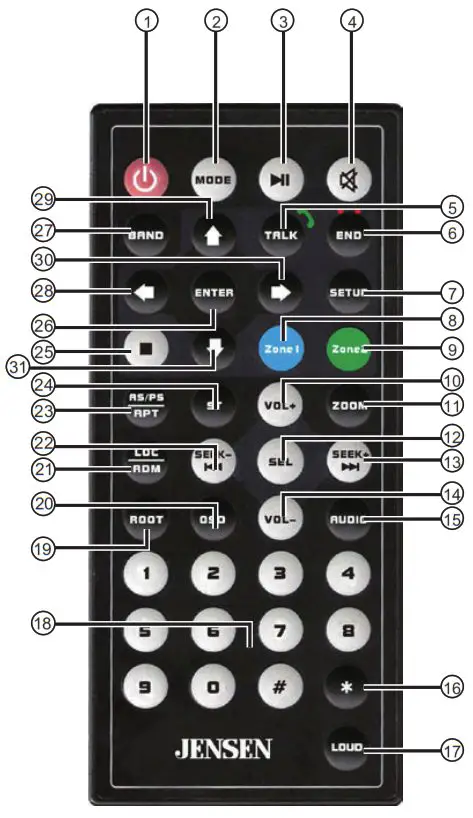

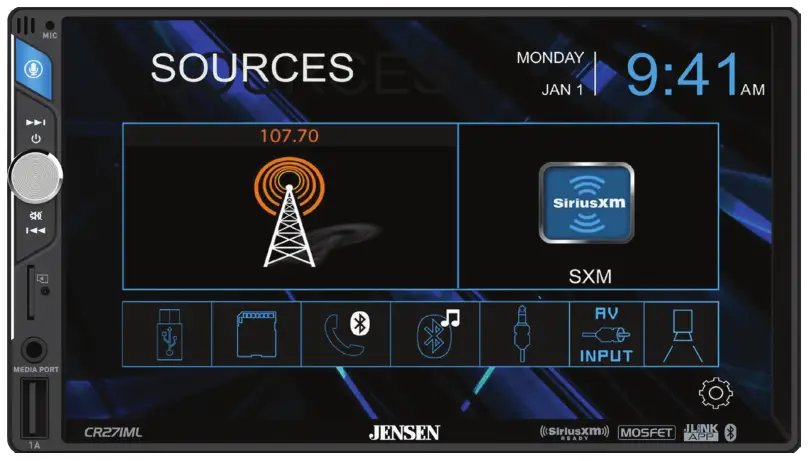

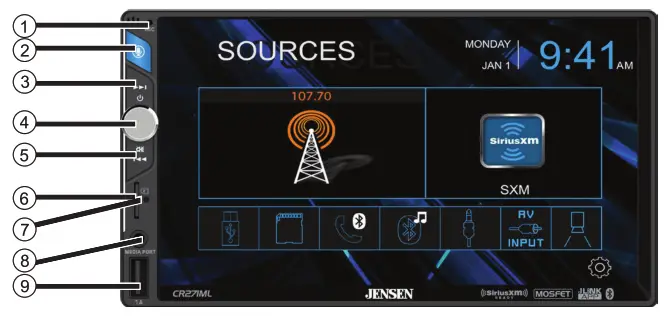

Main Control Locations

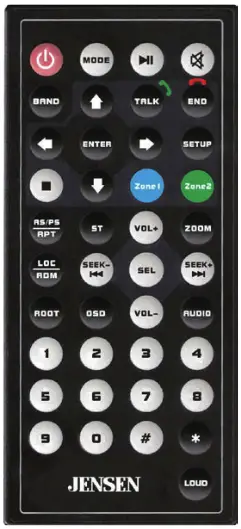

Remote Control Preparation

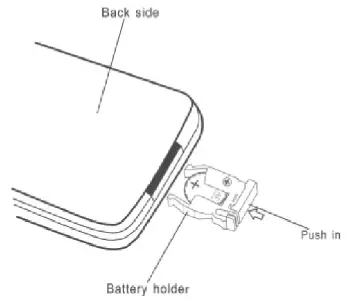

Remove battery insulation tape .
To insert or replace the battery, remove the battery holder.

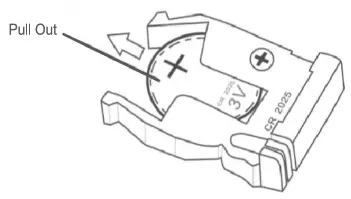

Remove the battery from the battery holder.
Install the new battery. Make sure to keep the (+) side up.
Insert the battery holder .

Notes:

• The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer.
• Remove and dispose of battery properly.
• Do not store batteries with metallic objects or materials.

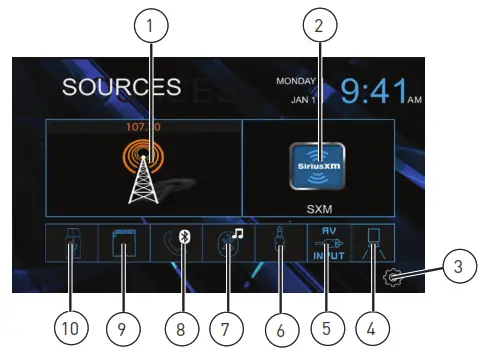

Source Menu Operation

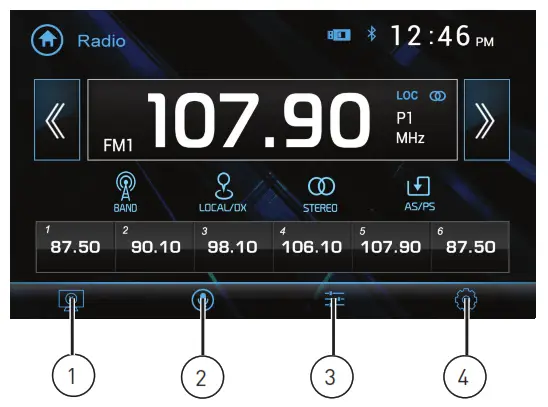

On-Screen Controls

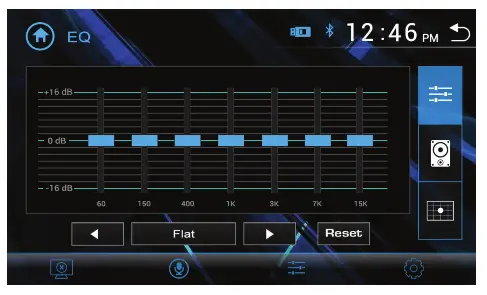

Audio Settings

Select any of the preset EQ settings (Flat, Classic, Rock, Pop, Jazz, Beat or User) or use the touch screen to manually adjust EQ settings.

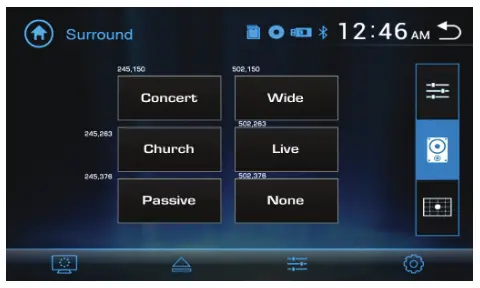

Select any of the preset Surround settings: Concert, Church, Passive, Wide, Live, or None.

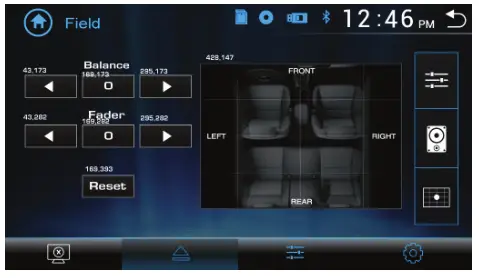

Adjust balance (8L to 8R) and fader (8F to 8R), or use the touch screen to manually adjust balance and fader settings.

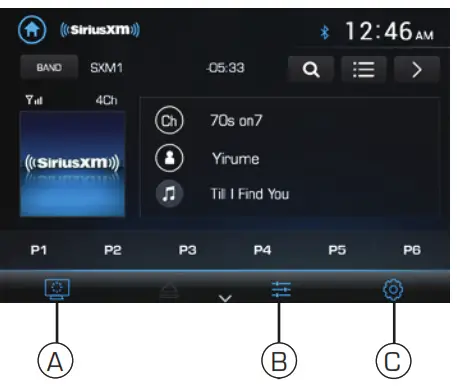

Settings Menu

General:

• OSD Language – Select English.
• Wallpaper – Select from three different wallpaper options.
• Radio Area – Select Europe, USA, South America or Asia.
• Time Setting – Set the date (month, day, year) and time (hours, minutes, AM/PM and 12-hour or 24-hour clock).
• Beep – Enable or disable the audible beep.
• Camera – Enable or disable the rear camera input.
• Version – Press to display version numbers.
• Restore Default – Press to restore unit to default factory settings.

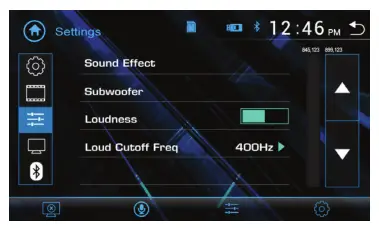

Audio:

• Audio Settings – Press to access and adjust audio settings.
• Subwoofer- Press to adjust subwoofer frequency and volume.
• Loudness – Enable or disable the loudness feature.

Display:

• Aspect Ratio – Select desired region (America, Europe, or Latin).
• Adjust – Press to adjust screen brightness, contrast, hue, saturation, and sharpness.
• Panel – Select from the following Backlight settings: Off, 10 seconds, 20 seconds, or 30 seconds.

Bluetooth:

• Bluetooth – Turn the Bluetooth signal on or off.
•  Auto Answer – Turn the auto-answer feature on or off.

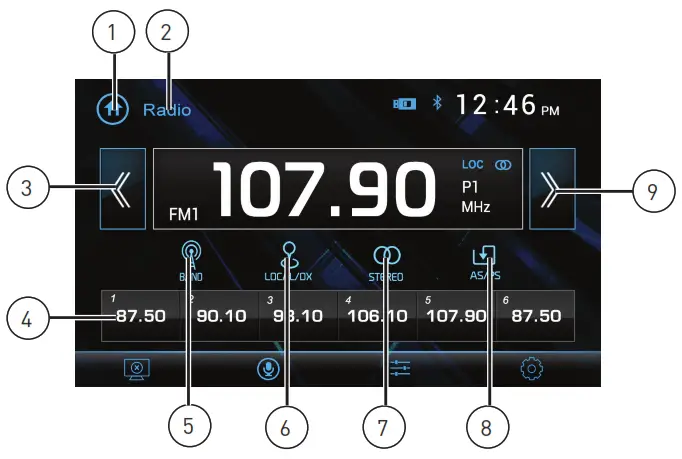

Tuner Operation

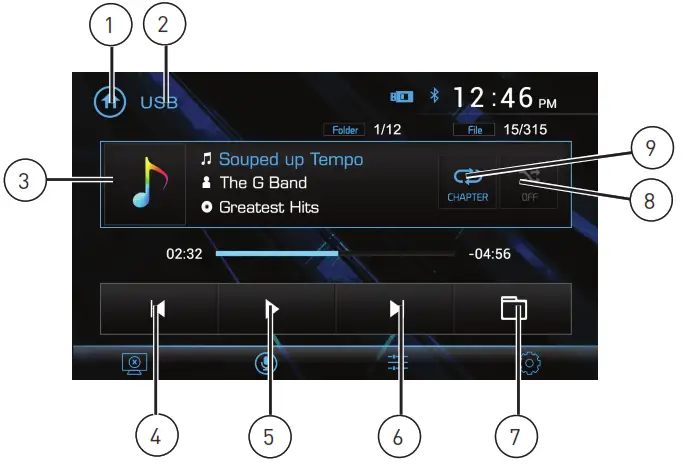

USB/microSD Operation

Media Compatibility

File Type			MP3
File System	FAT	FAT 12	X
		FAT 16/FAT 32
File Extension	.mp3/.MP3/.Mp3/.mP3
	.rmp/.m4a		X
MPEG Format	MPEG 1
	MPEG 2
	MPEG 2.5
Sampling Frequency	MPEG 1		32/44.1/48kHz
	MPEG 2		12/16/22.05/24kHz
	MPEG 2.5		8/11.025/12kHz
Bitrate	MPEG 1		32 ~ 320kbps
	MPEG 2		8 ~ 160kbps
	MPEG 2.5		8 ~ 160kbps
Other Information	Directory Depth		Unlimited
	File Name Length		32 bytes
	Total File Number		2000 files
	Total Folder Number		200 folders
	File Number via Folder		2000 files
	MP3 ID3 TAG	ver.1.x
		ver.2.x
		Title, Artist, Album

Notes:

• It is not possible to view JPG files on the in-dash monitor while the vehicle is moving.
  This is a safety feature to prevent driver distraction.
• The JPG image viewer function will only operate when vehicle is in park and the parking

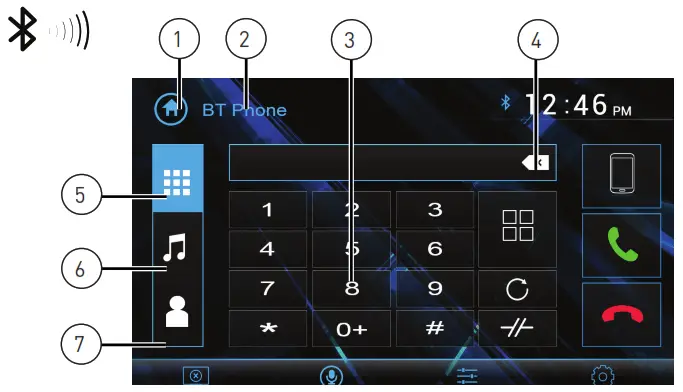

Bluetooth Operation

Bluetooth Operation

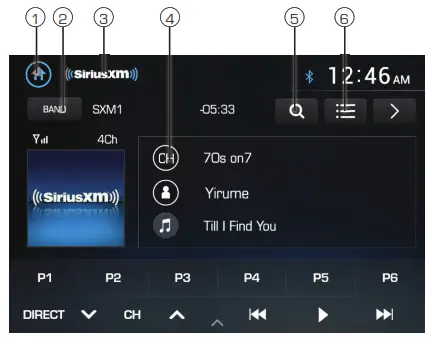

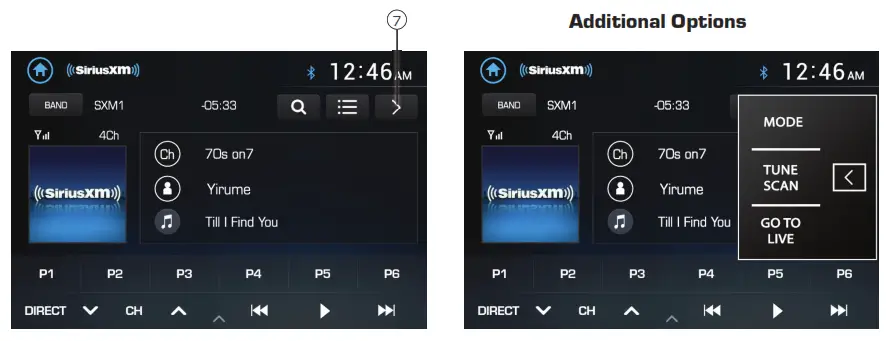

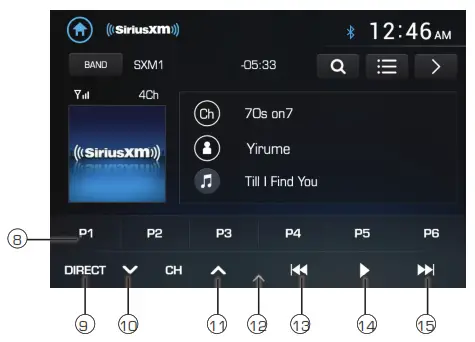

SiriusXM Satellite Radio Operation

SiriusXM Satellite Radio Operation

SiriusXM Satellite Radio Operation

Press to display/adjust the options Mode, Tune Scan and Go to Live.

Mode – Press to access and adjust the following options:

• Parental Code – When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels. Press “Change” to change the parental code. Follow the prompts to enter the current code, then enter and confirm the new code. The default code for the unit is “0000”.
• Parental Control – The Parental Control feature allows you to limit access to any SiriusXM channels, including those with mature content. Select a  rental Control option: Off (turns Parental Control off) Mature (locks all mature channels) or User (allows the user to lock specific channels using the Parental Lock Channel feature). Enter the Parental Code when prompted to confirm the change.
• Parental Lock Channel – Press “SET” to select specific channels to lock. Press “All Clear” to clear all locked channels.
• Channel Skipping – Press “SET” to select channels to skip.
• TuneStart™ – Press “ON” or “OFF” to enable or disable TuneStart. With the TuneStart feature turned ON, you will hear the beginning of the song when you tune to one of your Preset channels. It may take a minute or two for the feature to work after power-up or after changing preset bands.

TuneScan™ – Press TuneScan button to initiate the TuneScan function. The unit plays samples from the start of multiple buffered songs from each of the Preset Channels that predominantly play music selections,. This gives the user easy access to a large sampling of music content,  and they can enjoy hearing a full song when stopping the scan on a song of interest. Pressing TuneScan again will stop the TuneScan function and continue playing the song currently being scanned. Pressing and holding the TuneScan button cancels the TuneScan and returns the user to the original channel that was tuned when TuneScan was first initiated.

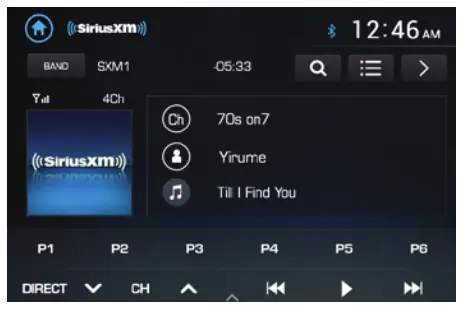

Go to Live – Press to resume play of live broadcast while in Replay mode.

SiriusXM Satellite Radio Operation

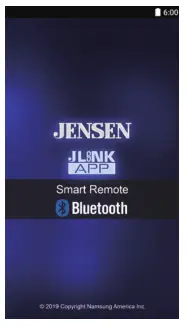

App Operation

http://onelink.to/pmmze4

Voice Assistant

Your receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car’s Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!

Bluetooth should be paired between your smartphone and the receiver. Press the voice activation button, and the receiver will switch into Bluetooth mode, This will activate Siri® or Google Assistant™ on your smartphone. You will need to manually switch back to the previous or desired mode once his operation is terminated.

Rear Camera

Connect an optional rear camera to the Rear Camera input (Yellow RCA) connector for video Refer to the wiring diagram for details.

Manual selection – Touch the REAR CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. Touch the top left area on the screen to exit camera mode.

Note: The manual mode is for dedicated cameras that are ALWAYS on while driving, it is not meant for cameras that are connected to the vehicle’s reverse light. The unit will automatically select camera mode when connected to the reverse lamp circuitry.

Note: External video output is not active when using the rear camera input.

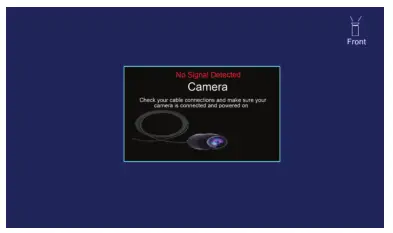

Front Camera

Connect an optional front camera to the Front Camera inputs (Yellow RCA connector for video). Refer to the wiring diagram for details.
To access the front camera, touch the CAMERA icon in the Main Menu. The unit displays rear camera by default.
Press the Front Camera icon in the top right corner to switch to front camera view.

Auxiliary Input

Connect an optional audio source into the auxiliary input on the right side of the front panel.
Select the auxiliary input icon from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

A/V Input

Connect an optional audio source into the rear A/V input.
Select A/V Input from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

Steering Wheel Controls

A third-party adapter must be used in order for the CR271ML to be compatible with any  OEM steering wheel controls.
The CR271ML has a built-in 3.5mm SWC interface that is compatible with many popular 3rd party SWC control modules, such as PAC, METRA, and others.

3.5mm SWC port located on the rear of the unit, on the MAIN POWER I/O Harness

The following controls are available for most vehicles.
Volume +
Volume Mute
Seek /Track+
Seek /TrackBand
Mode
BT Talk
BT End Call

Note: Not all OE steering wheel functions may be supported by the CR271ML We recommend the PAC SWI-RC .

1. Set “Radio Select Switch”. Set the SWI-RC to position 7 – “Pioneer/Other/Sony”.
2. To program, use the Pioneer/Sony/Other radio function mapping order.
3. When programming the SWI-RC, if a function is not supported (or not desired), then the function MUST be skipped as per the PAC SWI-RC instructions.
4. The SWC function MUST be programmed in the correct order per the PAC SWI-RC radio function mapping order instructions.

One-Year (or Two-Year*) Limited Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Namsung America Inc warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year (or two years*) from the date of the original purchase.

Namsung America Inc agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new,  renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered?
This warranty is extended to the original retail purchaser for products purchased from an authorized JENSEN dealer and used in the U.S.A.

What is covered?
This warranty covers all defects in material and workmanship in this product.
The following are not covered: software, installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification,  improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product. Specific license conditions and copyright notices for the software can be found via www.jensenmobile.com.

Warranty Coverage
Limited 1-year warranty when purchased from an authorized Jensen dealer.
or
*Limited 2-year warranty when purchased from and professionally installed by an authorized Jensen dealer.
(Proof of purchase and Installation required)

What to do?
1. Before you call for service, check the troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save you a service call.
2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.
3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.
4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:
• Call us toll-free at 1-888-921-4088
• E-mail us at [email protected]

Exclusion of Certain Damages:
This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company’s negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com

Specifications

Design and specifications subject to change without notice.

CEA-2006 Power Standard Specifications (reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and 1% THD+N
Signal to Noise Ratio: 75dBA (reference: 1 watt into 4 ohms)

CR271ML
INSTALLATION & OWNER’S MANUAL

Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com

Designed and Engineered in USA

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying,  recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.

Namsung America Inc.
©2021 Namsung America Inc.
All rights reserved.

NSA0421-v01
Printed in China
