True Fine Td10030c Bohemian Geometric 4-light Beige-brass Chandelier Instruction Manual

Wiring Instructions:

1. Insert the green grounding screw into the hole with two raised
   dimples on the mounting bar. Wrap the ground wire from the fixture
   (if supplied) around the green grounding screw, then connect it to
   ground wire from the outlet box (if not fixed on the outlet box)
   using a wire connector(not supplied). If ground wire from the
   fixture is not supplied, wrap the ground wire (if not fixed on the
   outlet box) from the outlet box around the green grounding screw
   and tighten it. NEVER CONNECT GROUND WIRE TO BLACK OR WHITE POWER
   SUPPLY WIRES.
2. Take your fixture wire(s) from [Group A] and place evenly
   against the black wire from the outlet box. Do NOT twist wires
   together before using wire connectors.
3. Fit a wire connector over the wires and screw the connector
   clockwise until you feel firmness.
4. Try gently to pull the connector off the wires. If you can pull
   the connector off, carefully re-do steps 3 and 4 as above, and
   check again for a firm connection.
5. Connect the fixture wire from [Group B] to the white wire from
   the outlet box in the same manner. Make sure no bare wires can be
   seen outside wire connectors.

Cleaning Instructions:

To clean, wipe fixture with a soft cloth. Clean glass with a
mild soap. Do not use abrasive materials such as scouring pads or
powders, steel wool or abrasive paper.

Safety Information:

Always switch off the electricity supply and allow to cool for
10 minutes before changing the light bulbs.

Contact Information:

E-mail: [email protected]

Instruction Manual
4-Light Chandelier

Overview
Outlet box Black
Wire nuts Smooth
[GROUP A]

Green(Ground)

Bare copper wire(Ground)

White Ribbed

G.Mounting strap

F.Screw

E.Screw

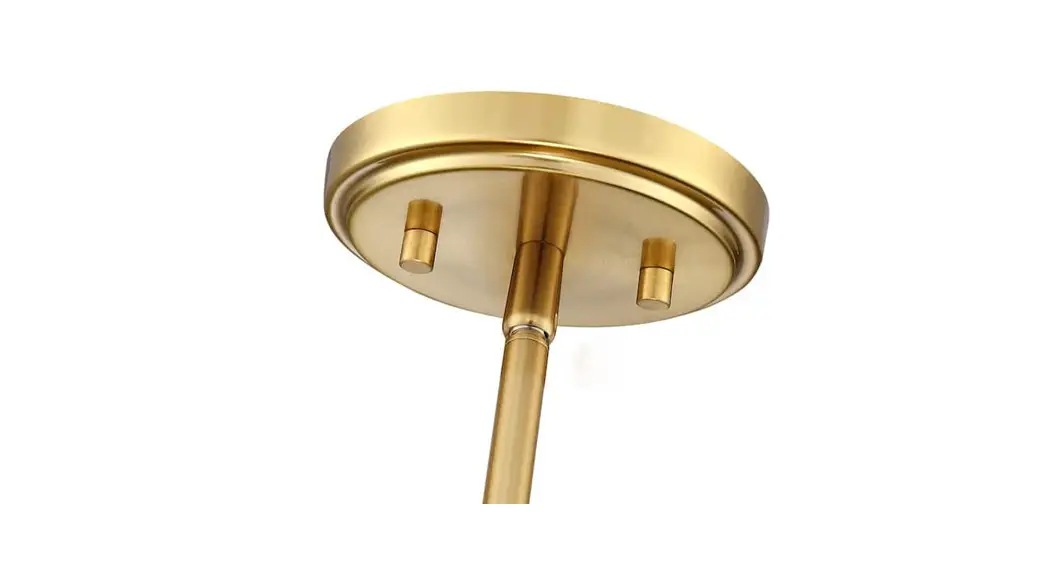

D.Canopy C.Finial

B.Stem

A.Fixture body
H.Bulb(not included)
Assembly Instruction
1.Screw Stem (B) to Fixture body (A) one by one. 2.Screw Canopy (D) to Stem (B). 3.Fix Mounting strap (G) to the outlet box with Screw (E). 4.Connect the wires according to the picture above.
(Please refer to the wiring instruction for details ) 5.Pass Canopy (D) through the Screw (F) and fix it with Finial (C). 6.Install Bulb (J) (not included) to the socket.

Wiring Instruction

1. Insert the green grounding screw into the hole with two raised dimples on the mounting bar. Wrap the ground wire from the fixture (if supplied) around the green grounding screw, then connect it to ground wire from the outlet box (if not fixed on the outlet box) using a wire connector(not supplied). If ground wire from the fixture is not supplied, wrap the ground wire (if not fixed on the outlet box) from the outlet box around the green grounding screw and tighten it.

NEVER CONNECT GROUND WIRE TO BLACK OR WHITE POWER SUPPLY WIRES.

2.Take note of the color of the wire(s) on your fixture. Identify which group your fixture wire(s) falls into and connect the wires according to the directions below:

BLACK

WHITE

*PARALLEL WIRE (round & smooth) *PARALLEL WIRE (square & ridged)

WHITE OR GREY WITH TRACER WHITE OR GREY WITHOUT TRACER

BROWN, GOLD OR BLACK WITHOUT TRACER

BROWN, GOLD OR BLACK WITH TRACER

3.Take your fixture wire(s) from [Group A] and place evenly against the black wire from the outlet box. Do NOT twist wires together before using wire connectors. 4.Fit a wire connector over the wires and screw the connector clockwise until you feel firmness. 5.Try gently to pull the connector off the wires. If you can pull the connector off, carefully re-do steps 3 and 4 as above, and check again for a firm connection.
6. Connect the fixture wire from [Group B] to the white wire from the outlet box in the same manner. Make sure no bare wires can be seen outside wire connectors.

Product Specifications

Input voltage 120V Rated power 60W MAX Lamp socket E26

Product Packaging
Fixture body × 1 Stem × 4 Mounting strap × 1 & Canopy × 1 Screw × 2 & Wire nut × 3 Lamp instruction × 1

Cleaning
To clean, wipe fixture with a soft cloth. Clean glass with a mild soap. Do not use abrasive materials such as scouring pads or powders, steel wool or abrasive paper.
Safety Information
Always switch off the electricity supply and allow to cool for 10 minutes before changing the light bulbs.
CONTACT US
E-mail:[email protected]
