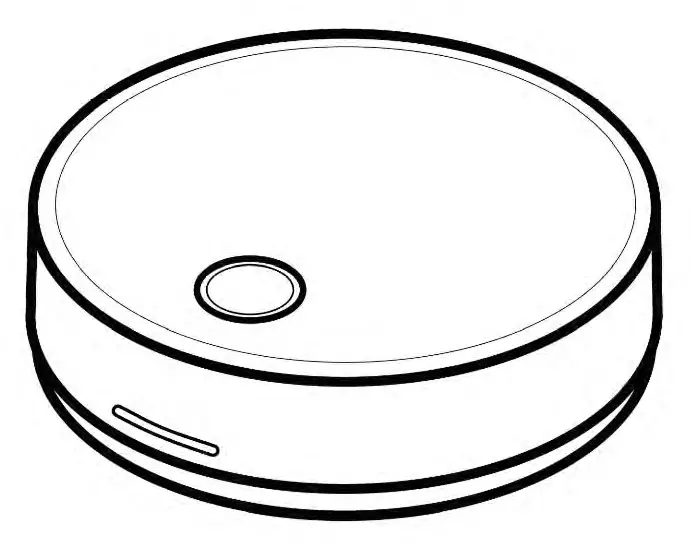

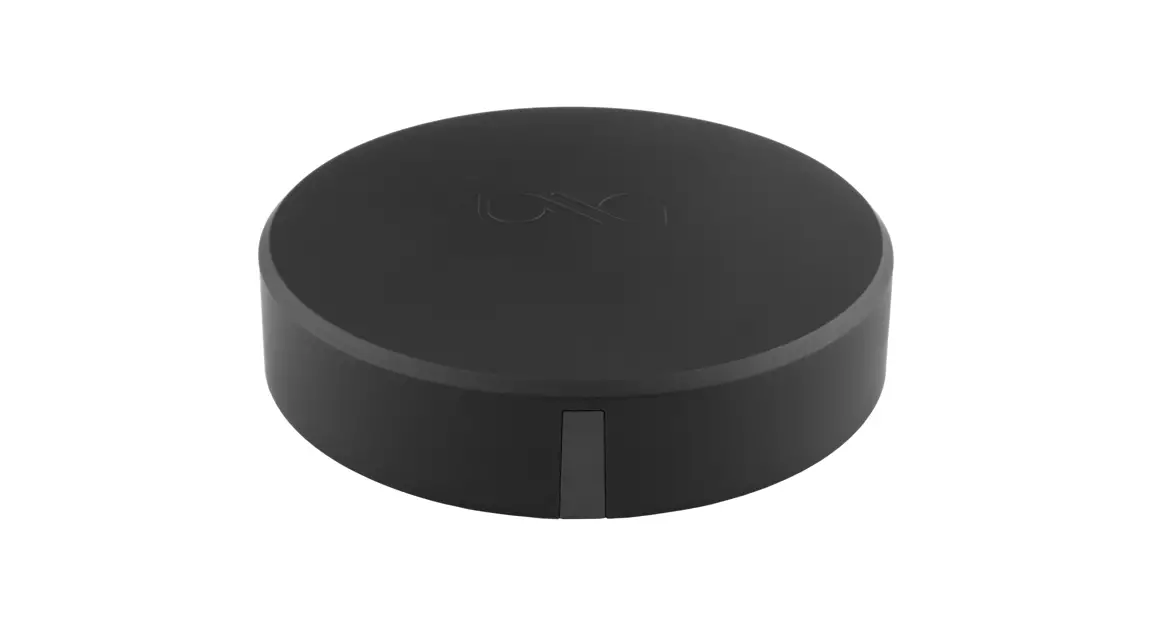

Easy Connect Pro
PRODUCT USER MANUAL

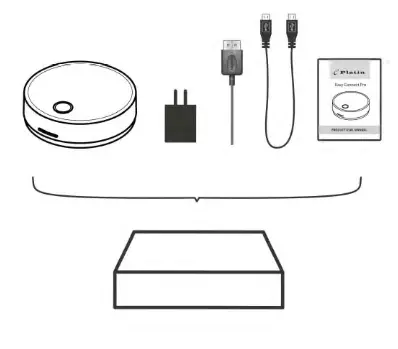

The Easy Connect Pro package contains an Easy Connect Pro, a power cord, an adaptor, an HDMI cord, and a user manual.

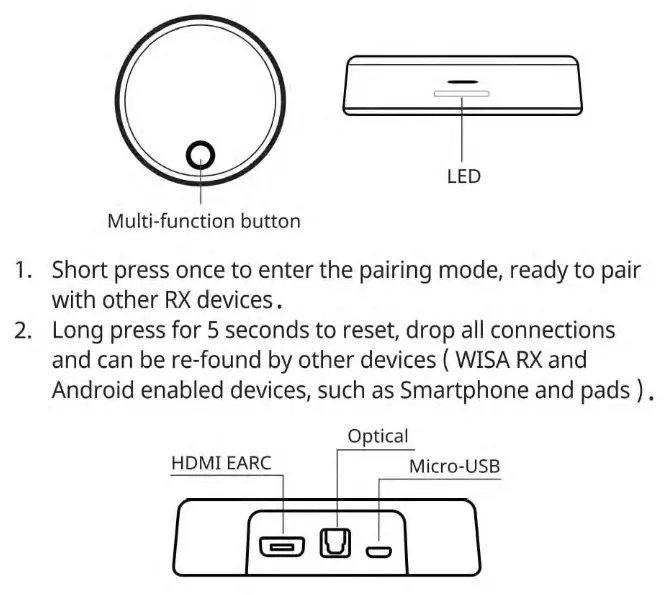

Feature list LED indication
| Standby, ready to pair | Green breathing |
| BLE paired | Blue solid 3sec and returns to the previous LED status |
| Enter WISA mode | White breathing |
| WISA Paired | white Solid 3sec and lights out |
| WISA dropped | Red breathing |
| Playing | White solid |
| Reset | Red solid |

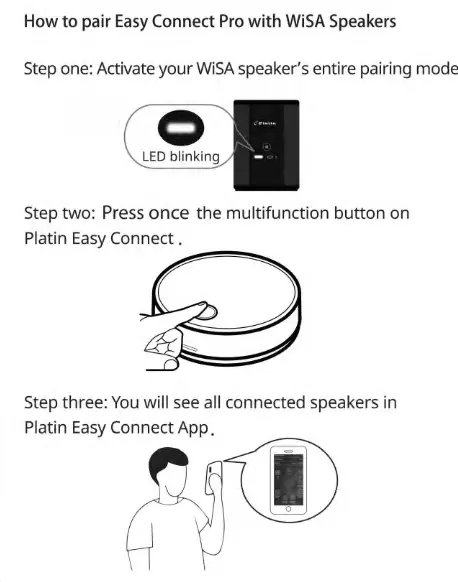

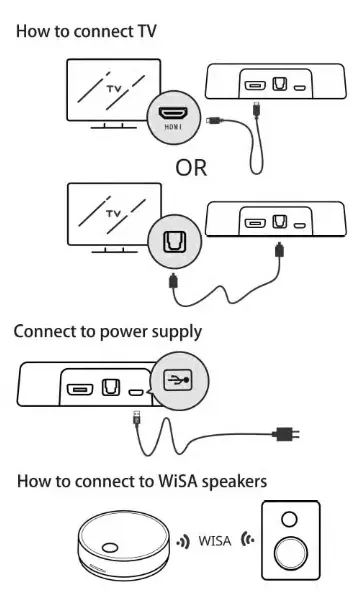

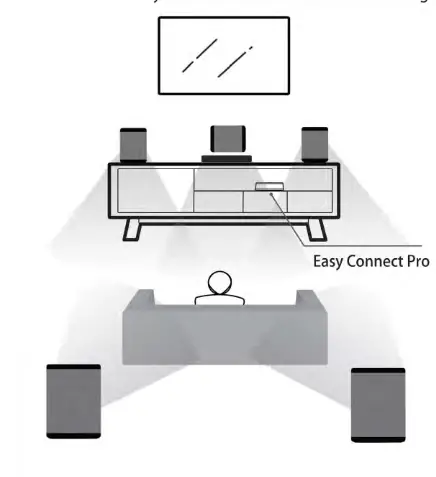

How to place Easy Connect Pro as well as a WiSA home theater System (only work with Platin Monaco 5.1 or Mirage 5.1 system ).

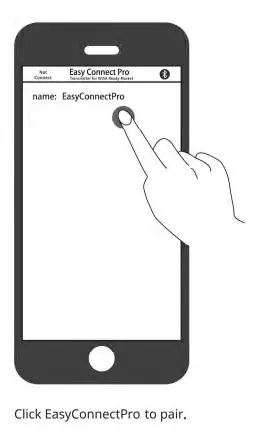

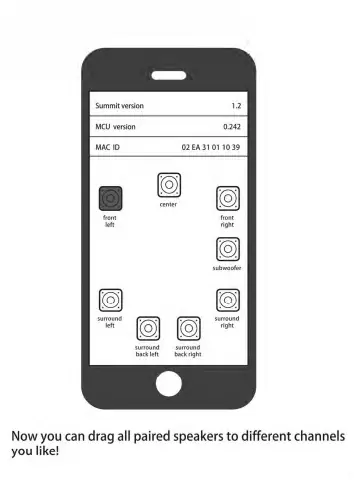

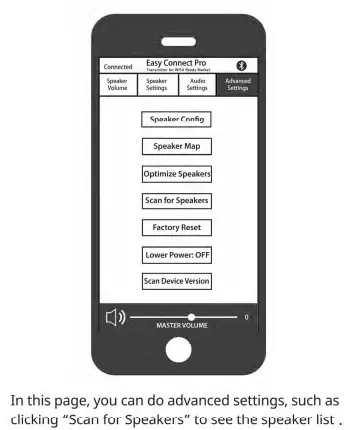

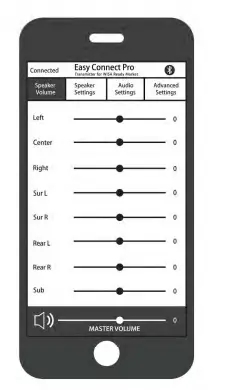

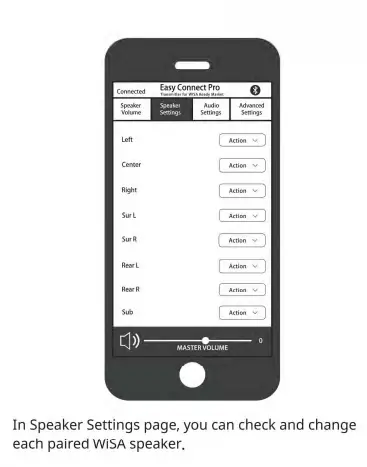

Once it is paired, you can now change the feature you like! On the Speaker Volume page, you are able to change the volume of each paired WiSA Speaker,
Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class I3 digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
ISED
CAN ICES-003 (B)/NMB-003(B) Canadian Compliance Statement This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
- This device may not cause interference, and
- This device must accept any interference, including interference that may cause undesired operation of the device.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
IMPORTANT NOTE:
Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
Contact us:
Platin Gate Technology
[email protected]
© 2020 Platin Gate
www.piatinaudio.com
Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright 11> 2012-2020 Dolby Laboratories rights reserved
