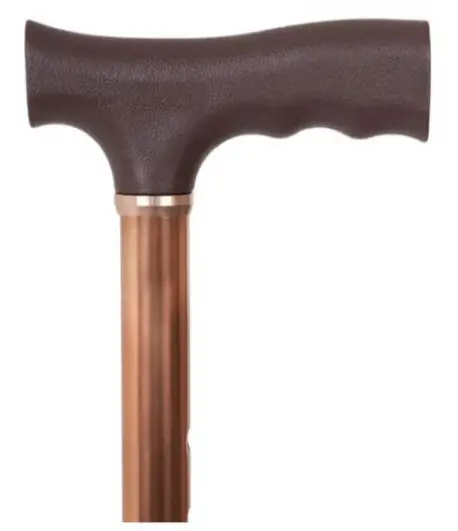

GIMA FS927L Folding Aluminium Walking Stick
INTRODUCTION
This walking stick can be folded into 4 sections and may be stored in a bag when no longer in use. Made of aluminium which is light and resistant. The tip is covered with non-slip rubbe r. Adjustable Height (from 80 cm to 90 cm.): the length must be adjusted according to the height of the use
AFETY RULES
Always contact your specialist dealer to adjust the device and to learn how to use it appropriately.
Do not store outdoors, do not expose it to prolonged periods of sunlight. Before using it check that all connections are tightened correctly.
Always move slowly, taking small steps to ensure that the weight distribution is even and that the position is stable and safe.
Do not use on slippery surfaces (wet floors, snow, ice) or on stairs.
Do not use for purposes other than those for which this product has been designed.
Max load 100 Kg.
Use only original spare parts for repairs. Only qualified personnel are authorised to repair this item.
Should you not use the device for long periods of time, have it checked by your specialist dealer.
Use caution when using on unstable and uneven ground. Check the wear of the non-slip rubber and replace it if necessary
INSTALLATION
The commissioning of this product should only be carried out by qualified p ersonnel, incorrect adjustment could result in an accident.
Height adjustment:
Height adjustment:
loosen the clamping ring. Press the button and slide the tube up to the desired adjustment hole.
Return the button to the starting position. Screw in the clamping ring. T o fold it, unhook and loosen the pipes
MAINTENANCE
The product must be cleaned regularly with a clean and dry cloth. The handle must be cleaned with a neutral detergent (do not use corrosive in case of wear
WARRANTY
1 year.
The manufacturer will not be in any way responsible for improper or imprudent use of the product.
The manufacturer will not be in any way responsible for improper or imprudent use of the product.
symbols | |||||
| Compliant medical device
with regulation (EU) 2017/745 |  | Manufacturer |  | Product code |
 | Caution: read the instructions
(warnings) carefully |  | keep under cover
of sunlight |  | Lot Number |
 | Consult the instructions for use |  | keep in one place fresh and dry |  | Medical device |
 | Authorized representative
in the European Community |  | Manufacturing date | ||
Gima Warranty Conditions
Gima’s standard 12-month B2B warranty applies
FS927L (GIMA27782)Foshan Dongfang Medical Equipment Manufactory (LTD.)
5 Xingfu Road, Zone A, Shishan Industrial Park,Nanhai District, Foshan City, China, 528000
Made in China
MedNet EC-Rep GmbH
Borkstrasse 10. 48163 Muenster.
Germany
20060 Gessate (MI) Italy
[email protected] – [email protected]
www.gimaitaly.com
