Airplex Fit Weather Shields Instructions

AUTOMOTIVE ACCESSORY
MANUFACTURE & DISTRIBUTION FITTING INSTRUCTIONS FIT534
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION

WEATHER SHIELDS

1. Inspect and locate the correct Weathershield position.
   DO NOT REMOVE BACKING FROM TAPE.
2. Thoroughly clean the contact area on door using the supplied alcohol prep pads.
3. Hold the Weathershield on the door and mark the hole positions on the door with a pencil.

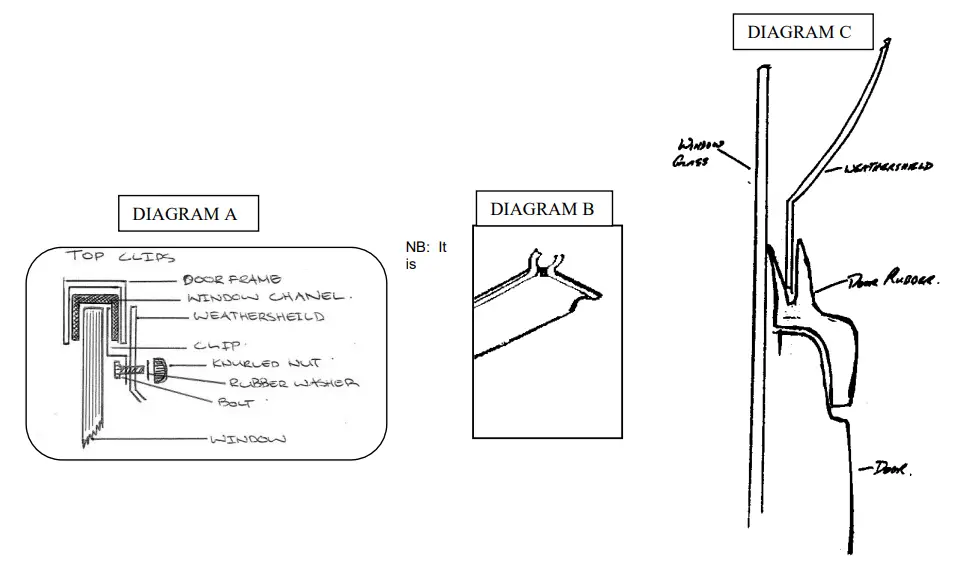

4. Insert the supplied clips into position in the door frame, as shown in diagram “a” below.
5. Peel back the tape liner approximately 2” (50mm) at the corners of the Weathershield as shown in diagram “b” and place Weathershield on the window.
6. Position Weathershield – with the bottom slotted into the door weatherstrip , ( as per diagram “c” ) and fit loosely to vehicle using the screws and nuts supplied (if provided).
7. When fitting position is properly aligned, remove all backing tape and firmly fasten with pressure.
8. Firmly tighten any screws & nuts.

AIRPLEX INDUSTRIES LTD
21 Saleyards Road, Otahuhu, Auckland 1062, New Zealand
PO Box 11286, Ellerslie, Auckland 1542 New Zealand
PH +64 (9) 276-9826
Fax +64 (9) 276-9836
[email protected]
www.airplex.co.nz
