AIRMAR WEATHER STATION MOUNT
INSTALLATION INSTRUCTIONS FOR CB-650 AND LARGER BUOY MODELS
Figure 1: CB-WX-M Airmar Weather Station Buoy Mount.
What’s Included
CB-WX-M Parts
- (1) Bottom mounting adapter for solar tower

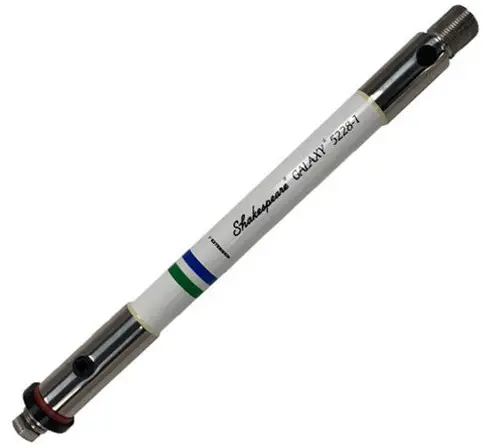

- (1) 1-ft. Antenna extension mast
- (1) 1/2” Oversized flat washer
- (1) 214 Silicone O-ring
- (1) 1/2” Split lock washer
- (1) 1/2-13 x 1-1/2” Hex cap bolt
Airmar Weather Station Accessories
- (1) Cable guide coupler
- (1) Airmar cable with threaded adapter
- (1) Airmar weather station
CB-WX-M Installation on Buoy Solar Tower
- Thread the extension mast onto the pre-mounted base on the solar tower.

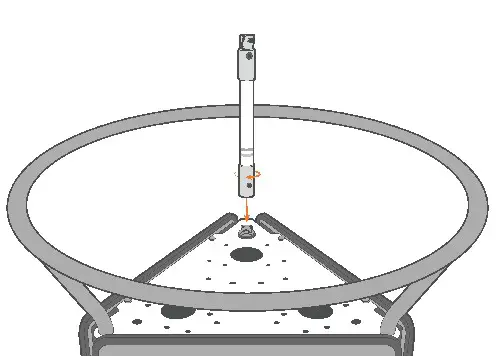

Figure 2: Attach the extension mast onto the solar tower. - Thread the cable guide coupler from the Airmar accessories onto the mast.

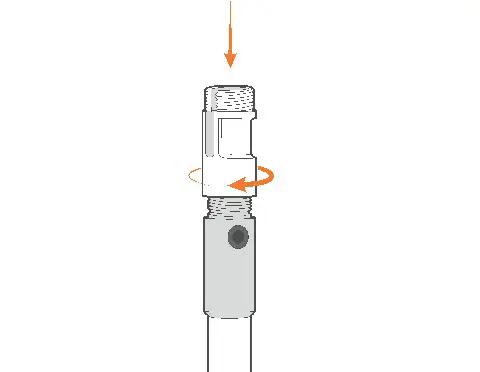

Figure 3: Attach the cable guide coupler. - Route the Airmar cable through the cable guide coupler and thread on the adapter.

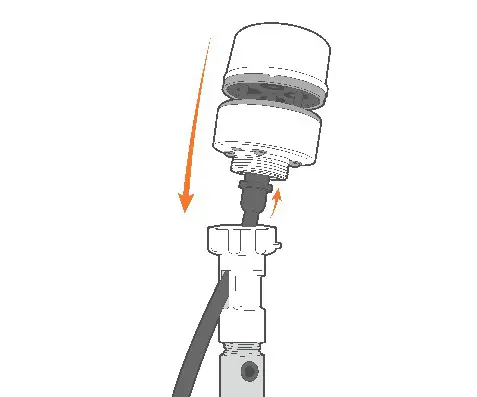

Figure 4: Attach the Airmar cable assembly. - Connect the sensor cable to the Airmar weather station and tighten the top of the adapter onto the base of the Airmar.
a. Ensure the Airmar does not rotate while threading on the adapter.
Figure 5: Plug in the Airmar cable. - Route the plug through the nearest hole on the solar tower.
a. It is recommended to zip tie the cable to the mount and provide cable armor around the portion of the cable in contact with the open hole.

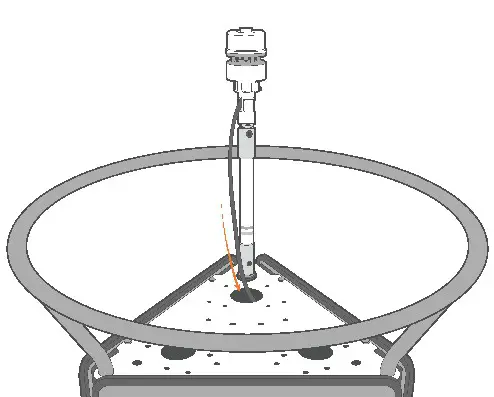

Figure 6: Route the Airmar cable to the X2-CB logger.
Figure 2: Attach the extension mast onto the solar tower.
Figure 3: Attach the cable guide coupler.
Figure 4: Attach the Airmar cable assembly.
Figure 5: Plug in the Airmar cable.
Figure 6: Route the Airmar cable to the X2-CB logger.
