2019 MKC Liftgate Trim Panel
Instruction Manual
2019 MKC Liftgate Trim Panel
501-05 Interior Trim and Ornamentation
Removal and Installation
2019 MKC
Procedure revision date: 10/16/2015
Liftgate Trim Panel
Removal

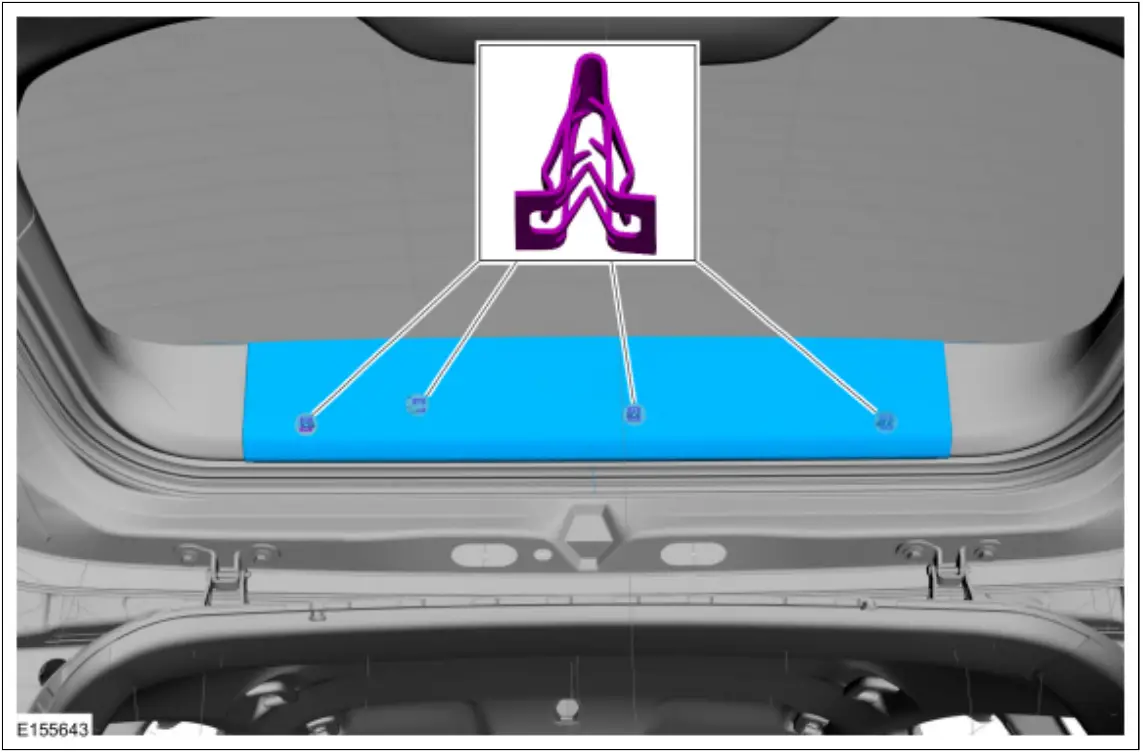

1. Release the clips and remove the center upper liftgate trim panel.

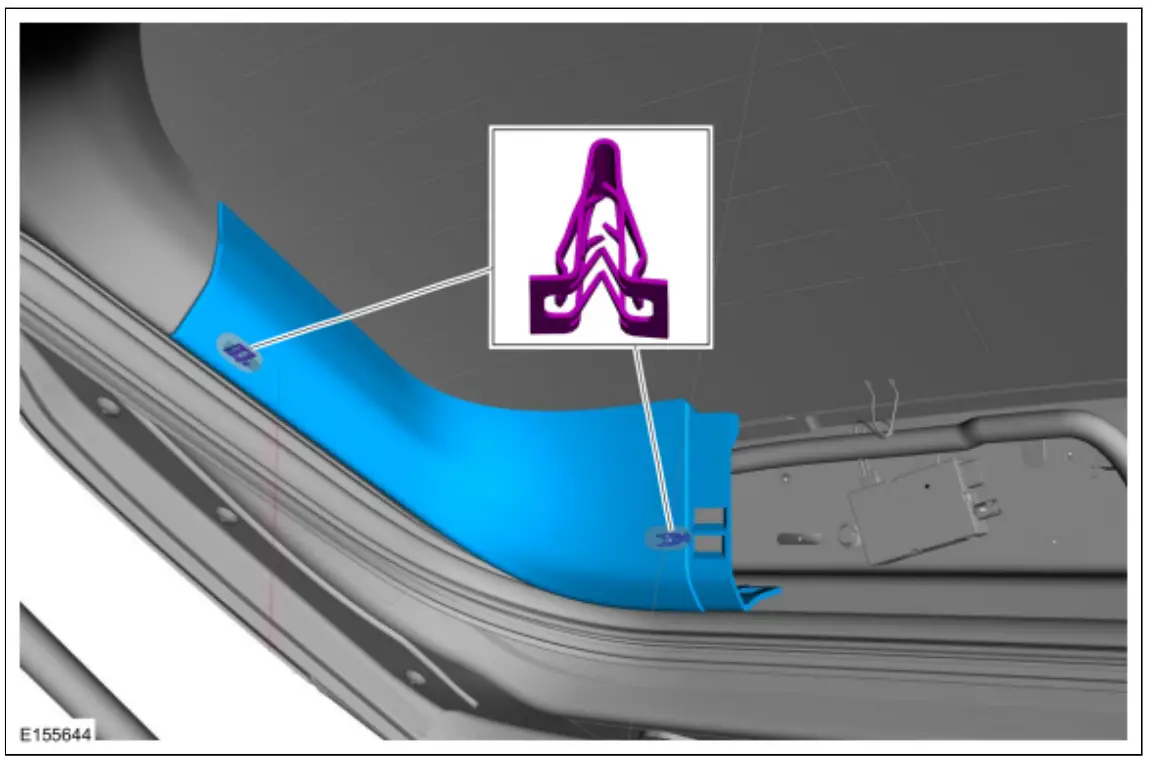

2. NOTE: RH side shown, LH side similar.
On both sides.
Release the clips and remove the liftgate upper side trim panels.

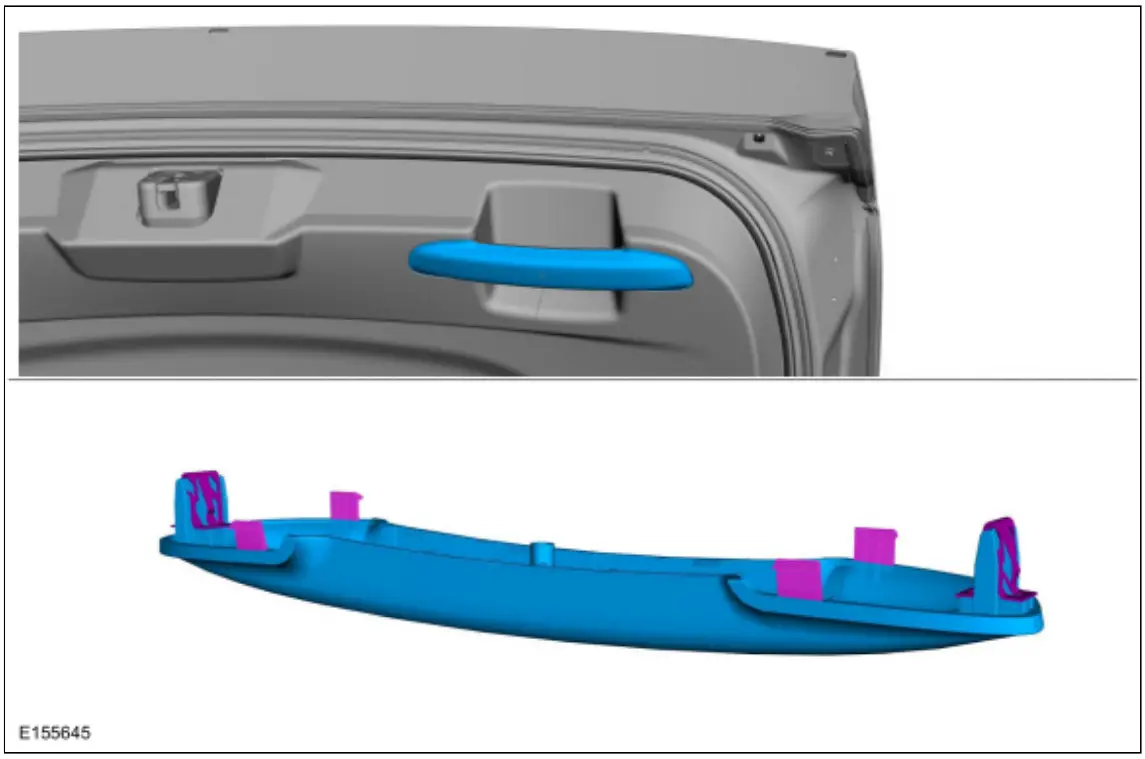

3. Remove the grab handle cover.
Vehicles with power liftgate

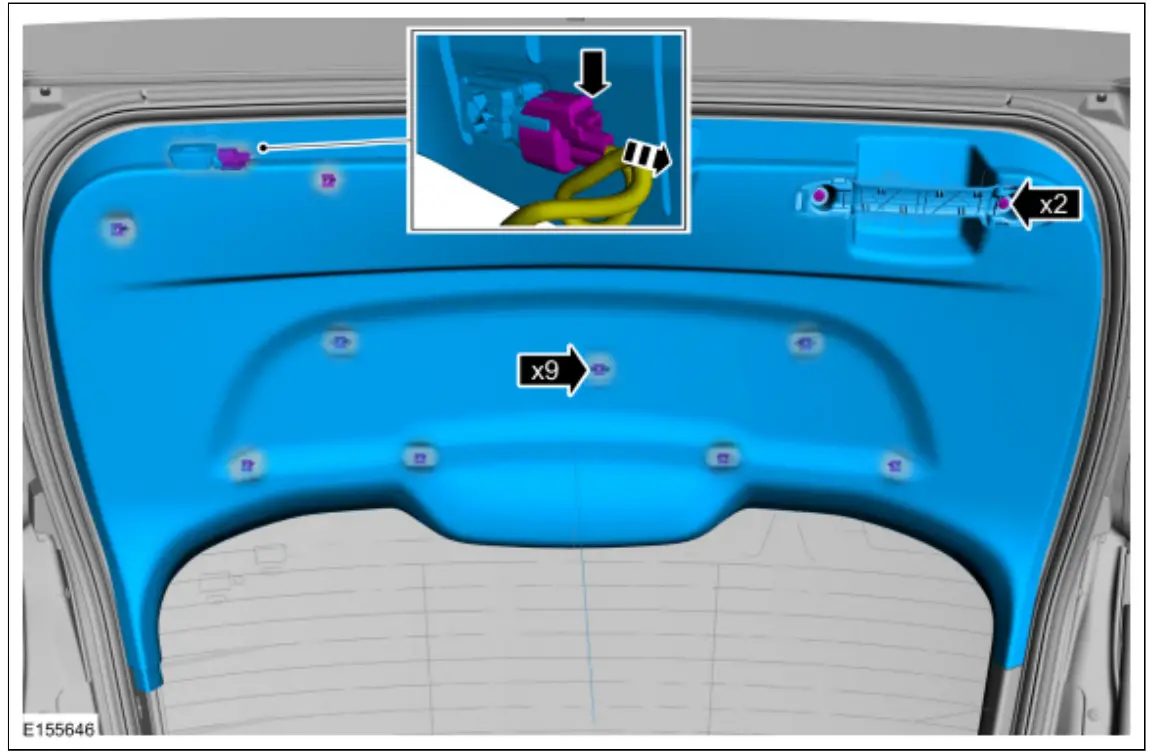

4. Remove the retainers, release the clips, disconnect the electrical connector and remove the liftgate trim panel.
All vehicles
5. Remove the retainers, release the clips and remove the liftgate trim panel.
Installation
1. To install, reverse the removal procedure.
