NEXTORCH UT31 Emergency Safety Warning Clip Light User Manual

SPECIFICATIONS

ANSI / PLATO-FL1	High (White Light)	Low (White Light)	Red Light	Flash (Red Light)	Flash (Red and Blue Light)
Light Output	220 lm	28 lm	4 lm	4 lm	―
Run Time	6 h	16 h	21 h	42 h	80 h
Beam Distance	53 m	19 m	―	―	―
Beam Intensity	702 cd	90 cd	―	―	―
Impact Resistance	1 m
Water Resistant	IPX4
Weight and Dimensions	Weight: 50 g / 1.76oz Size: 61 mm (Length) × 53 mm (Width) × 30 mm (Height)
Material	Light Source: White/ Red/Blue Light LEDs
	ABS
Battery	Built-in 640 mAh Rechargeable Battery

Above tested specifications are strictly based on the standard of ANSI / PLATO-FL1.We tested UT31 with built-in 640 mAh rechargeable battery in 22 °C ± 3 °C. The specifications might be different when using a different battery or testing in a different environment.

FEATURES

• Red and blue emergency flash.
• LED infrared induction for hands-free operation.(Red and blue emergency flash is not included)
• Type-C Rechargeable design, economical and convenient.
• Equipped with LED battery indicator, easy to check the battery level.

INSTRUCTION

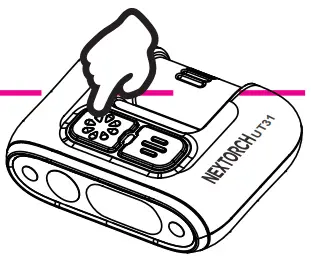

• ON / OFF
  Press and hold the Normal Switch for 1 second.

• Red and Blue Flash
  Press and hold the Normal Switch for 3 seconds.

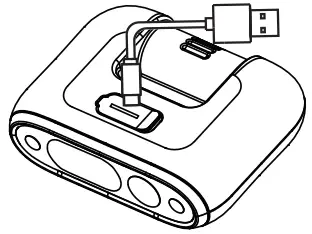

• Charge
  Charging time about 2 hours.

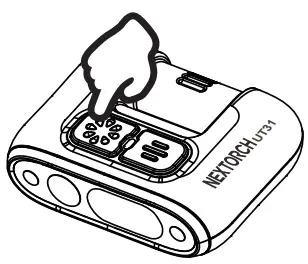

• Mode Switch
  Press to switch modes when the light is on.

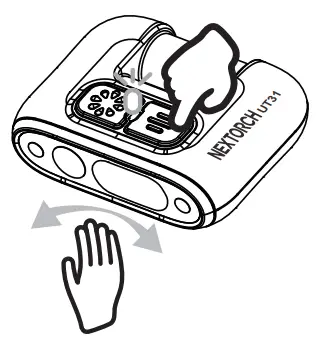

• Inductive Operation
  Press the Inductive Switch and the blue LED indicator will be on.
  Waving your hand twice at the motion detector will turn the light on / off.
  Note: Red and blue emergency flash is not included.


MAINTENANCE

1. Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
2. Please use high quality batteries; Remove batteries when not working for a long time, and then store in a cool dry place.
3. Replace waterproof O-ring immediately when considering of the damage with use.

WARRANTY

1. NEXTORCH warrants our products to be free from any defects in workmanship and/or materials for a period of 15-day from the date of purchase. We will replace it. NEXTORCH reserves the right to replace an obsolete product with a current production, like model.
2. NEXTORCH warrants our products to be free of defect for 5 year of use. We will repair it.
3. The warranty excludes other accessories, but rechargeable batteries are warranted for 1year from the date of purchase.
4. In the event that any issue with a NEXTORCH product is not covered under this warranty, NEXTORCH can arrange to have the product repaired for a reasonable fee.
5. You could access to NEXTORCH website (www.nextorch.com) to gain warranty service information by scanning the following QR code.You could also:
   Email us at [email protected]
   Call us: 0086-400-8300-799
   OR contact your local dealer/distributor


CONTACT WITH NEXTORCH DESIGNER

In order to improve NEXTORCH , we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
