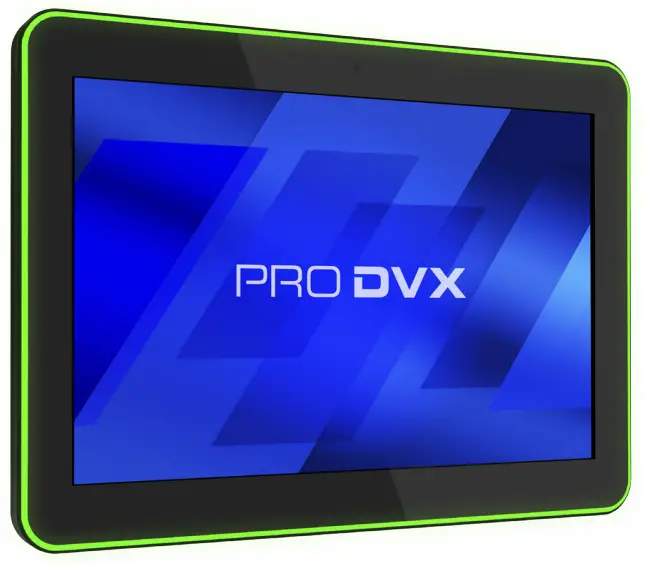

APPC-10SLB Series 10.1 Inch Android Panel PC
User Guide
APPC-10SLB Series / APPC-10X Series
APPC-10SLB Series 10.1 Inch Android Panel PC
Please check the website or scan the QR-code for more product information.
www.prodvx.com/support
APPC-10SLB / APPC-10X Quick start guide

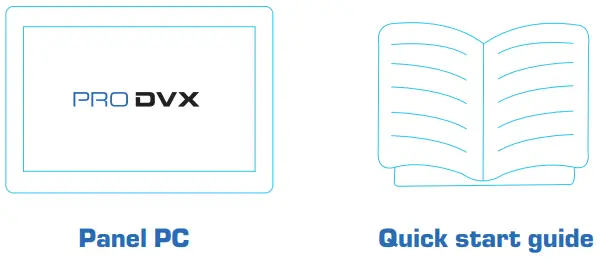

This package contains:

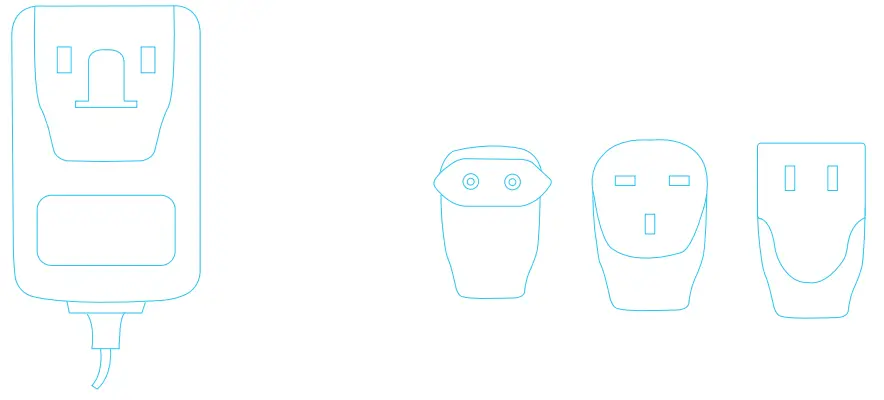

DC power adapter 12 V1 Power plugs for Europe, UK & US1
DC power adapter 12 V and power plugs are only included with the APPC-10X.
Tools necessary but not included
Phillips screwdriver 2
It is preferred not to use power tools to attach the device to a mount or stand.
How to start:
Step 1: Take contents out of the box, make sure all components are present.
Step 2: Install wall/glass mount or desk stand using manual screw driver, check designated mount/stand manual for instructions.
Step 3: Connect to power via power adapter or PoE+.
Step 4: Connect to Internet through Wi-Fi or PoE+.
Step 5: If applicable, install and configure preferred application.
Quick connection settings

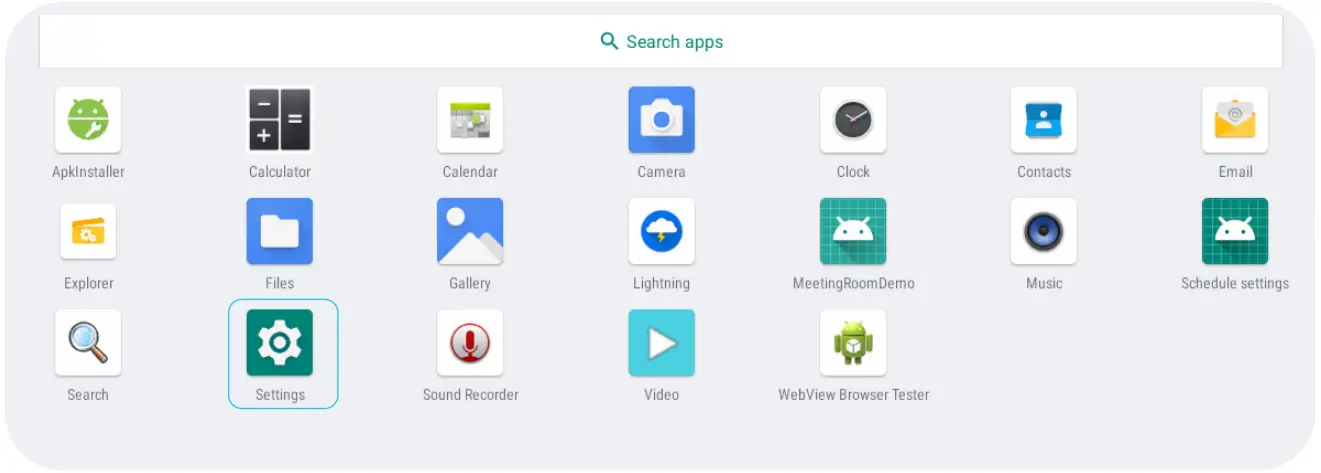

Step 1: Plug in PoE+ cable or optional power adapter to turn on display. If using PoE+ for both power and data, this was the final step. If connection to Wi-Fi is preferred, swipe up in the home menu to arrive in the app drawer.
Once there, select Settings.

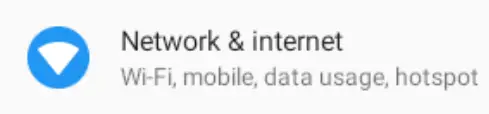

Step 2: In the settings menu, go to Network & internet, located at the top of the menu.
Step 3: In the Network & internet menu, select Wi-Fi.
Step 4: Turn on Wi-Fi and select desired Wi-Fi network, fill in credentials to connect to internet.
Caution: Please note this product contains a small clock battery. Please return the product to a certified repair centre for proper replacement of the battery; battery disposal can be dangerous.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area can cause harmful interference, in which case the user will be required to correct the interference at their own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Europe/UK EU/UK Declaration of Conformity
This device complies with the essential requirements of the Radio Equipment Directive (2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive. This equipment is compliant with Class A of EN 55032. In a residential environment, this equipment may cause radio interference.
Correct Disposal of this product
This marking indicates that this product should not be disposed of with other (household) waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the reseller where the product was purchased. They can take this product for environmentally safe recycling. “FCC & CE RF Radiation Exposure Statement Caution: To maintain compliance with the FCC & CEs RF exposure guidelines, the product must be placed at least 20 cm from nearby persons.” The recommended temperature for the ProDVX Display and accessories is 0°C-45°C.
The information in this document is subject to change without notice.
