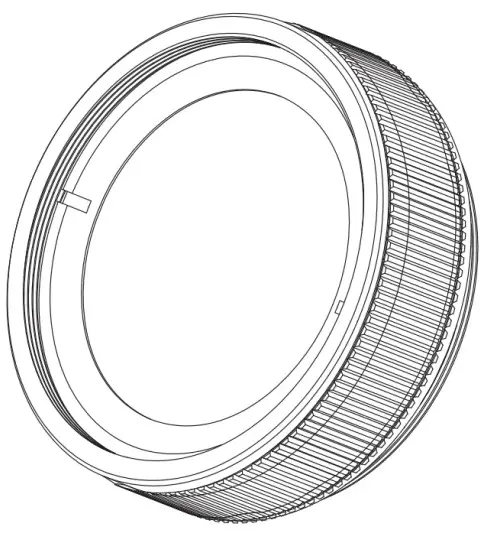

WLZ1 Wide Angle Lens
User Manual
WLZ1 Wide Angle Lens
The product user guide contains product features, how to use, and the operating procedure. Read the user manual carefully to get the best experience and avoid unnecessary damage. Keep this manual for future reference. If you have any questions or comments about the device, please contact the customer line.
www.alza.co.uk/kontakt
+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
Thank you for purchasing USKEYVISION WLZ1 Lens Kit.
Features
- Wide-angle/Macro 2in1 Lens (18mm Wide-angle + 10X Macro)
- One-piece moulding, oxidized aluminium alloy frame
- SCHOTT Low Dispersion Lenses with 30-layer nano-coating double-side
Warning
- Please read this user manual carefully. The camera is not included in the package.
- Please keep the user manual properly. When giving the lens to others, please give them this user manual as well.
- Please pay attention to all warnings and follow all instructions in the manual.
- Please use a professional lens cloth or blower to clean the lens after use.
Specifications
| Lens material | German SCHOTT Ultra-low Dispersion Glass |
| Wide-angle magnification | 0.75X 18mm Focus Wide-Angle |
| Macro lens focus range | 50-65 mm |
| Weight | 150.8g |
| Wide-angle focal length | 18mm |
| Coating | 30 layers on both sides |
| Macro magnification | 10X Macro |
| Diameter | 58mm |
| Interface type | 52mm |
| Compatible model | SONY ZV-1 |
Installation
 | |

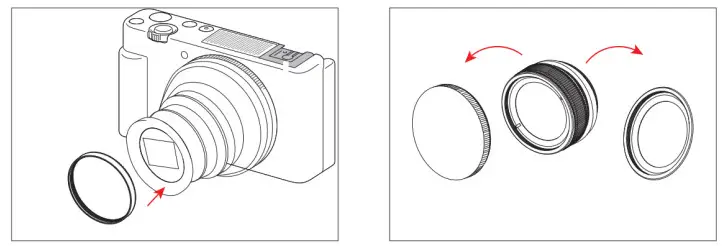

| 1. After the camera is turned on, align an fix the adapter ring to the original lens. | 2. Remove the front and rear lens covers. |
NOTE: The adapter ring cannot be fully attached to the camera when the camera is turned off, which will cause it to fall off. Therefore, the adapter ring must be aligned
onto the camera lens when it is turned on.
 | |

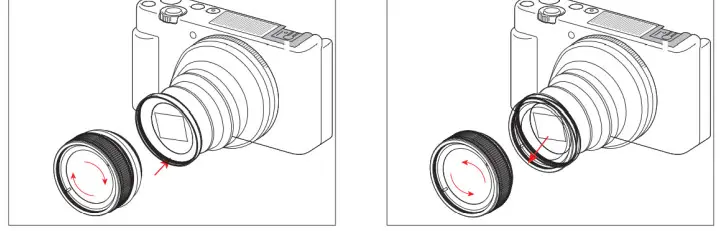

| 3. Align the lens with the threaded port the adapter ring and tighten the lens clockwise. | 4. When using the macro lens, please take off the wide-angle lens, it can be taken off counter-clockwise. |

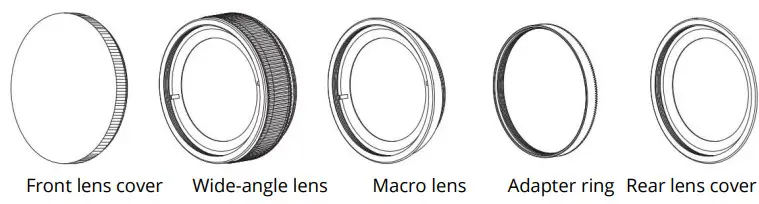

Package Contents
The lens kit package includes:
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized:
- Using the product for any purpose other than that for which the product is intended or failing to follow the instructions for maintenance, operation and service of the product.
- Damage to the product by a natural disaster, the intervention of an unauthorized person or mechanically through the fault of the buyer (e.g. during transport, cleaning by inappropriate means, etc.).
- Natural wear and aging of consumables or components during use (such as batteries, etc.).
- Exposure to adverse external influences, such as sunlight and other radiation or electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity of this voltage, chemical processes such as used power supplies, etc.
- If anyone has made modifications, modifications, alterations to the design or adaptation to change or extend the functions of the product compared to the purchased design or use of non-original components.
