PROMAX RANGERNeo + ATSC Advanced Multifunction Field Strength Meter and Spectrum Analyzer

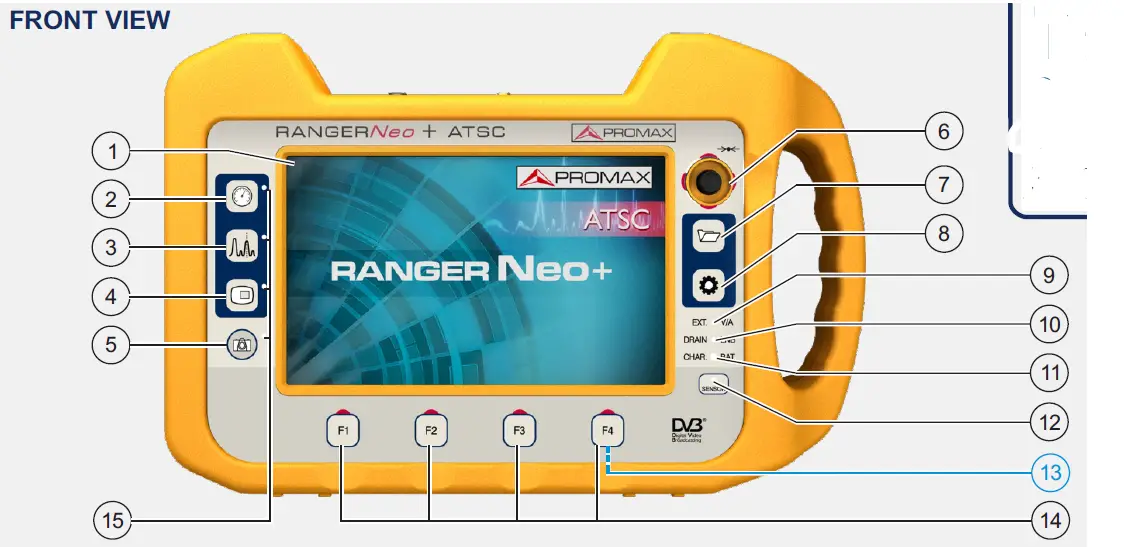

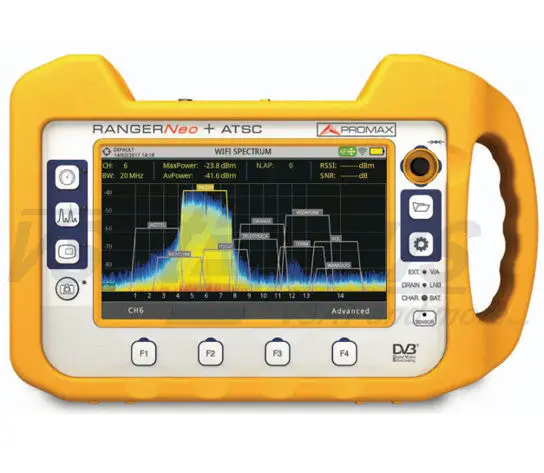

FRONT VIEW

1. TFT screen

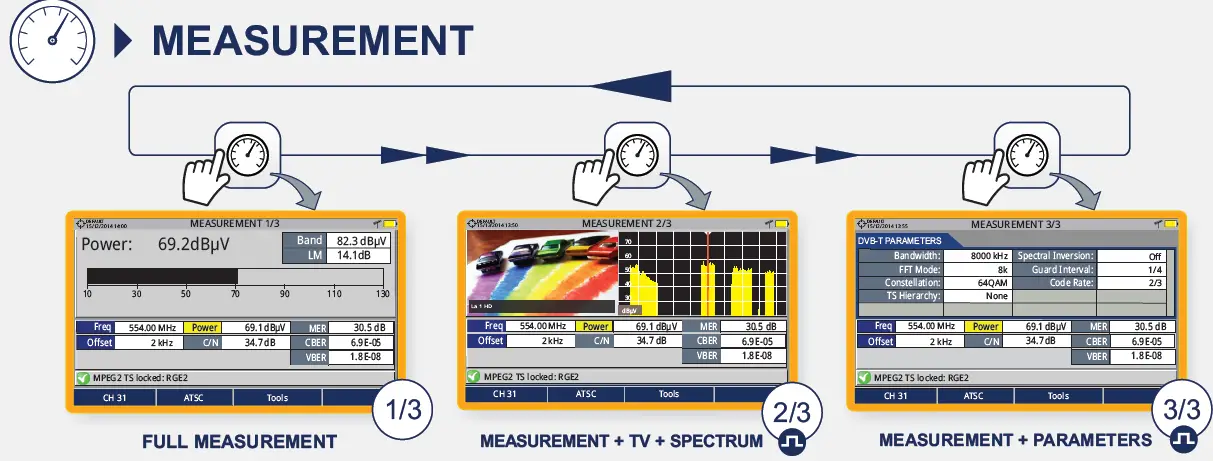

2. Measurement key

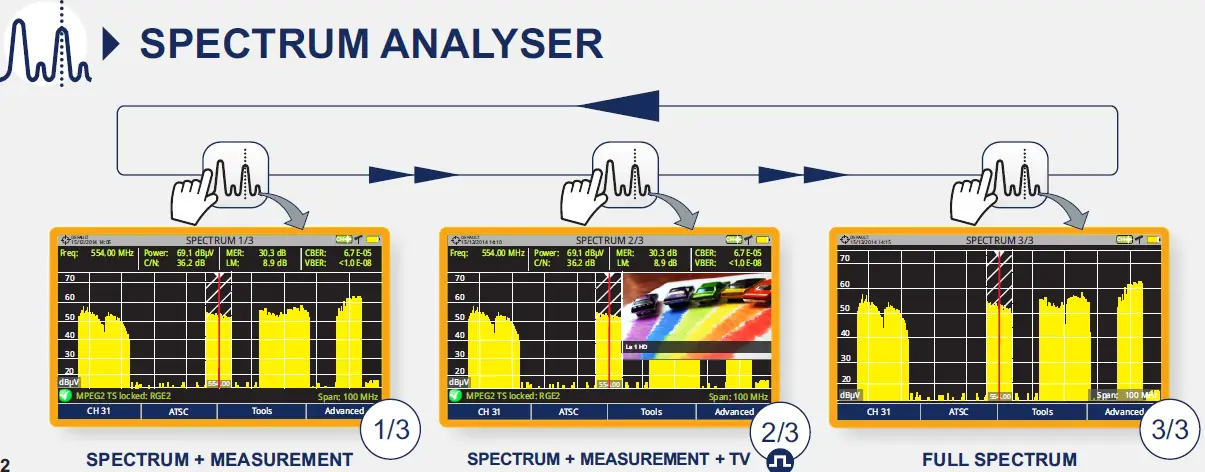

3. Spectrum key

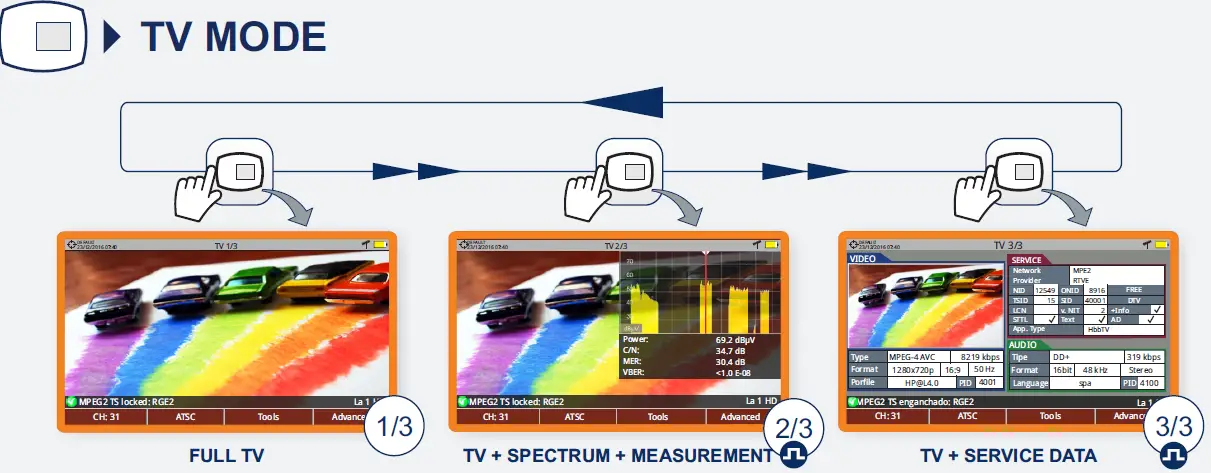

4. TV Key
5. Export (press>1s)
   Reference (press<1s)
6. Joystick
7. Installations management key
8. Settings key
9. External Video/Audio Input indicator
10. External unit power supply indicator
11. Battery charging indicator
12. Light sensor
13. Reset (press and hold 5s)
14. Softkeys
15. Active Function indicator

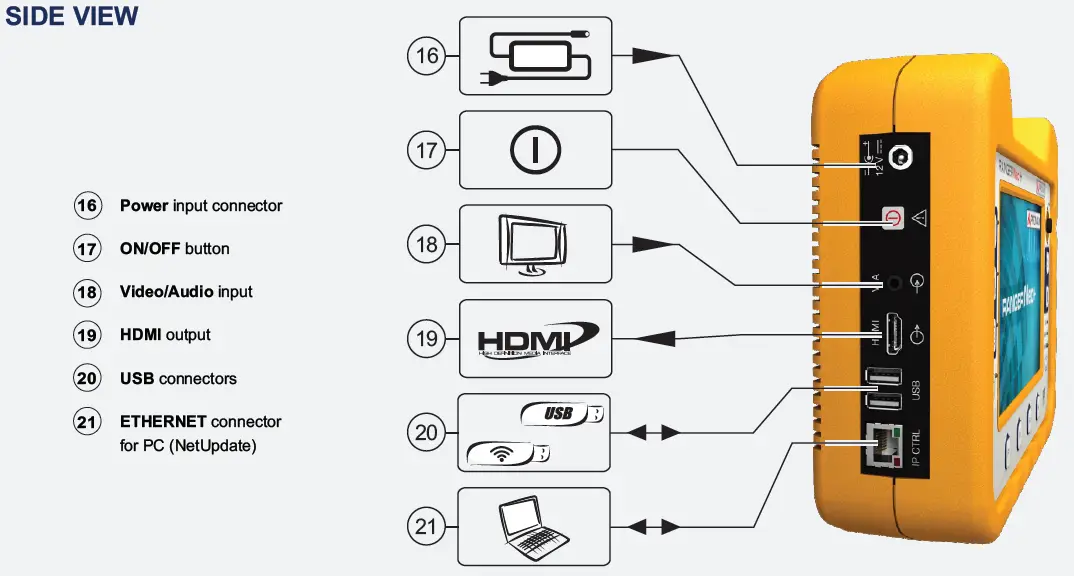

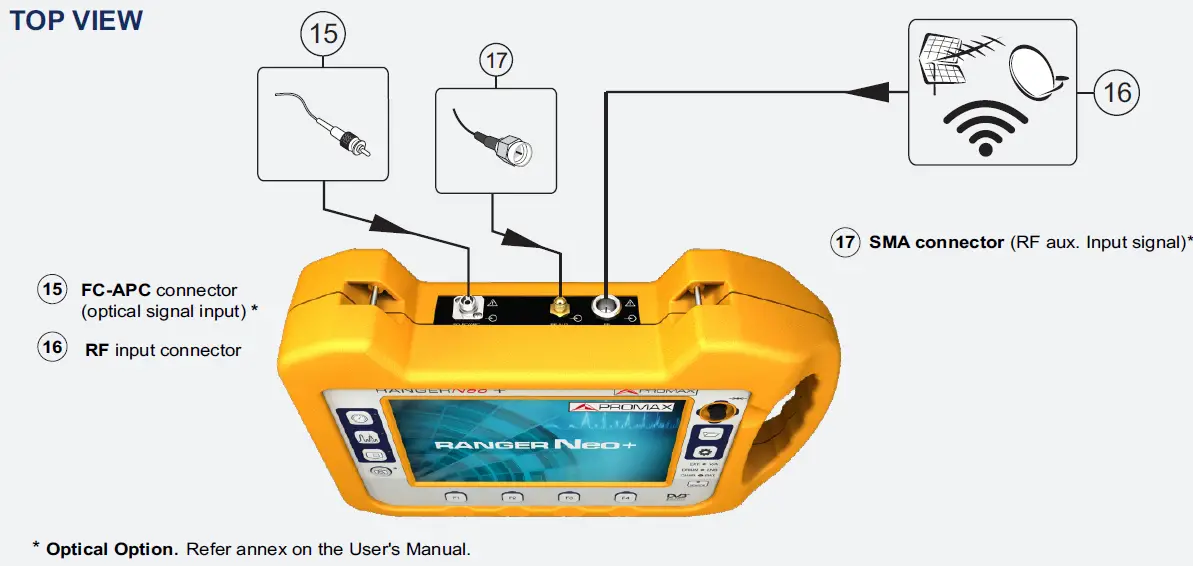

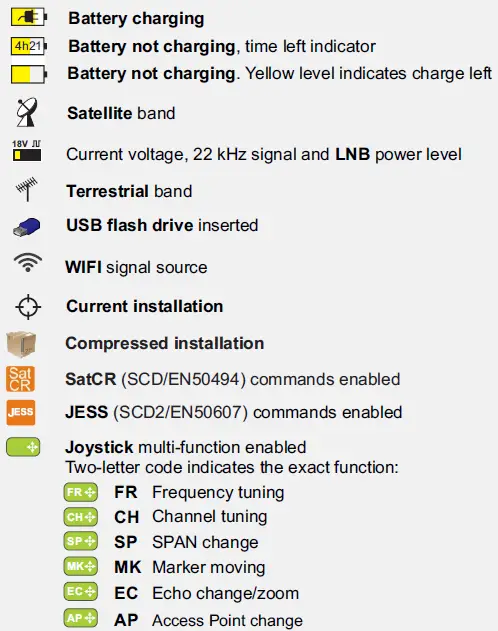

SCREEN ICONS REFERENCE

STATUS BAR

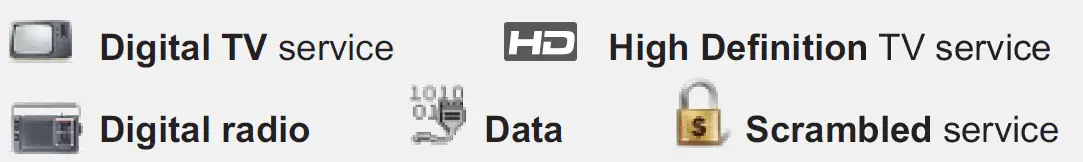

 SERVICE LIST SELECTOR  DIALOG BOXES  VIDEO & AUDIO SETTINGS MENU

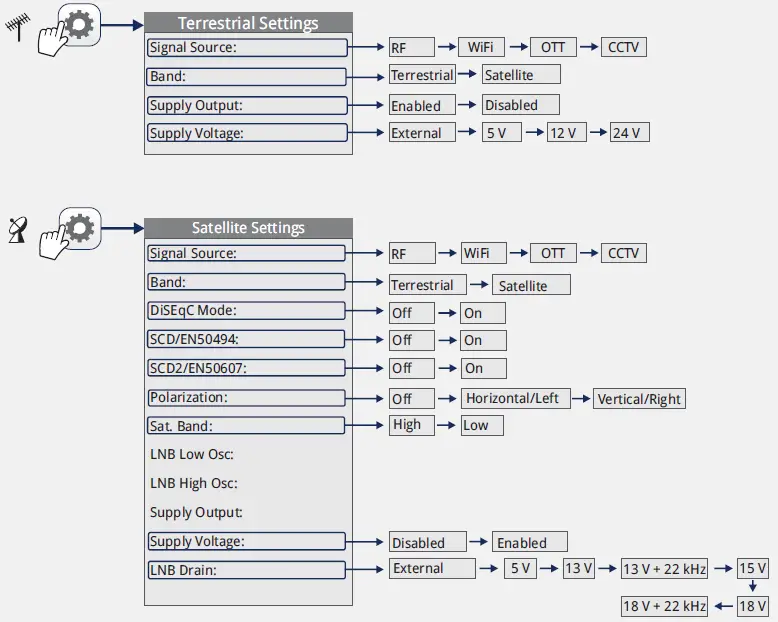

RF SETTINGS

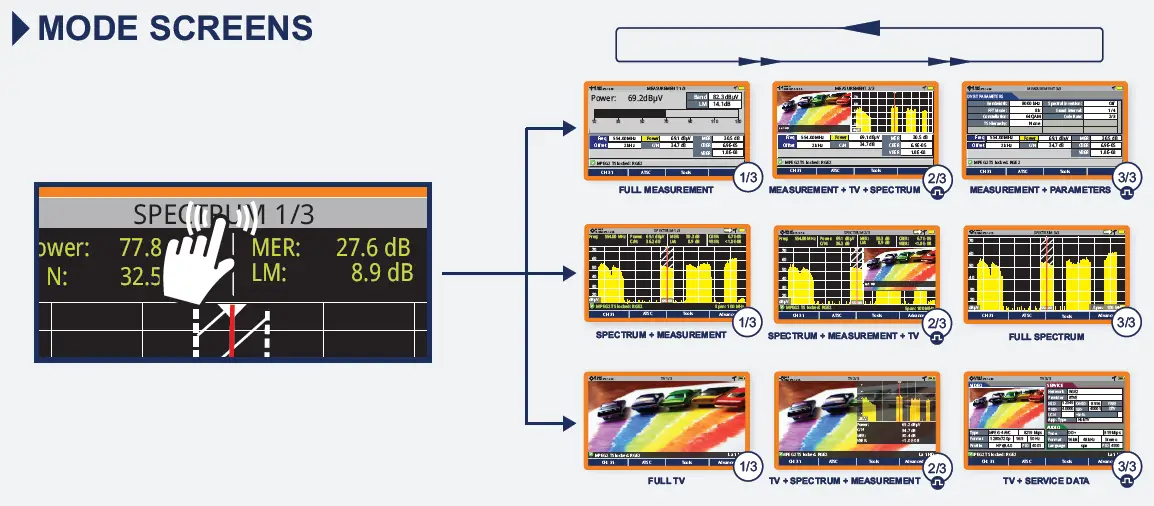

RF SCREENS

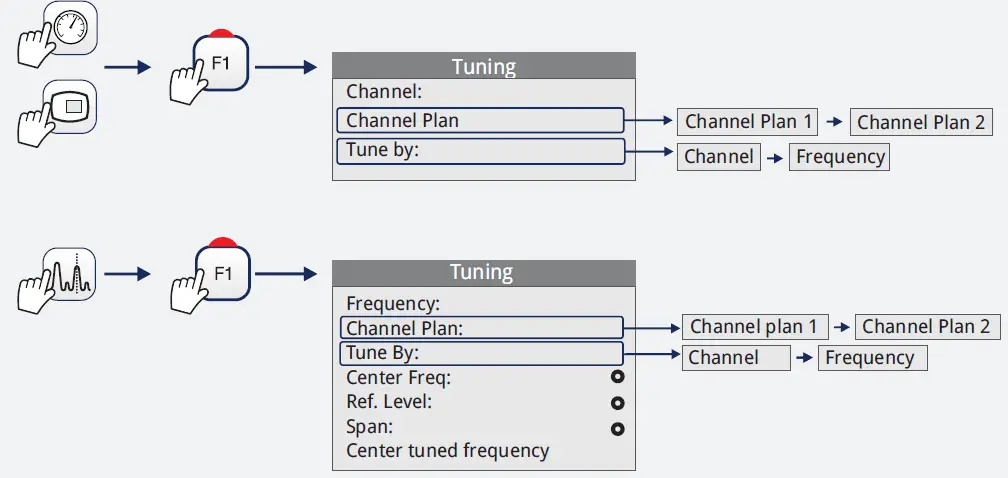

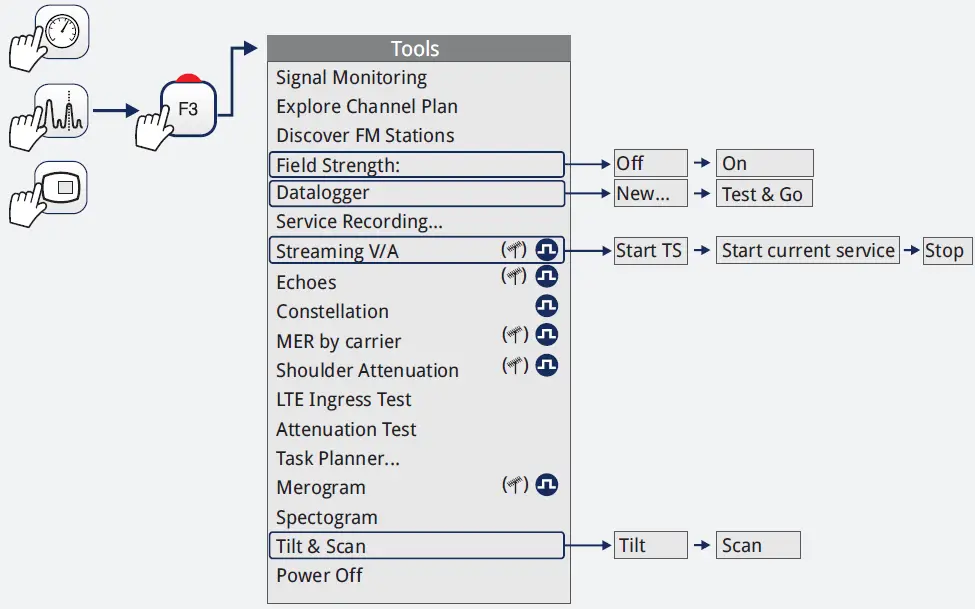

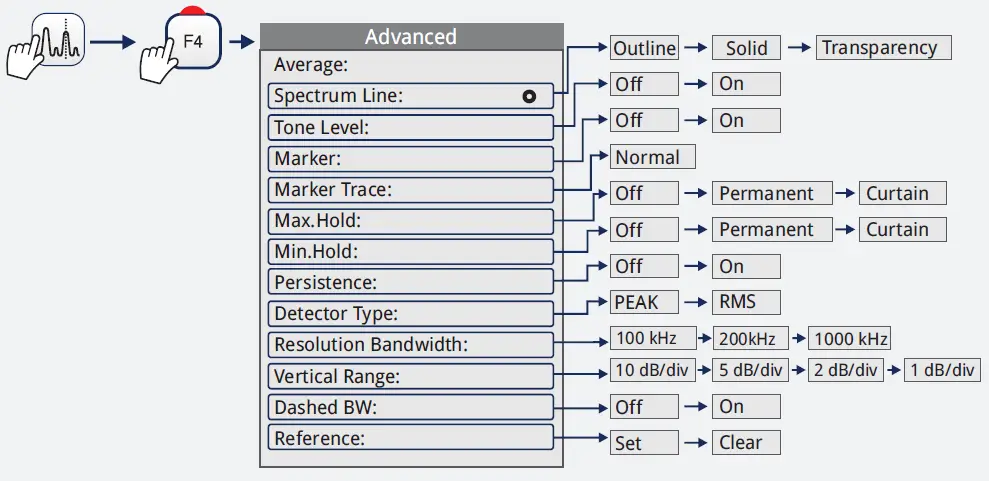

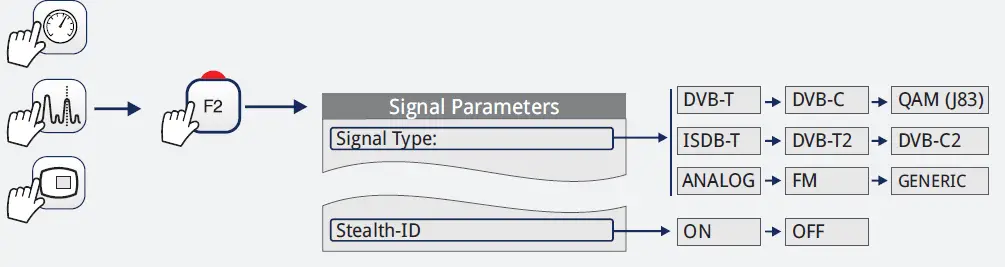

RF MENUS

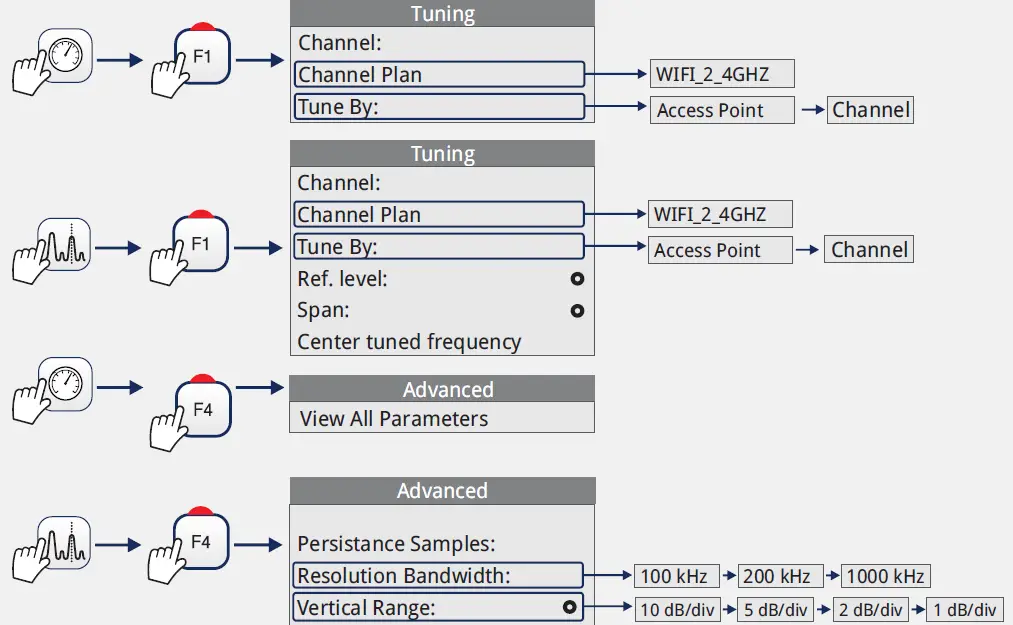

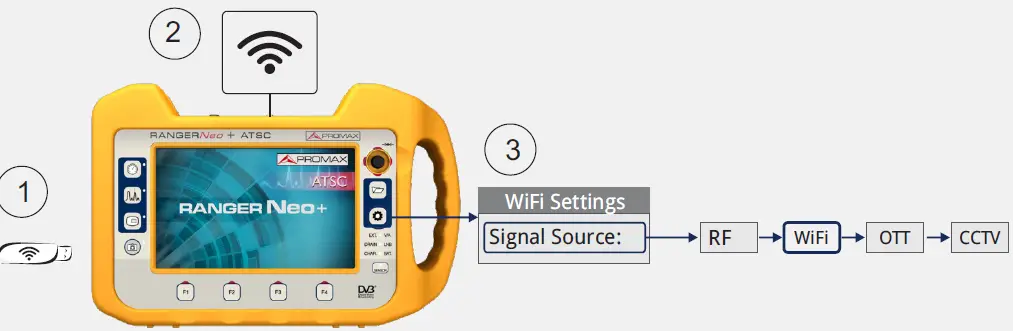

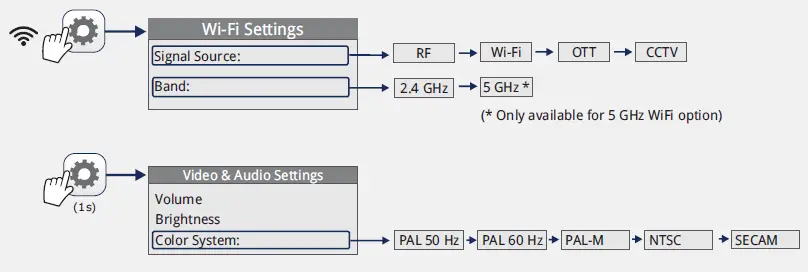

WIFI SETTING

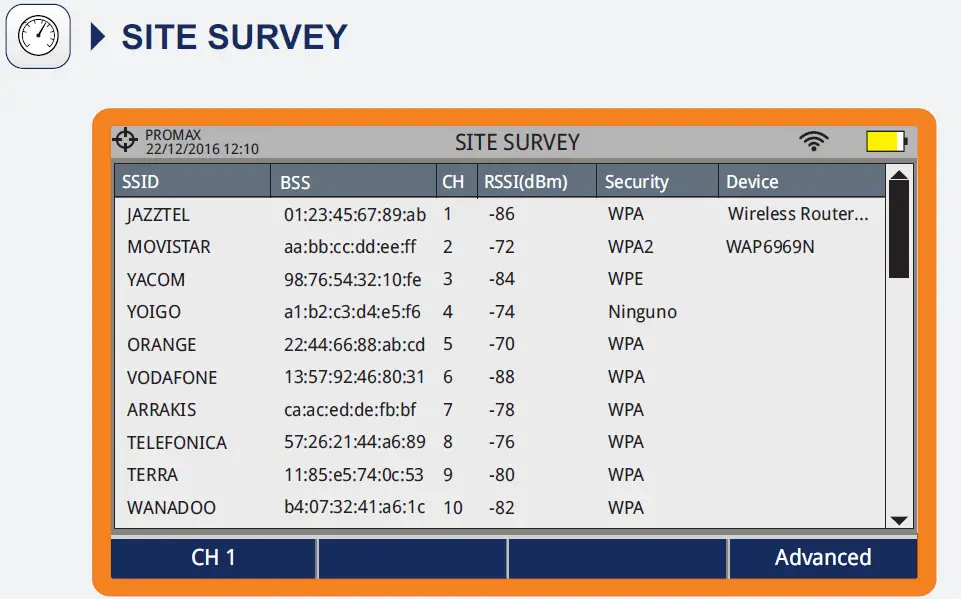

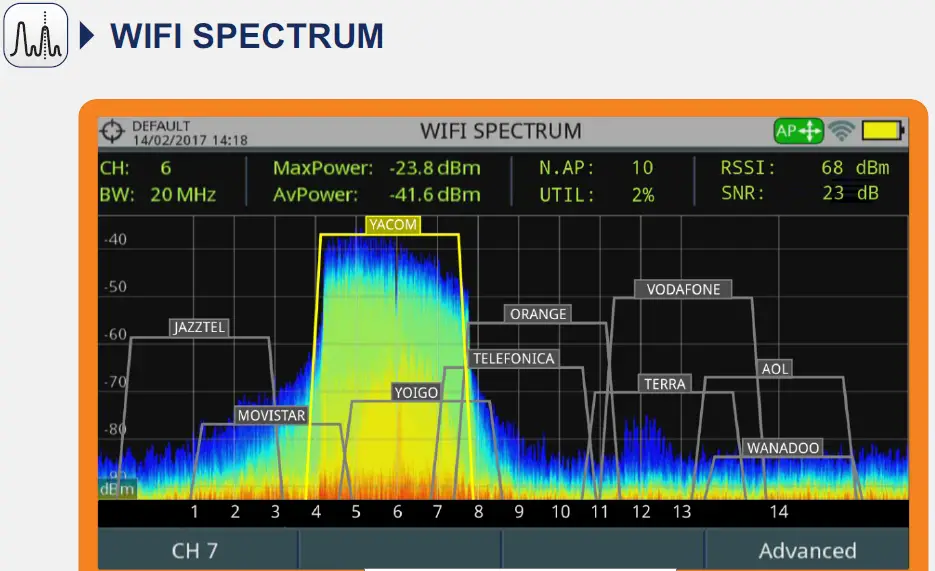

WIFI SECREEN

WIFI MENUS

OFF STREAMING SETTINGS

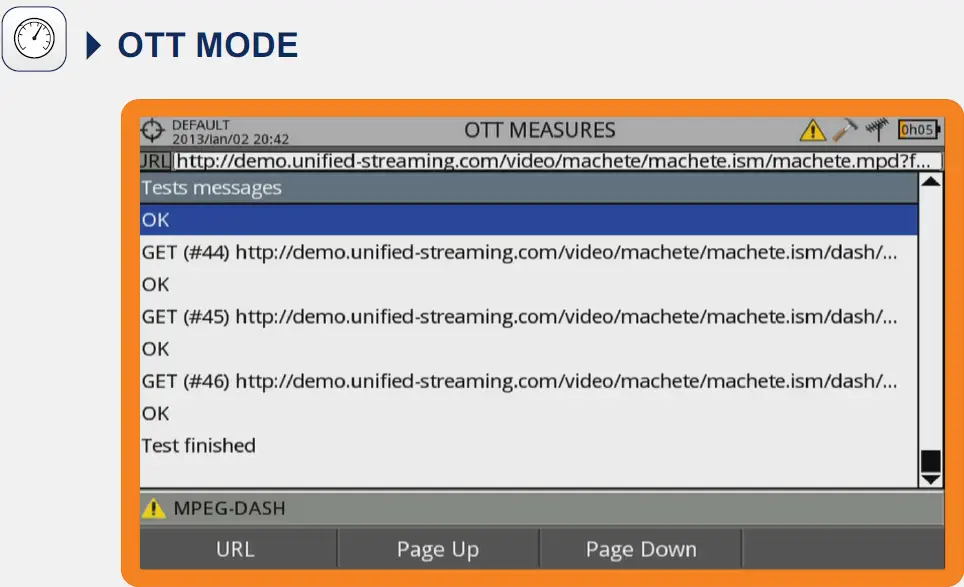

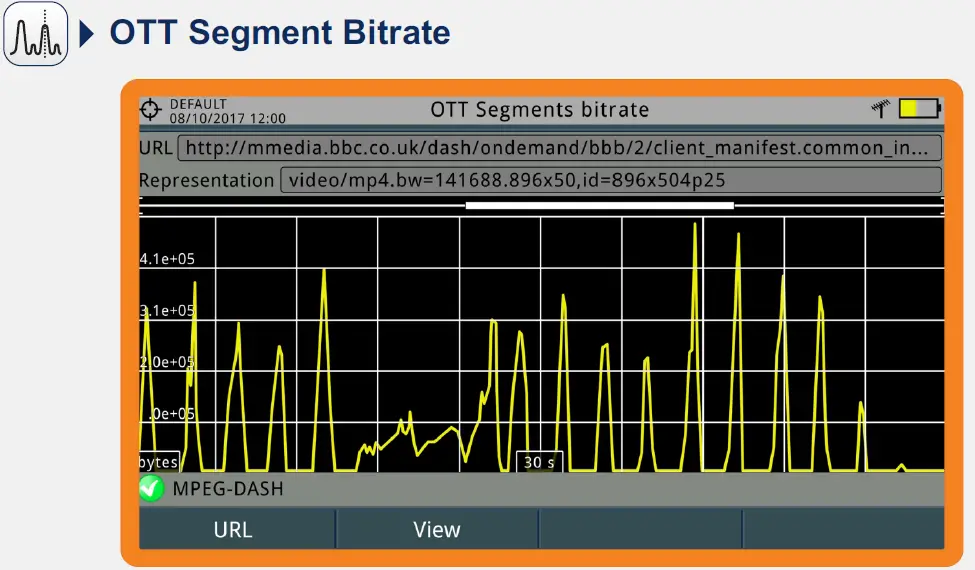

OFF STREAMING SECREENS

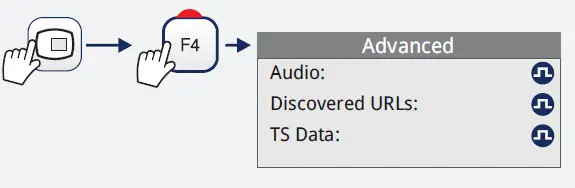

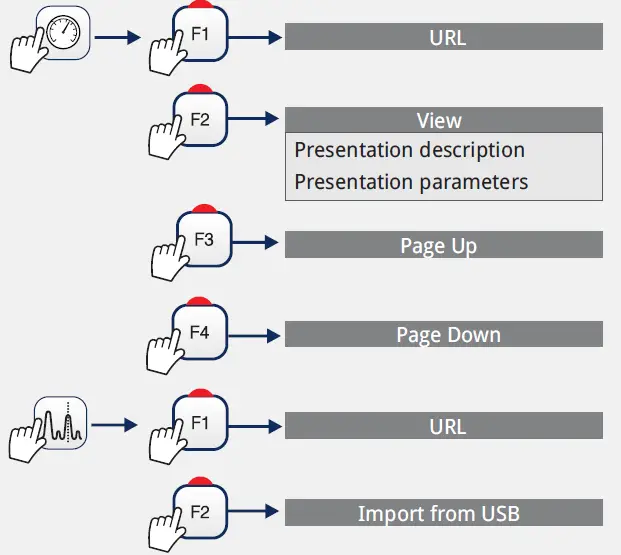

OFF STREAMING MENU

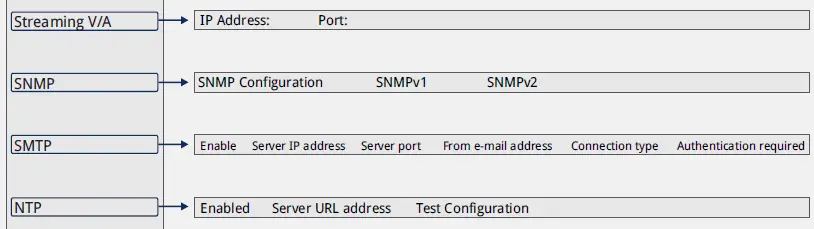

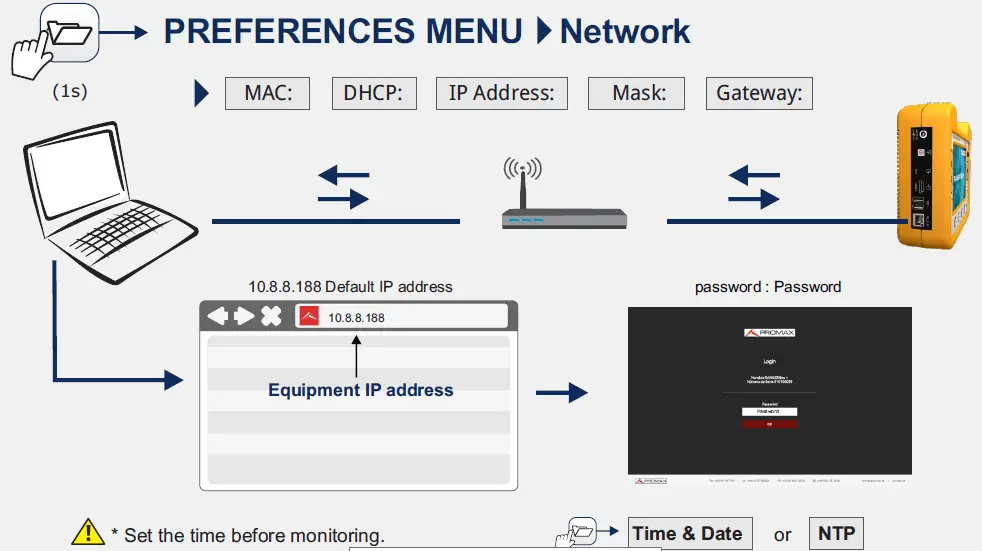

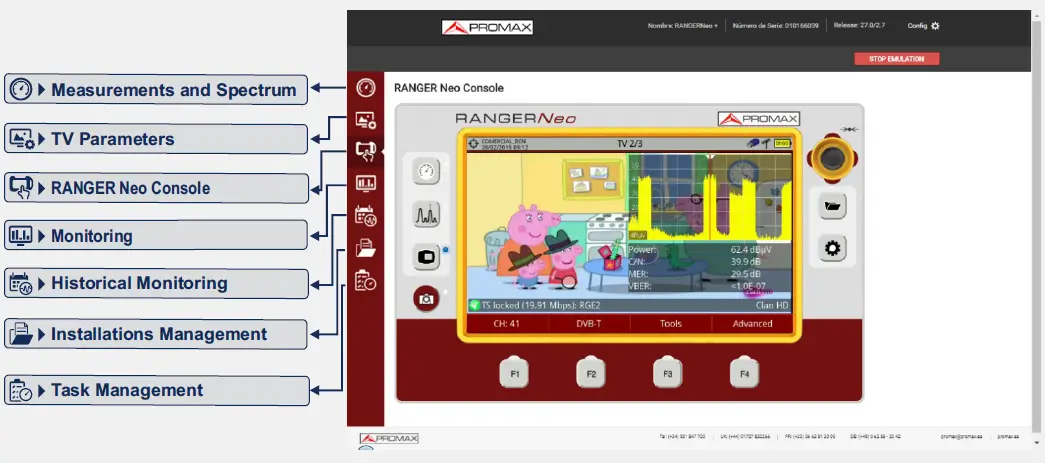

WEB CONTROL NETWORK SETTING

WEB CONTROL TOOLS

SETTINGS MENU

PREFRENCES MENU

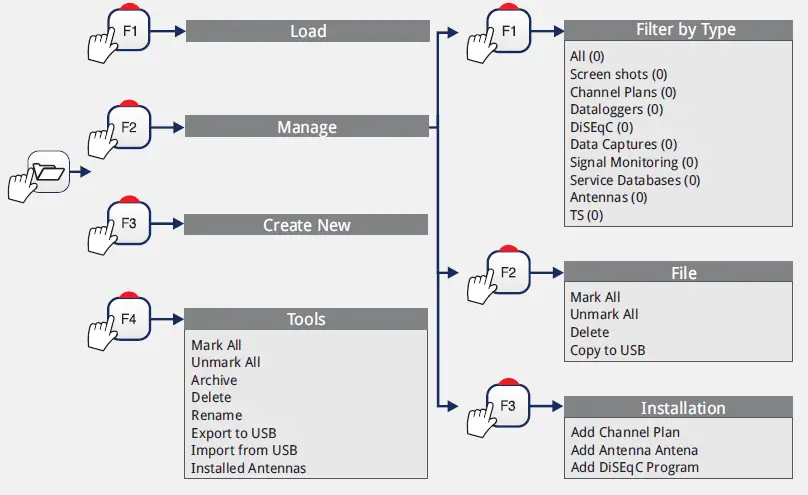

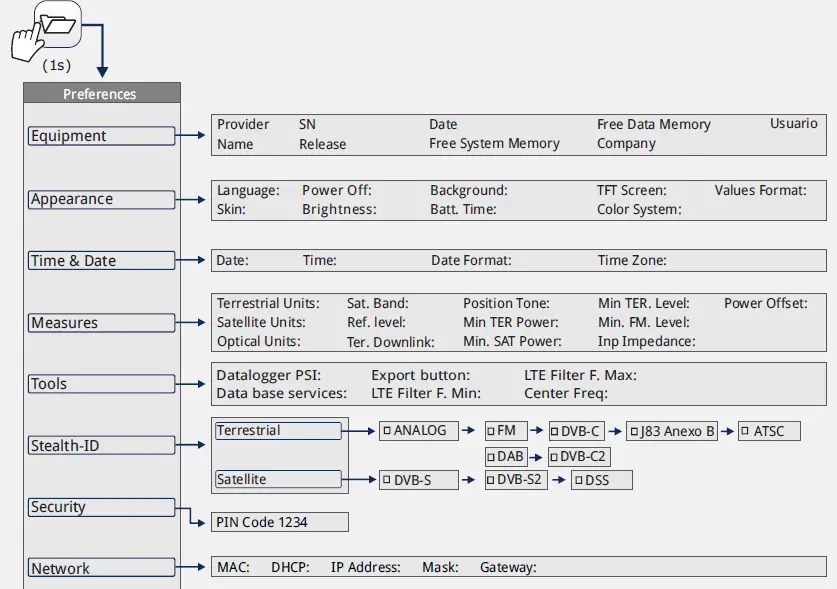

INSTALATION MANAGEMENT

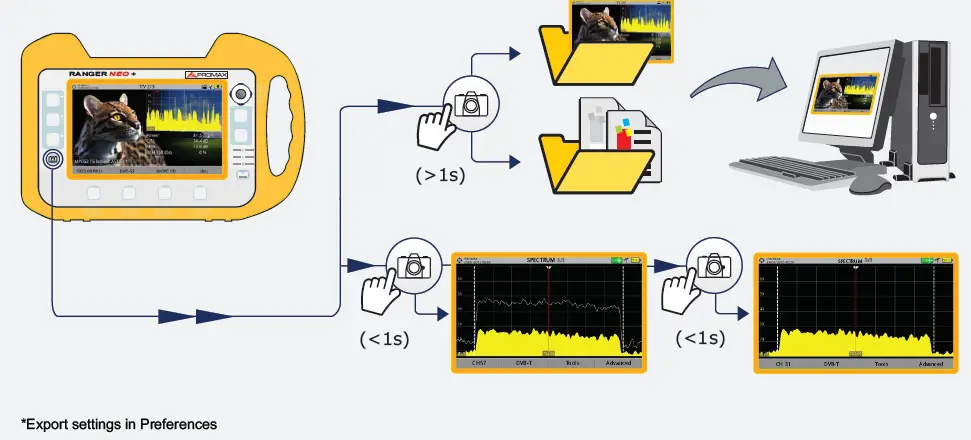

EXPORT* IMAGE / DATA / SPECTRUM

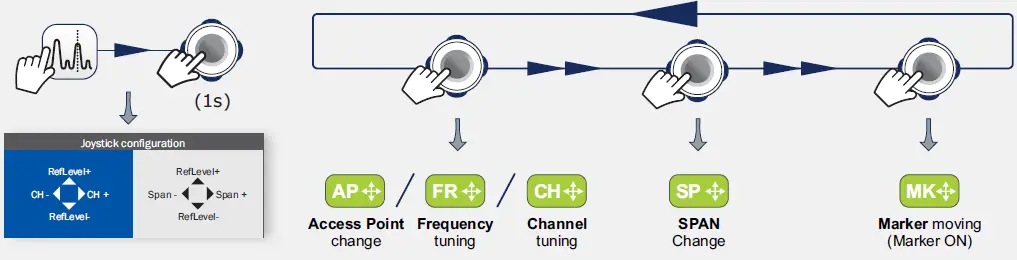

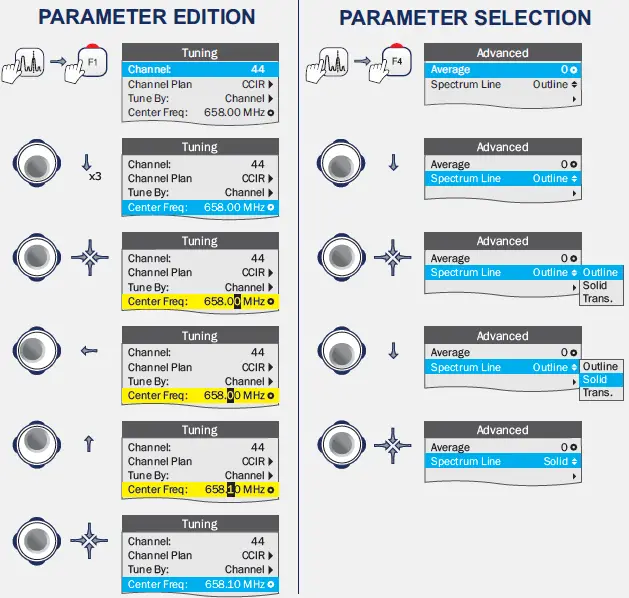

JOYSTICK

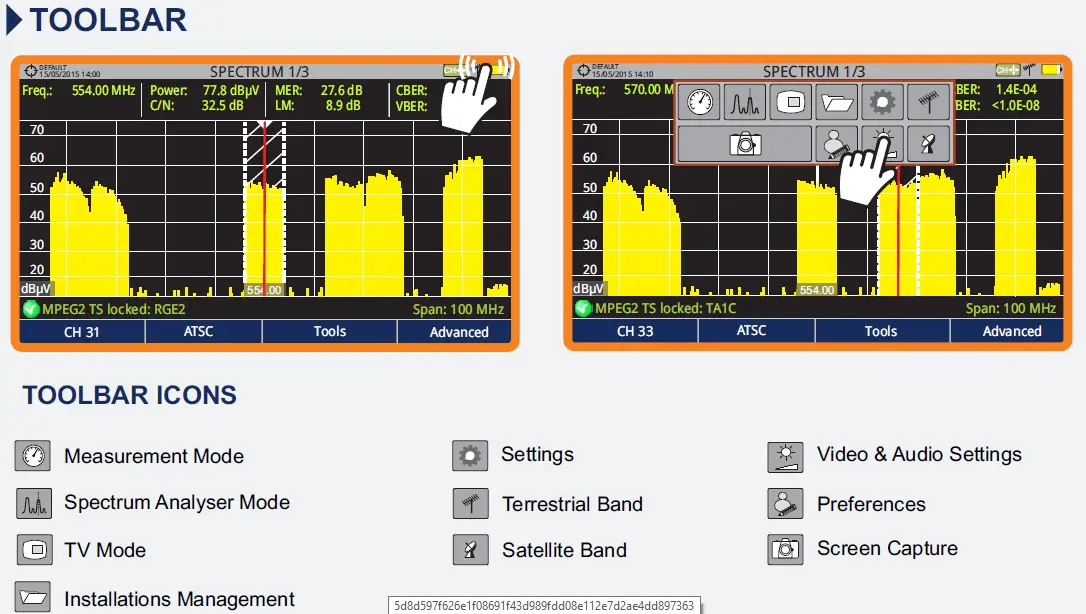

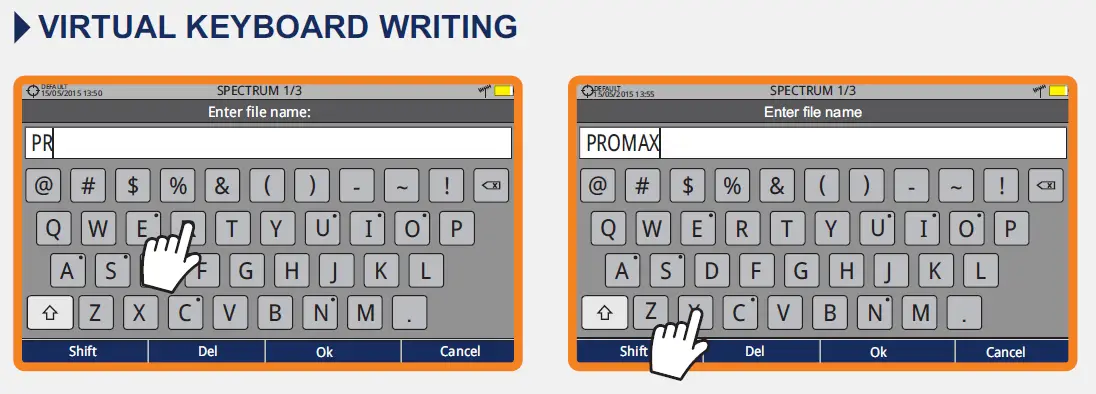

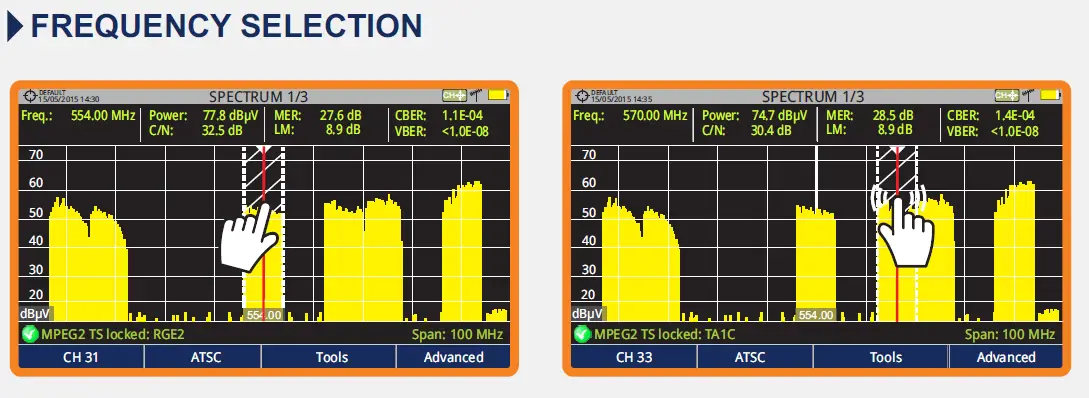

TOUCH SCREEN

RESET

If the device crashes, press the ON/OFF button for 10 seconds. If the device does not respond then press the F4 key for 6 seconds and then release to reset (see user’s manual for more information).

Find the user’s manual on the download area at: www.promaxelectronics.com
