RUBI TS Series Professional Tile Cutters

Product Information

Model	Dimensions (mm)	Dimensions (inch)	Weight (kg)	Weight (lb)
TS-43	43 cm	16 15/16×11 13/16×11 13/16	550 kg	1212 lb
TS-57	57 cm	22 7/16×15 3/4×15 3/4	550 kg	1212 lb
TS-66	66 cm	25 31/32×18 1/8×18 1/8	550 kg	1212 lb
TS-75	75 cm	29 17/32×20 7/8×20 7/8	550 kg	1212 lb
TS-43-PLUS	43 cm	16 15/16×11 13/16×11 13/16	800 kg	1763 lb
TS-57-PLUS	57 cm	22 7/16×15 3/4×15 3/4	800 kg	1763 lb
TS-66-PLUS	66 cm	25 31/32×18 1/8×18 1/8	800 kg	1763 lb
TS-75-PLUS	75 cm	29 17/32×20 7/8×20 7/8	800 kg	1763 lb
TS-E	60 cm	24x17x17	400 kg	882 lb

Product Usage Instructions

To use the product, follow these steps:

Choose the appropriate model based on your requirements.
Ensure the dimensions and weight of the product meet your needs.
Refer to the user manual for any technical modifications or restrictions.
Do not reproduce or use any part of the manual without prior authorization from GERMANS BOADA, S.A.
Please note that unauthorized reproduction or use of the product manual is strictly prohibited and may result in legal consequences.

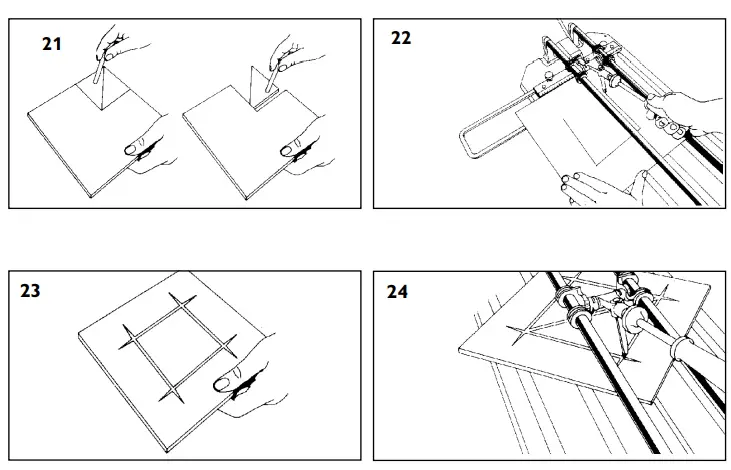

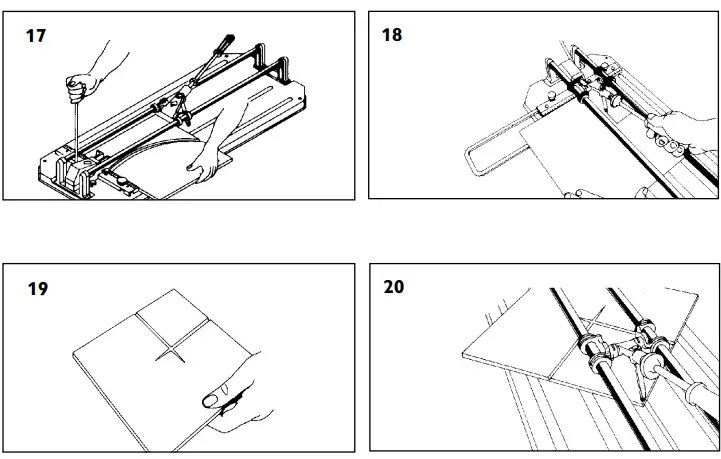

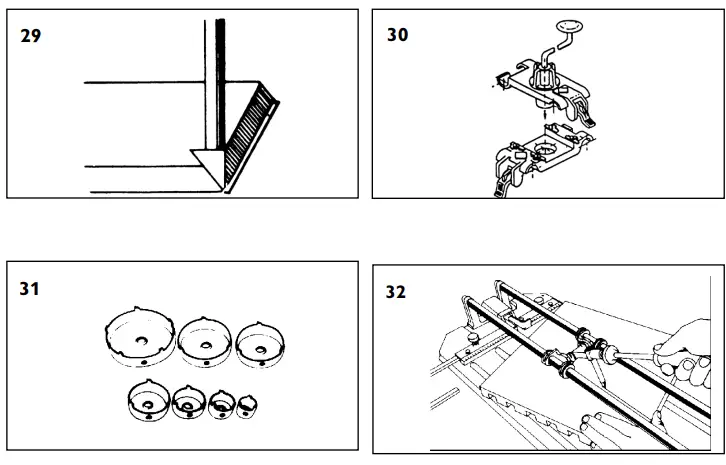

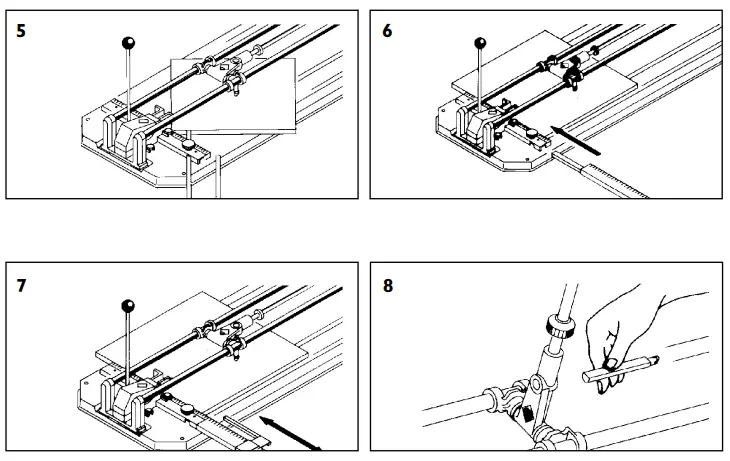

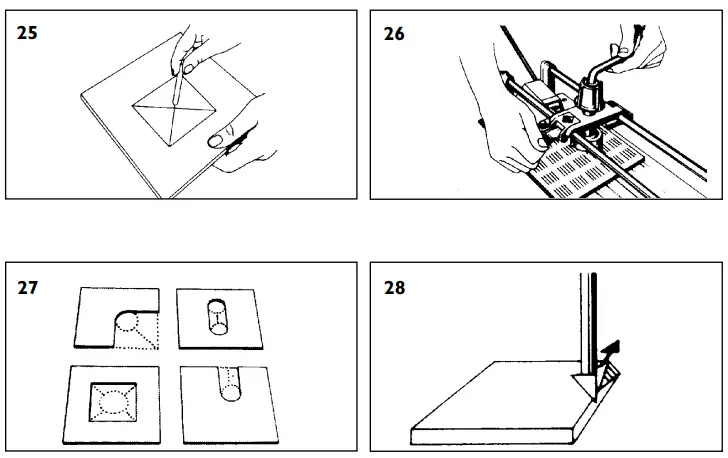

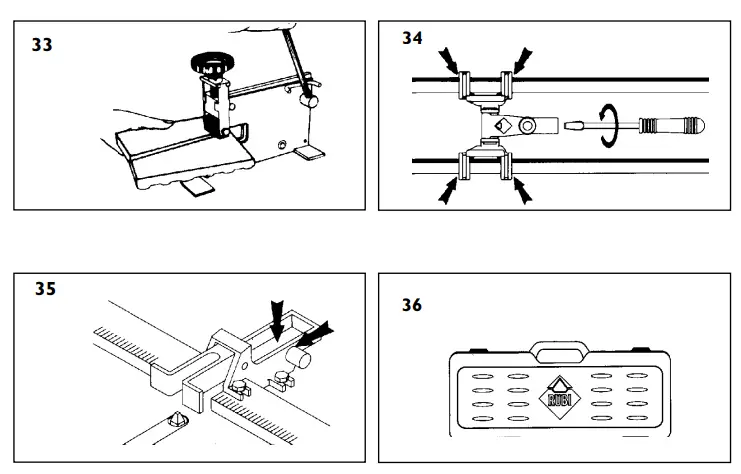

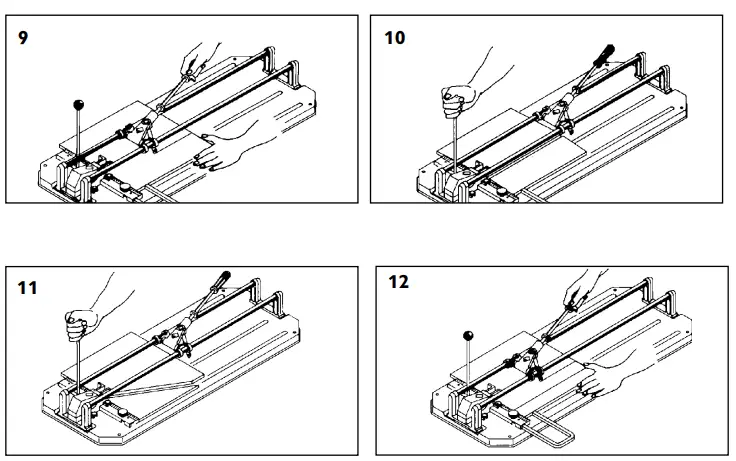

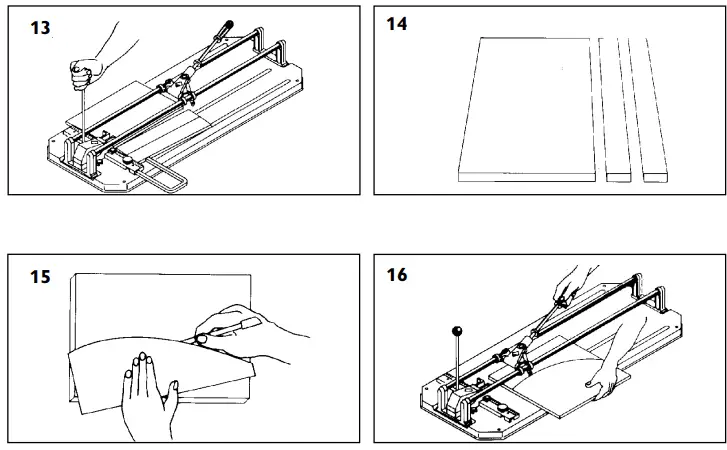

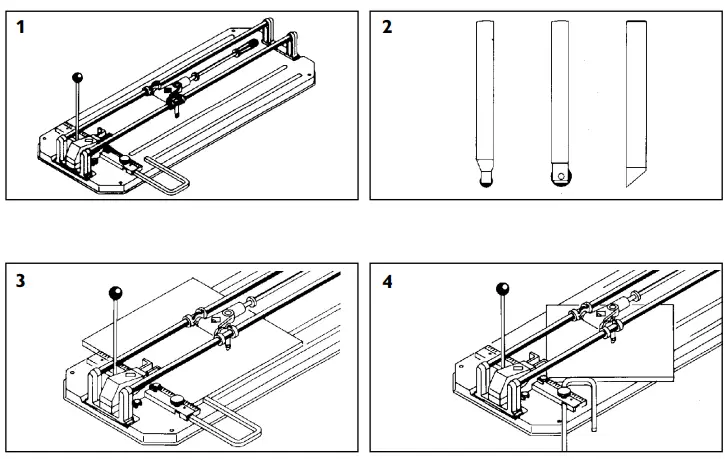

ASSEMBLING INSTRUCTION

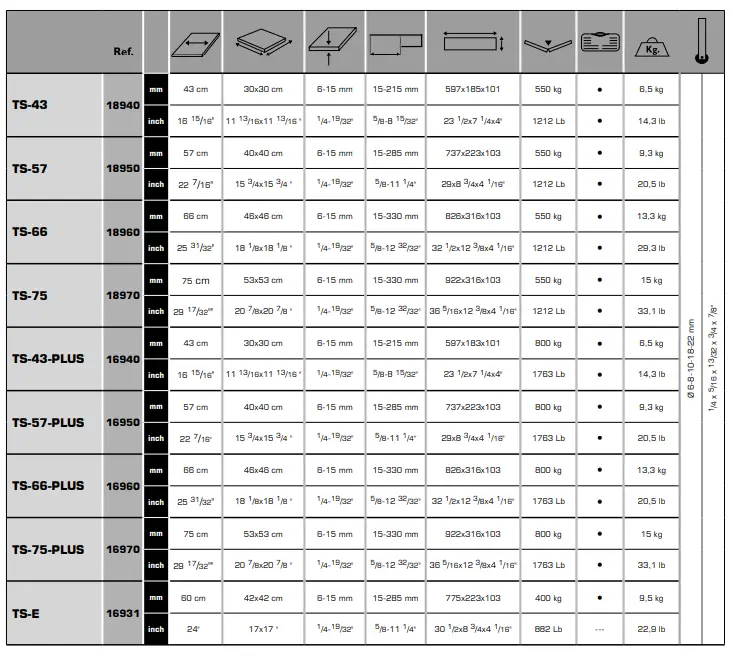

MEASURMENTS

COPY RIGHTS

GERMANS BOADA, S.A. reserves the right to make any technical modification without prior.
Without the previous authorisation of GERMANS BOADA S.A., the partial or total reproduction of this manual, in any format or by any means or process, is strictly prohibited, whether such reproduction be mechanical, photographic or electronic.

WARRANTY

The guarantee covers all manufacturing or assembly defects in accordance with current legislation. It does not cover damage or breakdown caused by improper use, overloading, incorrect following of the instructions for use, or normal wear and tear. Handling or tampering by any person other than our Official Service personnel will invalidate this guarantee. For lodging any complaint, the presentation of this document together wict the purchase receipt is absolutely essential.

Please register this product at www.rubi.com/warranty in order to obtain a 3 year free warranty extension (total warranty 2+3 years), only by joining the Club RUBI.
