MEEC TOOLS 013457 600mm Tile Cutter
SAFETY INSTRUCTIONS
- Wear safety glasses and safety gloves when using and replacing the scoring wheel.
- Split tiles have sharp edges – risk of cut injuries.
- Keep children and pets at a safe distance from the product and its scoring wheel.
- The product is intended for splitting glazed tiles and must not be used for any other purpose.
SYMBOLS
TECHNICAL DATA
- Max edge length, straight cuts 600 mm
- Max edge length, diagonal cuts 425 mm
- Max cut thickness 12 mm
- Scoring wheel size 15 x 6 x1,5 mm
DESCRIPTION

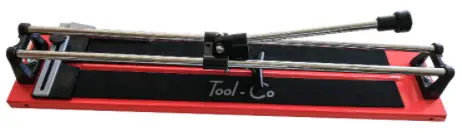

- Robust high precision tile cutter. Replaceable scoring wheel made of tungsten carbide included.
- An adjustable fence made of aluminium and graduated in cm.
- The adjustable guide is made of aluminium for diagonal cutting.
- Breaking head with a magnet that holds it up to prevent it from interfering with the movement of the scoring wheel.
- Fold-out aluminium legs for large tiles.
- Rubber coated base plate that protects tiles from damage.

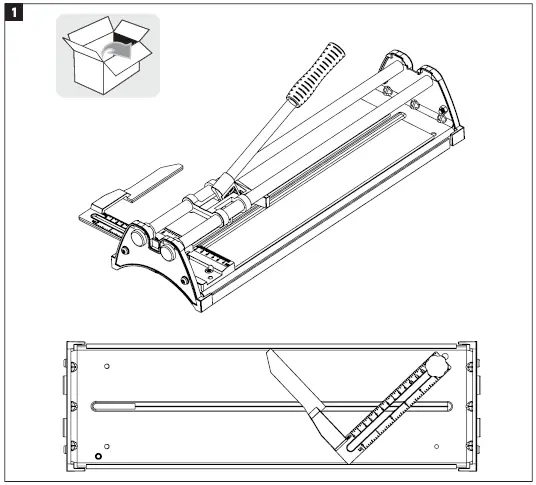

ASSEMBLY
HOW TO USE
STRAIGHT CUTS
- Place the product on a horizontal and stable surface.

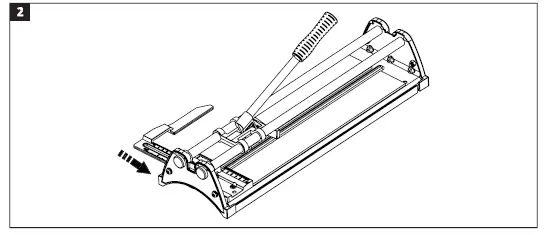

- Set a right angle (90° ). FIG. 2
- Fold forward the pressure plate.
- Place the tile on the rubber-coated base plate.

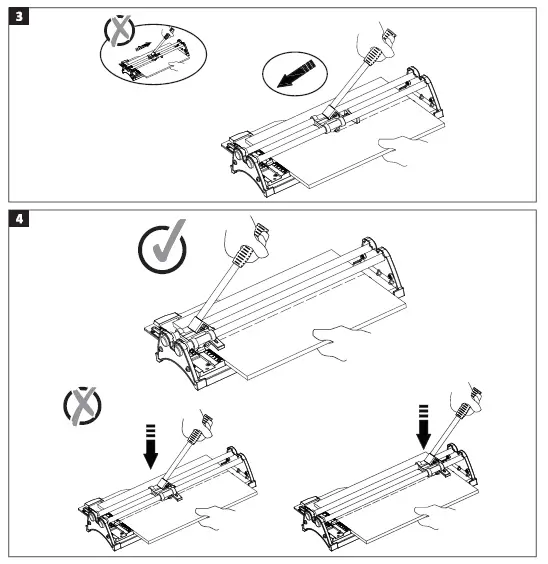

- Score a straight snap line. FIG. 3
- Fold-down the pressure plate against the tile near the front edge.
- Snap the tile by pressing it down. FIG. 4
DIAGONAL CUTS
- Place the product on a horizontal and stable surface.
- Set an angle of 45°.
- Fold forward the pressure plate.

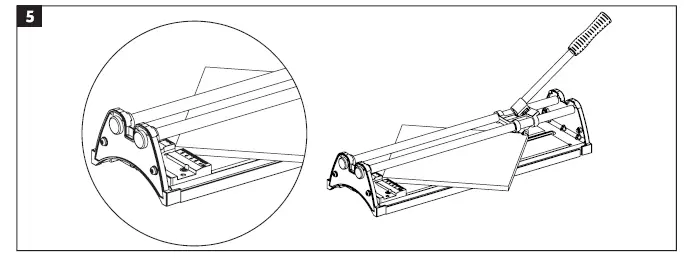

- Place the tile diagonally on the rubber coated base plate. FIG. S

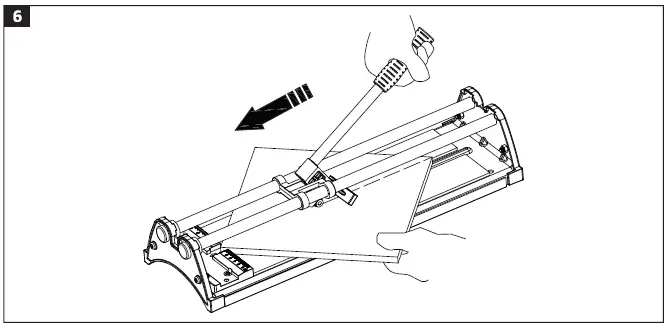

- Score a straight snap line. FIG. 6

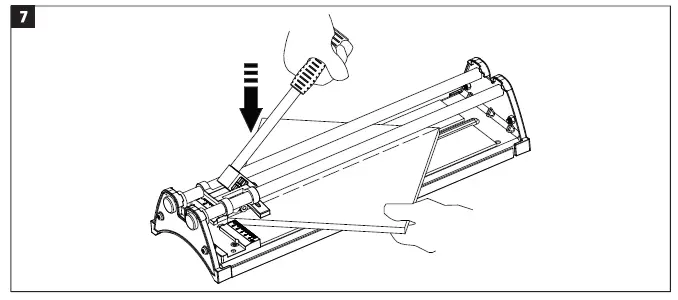

- Fold-down the pressure plate against the tile near the front edge and snap the tile by pressing it down. FIG. 7
REPLACING THE SCORING WHEEL

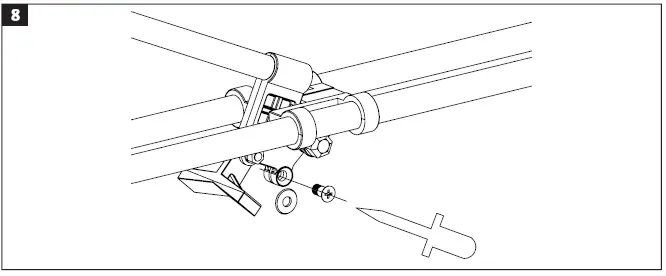

Unscrew the scoring wheel axle with a screwdriver, fit a new wheel, and replace the axle. FIG. 8
MAINTENANCE STORAGE
Store the tile cutter in a dry and safe place when not in use.
