Anvil 10214anv Professional Tile Cutter Owner's Manual

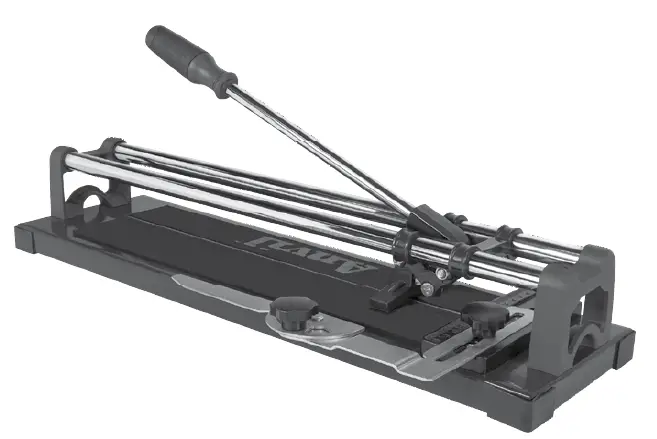

Anvil 10214ANV Professional Tile Cutter

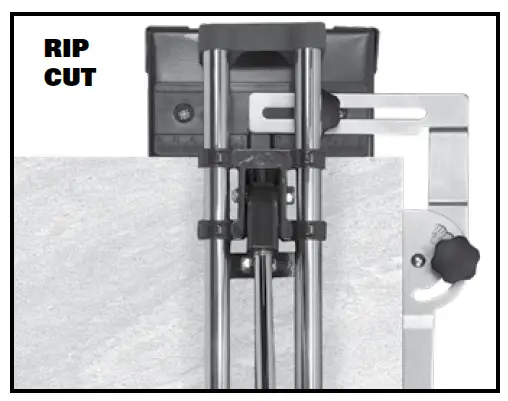

RIP CUT

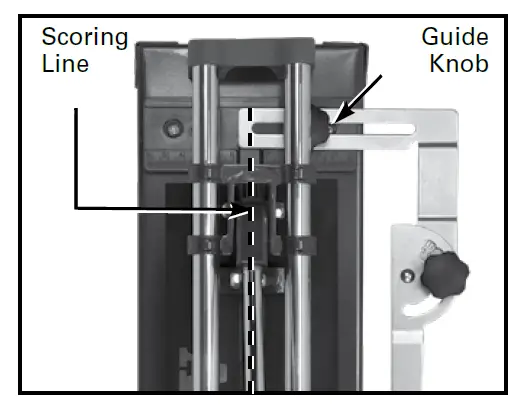

Place the tile at the front edge against the front stop. (See “RIP CUT” on the right). Position the tile so the line of cut is directly over the scoring line, which is the line between the left and right pad (See “Scoring Line” on the right). Adjust the cutting guide by loosening the guide knob (See “Guide Knob” on the right) and sliding it left or right to the desired cutting position, and lock the cutting guide in place.

MAKING THE CUT

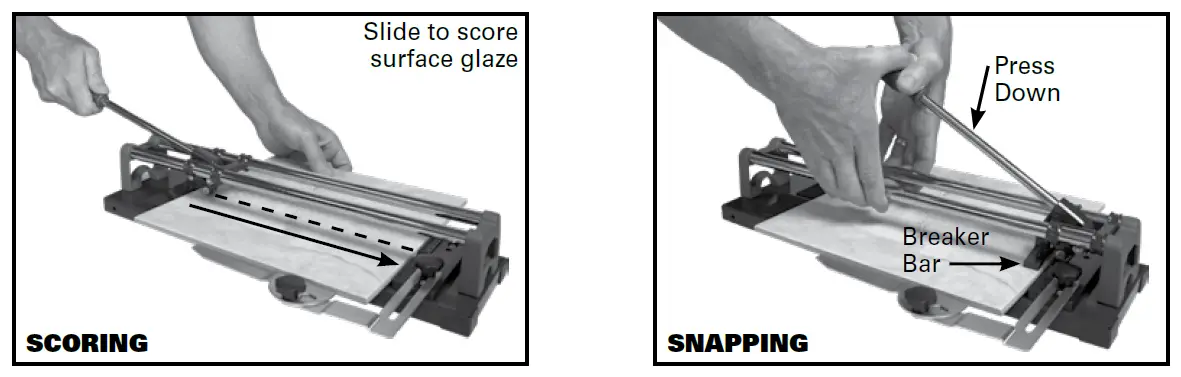

Place the cutting wheel on the rear edge of the tile. Then slide the wheel forward by pushing the handle down with medium pressure, scoring the tile surface glaze as the handle is pushed forward (See “SCORING” photo below). It is important to make one continuous motion, scoring the surface only once per tile. After scoring, and without moving the tile, position the handle so that the breaker bar is slightly in from the front edge of the tile and front stop. Apply increasing pressure on the handle until the tile snaps along the score line (See “SNAPPING” photo below).

GENERAL MAINTENANCE

• Oil should not be used on the 10214ANV Anvil Tile Cutter. Use of oil will cause eventual gumming and sticking of the movable parts as the oil combines with dirt and ceramic tile dust.
• Wear is normal in the chrome plated rails and can be evenly distributed by occasional rotation of each of the two rails.
• The only part routinely needing replacement is the carbide scoring wheel.

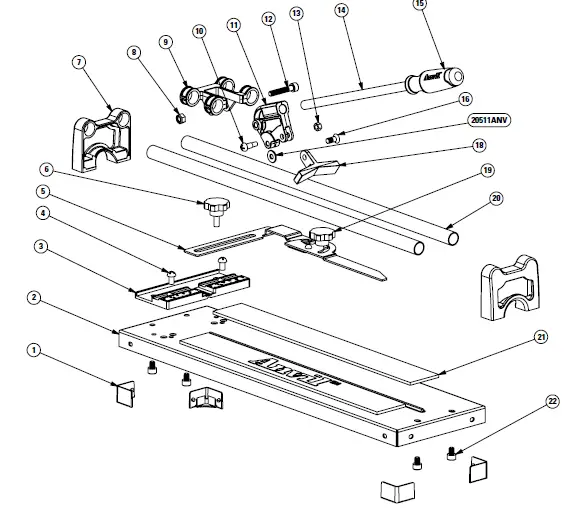

ANV PARTS LIST
