BRANDMOTION SUTV-8849 SummitView Jeep Wrangler Third Brake Light Add On

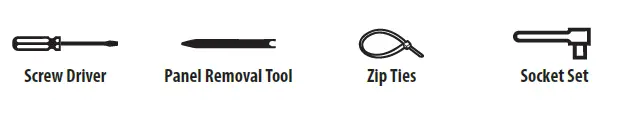

| Recommended Tools | DIFICULTY LEVEL |
 |  |
| Install Time | |
 | |
| Questions? Call the Brandmotion technical support line at (734) 619-1250 or CLICK HERE | |
Kit Contents:
1x LED Third Brake Light and OE Connector
Access the Radio
Install the 3rd Brake Light

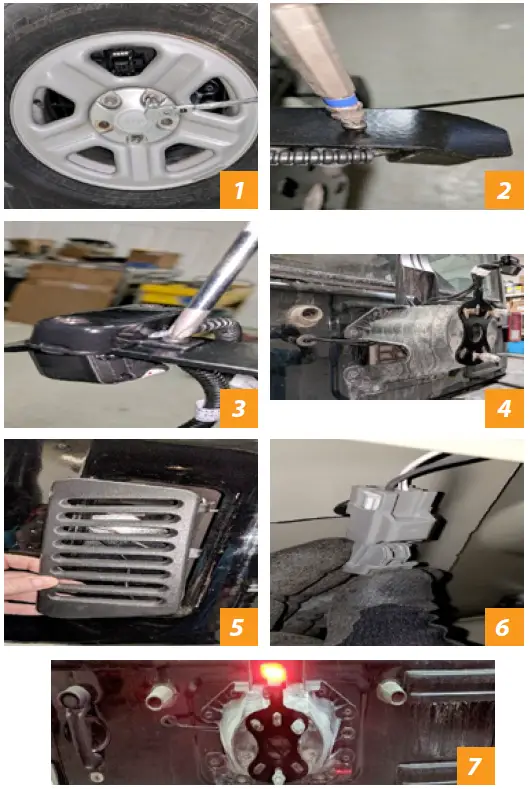

- Remove the spare tire
- Locate and remove one #1 Philips holding the camera onto the bracket
- Line the mounting hole from the new brake light bracket up with the mounting hole of the Camera and mounting bracket and reinstall the one #1 Philip screws.
- Route cable along the Camera harness and follow the same route as factory 3rd brake light harness to factory opening in rear door.
- Remove cover on the inside of rear door and unplug factory 3rd brake light harness and install new brake light harness.
- Unplug factory brake harness and plugin our replacement harness
- Test 3rd Brake Light
- Follow the disassembly steps in reverse order for reassembly.
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
Installation Instructions – SUTV-8894
P65Warnings.ca.gov
