The FIRST Name in Towing Products™
INSTALLATION INSTRUCTIONS
Scan for helpful installation tips
http://qr.curtmfg.com/video/51439
51438 & 51439 APPLICATIONS
| Make | Model |
| Dodge | Ram 1500 |
| Dodge | Ram 2500 |
| Dodge | Ram 3500 |

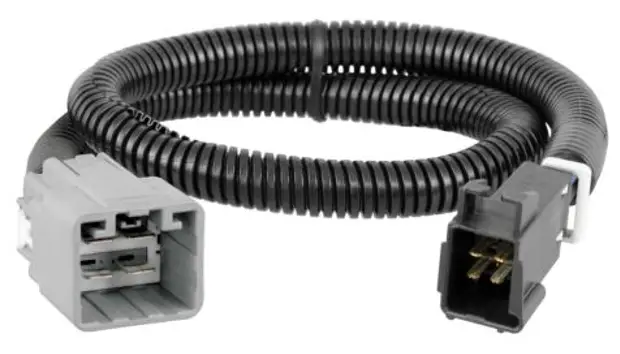

BRAKE CONTROL HARNESS
NOTICE
All steps must be followed to ensure the CURT brake control harness will function properly. Once installed, test for proper function by following the brake control unit instruction manual.

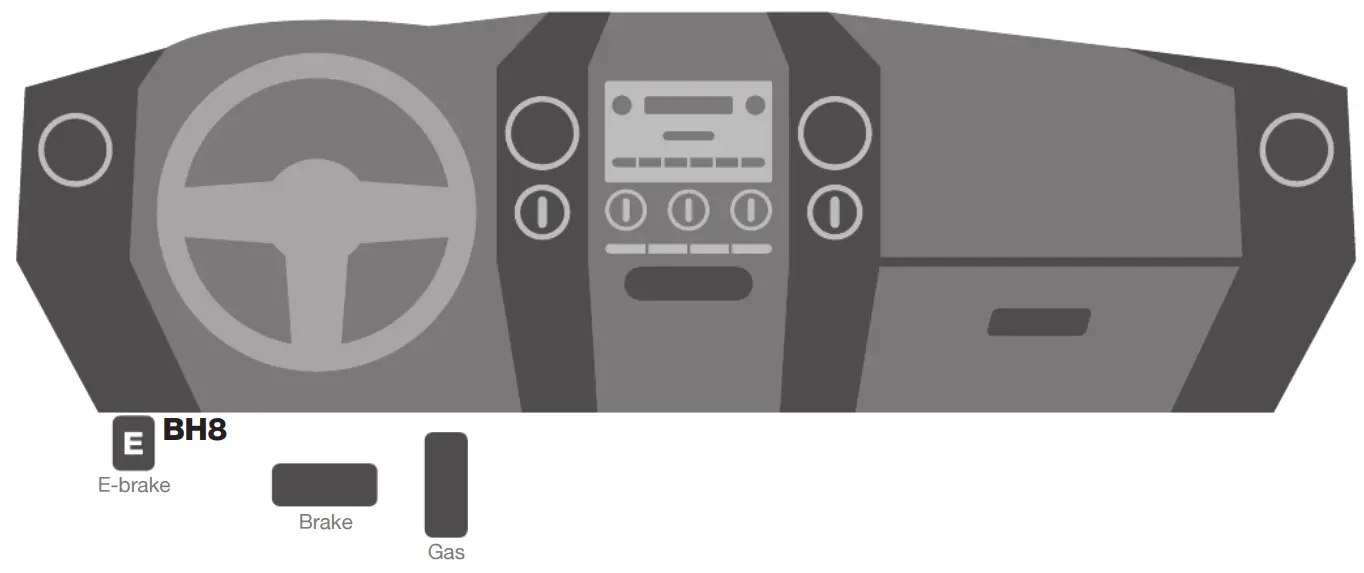

LOCATION GUIDE
Representative vehicle is shown below
BH8 – Under the dash, to the right of the emergency brake pedal
INSTALLATION /SAFETY INSTRUCTIONS
Step 1

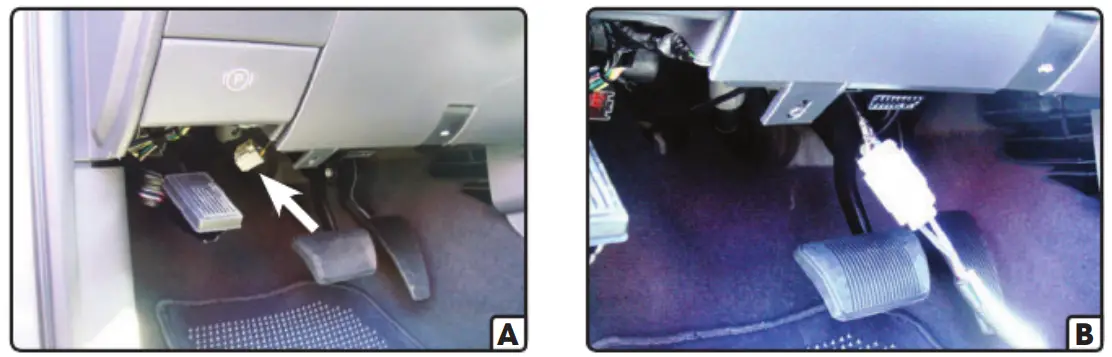

Locate the 4-pin, vehicle brake control harness connector under the dash, to the right of the emergency brake pedal. It will be taped to another harness. The connector will be similar to that on the CURT brake control harness (A).
Step 2
Insert the connector on the CURT brake control harness into the vehicle connector. Make sure the connector is fully inserted with locking tabs in place (B).
Step 3
Insert the brake control harness’s black connector into the brake control’s quick plug connector. Secure the brake control harness with the provided cable ties, avoiding any pinch points.
Step 4
Complete the installation using the brake control instructions. Mount the unit as directed and perform test procedures as instructed in the brake control user manual.
CURTMFG.COM • NEED ASSISTANCE? • 1.877.287.8634 • RA
