Roller Shade
3” and 4” Fascia
Installation Instructions
Roller Shade 3 Inches and 4 Inches Fascia
WARNING
STRANGULATION HAZARD — Young children can be strangled by cords. Immediately remove this product if a cord longer than 22 cm or a loop exceeding 44 cm around becomes accessible.
NOTE: Fabric wrapped valances must be handled with care
PREPARATION

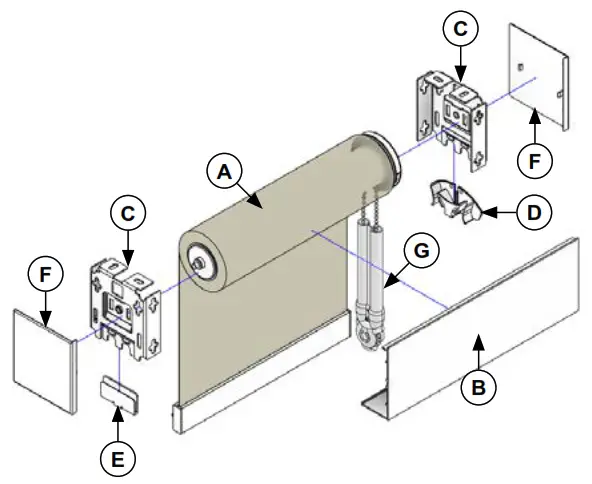

Component List
A. Shade
B. Fascia
C. Mounting Bracket
D. Chain Diverter
E. Chain Diverter Placeholder
F. Bracket Cover (Optional)
G. Safety Shield
MOUNT THE BRACKETS
Ensure a 1/8” gap is left on each side for end caps.

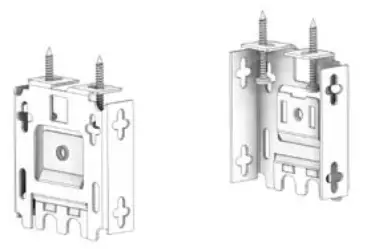

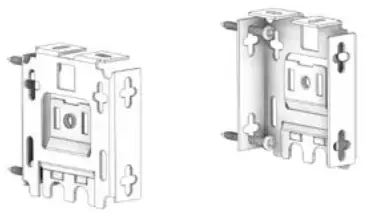

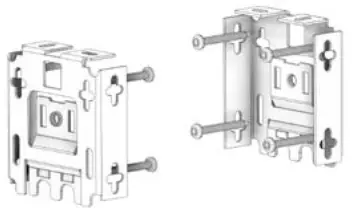

| CEILING MOUNT | WALL MOUNT | LATERAL MOUNT |
 |  |  |
INSTALL THE SHADE
NOTE: For shades with Zero Gravity, please refer to Zero Gravity instructions on page 3.

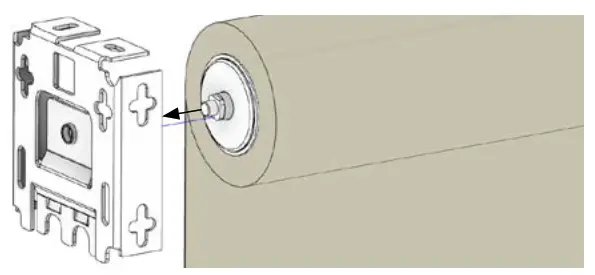

STEP 3A: INSTALL PIN END
Install the Pin End into the hole in the bracket.
STEP 3C: INSTALL CLUTCH END

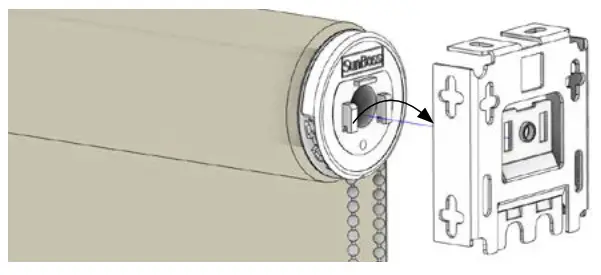

While keeping pressure against the Pin End hook the clutch onto the other bracket.
INSTALL THE CHAIN DIVERTER

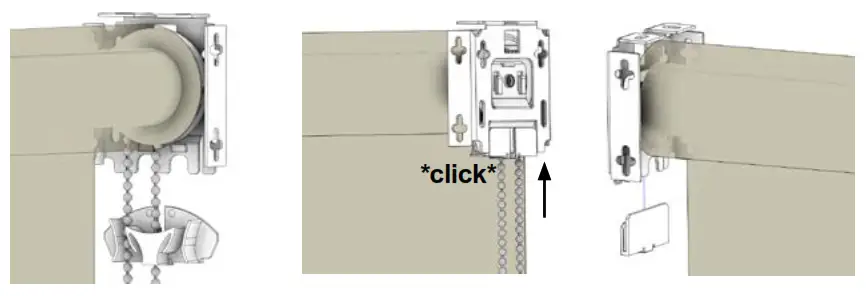

Insert the chain into the channels as shown below. Then insert click the chain diverter and placeholder into the mounting brackets.
INSTALL THE FASCIA

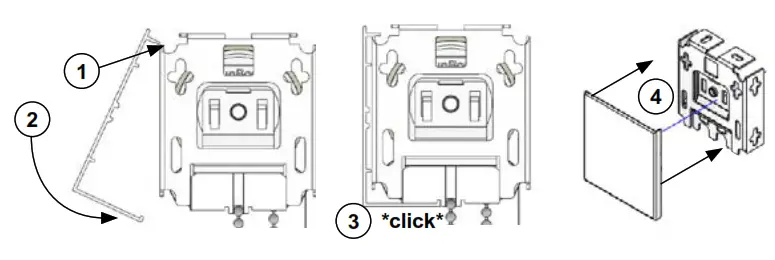

First, snap the bracket covers on, then hook the fascia on the top of the mounting brackets, then swing the bottom of the fascia down until it clicks.
INSTALL THE SAFETY SHIELD
NOTE: For shades with chain operation only.
Zero Gravity Instructions
If the Pin End of the shade appears as shown here, proceed with Steps 1,2 & 3 before returning to Step 4 of the Open Roll or Fascia Installation Instructions
If the Pin End of the shade appears as shown here, proceed with Steps 4,5 & 6 before returning to Step 4 of the Open Roll or Fascia Installation Instructions

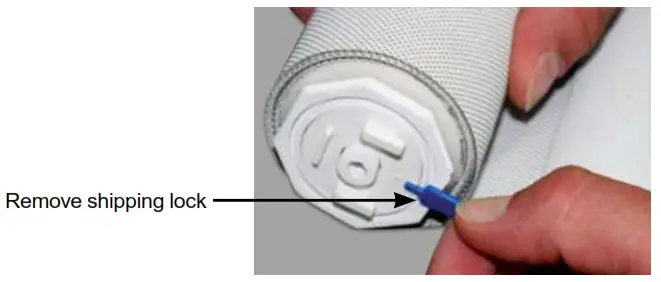

REMOVE THE SHIPPING LOCK

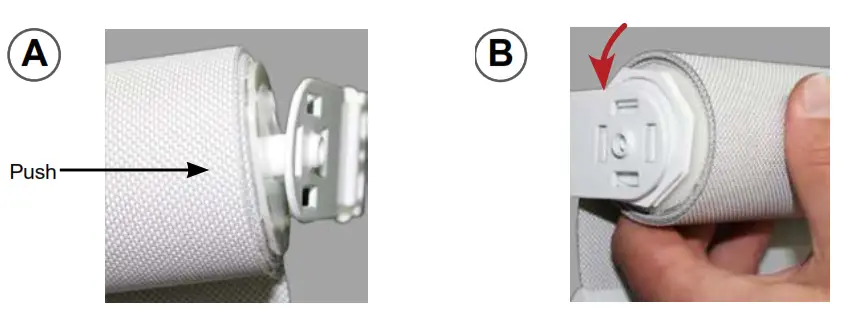

INSTALL THE SHADE
(A) Install the Pin End into the hole in the bracket.
(B) While keeping pressure against the Pin End hook the clutch onto the other bracket.

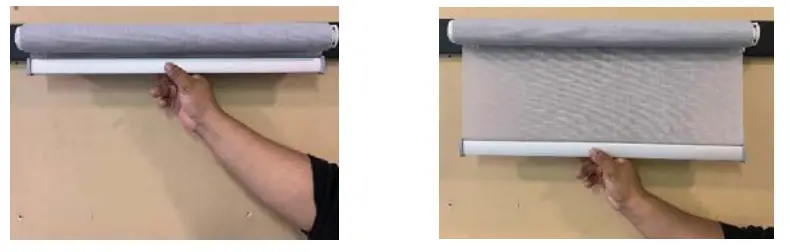

TEST THE SYSTEM
Draw and raise the shade from the middle of the bottom bar.

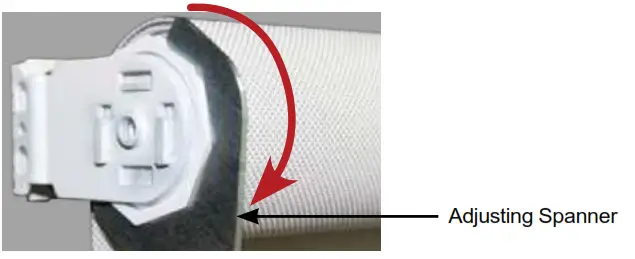

To increase tension use the spanner to turn the head in the opposite direction that the fabric falls off of the roll. To decrease tension turn toward the direction that the fabric falls off of the roll.
WARNING
- Do not pull pin lock out until shade is installed or tension will be released.
- If tension has been released, see troubleshooting.

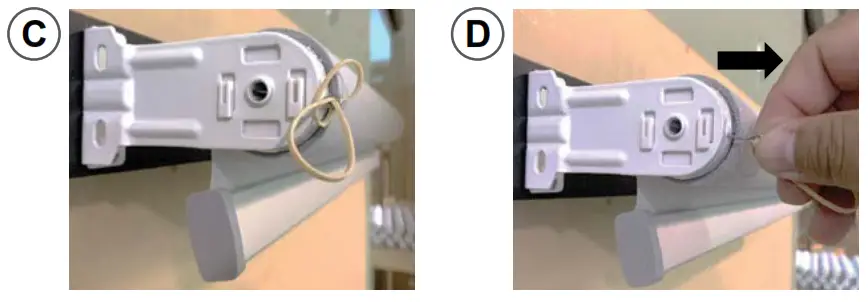

REMOVE RUBBER BAND

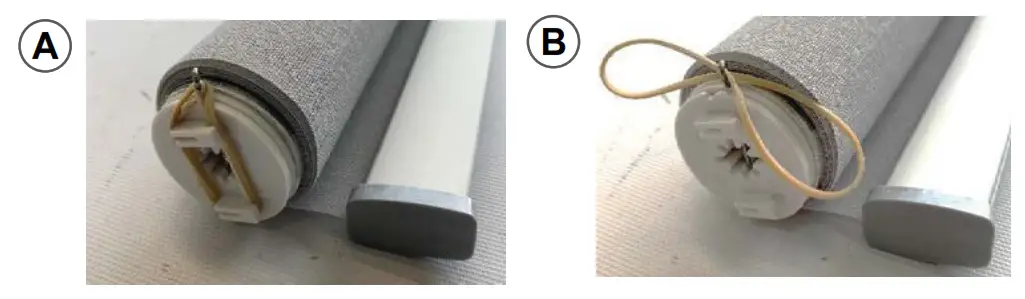

Remove the rubber band holding the Pin Lock in place.
INSTALL SHADE AND REMOVE PIN LOCK
Install the shade while keeping Pin Lock toward you and held in place, then remove the pin lock.
ESTING THE SYSTEM
Pull and lift the shade from the middle of the bottom bar.

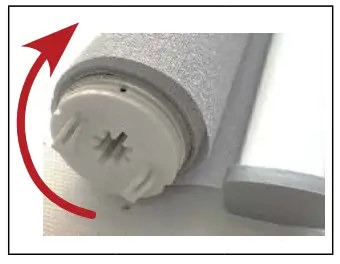

TROUBLE SHOOTING IF TENSION IS RELEASED
To increase tension, use the spanner to turn the head in the opposite direction that the fabricfalls off of the roll (approximately 1 – 2 full rotations). Insert the pin Lock into the hole of the clutch while holding the shade to keep the tension. PROCEED WITH STEP 5 WHEN FINISHED.
