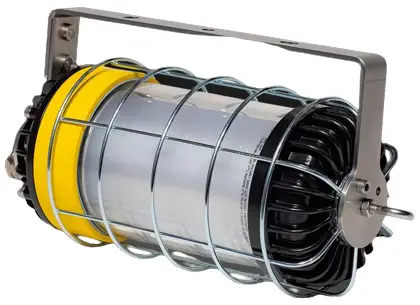

NightSearcher TITAN ATEX 360 Degree Portable Light User Manual
Features
- ATEX certificated Gas Zone 1 and Dust Zone 21
- Ideal for indoors or outdoors applications
- High light intensity with no glare effect
- 180° or 360° illumination
- IK08 High strength Aluminium housing
- Tempered borosilicate glass tube

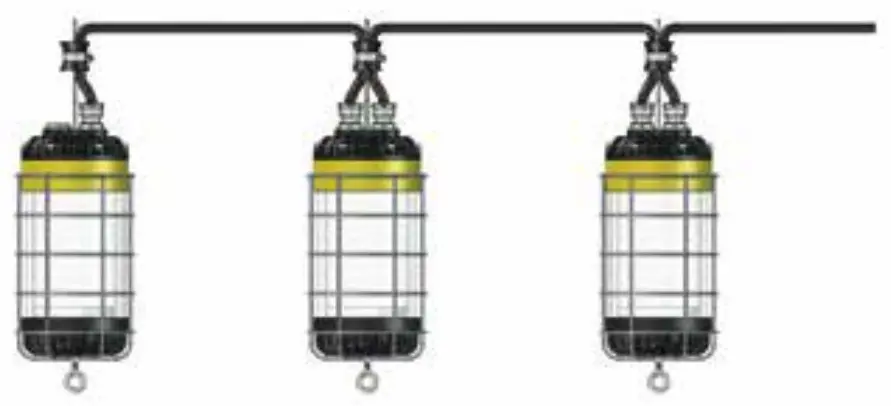

- Individual or daisy chain connection
- IK08 + IP66 Rating
- Explosion proof
- Operating temperature -40°C to +50°C

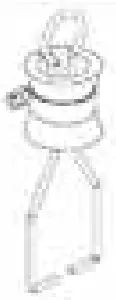

Accessories
| Protective Grid |

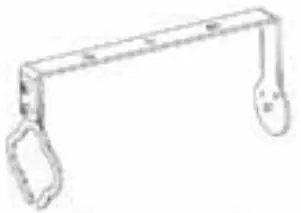

| Mounting Bracket |
| Anti static Protective peel off Foil |
| Vertical Cable Hanging Set |
| Horizontal Cable Hanging Set |
| Hook Eye Set |
| M20x1.5 07-12mm |
| M20x1.5 010-15mm |
| Ex Stopping Plug M20x1.5 |
Specification
| 2300 | 3000 | 3000 | 3500 |
| 360° | 360° | 360° | 180° or 360° |
| 20-30V AC 20-30V DC | 28-48V AC 38-60V DC | 90-130V AC 90-130V AC | 210-250V AC |
NOMINAL VOLTAGE | 24V AC | 42V AC | 110V AC | 230V AC |
WATT | 20W | 25W | 25W | 30W |
| IP66 + IP67 | |||
| 380x125x300mm | |||
| 2.3kg | |||
CODE | SA-TITAN-24V | SA-TITAN-42V | SA-TITAN-110V | SA-TITAN-230V |
CERTIFICATION
ATEX Zone 1, 2 & 21, 22
II 2G Ex db op is IIC T6 Gb; II 2D Ex tb op is IIIC T85°C Db
EXA 16 ATEX 0069X
IECEx EXA 18.0006X
Scan for multi language information
