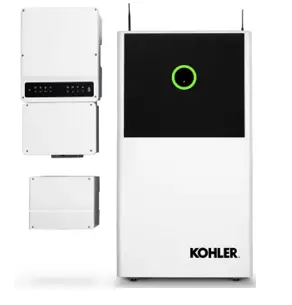

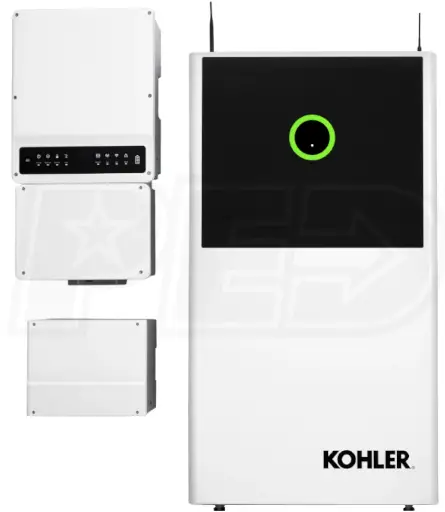

KOHLER KOH10DC-7600 Power Reserve Energy Storage System

Residential Energy Storage System

The KohlerR Power Reserve energy storage system can maintain power to critical items such as refrigerators, computers, TVs, lights, and garage doors when the grid goes down or for autonomous off- grid applications. The system can also provide automated cost saving through energy rate arbitrage and system power flow control.

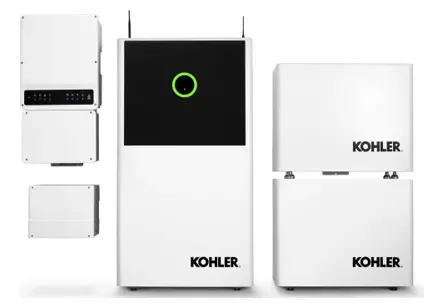

Models

KOH10DC-7600 • KOH10AC-7600
KOH15DC-7600 • KOH15AC-7600
KOH20DC-7600 • KOH20AC-7600

Standard Features

LiFePO₄ battery chemistry
Up to 4 kW solar DC input, 80- 500 VDC. 4 MPPTs
Up to 6 kW of continuous power output off- grid
Outdoor-rated NEMA 3R rated enclosures
Always connected, cellular (included) and WiFi
10-Year limited warranty, industry best throughput, 70% SOC

Operating Modes

Backup
Time- of- Use
Self- Supply

Communication

WiFi, LTE- M

Performance Specifications, AC Models

Model	KOH10AC	KOH15AC	KOH20AC
Battery Input Data
Usable Capacity(kWh)	10	15	20
Battery Type	LiFePO₄ (LFP)
Battery Voltage Range (V)	102.4 (89.6- 115.2)	153.6 (134.4- 172.8)	204.8 (179.2- 230.4)
Max. Charging Current (A)	50
Max. Discharging Current (A)	50
AC Output Data (On- Grid)
Output Voltage Range (VAC)	211 to 264 @ 240
Nominal Output Frequency (Hz)	60
Max Output to Grid (W)	5760	7600	7600
Max Output from Grid (W)	5760	9120	9120
Continuous Output @240V (W)	5120	7600	7600
Continuous Output to Grid (A)	20.8	31.7	31.7
AC Output Data (Back-Up)
Nominal Output Voltage	120/240
Continuous Output @240V (W)	5760	7600	7600
Peak Output @240V (W)	5760, 60 sec.	8460, 60 sec.	9120, 60 sec.
PV String Input Data
Max AC Input Power (W)	7600
Efficiency
PV Max. Efficiency	97.6%
CEC Efficiency	96.1%
Battery Charged by PV, Max. Efficiency	98.1%
Battery Charge/Discharge to AC, Max. Efficiency	96.6%
General Data
Operating Temperature Range	– 20° to 55° C (- 4° to 131° F)
Relative Humidity Operating	0- 95%
Altitude	3000m
Noise (dB)	<45
Operating Modes	Backup, TOU, Self- Supply
Rating	NEMA 3R
Standby Self- Consumption (W)	<20
Communication Protocol	Modbus / CAN
Cycle Life	6,000 at 100% DOD
DC Protection	Main Contactor / Fuse
Mounting	Wall and Floor Mount (battery enclosure feet must rest on the floor)
[ MPPT = Maximum Power Point Tracking

Performance Specifications, DC Models

Model	KOH10DC	KOH15DC	KOH20DC
Battery Input Data
Usable Capacity(kWh)	10	15	20
Battery Type	LiFePO₄ (LFP)
Battery Voltage Range (V)	102.4 VDC (89.6- 115.2 VDC	153.6 VDC (134.4- 172.8 VDC)	204.8 VDC (179.2- 230.4 VDC)
Max. Charging Current (A)	50
Max. Discharging Current (A)	50
AC Output Data (On- Grid)
Output Voltage Range (VAC)	211 to 264 @ 240
Nominal Output Frequency (Hz)	60
Max Output to Grid (W)	7600 *	7600	7600
Max Output from Grid (W)	9120 *	9120	9120
Continuous Output to Grid (A)	20.8	31.7	31.7
AC Output Data (Back-Up)
Nominal Output Voltage, L- N, L1- L2 (VAC)	120/240
Continuous Output @240V (W)	5120	7600	7600
Peak Output @240V (W)	5760, 60 sec	8640, 60 sec	9120, 60 sec
PV String Input Data
Max DC Input Power (W)	11400
Max DC Input Voltage (V)	600
MPPT Range (V) [	80- 550
Start- up Voltage (V)	95
MPPT Range for Full Load (V) [	230- 500
Nominal DC Input Voltage (V)	380
Max. Input Current (A)	12.5
Max. Short Current (A)	15.2
MPP Trackers (quantity) [	4
Efficiency
PV Max. Efficiency	97.6%
PV CEC Efficiency	97.2%
Battery Charged by PV, Max. Efficiency	98.1%
Battery Charge/Discharge to AC, Max. Efficiency	96.6%
General Data
Operating Temperature Range	– 20° to 55° C (- 4° to 131° F)
Relative Humidity Operating	0- 95%
Altitude	3000m
Noise (dB)	<45
Communication (Built- in)	4G Cellular Communication, WiFi
Operating Modes	Backup, TOU, Self- Supply
Rating	NEMA 3R
Standby Self- Consumption (W)	<20
Communication Protocol	Modbus / CAN
Cycle Life	6,000 at 100% DOD
DC Protection	Main Contactor / Fuse
Mounting	Wall and Floor Mount (battery enclosure feet must rest on the floor)
* For the DC10 model, limits without PV (nighttime) are equal to the limits shown for AC10. [ MPPT = Maximum Power Point Tracking

Product Specifications

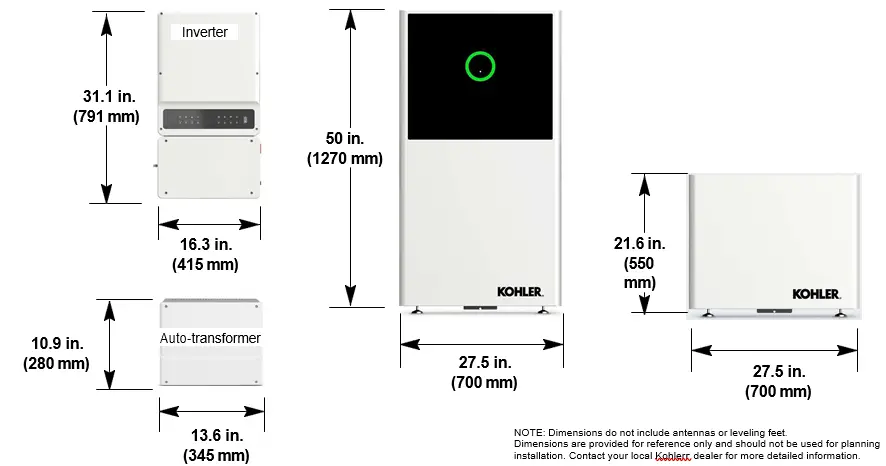

Weights and Dimensions (AC and DC)
Model, kWh	10	15	20
Weight	240 kg (530 lb )	329 kg (725 lb )	420 kg (925 lb)
Size, Battery Enclosure	700 x 1270 x 230 mm (27.5 x 50 x 9 in.)	1524 x 1270 x 230 mm (60 x 50 x 9 in.)	1524 x 1270 x 230 mm (60 x 50 x 9 in.)
Size, Inverter	415 x 791 x 175 mm (16.3 x 31.1 x 6.9 in.)
Size, Auto-transformer	345 x 275 x 175 mm (13.6 x 10.9 x 6.9 in.)

Compliance

Inverter
Grid Regulation	UL1741 SA (CA Rule 21), UL9540, HECO Rule 14, IEEE 1547, IEEE 1547.1, CSA 22.2
Safety Regulation	UL 1741, CSA 22.2 No. 107- 01, UL 1998, UL1699B
EMC	FCC Part 15 Class B
Battery
Battery	UL 1973, UL 1642
Energy Storage System	UL9540
Communication Protocol	Open ADR 2.0b, Open ADR

Battery Performance Specifications

Battery Input Data
Usable Capacity	10, 15, 20 kWh
Initial Capacity (nominal)	2.56 kWh per pack
Battery Chemistry	LiFePO4 (LFP)
Max Charge Current	50 A
Max Discharge Current	50 A
Efficiency
Battery Charged by PV Efficiency	98.10%
Battery Round Trip Efficiency	96.60%

Availability is subject to change without notice. Kohler Co. reserves the right to change the design or specifications without notice and without any obligation or liability whatsoever. Contact your local Kohlerr Power Systems dealer for availability.
