AEMC 6255 -10A Micro Ohmmeter

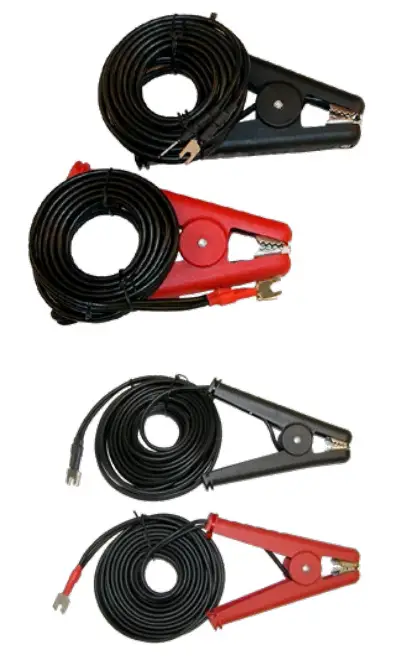

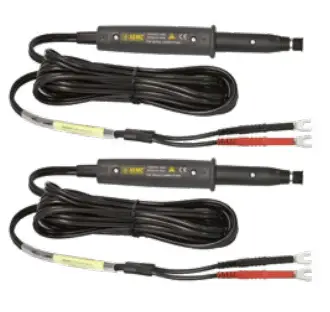

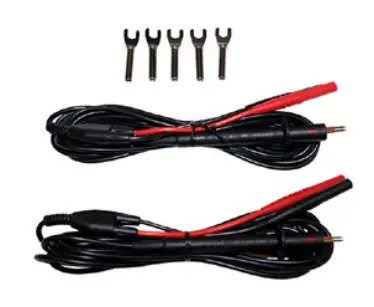

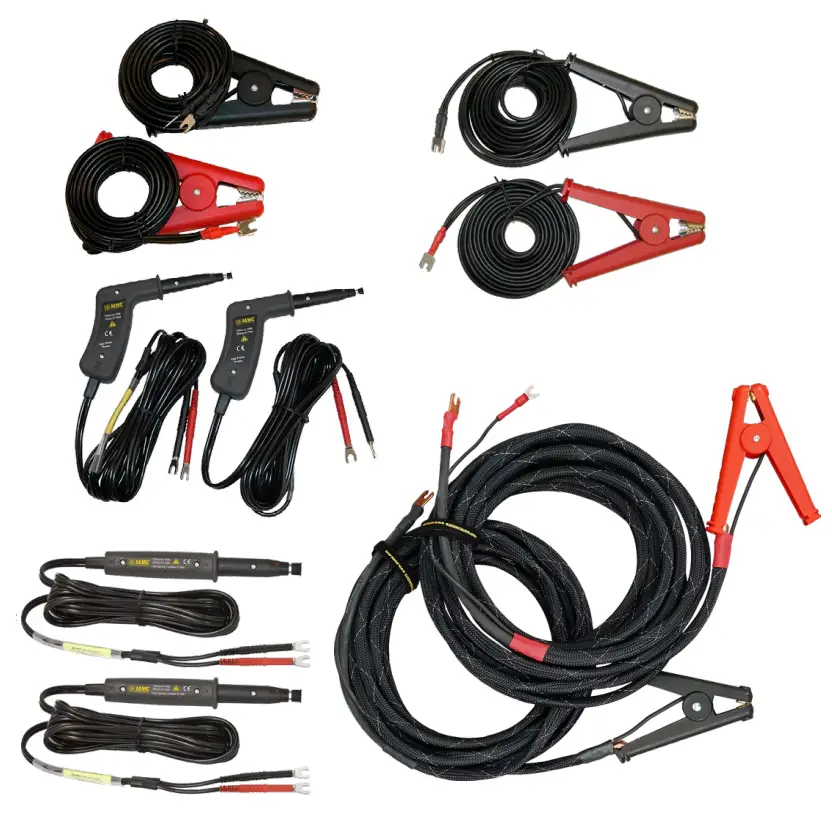

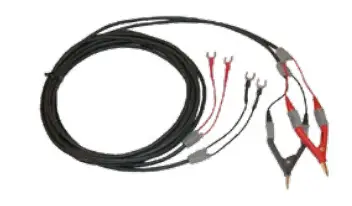

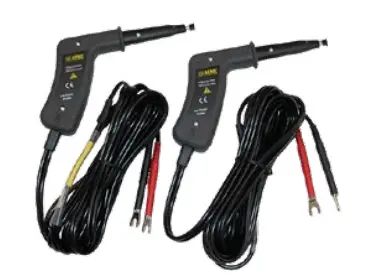

6240 & 6255 Micro-Ohmmeter Probe Sets
| Probe #1 Colors | Probe #2 Colors | Probe Handle Colors | Catalog # | Image |
| Red/Red | Blk/Blk | Red/Red and Blk/Blk | 1017.84* (10 ft) 2118.70* (20 ft) |  |
| Red/Red | Blk/Blk | Red/Red and Blk/Blk | 2118.82* (10 ft) |  |
| Red/Blk | Red/Blk | Blk w/ Red Dot = Red Lead | 2118.73** (10 ft) 2118.74** |  |
| Red/Blk | Red/Blk | Red/Blk and Red/Blk | 2118.79** (10ft) 2118.80** (20ft) |  |
| Red/Blk | Red/Blk | Blk w/ Red Dot = Red Lead | 2118.77** (10 ft) 2118.78** (20 ft) |  |
| Red/Blk | Red/Blk | Blk w/ Red Dot = Red Lead | 2118.75** (10ft) 2118.76** (20 ft) |  |
* For use with any micro-ohmmeter that accepts fork terminal termination
** For use with any micro-ohmmeter that accepts 4mm banana plugs or fork terminal termination

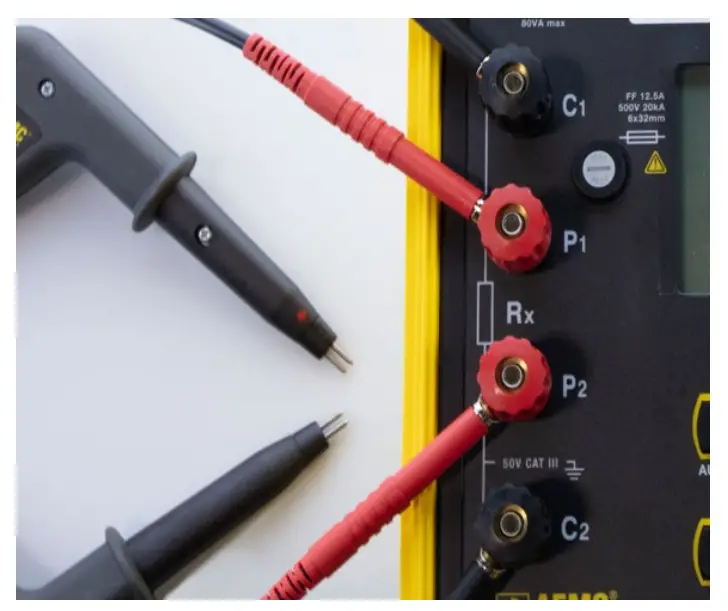

Lead Connections for Current Models of the 6240 & 6255*
| The two leads of each Kelvin probe will connect to the C1, P1 and C2, P2 on current Models 6240 & 6255 | |
| For the probes with Red/Red and Blk/Blk leads: Connect them as shown here |  |
| For the probes with Red/Blk and Red/Blk leads: Connect them as shown here. |  |
| For the probes with Red/Blk and Red/Blk leads and Red DOT located on the probe tip: Connect them as shown here. |  |
*For Models 6240 and 6255 instruments with serial numbers lower than 1166339SEDV, terminals C1 and P1 are red, and C2 and P2 are black. In this case, connect probes as shown in the table on the following page.

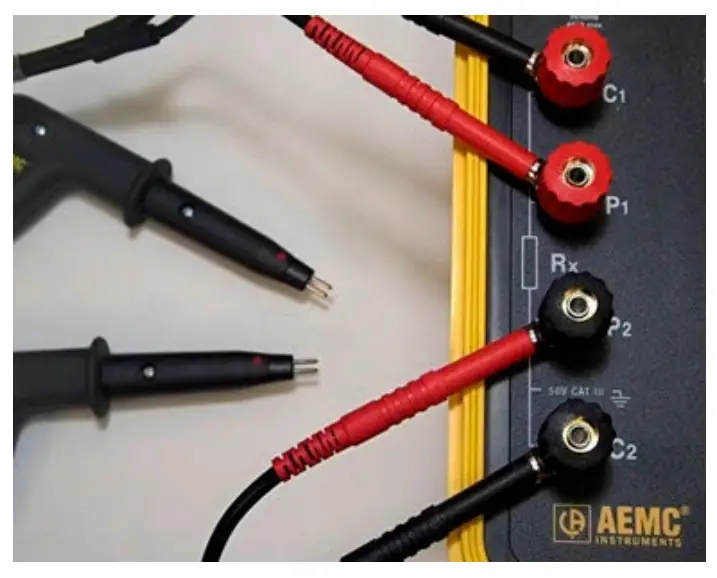

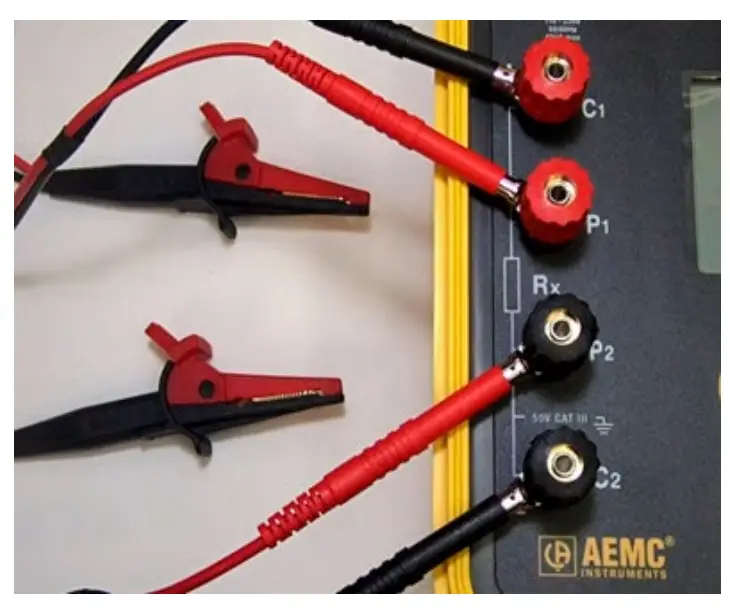

6240, 6250 & 6255 Lead Connection Examples
| The two leads of each Kelvin probe will connect to the C1, P1 and C2, P2 on the Models 6240, 6250 & 6255 | |
| For the probes with Red/Red and Blk/Blk leads: Connect them as shown here |  |
| For the probes with Red/Blk and Red/Blk leads: Connect them as shown here. |  |
| For the probes with Red/Blk and Red/Blk leads and Red DOT located on the probe tip: Connect them as shown here. |  |
Visit our YouTube Channel for an instructional video on this method and many other informational videos: www.youtube.com/user/AEMCinstruments
