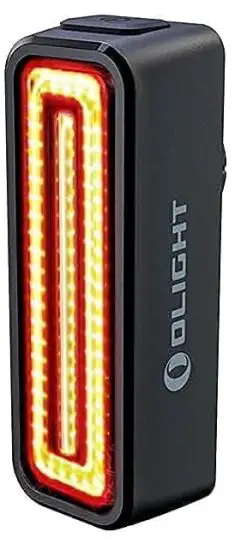

OLIGHT RN 100 TL Smart Tail Light User Manual
IN THE BOX

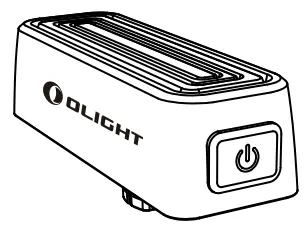

- RN 100 TL
- Saddle Mount
- Micro USB Cable
- Seat Post Mount
SPECIFICATIONS
| CONSTANT | AUTO BRAKE | LOW | MID | HIGH | / |
 | 100 | 18 | 36 | 72 | / |
 | / | 03 30 | 02 00 | 01 30 | / |
| FLASH | AUTO BRAKE | BREATHE | COMET | FLASH | INTERACTIVE |
| 100 | 0-72-0 | 72-0 | 0-72 | 72-0 |
| / | 02 30 | 03 30 | 10 00 | 06 00 |
| SMART | AUTO BRAKE | DAY | NIGHT | / | / |
| 100 | 5-70 | 3-70 | / | / |
| / | 12 00 | 03 00 | / | / |
 |  |  |  |
IPX6 | 1m | 2.76*0.98*0.75in 70*25*19mm | 37g / 1.3 oz |
All above specifications are test results based on ANSI/NEMA FL1-2009 Standard.
HOW TO INSTALL

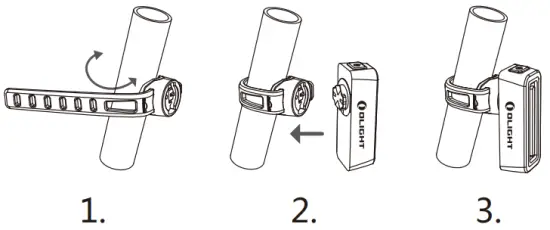

SCHEME 1：

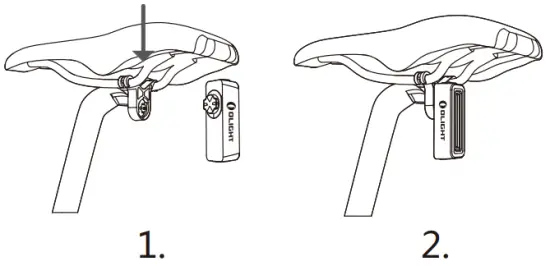

SCHEME 2：

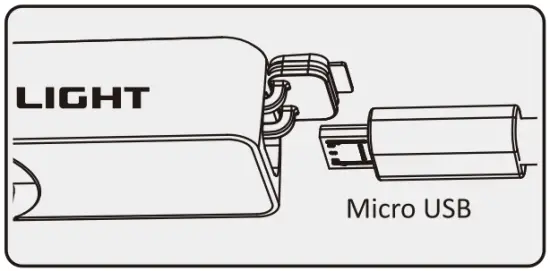

HOW TO RECHARGE
- Charging

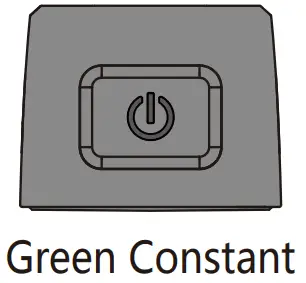

- Fully Charged
- Standard Charging Time: Approx.1.5hrs (5V 1A)
DANGER
- DO NOT shine the light directly into human eyes. This may cause temporary blindness, or permanent damage to the eyes.
- DO NOT cover the light head when the bicycle light is on, or place the bicycle light head on the ground. The radiation energy of the bicycle light may cause damage to the bicycle light itself, or even result in burning to flammable objects.
WARNING
- Keep out of reach of children.
- The light contains a lithium-ion battery.
Certain restrictions may apply to this product when traveling, especially when traveling by air. Always check with your carrier for specific restrictions prior to traveling with this product.
NOTICE
- Store the light at room temperature in a dry place. Avoid moisture, or extreme hot or cold.
- Store the light in the charged condition. Avoid “deep discharge”. Battery life will decrease if the light is stored in a fully discharged condition.
- Over time, the run time of the battery will diminish. Expect about 500 full charges, depending on care. After a full life, the battery will continue to charge but with a lower run time.
- When the run time is unsatisfactory, please recycle. Do not open the case of the light or incinerate.
HOW TO OPERATE
Long press to turn on/off the light, click to change the brightness level and flash modes, and double click to switch modes.
Mode memory function will save the last selected mode and brightness.
WARRANTY
Within 30 days of purchase: Return to the original seller for repair or replacement.
Within 2 years of purchase: Return to Olight for repair or replacement.
This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an Authorized retailer or Olight itself.
USA Customer Support [email protected]
Global Customer Support [email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
Dongguan Olight E-Commerce Technology Co., Ltd
4th Floor, Building 4, Kegu Industrial Park, No 6
Zhongnan Road, Changan Town, Dongguan City,
Guangdong, China.
Made in China
